Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

LOWER INTAKE MANIFOLD SPECIAL TOOL CHART

Disconnect Tool, Spring Lock Coupling (1/2 inch) 310-D005 (D87L-9280-B) or equivalent

LOWER INTAKE MANIFOLD MATERIAL SPECIFICATION

Item	Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP	WSS-M2C930-A

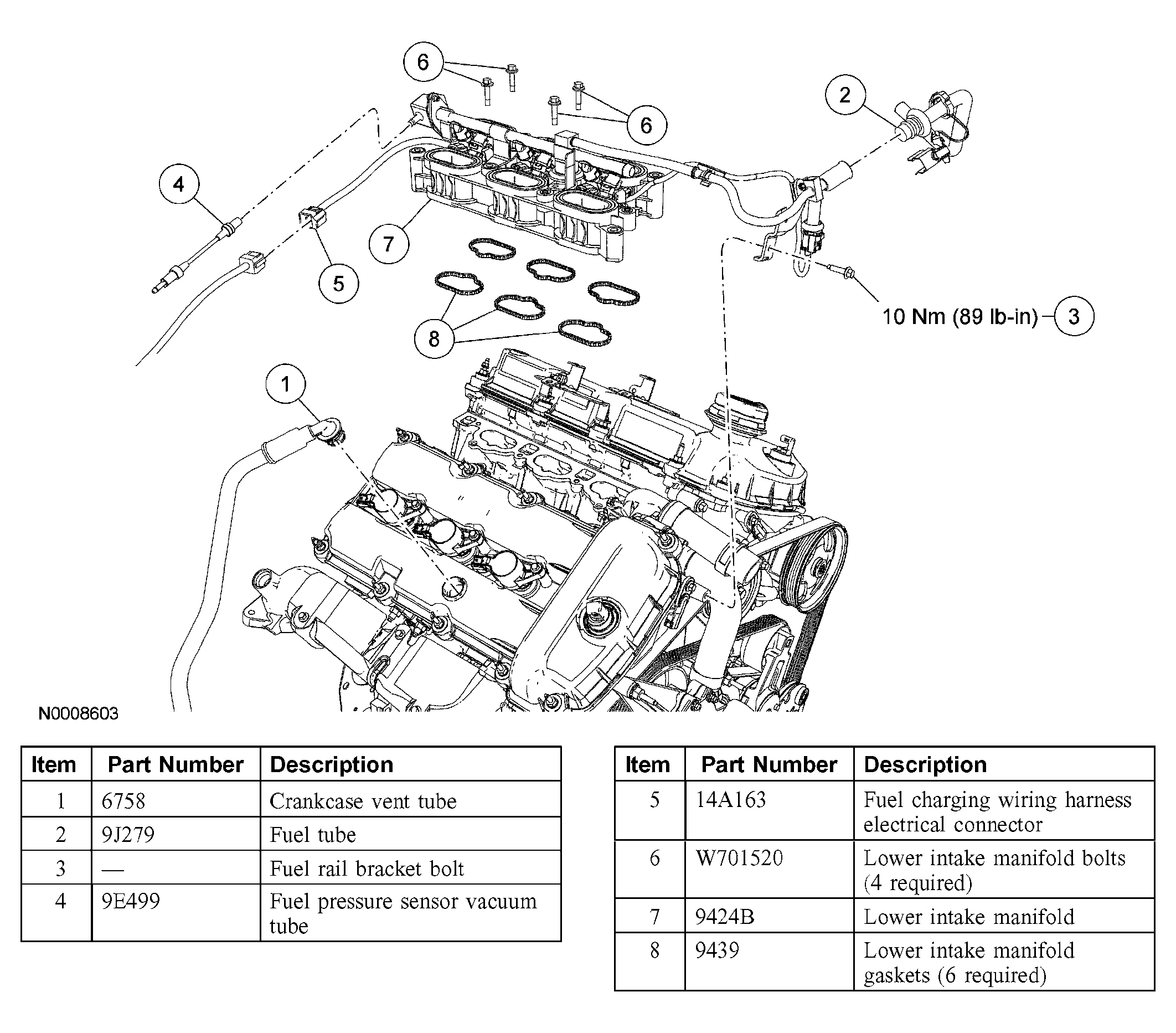

Fig 1: Identifying Components Of Lower Intake Manifold

Courtesy of FORD MOTOR CO.
