Upper Intake Manifold: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

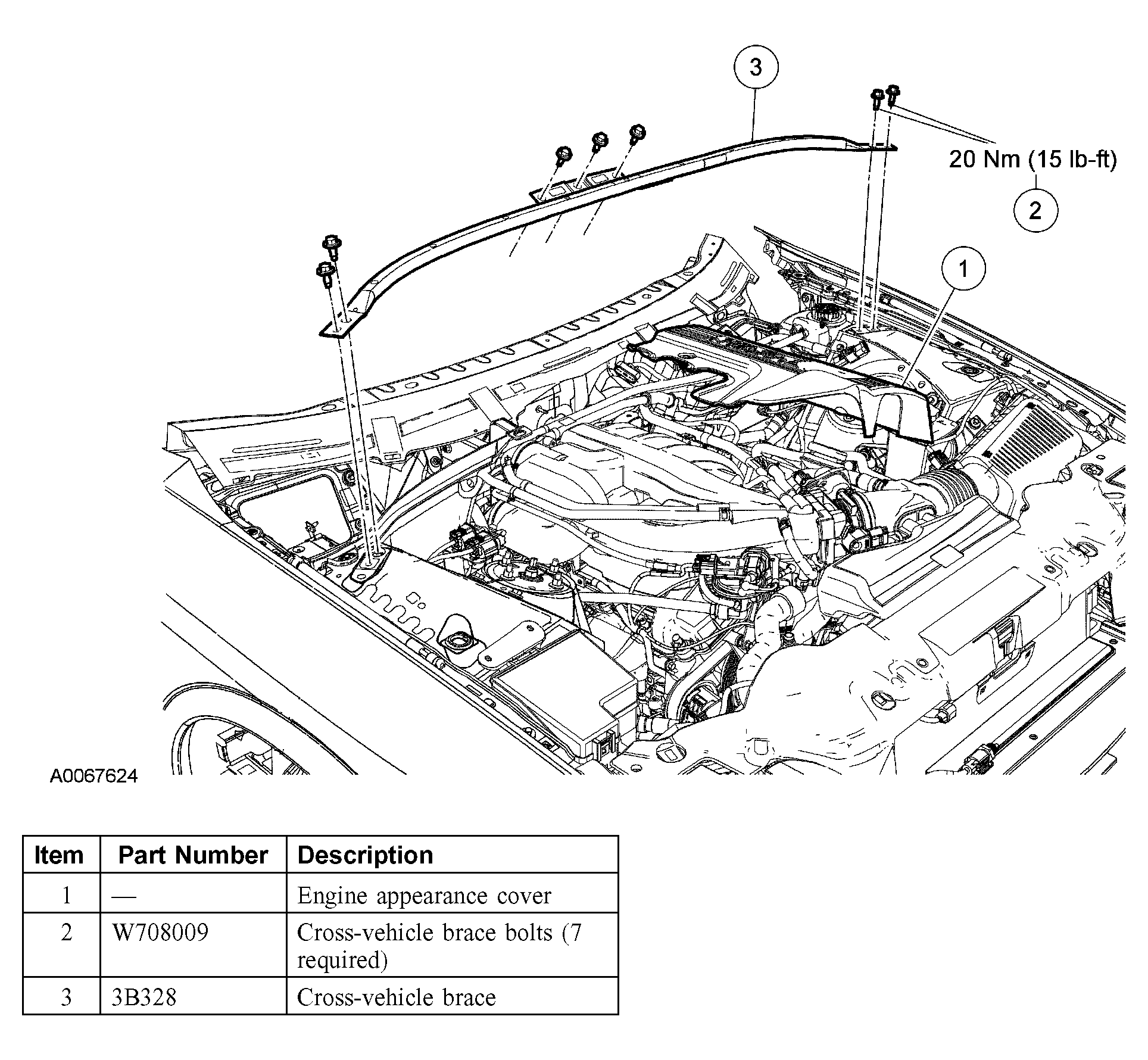

Fig 1: Identifying Components Of Upper Intake Manifold (1 Of 4)

Courtesy of FORD MOTOR CO.

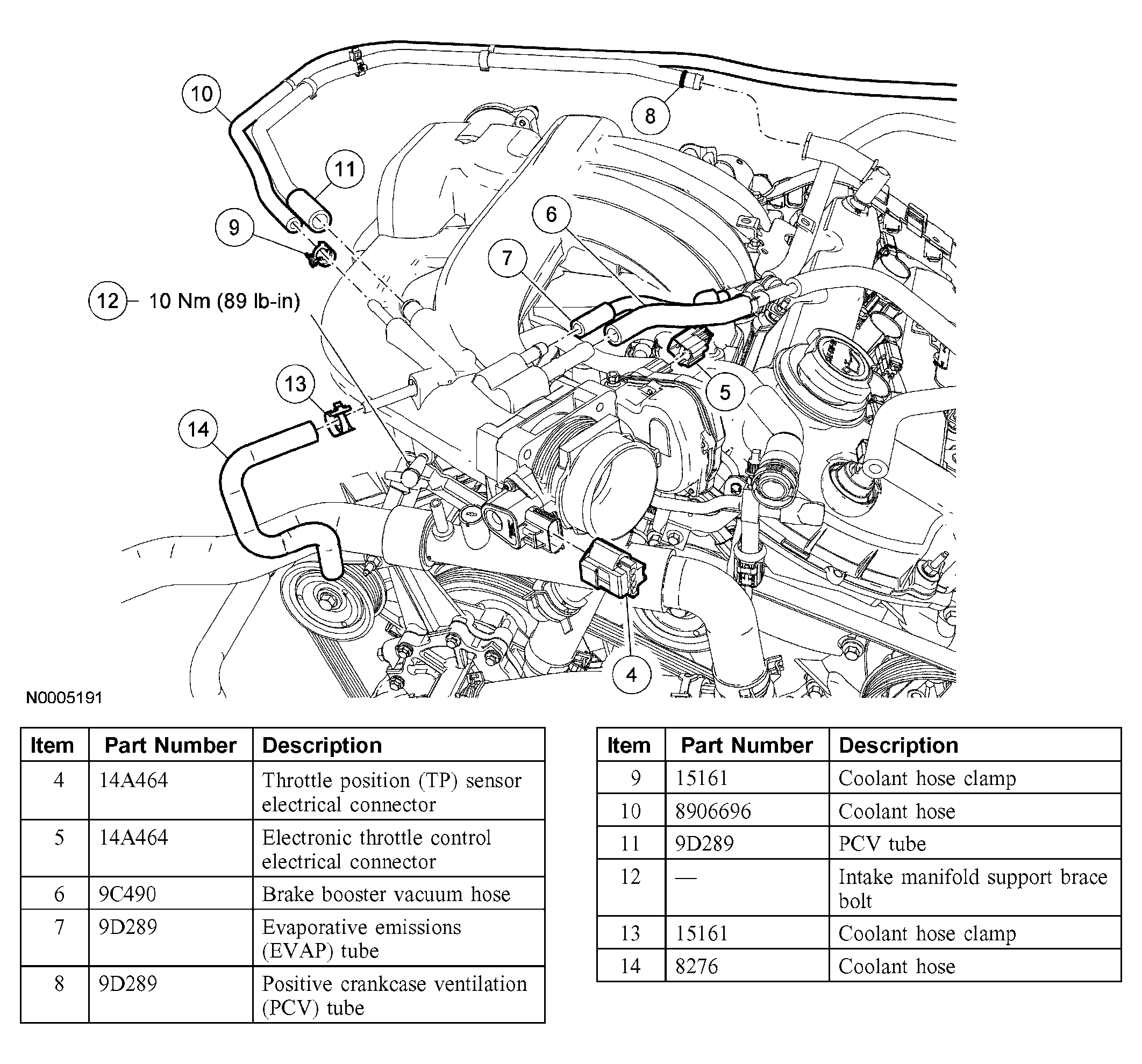

Fig 2: Identifying Components Of Upper Intake Manifold (2 Of 4)

Courtesy of FORD MOTOR CO.

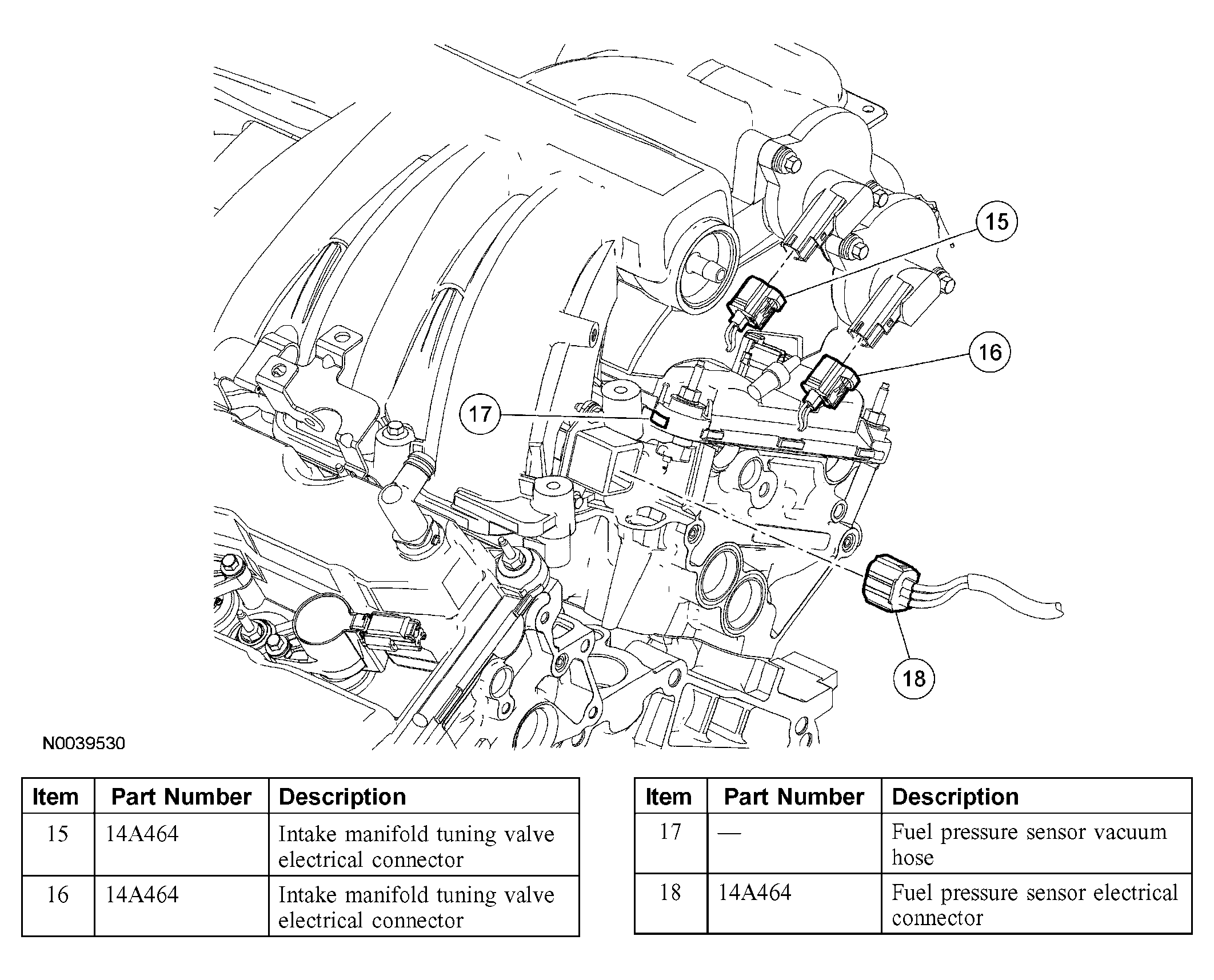

Fig 3: Identifying Components Of Upper Intake Manifold (3 Of 4)

Courtesy of FORD MOTOR CO.

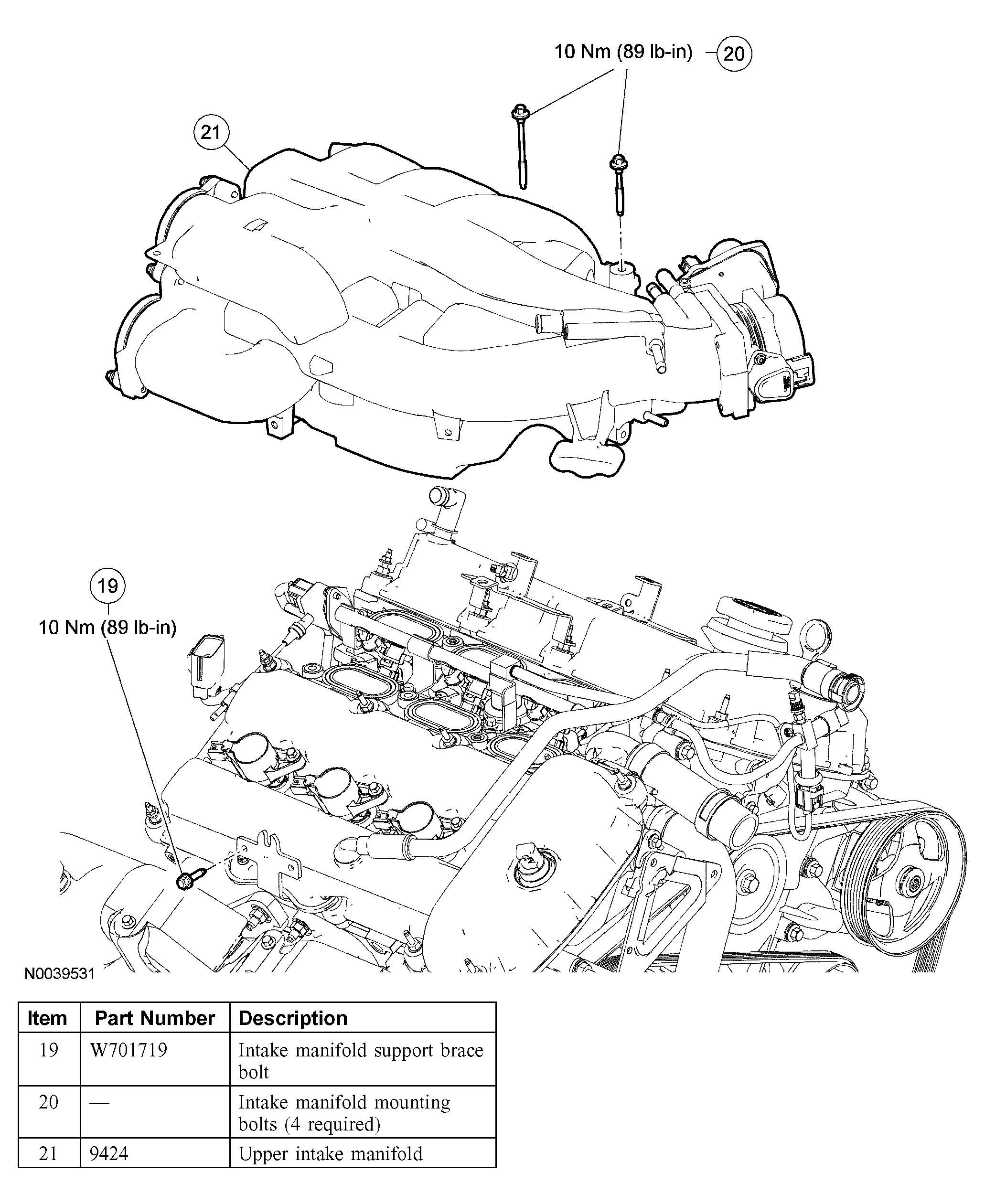

Fig 4: Identifying Components Of Upper Intake Manifold (4 Of 4)

Courtesy of FORD MOTOR CO.
