Home >> Ford >> 1999 >> Windstar V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> HY - Generator/Regulator System >> Pinpoint Test Schematics and Connectors

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

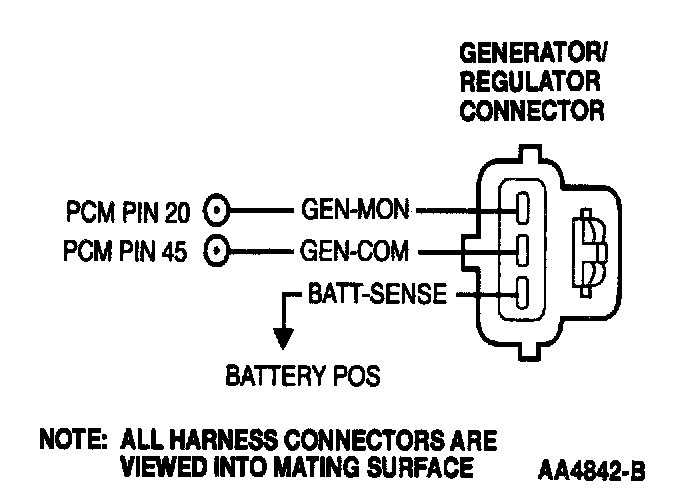

Pinpoint Test Schematics and Connectors
