Engine Ignition Components - Exploded View

WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

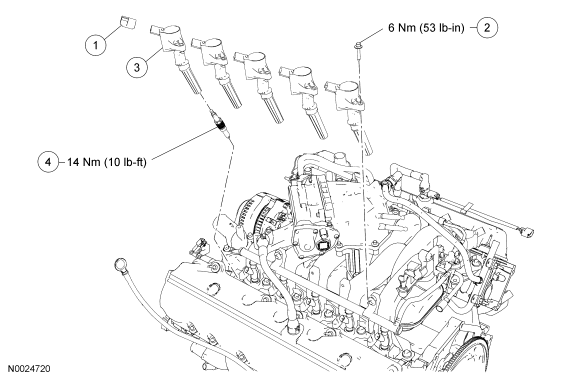

Fig 1: Ignition Replacement Components With Torque Specifications
GF0012019Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - LH ignition coil electrical connector (5 required) (part of 12B637)
2 W706175 LH ignition coil retaining bolt (5 required)
3 12A366 LH ignition coil (5 required)
4 12405 LH spark plug (5 required)
  1. For additional information, refer to the procedures.
