Door Lock Control Switch

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. For additional information, refer to INTERIOR TRIM - LS .
Remove the components in the order indicated in the illustration and table.

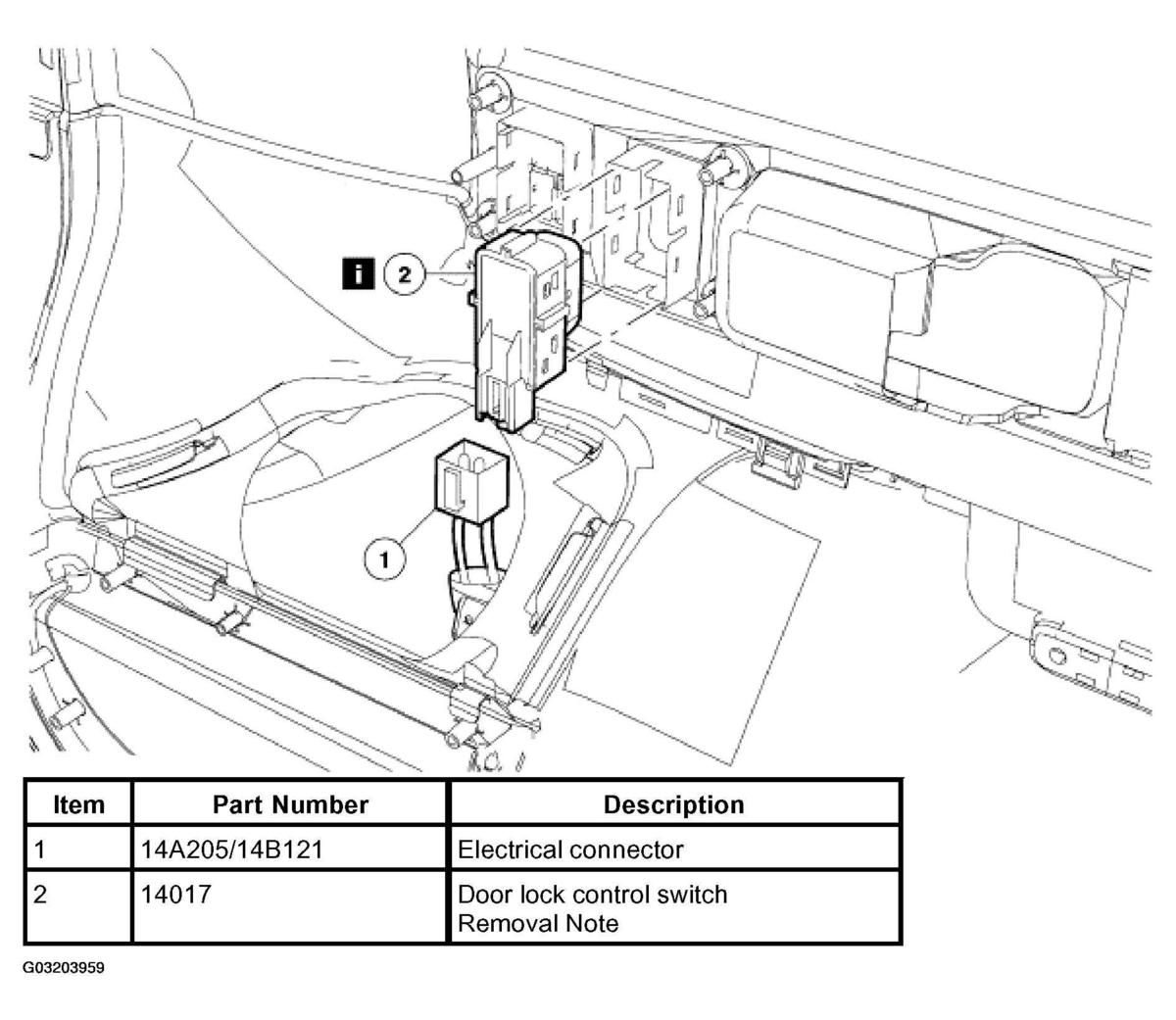

Fig 1: Identifying Door Lock Control Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 2: Door Lock Control Switch Removal Note

Release the switch from the locking tabs.

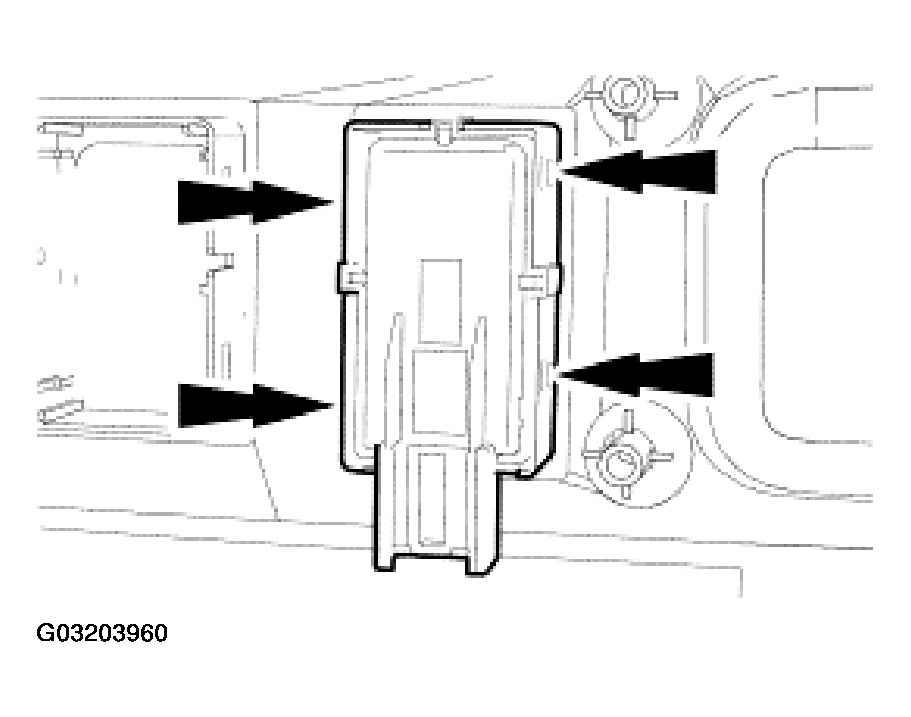

Fig 2: Releasing Switch From Locking Tabs
Courtesy of FORD MOTOR CO.
