Test X: Constant Control Relay Module (CCRM)

NOTE
This Pinpoint Test is intended to diagnose the following:
- Constant Control Relay Module (CCRM)
- Harness Circuits: B+, FC, LFC, HFC, ACCS, WAC, VPWR (TO CCRM), A/C Clutch PWR, (Low/High) Fan PWR,GND
- Powertrain Control Module (PCM)

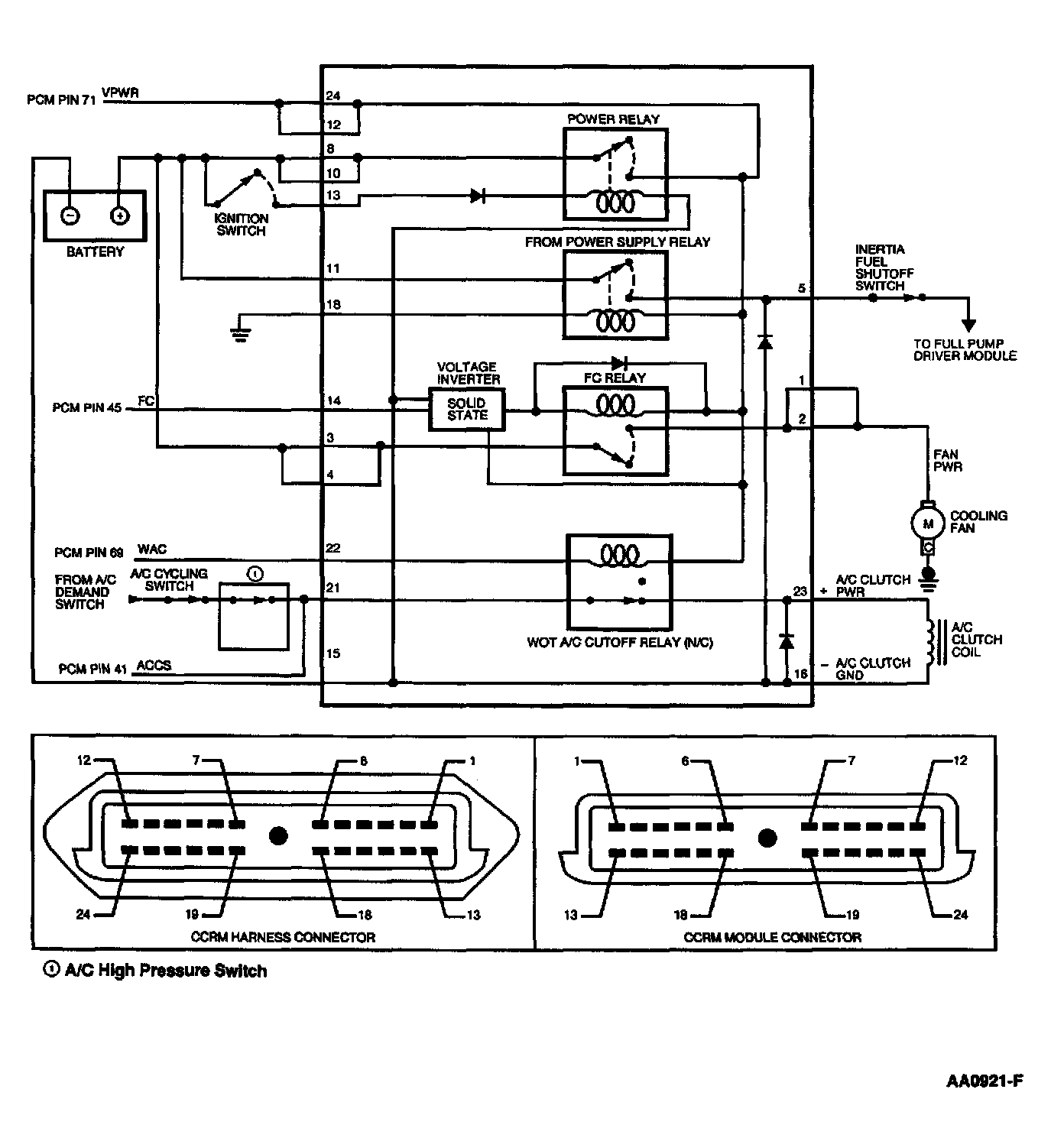

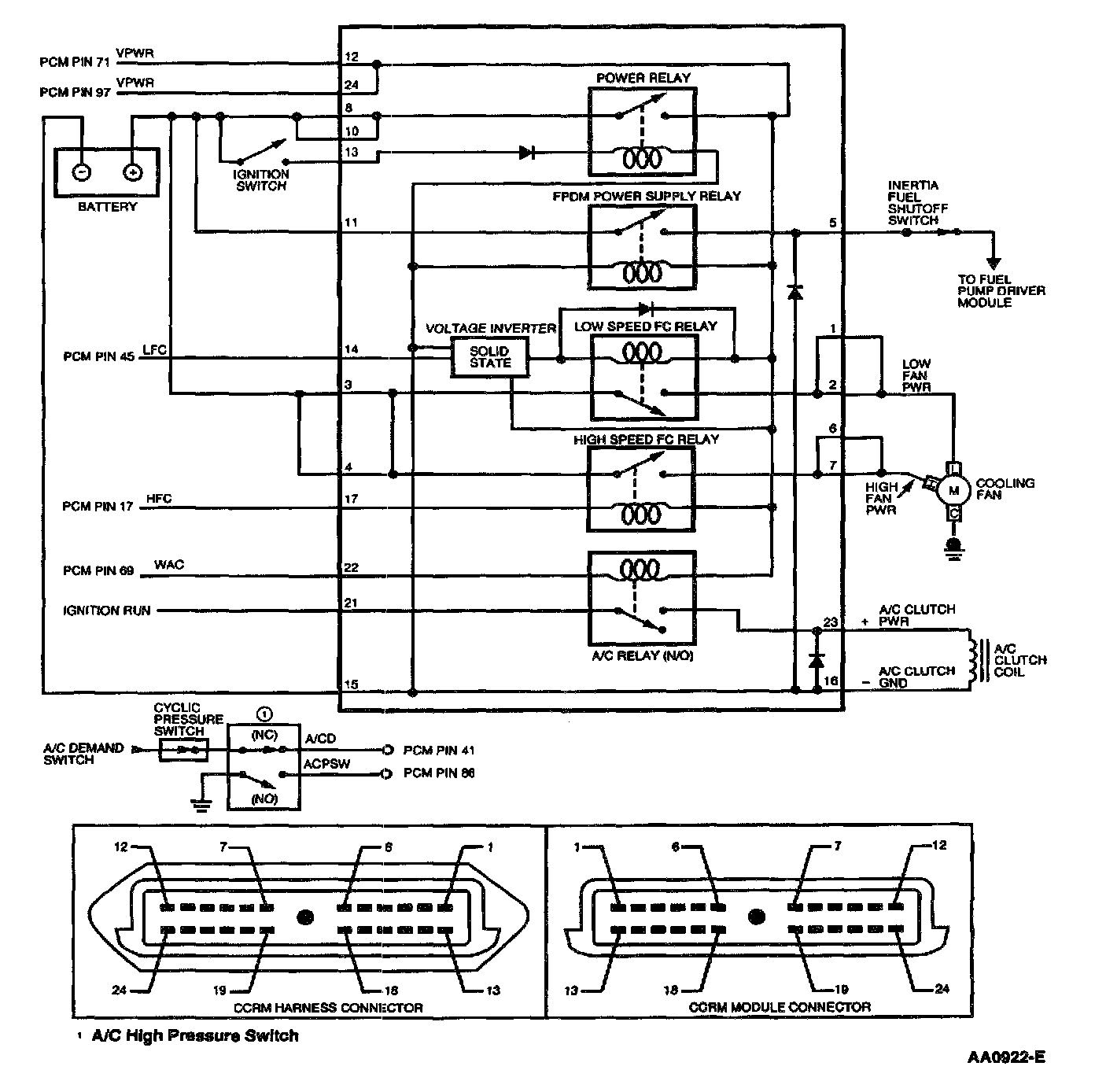

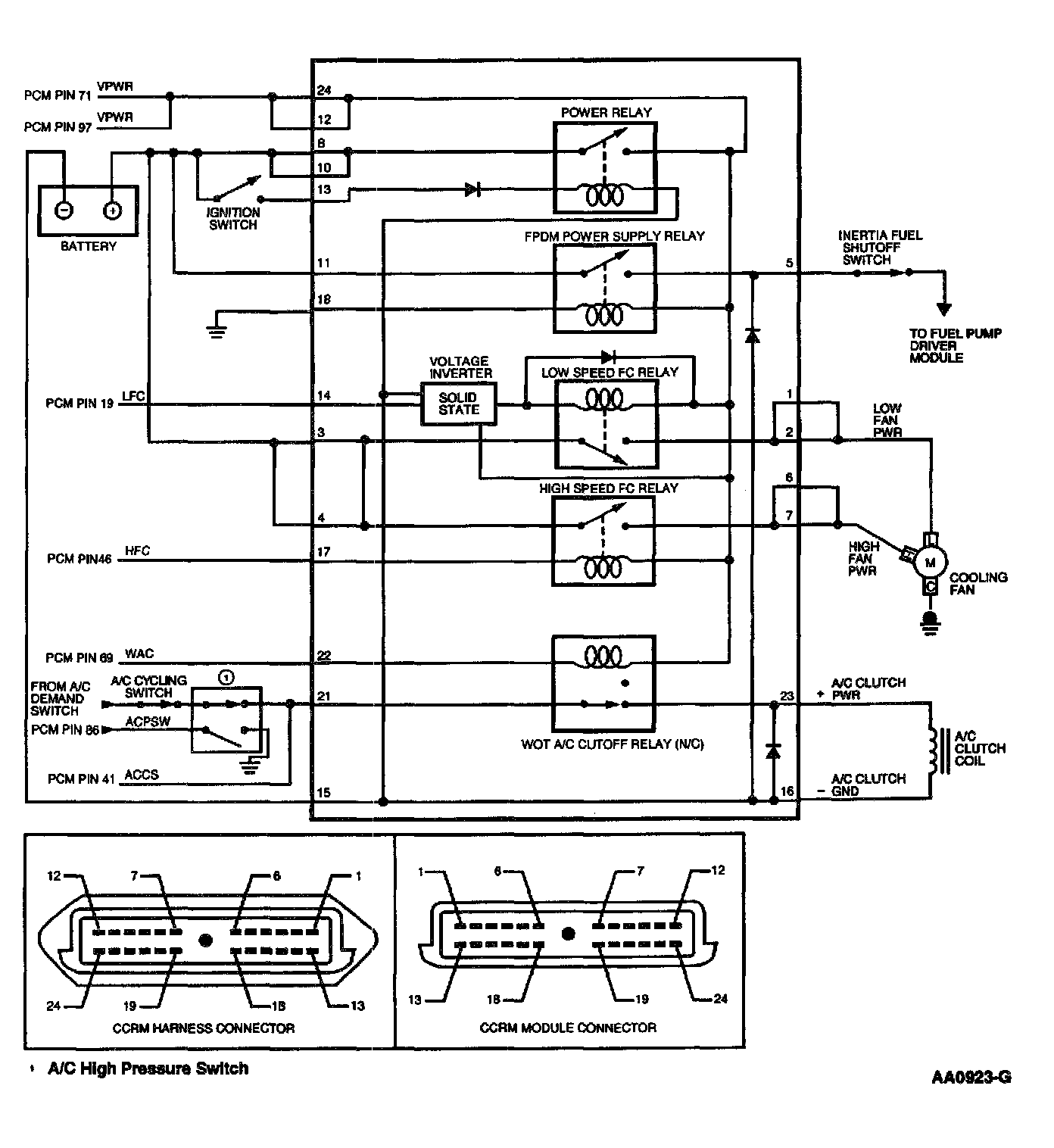

Pinpoint Test Schematics and Connectors

Escort (CCRM System):

3.8L Mustang (CCRM) System):

4.6L Mustang (CCRM System):

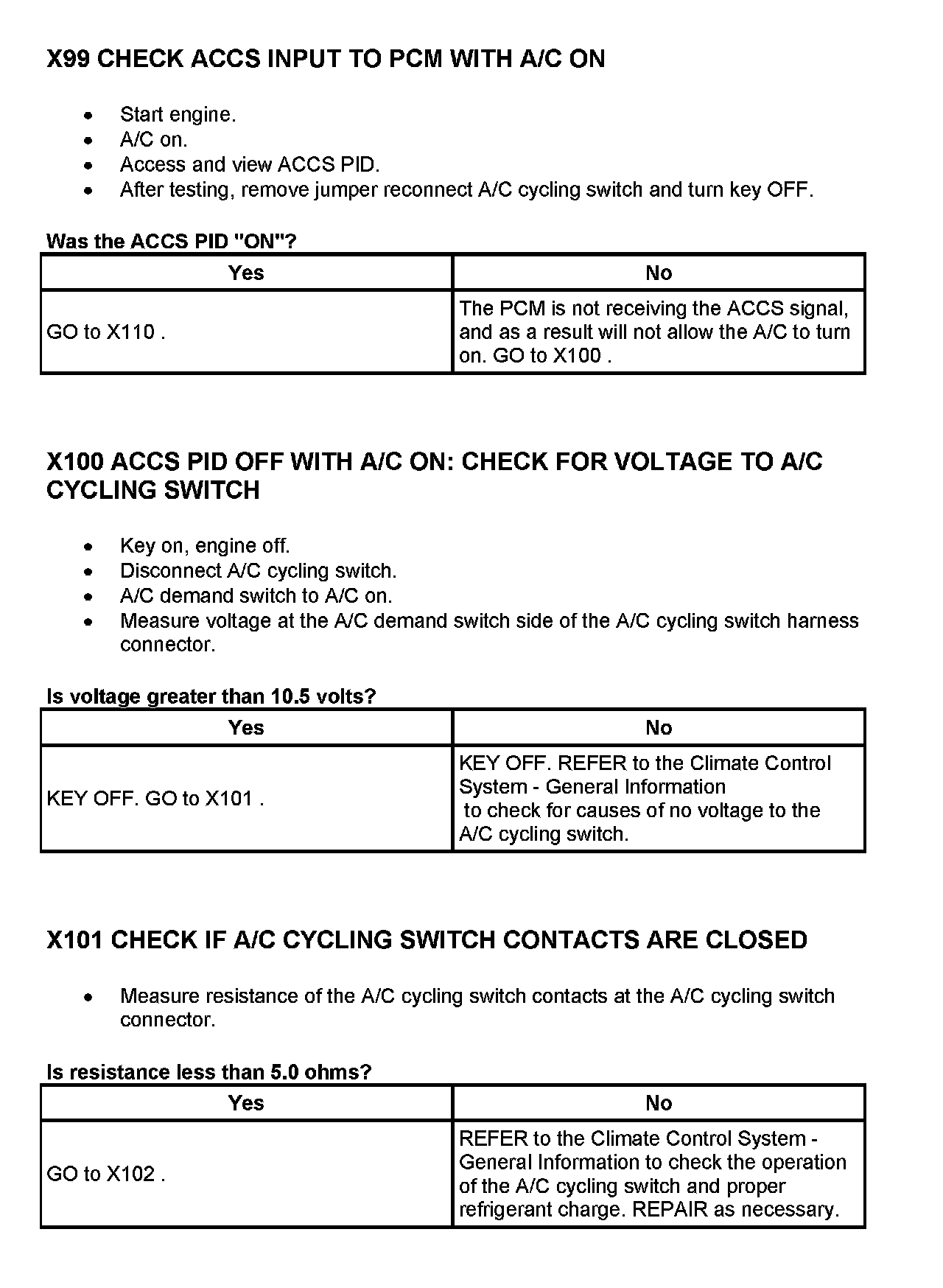

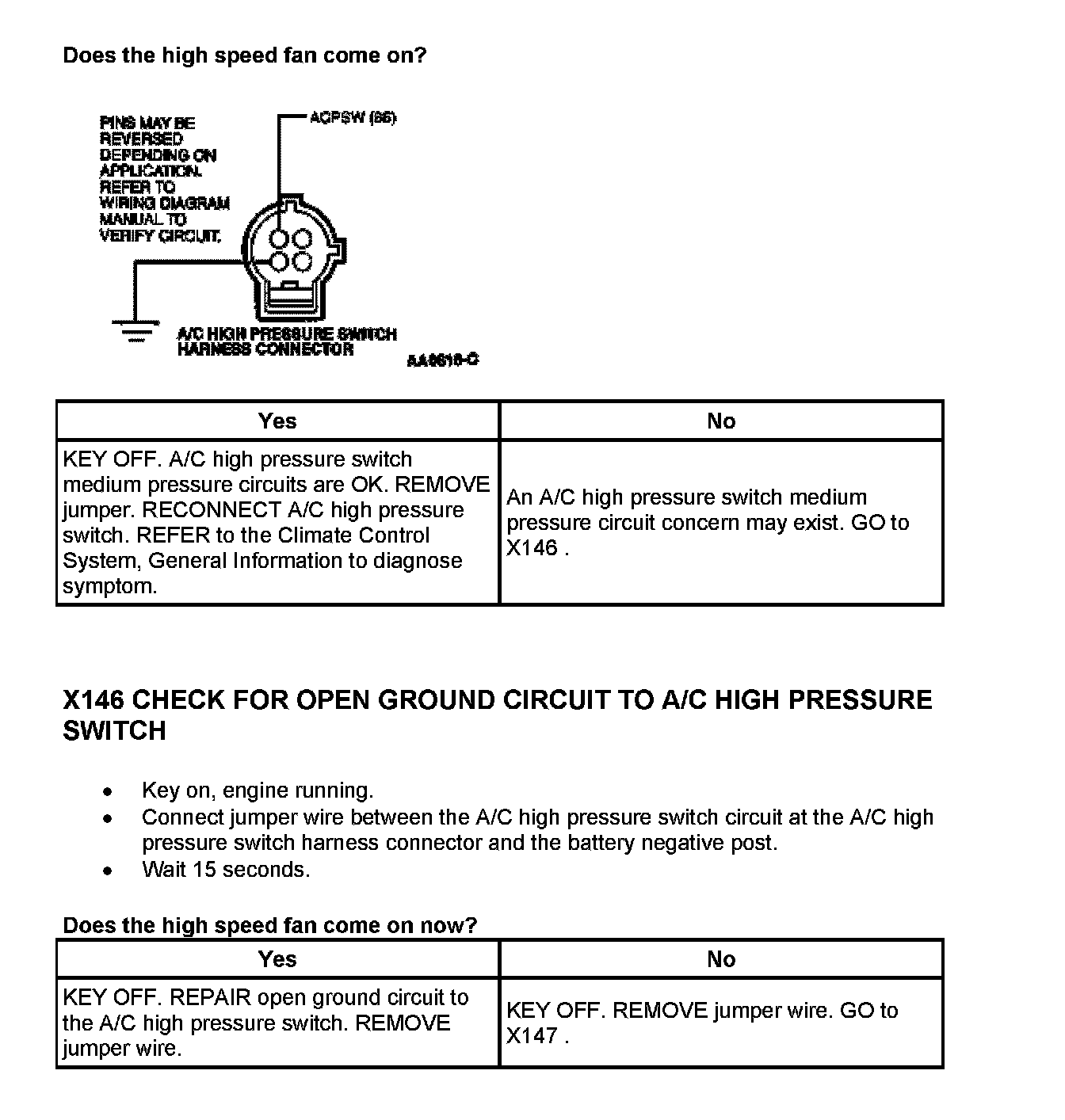

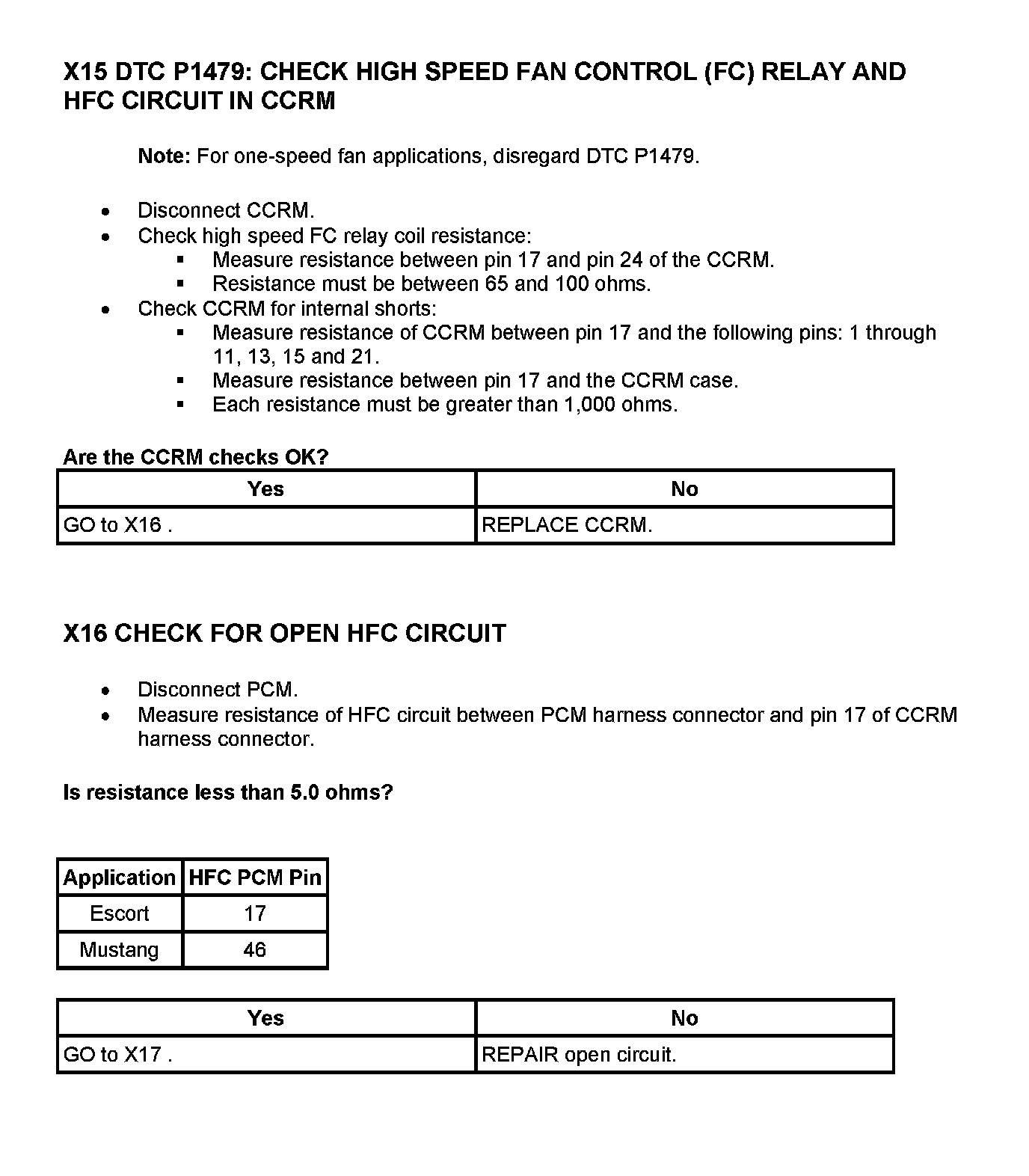

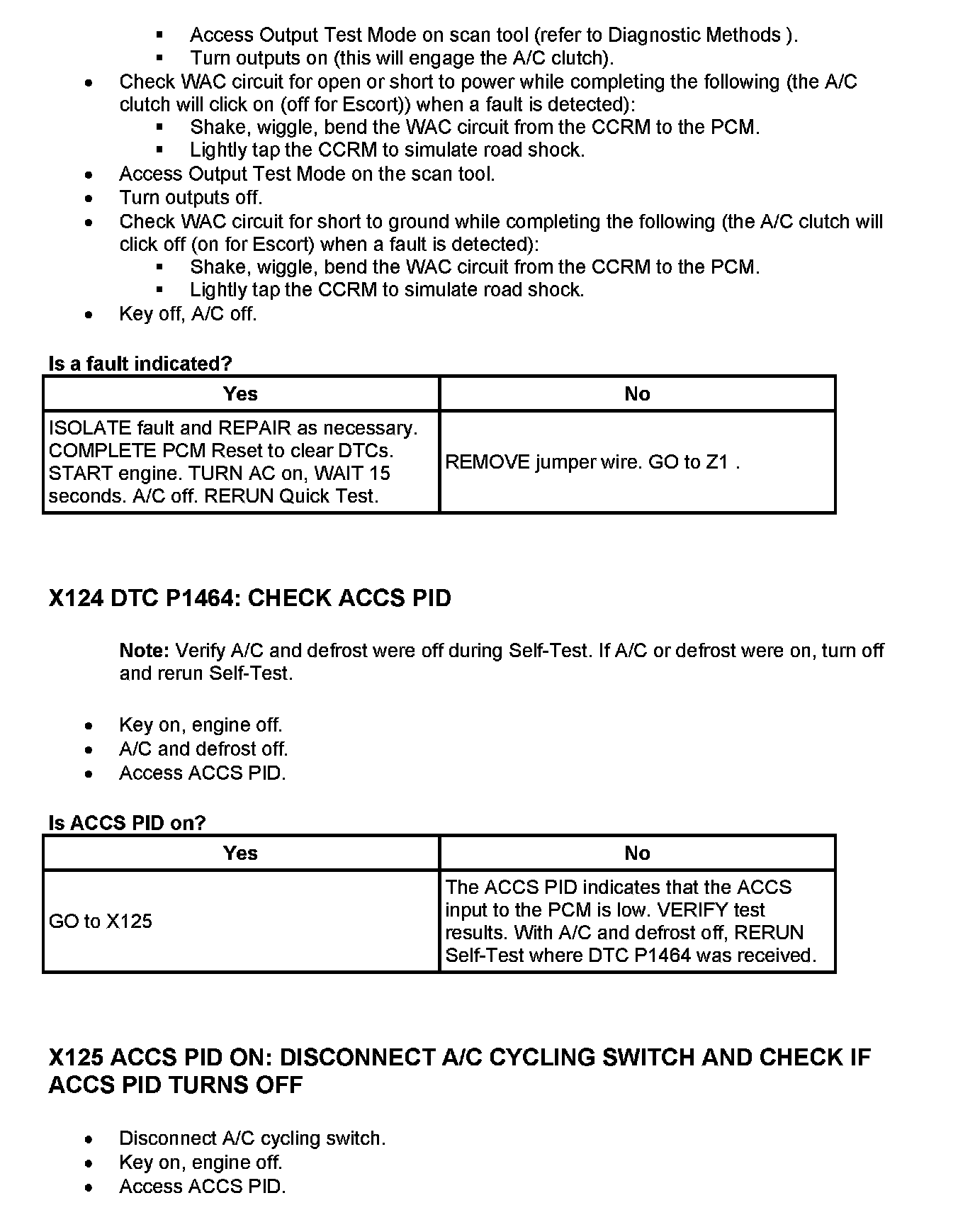

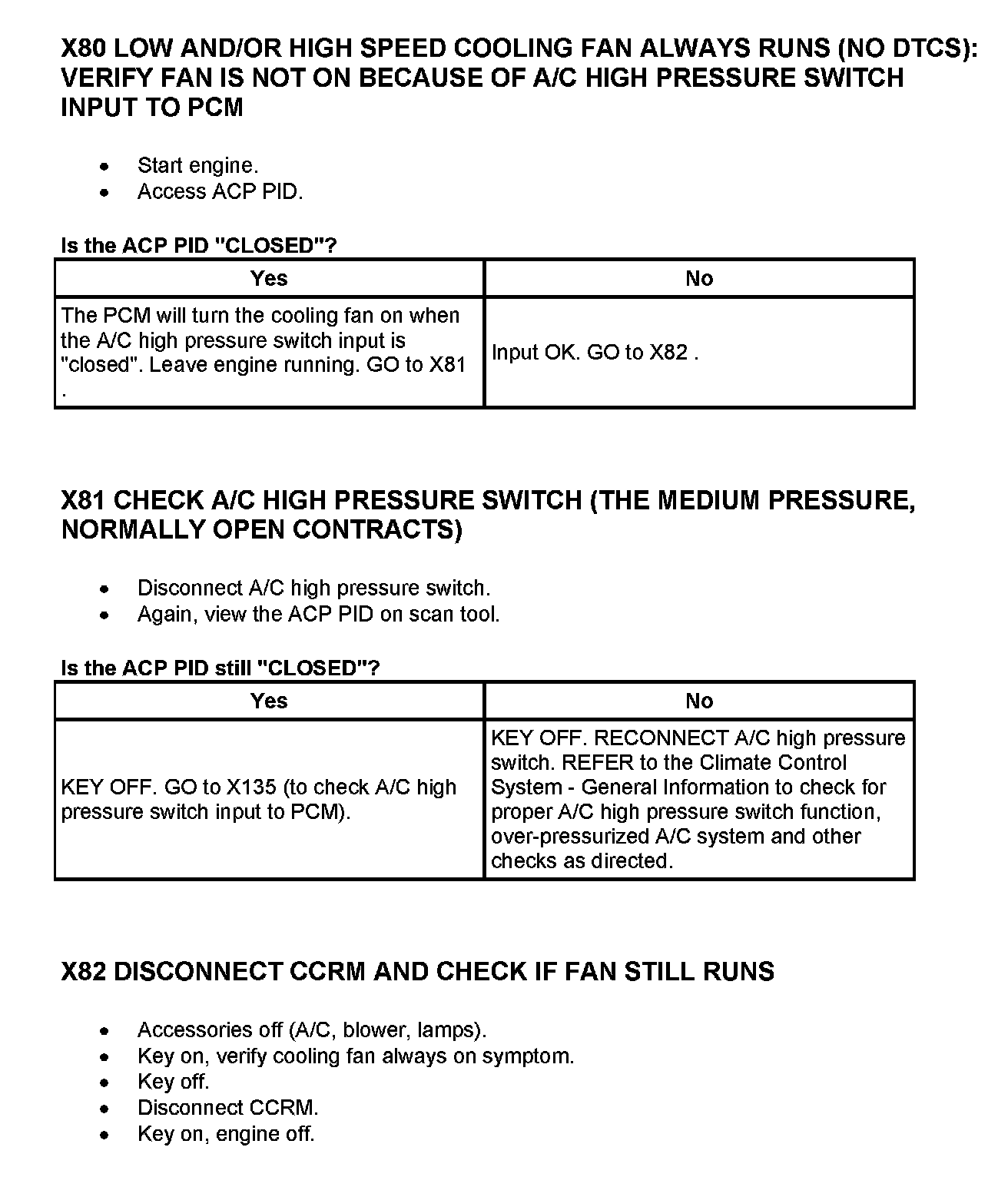

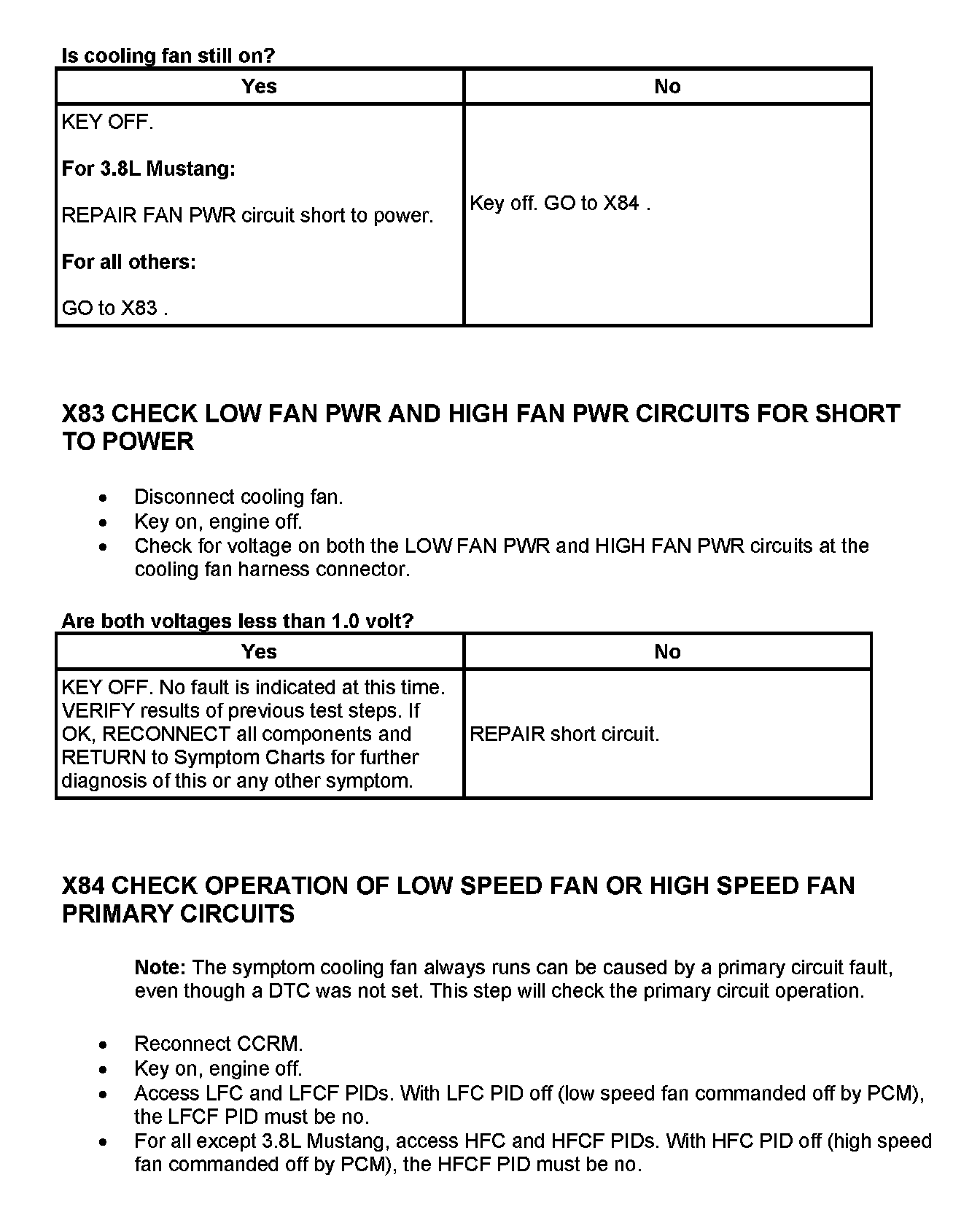

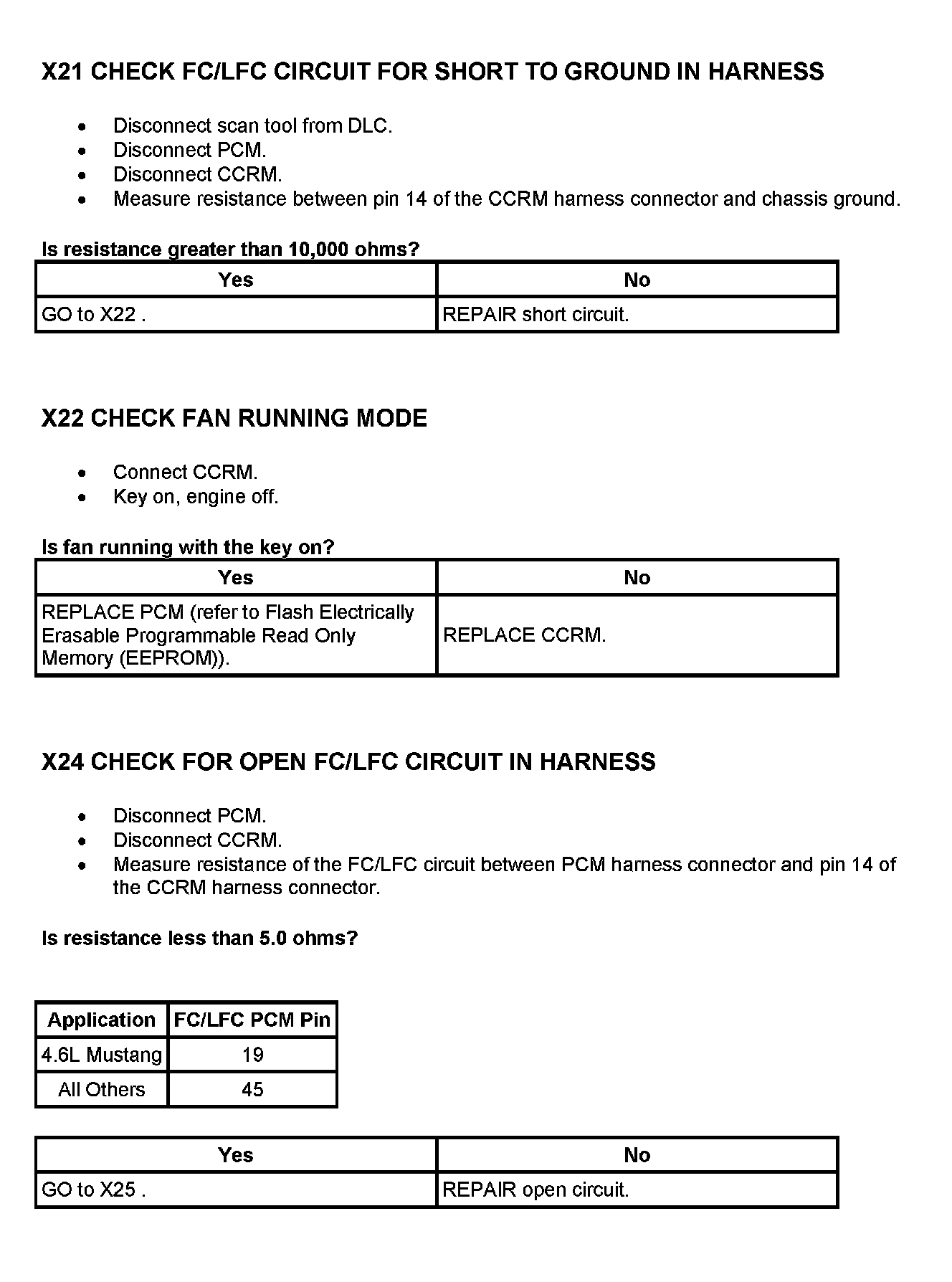

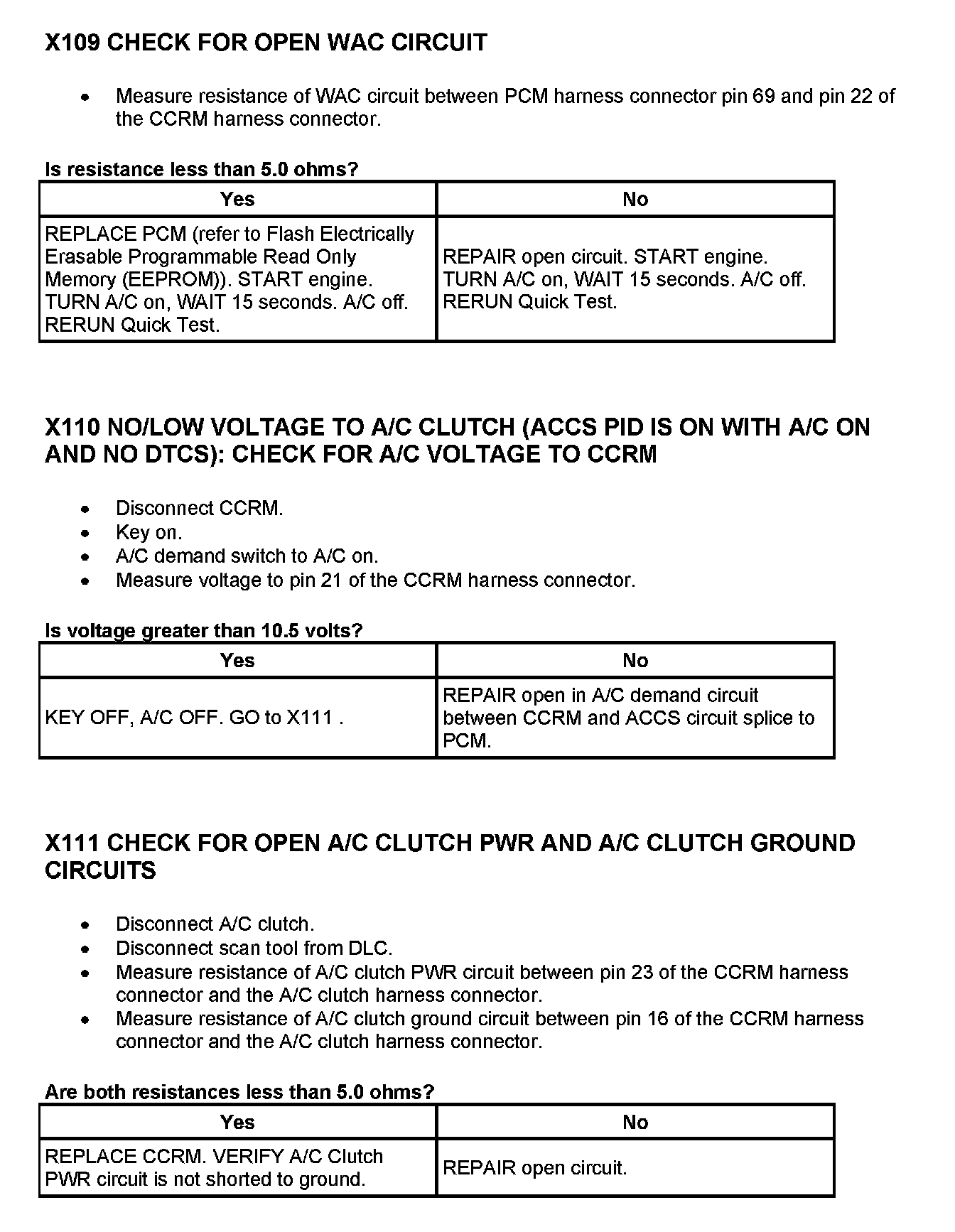

Pinpoint Tests
