Section 1260 (Engine - 6.8L): Assembly: Engine: Assembly

WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Record the main bearing code found on the front of the engine block.

Fig 1: Identifying Main Bearing Code Found On Front Of Engine Block

Courtesy of FORD MOTOR CO.

Record the main bearing code found on the back of the crankshaft.

Fig 2: Identifying Main Bearing Code - Found On Back Of Crankshaft

Courtesy of FORD MOTOR CO.

Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for each main bearing.
- Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter, and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the number 1 crankshaft main bearing.
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "D", the correct bearing grade for this main bearing is a "2".
- Repeat this process for the remaining 4 main bearings.

Fig 3: Bearing Select Fit Chart (Standard Bearings)

Courtesy of FORD MOTOR CO.

If oversize bearings are being used, use the procedure in the previous step and the Bearing Select Fit Chart, Oversize Bearings to determine the required bearing grade for each main bearing.

Fig 4: Bearing Select Fit Chart (Oversize Bearings)

Courtesy of FORD MOTOR CO.

NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

Install the crankshaft upper main bearings into the cylinder block and lubricate them with clean engine oil.

NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

Install the crankshaft upper main bearings into the cylinder block and lubricate them with clean engine oil.

Fig 5: Installing Crankshaft Upper Main Bearings

Courtesy of FORD MOTOR CO.

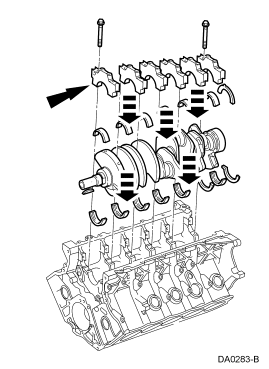

Install the crankshaft into the cylinder block and onto the upper crankshaft main bearings.

Fig 6: Installing Crankshaft Into Cylinder Block And Upper Crankshaft Main Bearings

Courtesy of FORD MOTOR CO.

NOTE: If equipped, the oil groove on the thrust washer must face toward the front of the engine (against the crankshaft surface).

Push the crankshaft rearward and install the rear upper crankshaft thrust washer at the back of the No. 6 main boss.

Fig 7: Installing Rear Crankshaft Upper Thrust Washer

Courtesy of FORD MOTOR CO.

NOTE: If equipped, the oil groove on the thrust washer must face toward the front of the engine (against the crankshaft surface).

Push the crankshaft forward and install the front upper crankshaft thrust washer at the front of the No. 6 main boss.

Fig 8: Identifying Front Upper Crankshaft Thrust Washer

Courtesy of FORD MOTOR CO.

NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

NOTE: If equipped, the oil groove on the thrust washer must face toward the front of the engine (against the crankshaft surface).

Install the lower crankshaft thrust washer to the back side of the No. 6 main bearing cap, with oil grooves facing the crankshaft surface, and install the No. 6 rear main bearing cap.

Fig 9: Installing Lower Crankshaft Thrust Washer To Back Side Of No 6 Main Bearing Cap

Courtesy of FORD MOTOR CO.

Install the No. 1 through No. 5 crankshaft lower main bearings into the main bearing caps. Locate the main bearing caps on the cylinder block and, keeping the cap as square as possible, alternately draw the cap down evenly using the cap fasteners.
Install the bolts.

Fig 10: Installing No. 1 Through No. 5 Crankshaft Lower Main Bearings Bolts

Courtesy of FORD MOTOR CO.

Install the 10 dowel pins so that the flat sides face the crankshaft. Install the cross-mounted bolts.

Fig 11: Installing Dowel Pins

Courtesy of FORD MOTOR CO.

Tighten fasteners 1 through 12 in 2 stages, in the sequence shown.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

Fig 12: Identifying Fasteners Tightening Sequence (1-12)

Courtesy of FORD MOTOR CO.

Tighten fasteners 13 through 24 in 2 stages, in the sequence shown.
- Stage 1: Tighten to 30 Nm (22 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

Fig 13: Identifying Fasteners Tightening Sequence (13-24)

Courtesy of FORD MOTOR CO.

Check the piston-to-cylinder block and piston ring clearances. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.
Assemble the 10 pistons. For additional information, refer to Piston .
Make sure the ring gaps (oil spacer-A, oil ring-B, compression ring-C) are correctly spaced around the circumference of the piston.

Fig 14: Identifying Piston Ring Gap Positioning

Courtesy of FORD MOTOR CO.

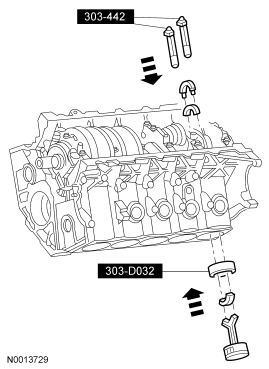

Using the special tools, install the piston and connecting rod assembly.

Fig 15: Installing Piston And Connecting Rod Assembly

Courtesy of FORD MOTOR CO.

CAUTION: Do not scratch the cylinder walls or crankshaft journals with the connecting rod. Failure to follow these instructions may result in engine damage.

Once the connecting rod is seated on the crankshaft journal, remove the special tools.

Fig 16: Identifying Special Tool (303-442)

Courtesy of FORD MOTOR CO.

CAUTION: The rod cap installation must keep the same orientation as marked during disassembly. Failure to follow these instructions may result in engine damage.

NOTE: The connecting rod caps are of the "cracked" design and must mate with the connecting rod ends. Excessive bearing clearance will result if not mated correctly.

Install the connecting rod bearings, position the connecting rod cap and loosely install the 2 new bolts.

NOTE: Be sure to tighten the bolts in 2 stages.

Tighten the connecting rod bolts in the sequence shown.
- Stage 1: Tighten to 43 Nm (32 lb-ft).
- Stage 2: Tighten an additional 105 degrees.

Fig 17: Tightening Connecting Rod Bolts In Sequence

Courtesy of FORD MOTOR CO.

Rotate the crankshaft and repeat the procedure to position each connecting rod at bottom dead center until all bolts are tightened to specification.
Position the oil filter adapter gasket and the oil filter adapter. Install the nut and the 4 bolts.
- Tighten the front bolts to 25 Nm (18 lb-ft).
- Tighten the rear nut to 48 Nm (35 lb-ft).

Fig 18: Oil Filter Adapter

Courtesy of FORD MOTOR CO.

Position the oil pump and install the bolts loosely. Tighten the bolts in the sequence shown.
- Tighten to 10 Nm (89 lb-in).

Fig 19: Identifying Oil Pump Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

Position the crankshaft with the keyway at the 12 o'clock position.

Fig 20: Rotating Crankshaft To Position Keyway At 12 O'Clock

Courtesy of FORD MOTOR CO.

CAUTION: Make sure all coolant residue and foreign material are cleaned from the block surface and cylinder bore. Failure to follow these instructions may result in engine damage.

CAUTION: The use of sealing aids (aviation cement, copper spray and glue) is not permitted. The gasket must be installed dry. Failure to follow these instructions may result in engine damage.

CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are a tighten-to-yield design and cannot be reused.

NOTE: Do not turn the crankshaft until instructed to do so.

NOTE: LH shown, RH similar.

Using the special tools, position the cylinder head gaskets and cylinder heads over the dowels and install the cylinder head bolts loosely.

Fig 21: Installing Cylinder Head Bolts

Courtesy of FORD MOTOR CO.

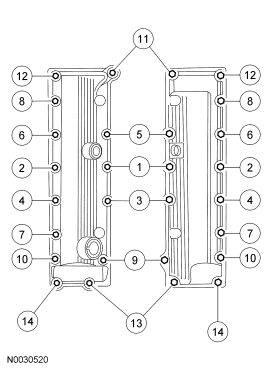

NOTE: Be sure to tighten the bolts in 3 stages.

Tighten the bolts in the sequence shown.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Tighten an additional 90 degrees.

Fig 22: Bolt Tightening Sequence

Courtesy of FORD MOTOR CO.

Position the oil level indicator tube and install the nut.
- Tighten to 25 Nm (18 lb-ft).

Fig 23: Oil Level Indicator Tube Nut

Courtesy of FORD MOTOR CO.

Install the bolt attaching the oil level indicator tube to the LH cylinder head.
- Tighten to 10 Nm (89 lb-in).

Fig 24: Oil Level Indicator Tube Bolt

Courtesy of FORD MOTOR CO.

NOTE: LH shown, RH similar.

Install 20 new exhaust manifold studs.
- Tighten to 12 Nm (9 lb-ft).

Fig 25: Exhaust Manifold Studs

Courtesy of FORD MOTOR CO.

Position a new gasket, the RH exhaust manifold and tighten the 10 new nuts in the sequence shown.
- Tighten to 25 Nm (18 lb-ft).

Fig 26: Exhaust Manifold Nuts Torque Sequence

Courtesy of FORD MOTOR CO.

Position a new gasket, the LH exhaust manifold and tighten the 10 new nuts in the sequence shown.
- Tighten to 25 Nm (18 lb-ft).

Fig 27: Exhaust Manifold Nuts Torque Sequence

Courtesy of FORD MOTOR CO.

CAUTION: Timing chain procedures must be followed exactly or damage to valves and pistons will result.

CAUTION: Prior to installation, inspect the tensioner-sealing bead for seal integrity. If cracks, tears, separation from the tensioner body or permanent compression of the seal bead is observed, install a new tensioner. Failure to follow these instructions may result in engine damage.

Compress the tensioner plunger, using a vise.

Fig 28: Compressing Tensioner Plunger

Courtesy of FORD MOTOR CO.

Install a retaining clip on the tensioner to hold the plunger in during installation.

Fig 29: Identifying Retaining Clip on Tensioner

Courtesy of FORD MOTOR CO.

NOTE: There are 61 links in each timing chain.

If copper links are not visible, mark 2 links on one end and 1 link on the other end, and use as timing marks.

Fig 30: Locating Timing Chain Marks

Courtesy of FORD MOTOR CO.

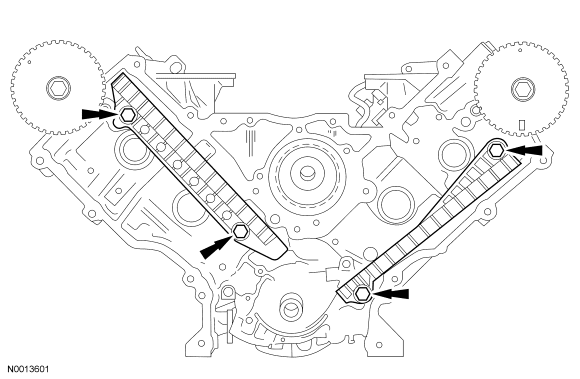

Install the timing chain guides and the 4 bolts.
- Tighten to 10 Nm (89 lb-in).

Fig 31: Locating Timing Chain Guides Bolts

Courtesy of FORD MOTOR CO.

Preposition the camshafts.
1. Rotate the LH camshaft with the Camshaft Positioning Tool until the timing mark is approximately at 12 o'clock.
2. Rotate the RH camshaft with the Camshaft Positioning Tool until the timing mark is approximately at 11 o'clock.

Fig 32: Identifying LH And RH Camshaft Timing Mark Position

Courtesy of FORD MOTOR CO.

Position the crankshaft with the special tool, then remove the tool.

Fig 33: Positioning Crankshaft With Special Tool (303-448)

Courtesy of FORD MOTOR CO.

Install the crankshaft sprocket, making sure the flange faces forward.

Fig 34: Identifying Crankshaft Sprocket

Courtesy of FORD MOTOR CO.

Install the lower end of the LH timing chain, aligning the timing marks.

Fig 35: Aligning Timing Mark Of Crankshaft Sprocket With Single Copper Link On Chain

Courtesy of FORD MOTOR CO.

NOTE: Be sure the upper half of the timing chain is below the tensioner guide dowel.

Install the LH timing chain on the camshaft sprocket with the 2 chain (marked) links and the timing marks aligned.

Fig 36: Aligning Timing Marks On Sprocket With Marked Chain Links

Courtesy of FORD MOTOR CO.

NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.

Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner and bolts.
- Tighten to 25 Nm (18 lb-ft).

Fig 37: Identifying LH Timing Chain Tensioner & Tensioner Arm

Courtesy of FORD MOTOR CO.

NOTE: Be sure the chain link and crankshaft sprocket timing marks are aligned.

NOTE: The lower half of the timing chain must be positioned above the dowel.

Install the RH (outer) timing chain on the crankshaft sprocket.

Fig 38: Aligning Timing Mark On Crankshaft Sprocket With Single Copper Chain Link

Courtesy of FORD MOTOR CO.

Position the timing chain on the camshaft sprocket. Make sure the 2 copper-colored (marked) links align with the camshaft sprocket timing mark.

Fig 39: Aligning Copper-Colored (Marked) Links With Camshaft Sprocket Timing Mark

Courtesy of FORD MOTOR CO.

Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and bolts.
- Tighten to 25 Nm (18 lb-ft).

Fig 40: Identifying RH Timing Chain Tensioner, Tensioner Arm And Bolts

Courtesy of FORD MOTOR CO.

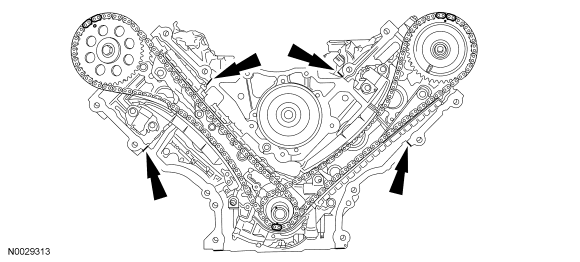

Remove the retaining clips from the RH and LH timing chain tensioners.

Fig 41: Identifying Retaining Clip And Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

Check for correct alignment of all timing marks.

Fig 42: Identifying Alignment Of All Timing Marks

Courtesy of FORD MOTOR CO.

Install the crankshaft sensor ring on the crankshaft.

Fig 43: View Of Crankshaft Sensor Ring At Crankshaft

Courtesy of FORD MOTOR CO.

Lubricate the balance shaft journals with clean engine oil.
Using the index mark on the balance shaft, mark the corresponding teeth on the gear with chalk.

Fig 44: Identifying Balance Shaft And Gear Tooth Marks

Courtesy of FORD MOTOR CO.

Position the balance shaft on the journals.

Fig 45: Installing Balance Shaft

Courtesy of FORD MOTOR CO.

Align the chalk mark on the balance shaft with the camshaft timing mark as shown.

Fig 46: Aligning Mark On Balance Shaft With Camshaft Timing Mark

Courtesy of FORD MOTOR CO.

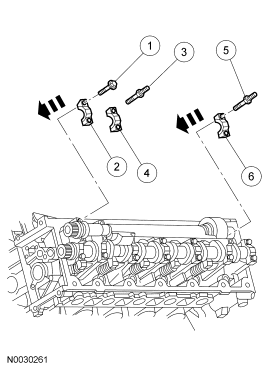

Install the balance shaft bearing caps in their original locations and tighten the 6 bolts in the sequence shown.
- Tighten to 10 Nm (89 lb-in).

Fig 47: Balance Shaft Caps & Bolts Torque Sequence

Courtesy of FORD MOTOR CO.

Position the piston of the cylinder being serviced at the bottom of the stroke and the camshaft lobe at base circle.

NOTE: Camshaft roller follower is removed for clarity.

Install the special tool between the valve spring coils to prevent valve stem seal damage.

Fig 48: Installing Special Tool Between Valve Spring Coils

Courtesy of FORD MOTOR CO.

CAUTION: The camshaft roller followers must be installed in their original locations. Failure to follow these instructions may result in engine damage.

NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed. For additional information, refer to Cylinder Head .

NOTE: It may be necessary to push the valve down while compressing the spring.

NOTE: Position the cam lobe away from the camshaft roller follower prior to installing each camshaft roller follower.

NOTE: Lubricate the camshaft roller follower with clean engine oil prior to installation.

Use the special tool to compress the valve springs, and install each of the camshaft roller followers.

Fig 49: Compressing Valve Springs Using Special Tool (303-567)

Courtesy of FORD MOTOR CO.

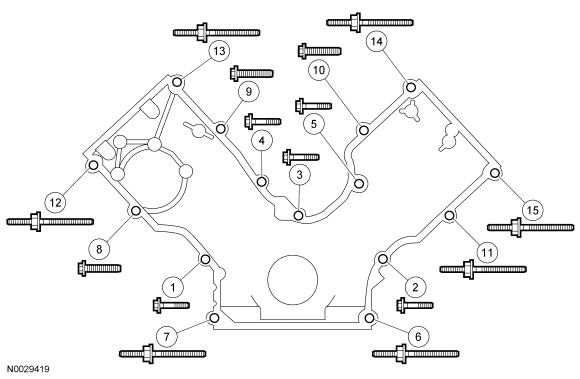

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: If the engine front cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

NOTE: Make sure that the engine front cover gasket is in place on the engine front cover before installation.

Apply a bead of silicone gasket and sealant along the cylinder head-to-cylinder block surface at the locations shown.

Fig 50: Applying Sealant To Cylinder Head-To-Cylinder Block Seam

Courtesy of FORD MOTOR CO.

Install a new engine front cover gasket onto the engine front cover, then position the engine front cover on the front cover to cylinder block dowel.

Fig 51: Installing Engine Front Cover Gasket

Courtesy of FORD MOTOR CO.

Tighten the engine front cover fasteners in sequence in 2 stages.

* Stage 1: Tighten fasteners 1 through 5 to 25 Nm (18 lb-ft).

* Stage 2: Tighten fasteners 6 through 15 to 48 Nm (35 lb-ft).

Item	Part Number	Description
1	N806177	Bolt, Hex Flange Head Pilot, M8 x 1.25 x 50
2	N806177	Bolt, Hex Flange Head Pilot, M8 x 1.25 x 50
3	N806177	Bolt, Hex Flange Head Pilot, M8 x 1.25 x 50
4	N806177	Bolt, Hex Flange Head Pilot, M8 x 1.25 x 50
5	N806177	Bolts, Hex Flange Head Pilot, M8 x 1.25 x 50
6	N808529	Stud, Hex-Head Pilot, M10 x 1.5 x 59 - M10 x 1.5 x 30
7	N808529	Stud, Hex-Head Pilot, M10 x 1.5 x 59 - M10 x 1.5 x 30
8	N808142	Screw and Washer, Hex Pilot, M10 x 1.5 x 54
9	N808142	Screw and Washer, Hex Pilot, M10 x 1.5 x 54
10	N808142	Screw and Washer, Hex Pilot, M10 x 1.5 x 54
11	N808140	Stud and Washer, Hex Head Pilot, M10 x 1.5 x 68 - M8 x 1.25 x 27
12	N808140	Stud and Washer, Hex Head Pilot, M10 x 1.5 x 68 - M8 x 1.25 x 27
13	N808140	Stud and Washer, Hex Head Pilot, M10 x 1.5 x 68 - M8 x 1.25 x 27
14	N808140	Stud and Washer, Hex Head Pilot, M10 x 1.5 x 68 - M8 x 1.25 x 27
15	N808140	Stud and Washer, Hex Head Pilot, M10 x 1.5 x 68 - M8 x 1.25 x 27

Fig 52: Engine Front Cover Torque Sequence

Courtesy of FORD MOTOR CO.

Apply instant gel adhesive completely around the gasket groove in the valve covers. Install the new valve cover gaskets.

Fig 53: Valve Cover Gasket

Courtesy of FORD MOTOR CO.

NOTE: LH shown, RH similar.

Apply silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head.

Fig 54: Applying Sealant Where Engine Front Cover Meets Cylinder Head

Courtesy of FORD MOTOR CO.

Position the valve covers.
Tighten the fasteners in the sequence shown.

Fig 55: Valve Cover Torque Sequence

Courtesy of FORD MOTOR CO.

Position the accessory drive belt idler pulley and install the bolt.
- Tighten to 25 Nm (18 lb-ft).

Fig 56: Accessory Drive Belt Idler Pulley And Retaining Bolt

Courtesy of FORD MOTOR CO.

Install the oil pump screen and pickup tube spacer.
- Tighten to 25 Nm (18 lb-ft).

Fig 57: Locating Pickup Tube Spacer

Courtesy of FORD MOTOR CO.

CAUTION: Make sure the O-ring is in place and not damaged. A missing or damaged O-ring can cause foam in the lubrication system, low oil pressure and severe engine damage.

NOTE: Clean and inspect the mating surfaces and install a new O-ring. Lubricate with the O-ring with clean engine oil.

Position the oil pump screen and pickup tube and install the 3 bolts.
1. Tighten to 25 Nm (18 lb-ft).
2. Tighten to 10 Nm (89 lb-in).

Fig 58: Locating Oil Pump Screen And Pickup Tube

Courtesy of FORD MOTOR CO.

CAUTION: Do not rotate the coolant pump housing once the coolant pump has been positioned in the cylinder block. Damage to the O-ring seal will occur.

Install the coolant pump.
1. Lubricate the new O-ring seal using clean engine coolant and install the O-ring seal onto the coolant pump.
2. Position the coolant pump into the engine block.
3. Install the bolts.
  - Tighten to 25 Nm (18 lb-ft).

Fig 59: Installing Coolant Pump

Courtesy of FORD MOTOR CO.

Position the coolant pump pulley on the coolant pump and install the 4 bolts.
- Tighten to 25 Nm (18 lb-ft).

Fig 60: Identifying Coolant Pump Pulley Bolts

Courtesy of FORD MOTOR CO.

Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil.

Fig 61: Locating Crankshaft Front Seal

Courtesy of FORD MOTOR CO.

Using the special tools, install a new crankshaft front seal.

Fig 62: Installing Crankshaft Front Seal Using Special Tools

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant to the Woodruff key slot on the crankshaft pulley.

Fig 63: Identifying Woodruff Key Slot On Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Using the special tool, install the crankshaft pulley.

Fig 64: Installing Crankshaft Pulley Using Special Tool

Courtesy of FORD MOTOR CO.

NOTE: Use a suitable strap wrench (303-D055) to hold the pulley while tightening the bolt.

Tighten the new crankshaft pulley bolt in 4 stages.
- Stage 1: Tighten to 90 Nm (66 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 50 Nm (37 lb-ft).
- Stage 4: Tighten an additional 90 degrees without exceeding 200 Nm (148 lb-ft).

Fig 65: Identifying Crankshaft Pulley Bolt Tightening Sequence

Courtesy of FORD MOTOR CO.

Position the RH engine support insulator and install the 4 bolts.
- Tighten to 80 Nm (59 lb-ft).

Fig 66: Right Engine Support Insulator Bolts

Courtesy of FORD MOTOR CO.

Position the LH engine support insulator and install the 4 bolts.
- Tighten to 80 Nm (59 lb-ft).

Fig 67: Left Engine Support Insulator Bolts

Courtesy of FORD MOTOR CO.

NOTE: RH shown, LH similar.

Install the radio frequency interference capacitors and the nuts.
- Tighten to 25 Nm (18 lb-ft).

Fig 68: Radio Interference Capacitor And Retaining Nut

Courtesy of FORD MOTOR CO.

Install the engine control sensor wiring harness. Connect all of the harness routing clips and connector retainers.
Connect the LH radio frequency interference capacitor and cylinder head temperature (CHT) sensor electrical connectors.

Fig 69: Locating LH Radio Ignition Interference Capacitor And Cylinder Head Temperature (CHT) Sensor Electrical Connectors

Courtesy of FORD MOTOR CO.

Connect the CMP electrical connector.

Fig 70: Locating Camshaft Position (CMP) Sensor Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the RH radio frequency interference capacitor electrical connector.

Fig 71: Locating RH Radio Ignition Interference Capacitor Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the knock sensor (KS) electrical connector, if equipped.

Fig 72: Knock Sensor (KS) Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the CKP sensor electrical connector.

Fig 73: Locating CKP Sensor Electrical Connector And Harness Retainer

Courtesy of FORD MOTOR CO.

Connect the engine oil pressure (EOP) switch electrical connector.

Fig 74: Locating Oil Pressure Switch Electrical Connector

Courtesy of FORD MOTOR CO.

Install the special tool.

Fig 75: Special Tool (303-D087)

Courtesy of FORD MOTOR CO.

Install the special tool.

Fig 76: Special Tool (303-D088)

Courtesy of FORD MOTOR CO.

Install the special tool and remove the engine from the work stand.

Fig 77: Special Tool

Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the aluminum retainer plate. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean the sealing surfaces.

Inspect the rear seal retainer plate. Clean the mating surface for the rear seal retainer plate with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

Apply a 4 mm (0.16 in) bead of silicone gasket and sealant around the crankshaft rear seal retainer sealing surface.

Fig 78: Applying Sealant Around Crankshaft Rear Seal Retainer Plate Sealing Surface

Courtesy of FORD MOTOR CO.

Install the crankshaft rear seal retainer plate and loosely install the 6 bolts.

Fig 79: Locating Crankshaft Rear Seal Retainer Plate Bolts

Courtesy of FORD MOTOR CO.

Tighten the bolts in the sequence shown.
- Tighten to 10 Nm (89 lb-in).

Fig 80: Crankshaft Rear Seal Retainer Plate Bolt Tightening Sequence

Courtesy of FORD MOTOR CO.

NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

Using the special tools, install a new crankshaft rear seal.

Fig 81: Using Special Tools To Install New Crankshaft Rear Seal

Courtesy of FORD MOTOR CO.

Using the special tools, install a new crankshaft rear oil slinger.

Fig 82: Installing Crankshaft Rear Oil Slinger Using Special Tools

Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean sealing surfaces.

Inspect the oil pan. Clean the mating surface for the oil pan with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

Apply silicone gasket and sealant at the rear oil seal retainer-to-cylinder block sealing surface.

Fig 83: Applying Silicone Gasket And Sealant

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant at the engine front cover-to-cylinder block sealing surface.

Fig 84: Applying Sealant At Engine Front Cover-To-Cylinder Block Mating Surface

Courtesy of FORD MOTOR CO.

Install a new oil pan gasket and the oil pan and loosely install the bolts.

Fig 85: Positioning New Oil Pan Gasket And Oil Pan

Courtesy of FORD MOTOR CO.

Tighten the bolts in the sequence shown in 3 stages.
- Stage 1: Tighten to 2 Nm (18 lb-in).
- Stage 2: Tighten to 20 Nm (15 lb-ft).
- Stage 3: Tighten an additional 60 degrees.

Fig 86: Oil Pan Bolt Torque Sequence

Courtesy of FORD MOTOR CO.

Install the oil drain plug.
Lower the engine onto wooden blocks.
Install the special tool and raise the engine.

Fig 87: Identifying Special Tool (303-F047)

Courtesy of FORD MOTOR CO.

Position the flexplate and tighten the 8 bolts in 2 stages, in the sequence shown.
- Stage 1: Tighten to 20 Nm (15 lb-ft).
- Stage 2: Tighten to 80 Nm (59 lb-ft).

Fig 88: Flexplate Bolts Torque Sequence

Courtesy of FORD MOTOR CO.

Install the engine. For additional information, refer to Engine .
