Section 6 (Front Suspension System - 4WD Leaf Spring): Description
WARNING: This page is about a different variant/trim than selected.

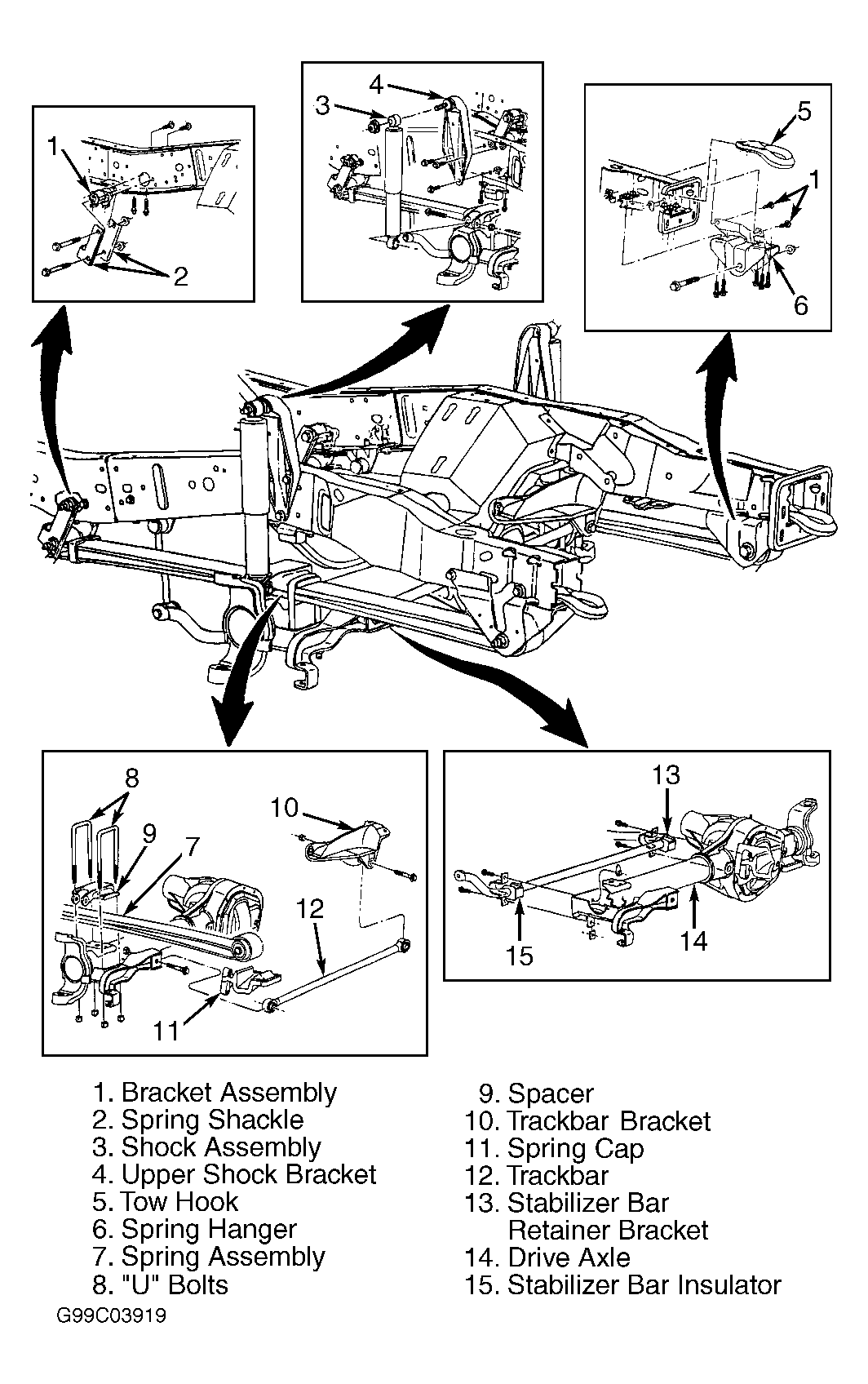

Monobeam axle system, consisting of a solid drive axle with ball joint-supported steering knuckles. All drive axles are suspended by semi-elliptic leaf-type springs. See Fig 1.
NOTE:
For additional information on 4WD drive axles, see appropriate
article in DRIVE AXLES.
