Battery Junction Box

NOTE: Battery junction box may also be referred to as power distribution box.
NOTE: Battery junction box is located on driver's side of engine compartment, near brake master cylinder. See Fig 1 and Fig 2 .

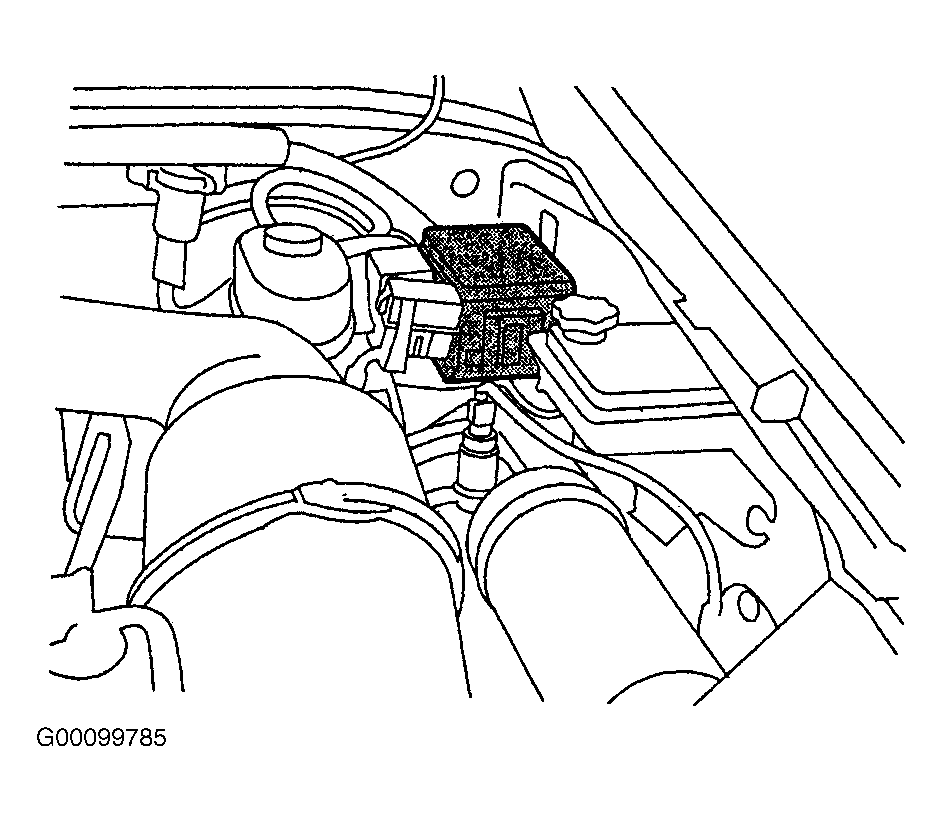

Fig 1: Locating Power Distribution Box (1 Of 2)
G00099785Courtesy of FORD MOTOR CO.

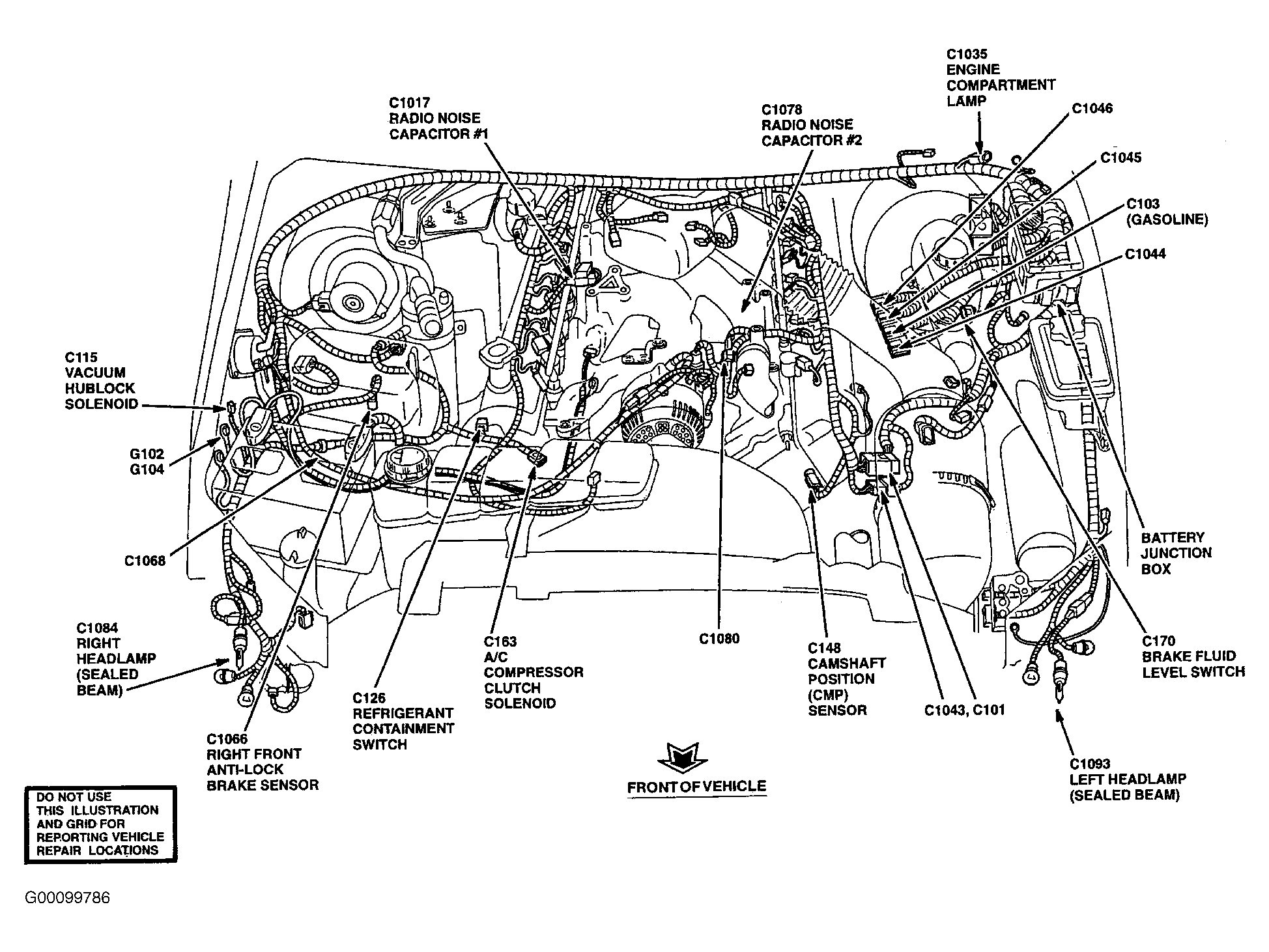

Fig 2: Locating Power Distribution Box (2 Of 2)
G00099786Courtesy of FORD MOTOR CO.

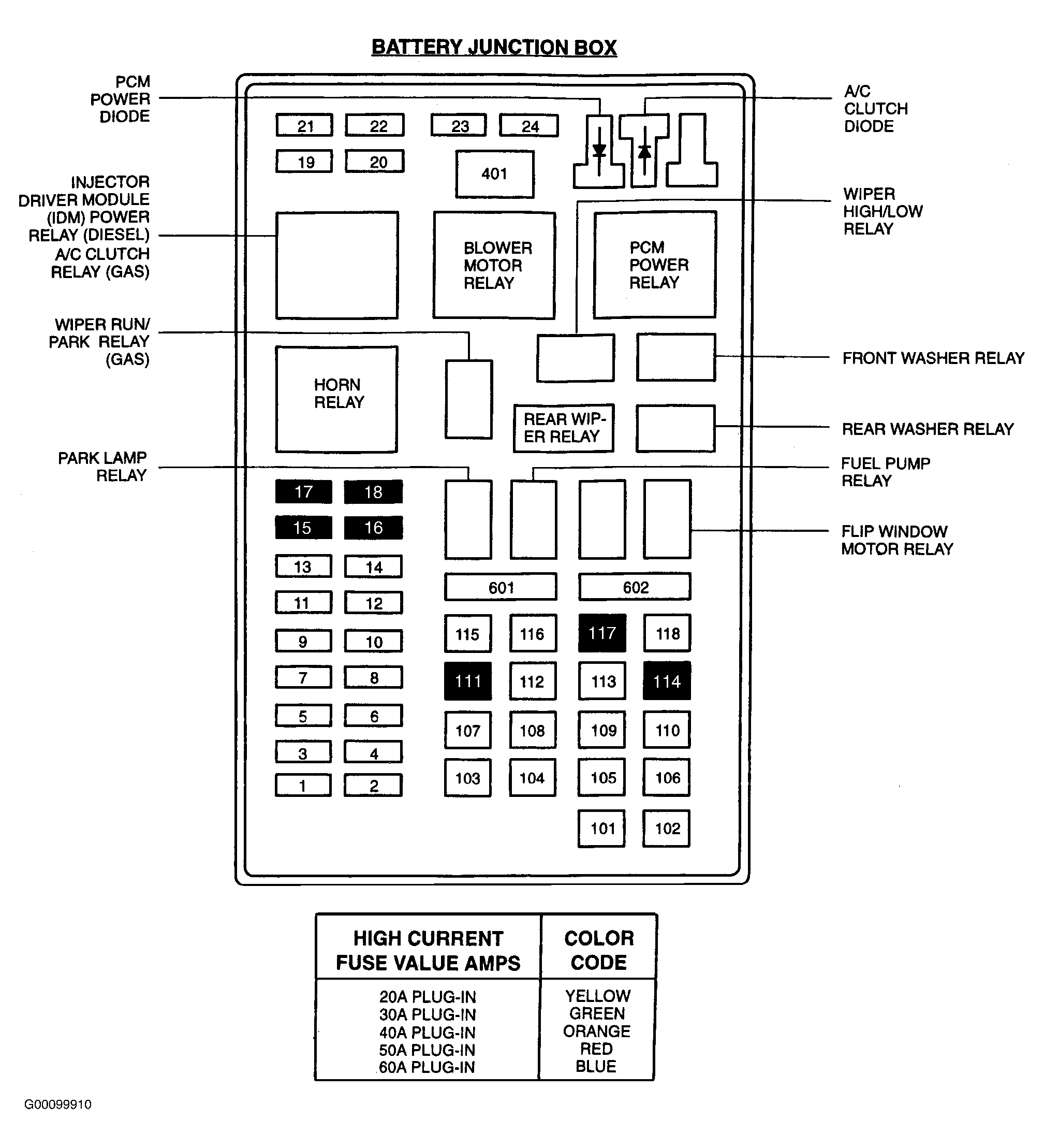

Fig 3: Identifying Battery Junction Box Components
G00099910Courtesy of FORD MOTOR CO.

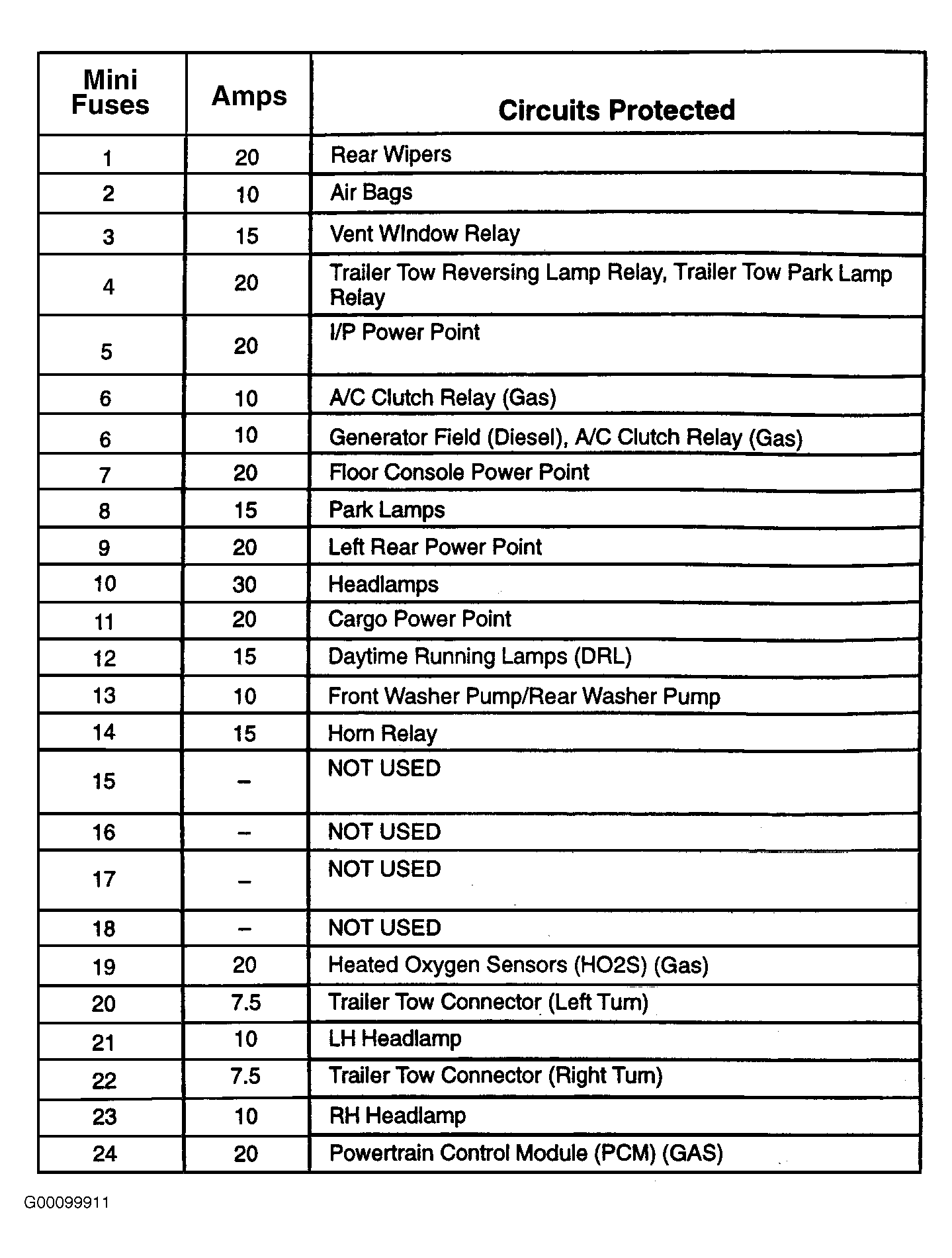

Fig 4: Battery Junction Box Legend (1 Of 2)
G00099911Courtesy of FORD MOTOR CO.

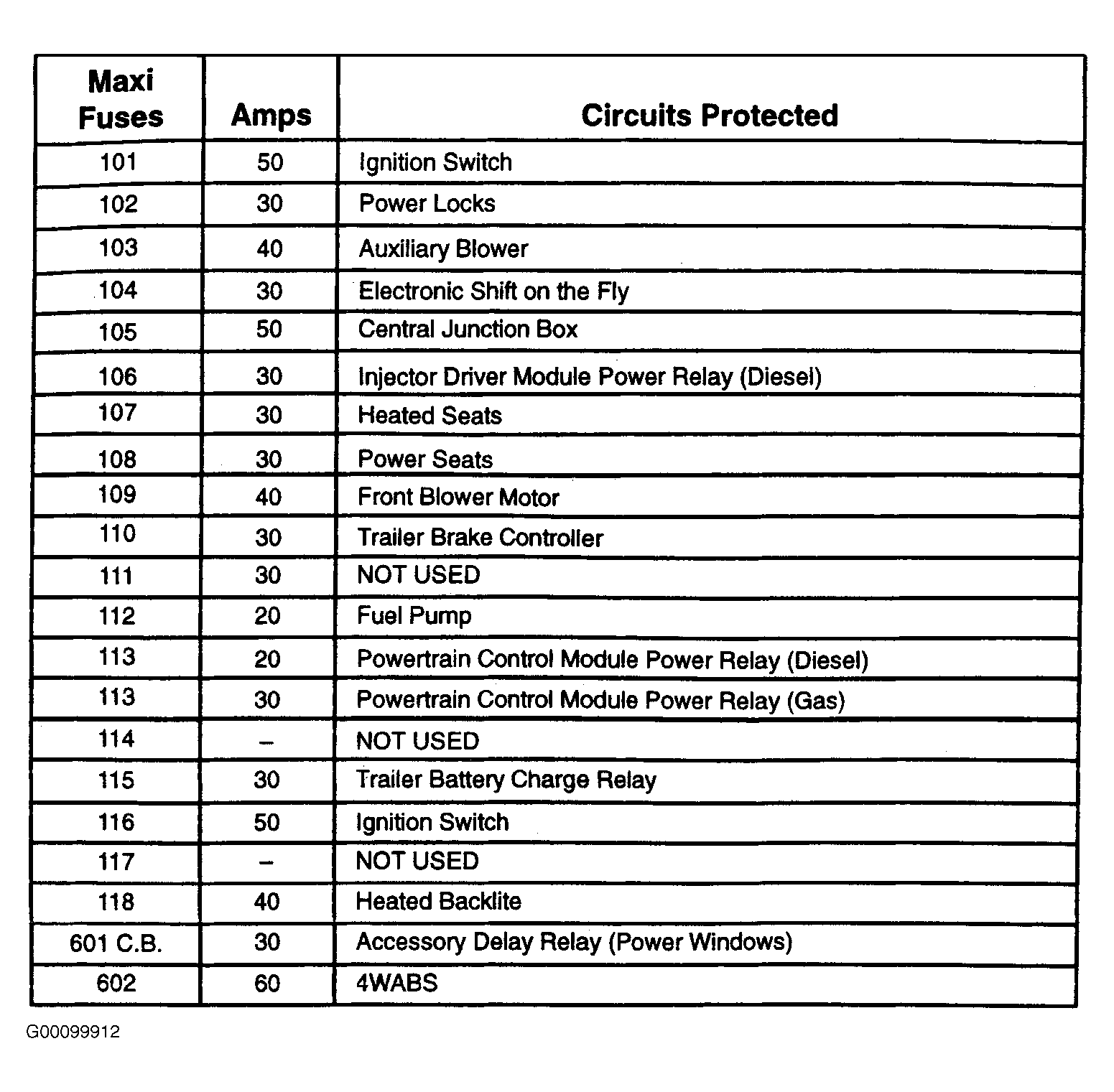

Fig 5: Battery Junction Box Legend (2 Of 2)
G00099912Courtesy of FORD MOTOR CO.
