Removal And Installation: Liftgate: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the D-pillar trim panels and rear coat hooks. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Position the headliner to access the rear washer hose and the liftgate electrical harness connectors.
  3. Remove the parts in the order indicated in the following illustration and table.
  4. To install, reverse the removal procedure. Transfer components as necessary.

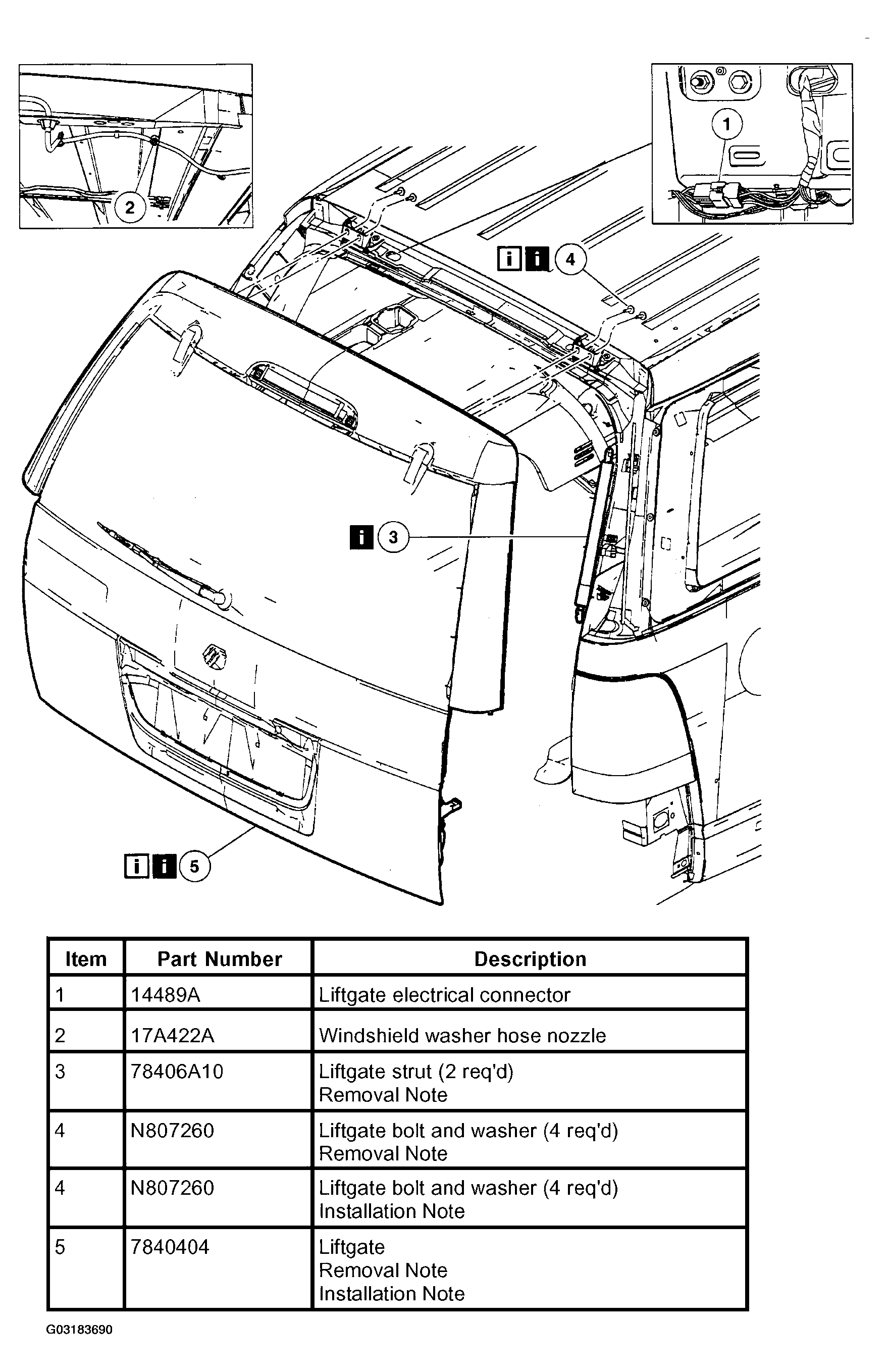

    Fig 1: Removing Liftgate
    G03183690Courtesy of FORD MOTOR CO.
