Symptom Related Diagnostic Procedures

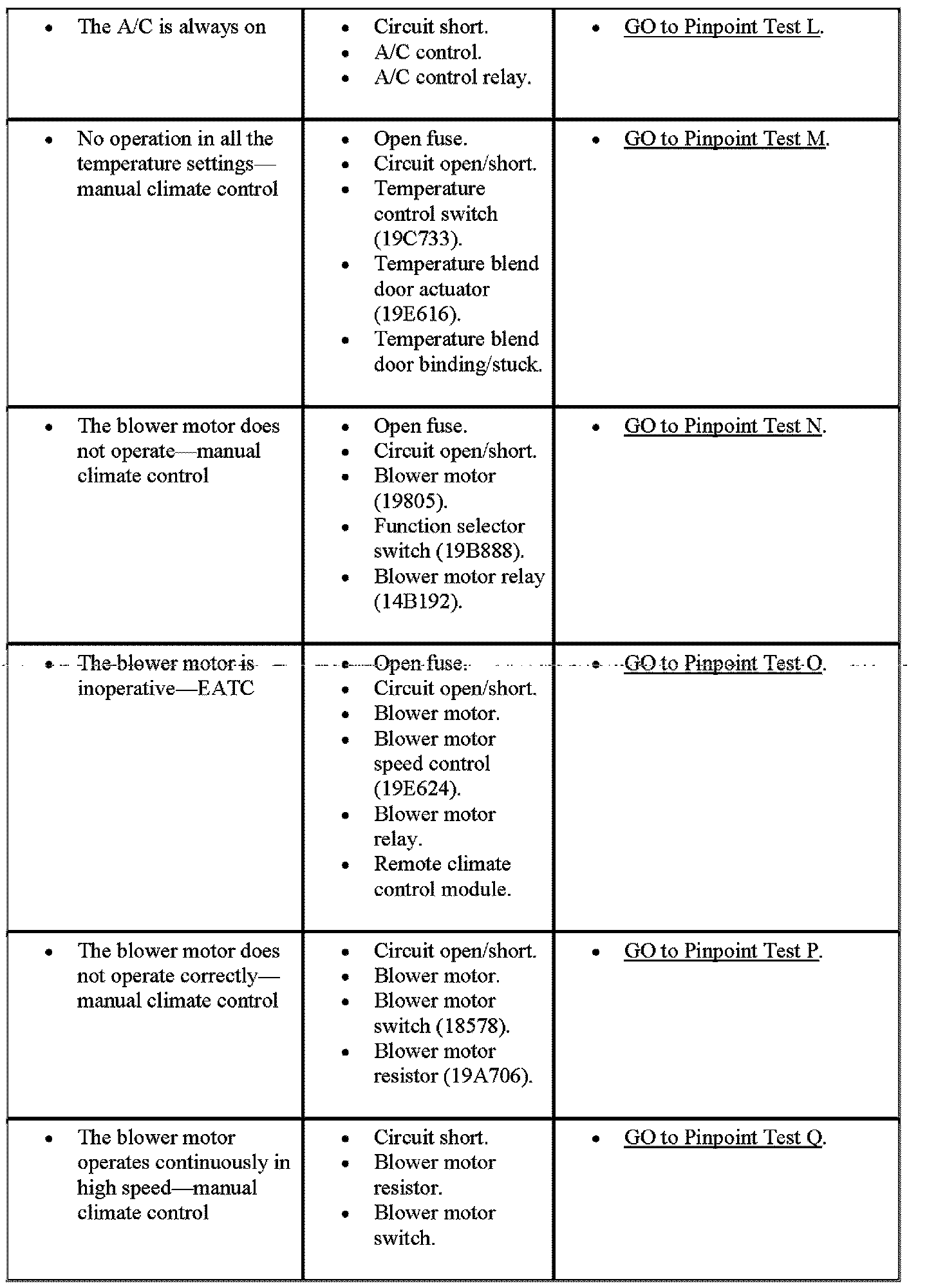

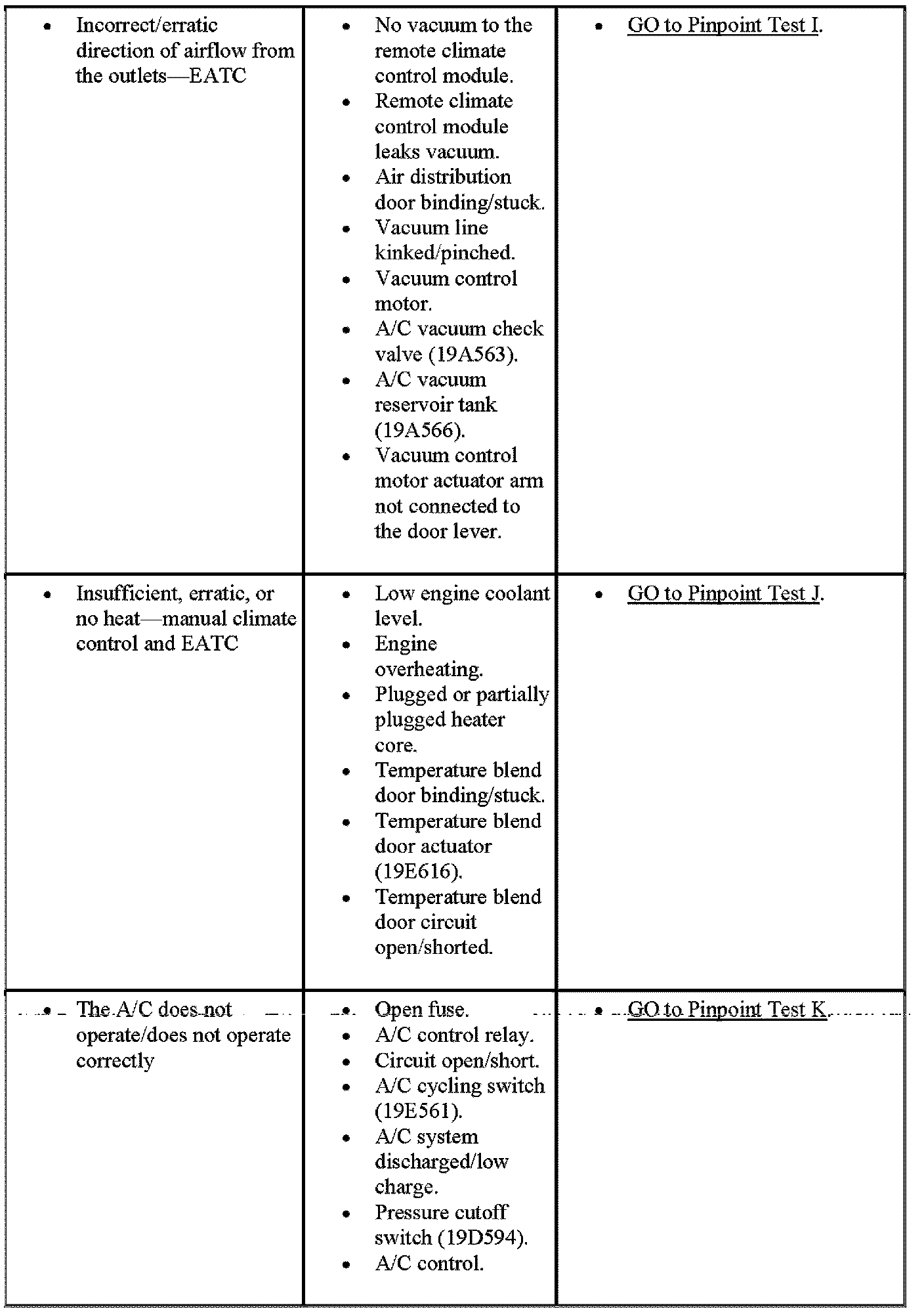

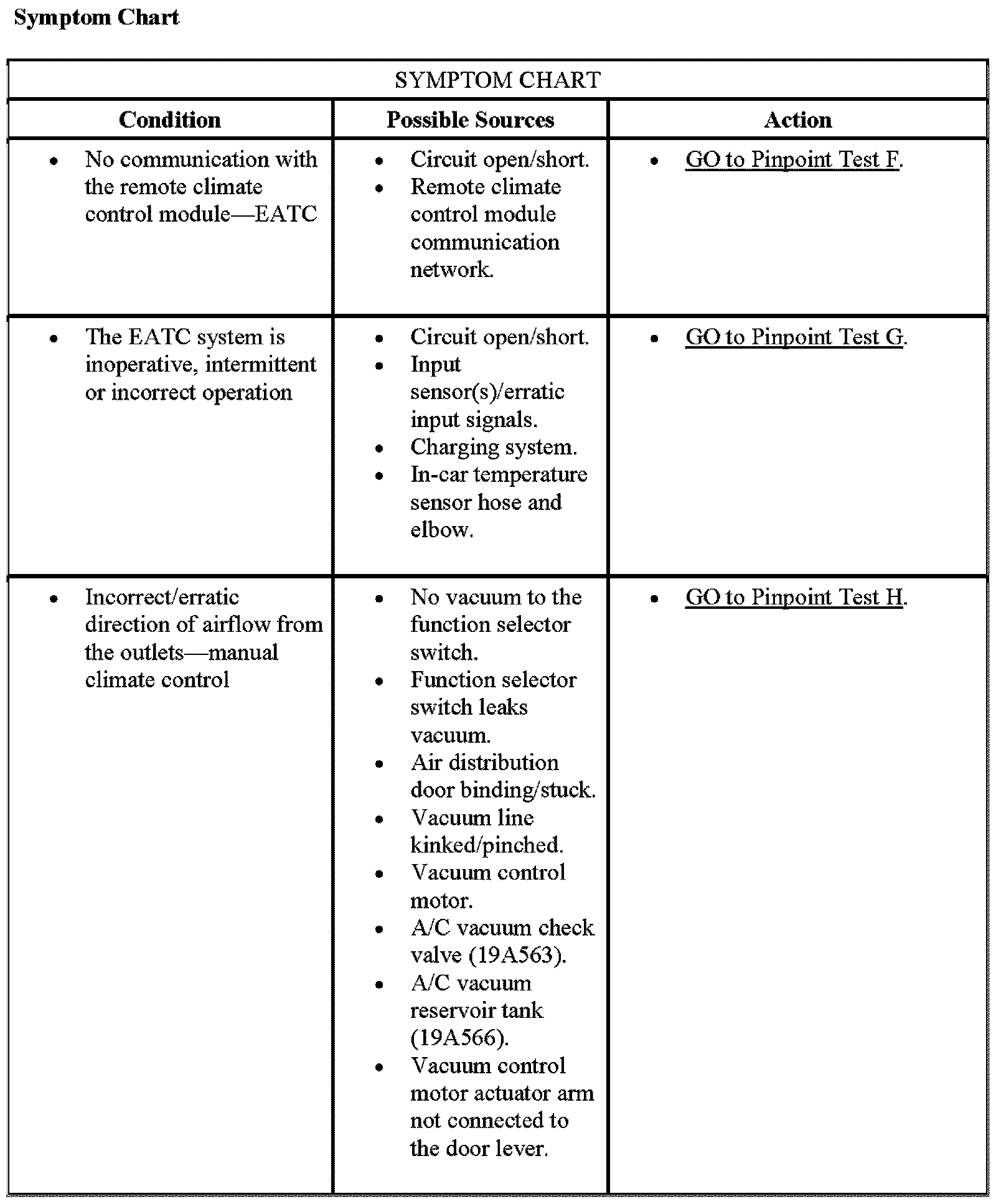

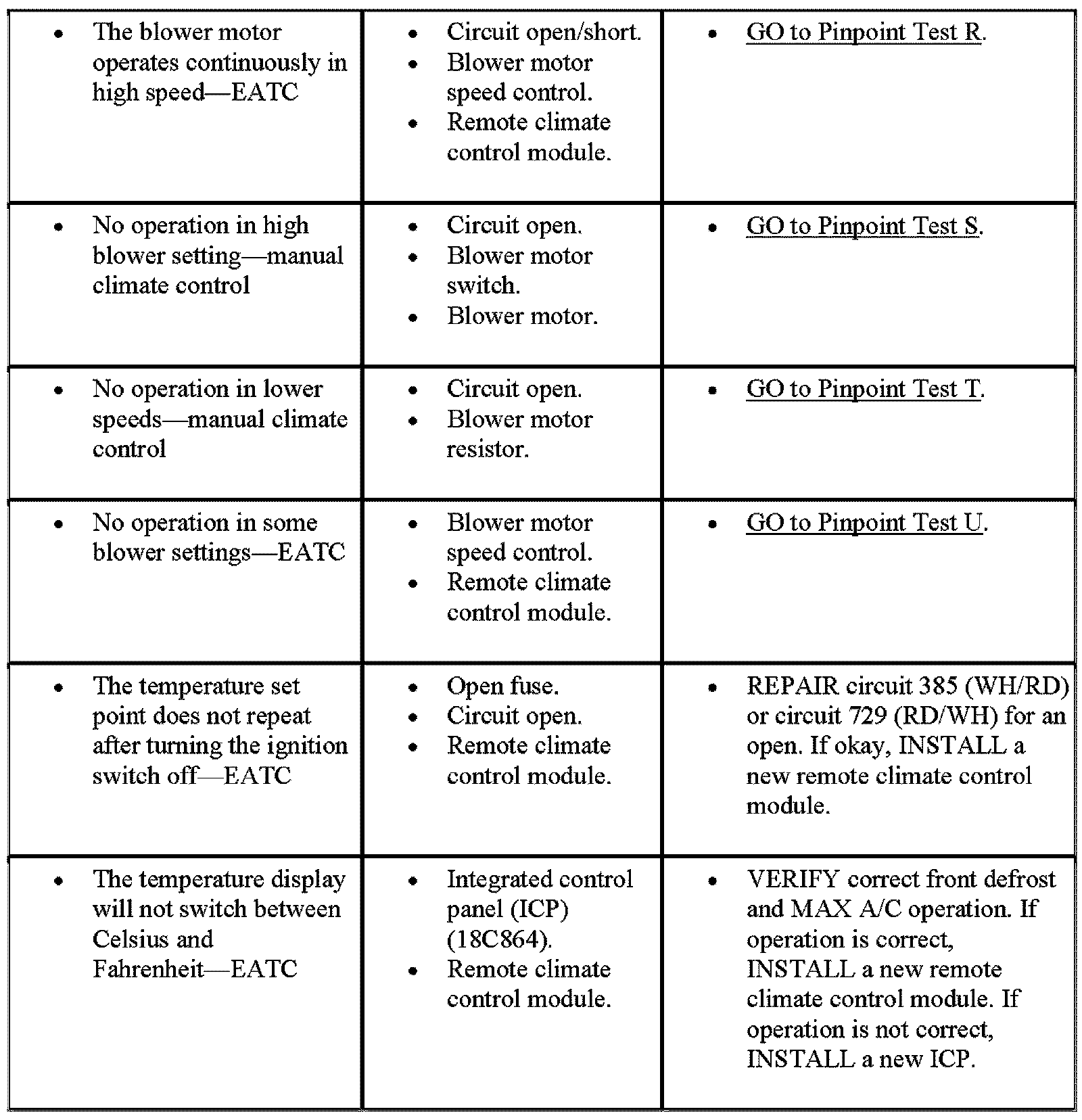

Symptom Chart (1 Of 4):





Symptom Chart (2 Of 4):





Symptom Chart (3 Of 4):





Symptom Chart (4 Of 4):
