Pinpoint Test A: The Anti-Lock Brake Control Module (Abs) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

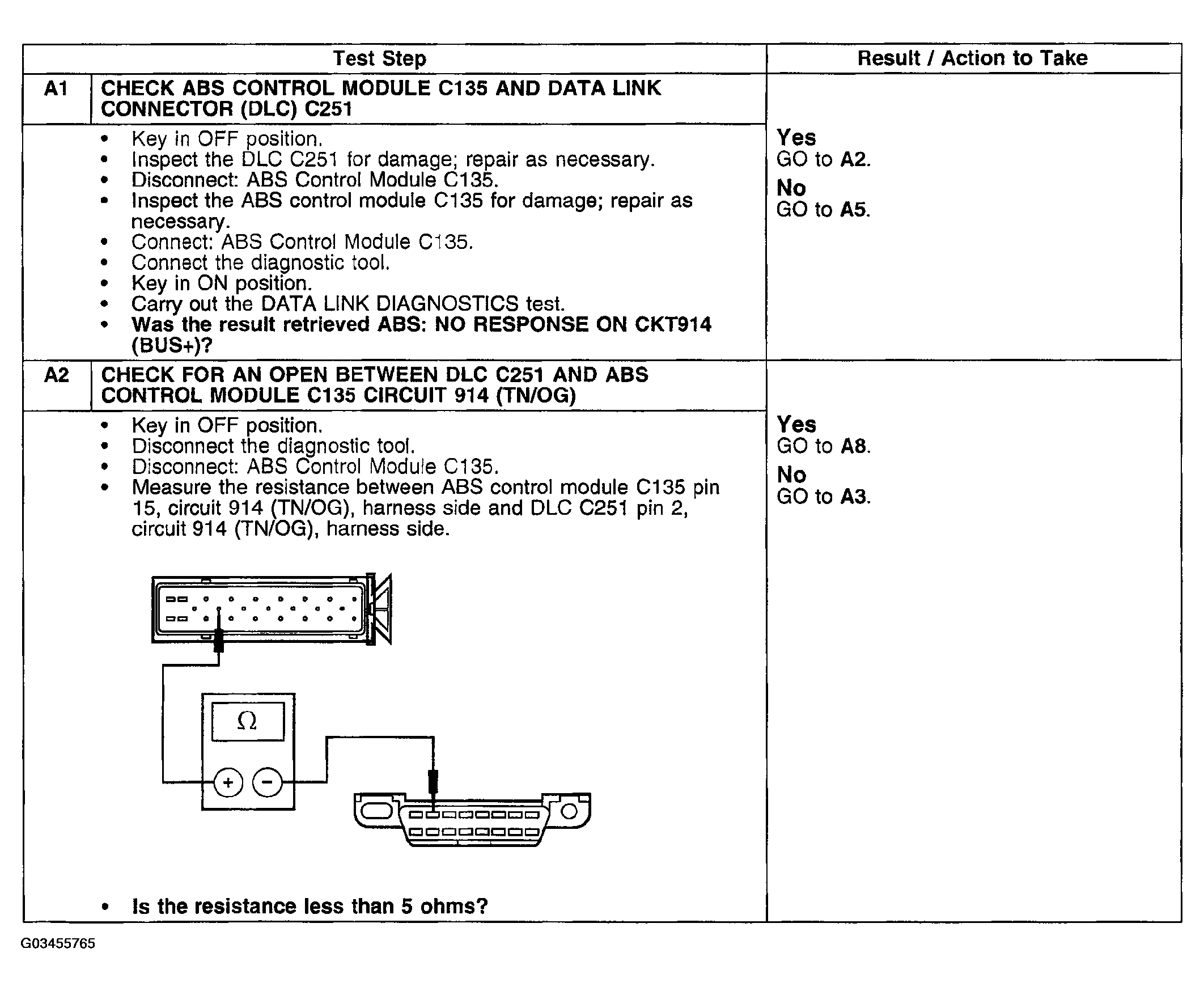

Fig 1: Pinpoint Test A: Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (Step A1-A2)

Courtesy of FORD MOTOR CO.

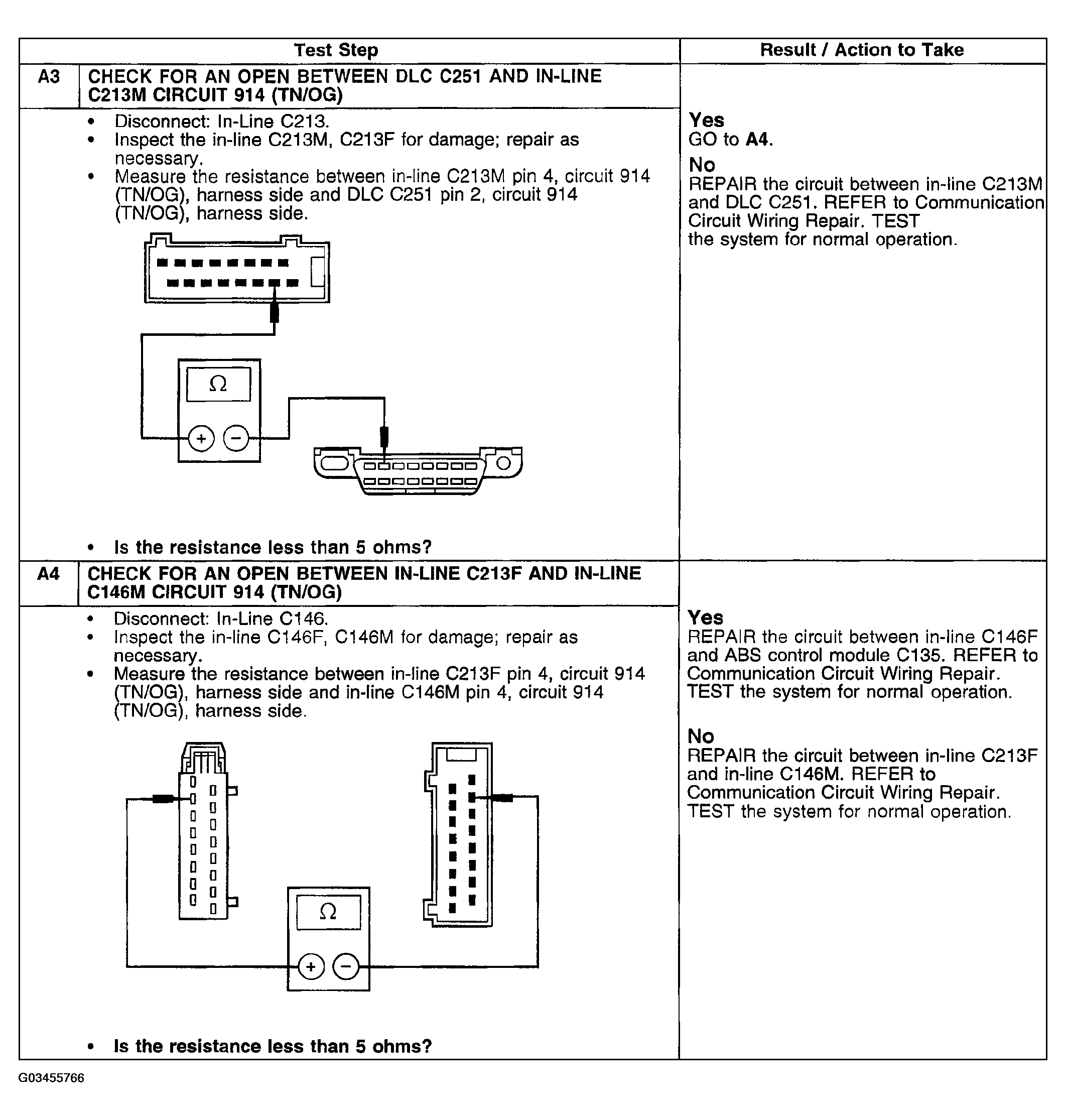

Fig 2: Pinpoint Test A: Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (Step A3-A4)

Courtesy of FORD MOTOR CO.

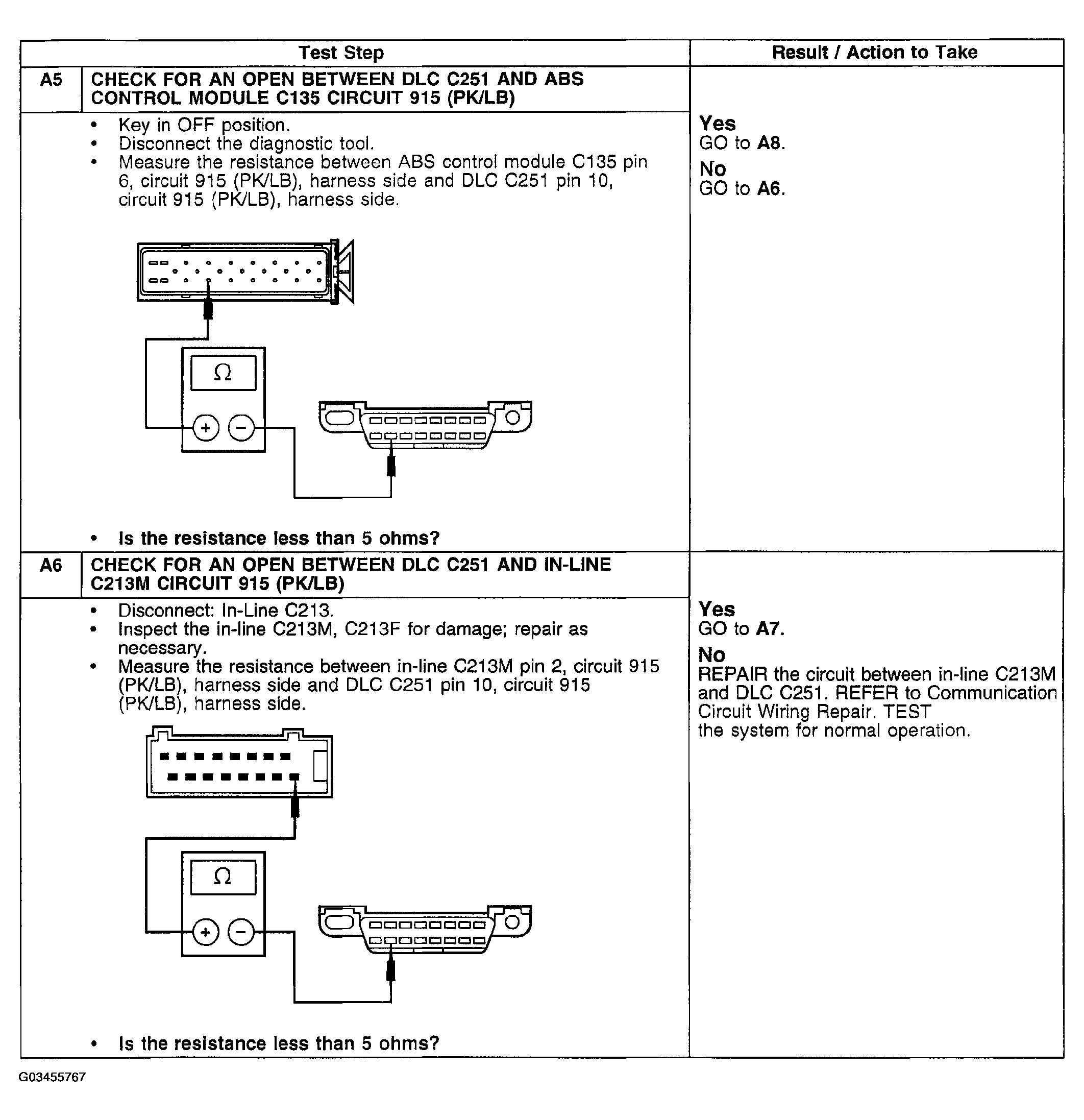

Fig 3: Pinpoint Test A: Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (Step A5-A6)

Courtesy of FORD MOTOR CO.

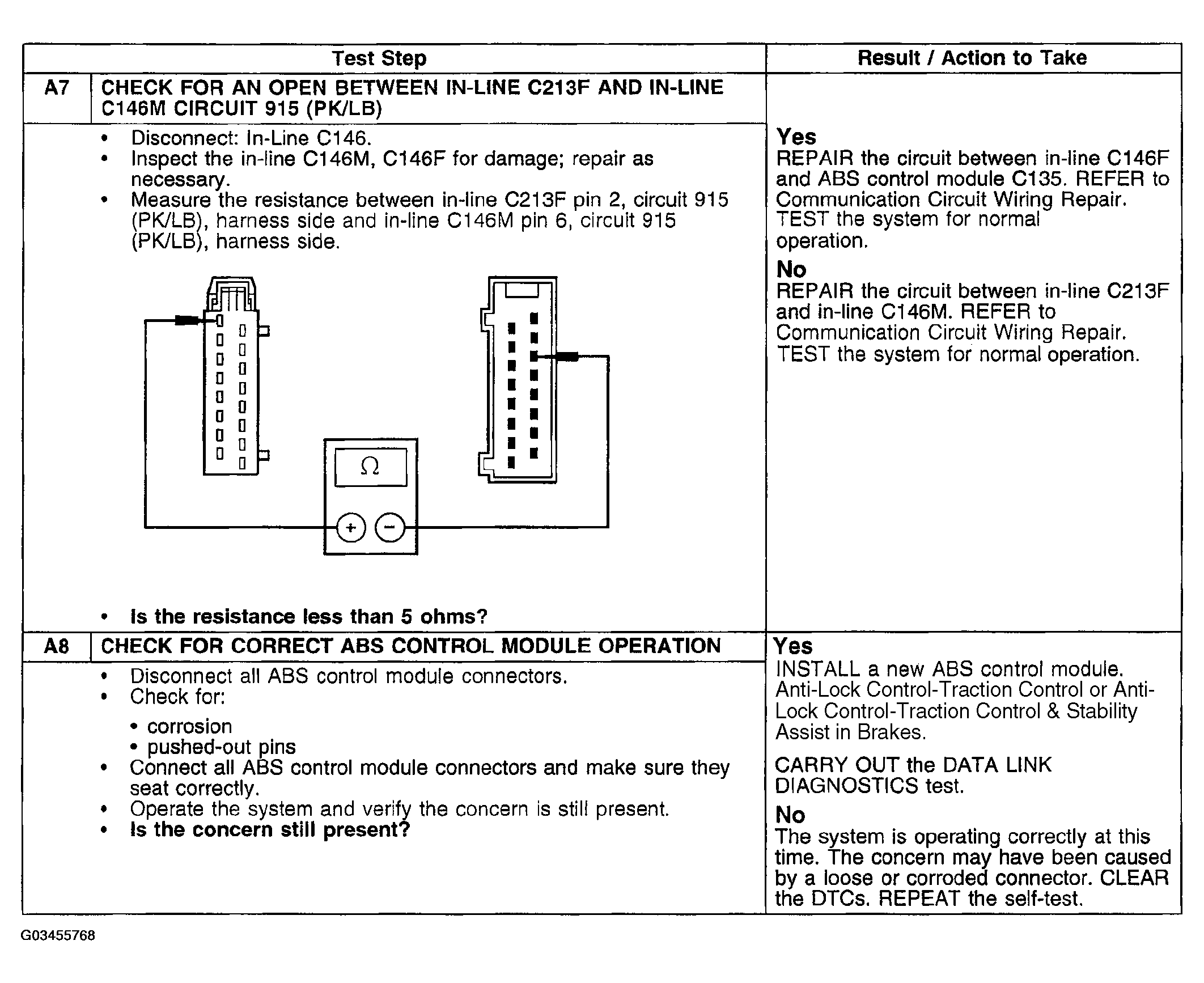

Fig 4: Pinpoint Test A: Anti-Lock Brake Control Module Does Not Respond To Diagnostic Tool (Step A7-A8)

Courtesy of FORD MOTOR CO.
