Pinpoint Test J: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

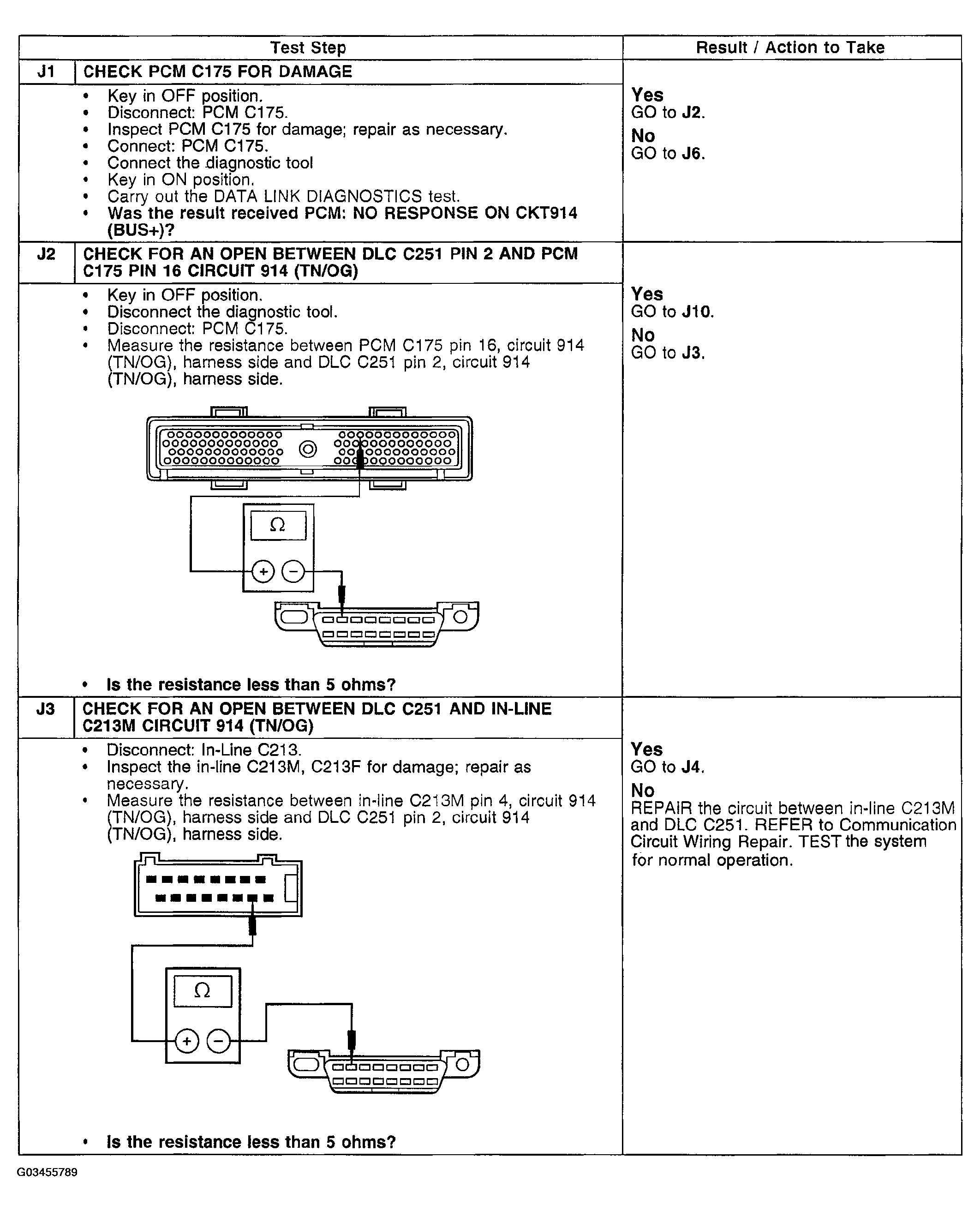

Fig 1: Pinpoint Test J: Powertrain Control Module Does Not Respond To Diagnostic Tool (Step J1-J3)
Courtesy of FORD MOTOR CO.

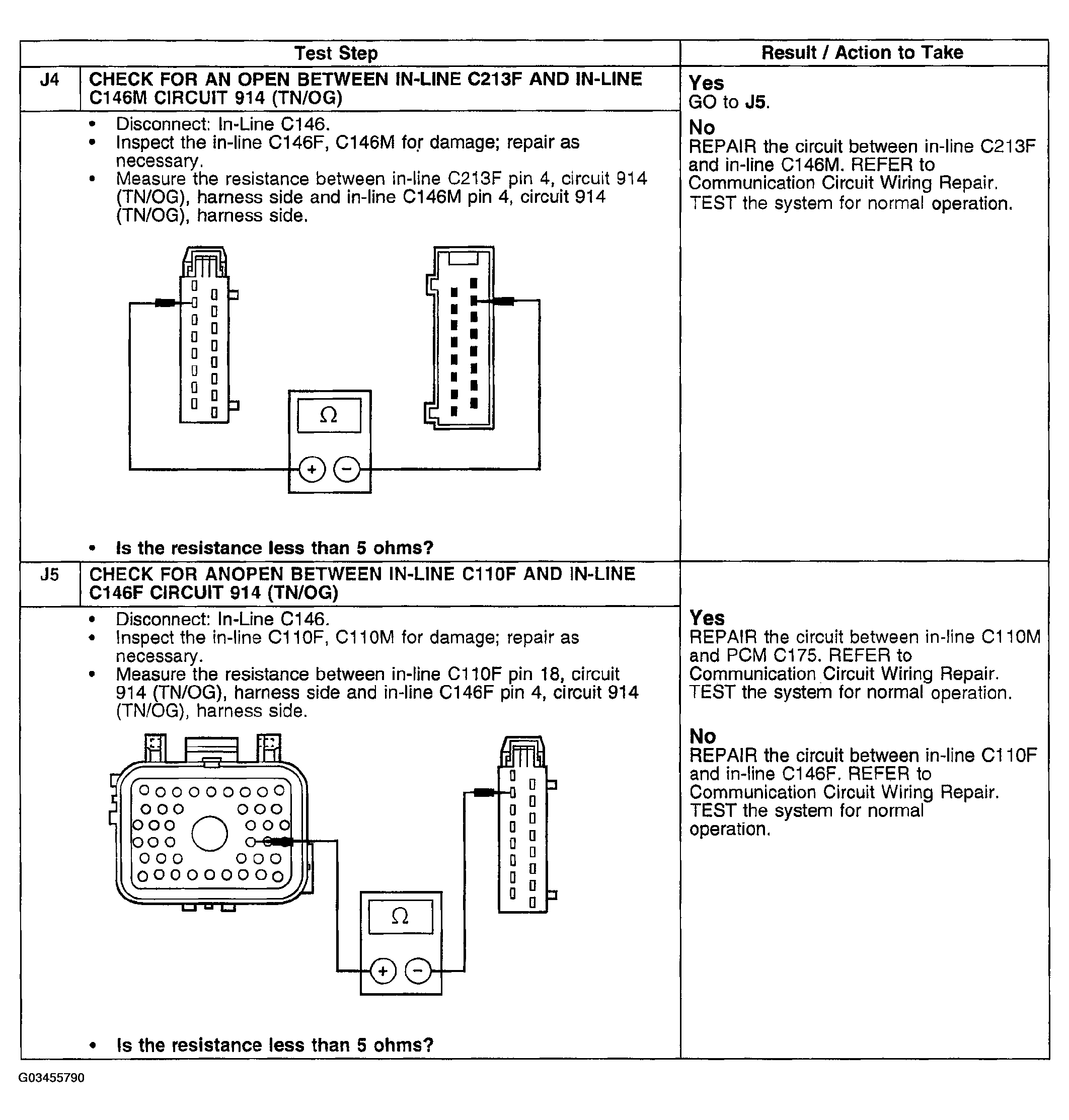

Fig 2: Pinpoint Test J: Powertrain Control Module Does Not Respond To Diagnostic Tool (Step J4-J5)
Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test J: Powertrain Control Module Does Not Respond To Diagnostic Tool (Step J6-J7)
Courtesy of FORD MOTOR CO.

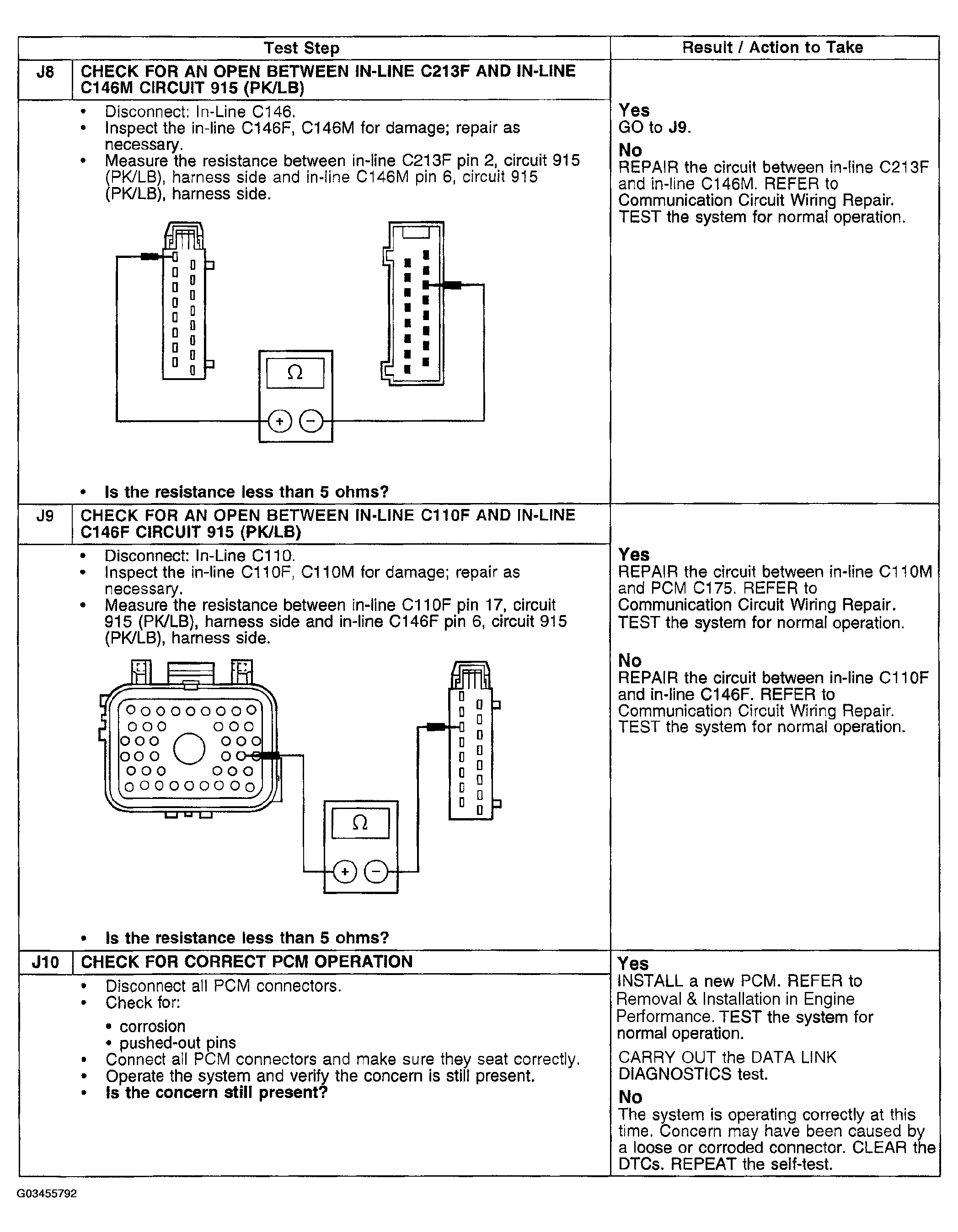

Fig 4: Pinpoint Test J: Powertrain Control Module Does Not Respond To Diagnostic Tool (Step J1-J10)
