Disassembly And Assembly Of Subassemblies: Mainshaft: Notes

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL

Courtesy of FORD MOTOR CO.	Bearing/Oil Seal Plate 205-090 or equivalent
Courtesy of FORD MOTOR CO.	Bearing Puller 205-D064 or equivalent
Courtesy of FORD MOTOR CO.	Dial Indicator with Holding Fixture 100-D002 or equivalent
Courtesy of FORD MOTOR CO.	Installer, 1st Gear Bushing 308-581 or equivalent
Courtesy of FORD MOTOR CO.	Installer, 2nd Gear Bushing 308-580 or equivalent
Courtesy of FORD MOTOR CO.	Installer, Spindle/Axle Shaft 205-199 or equivalent

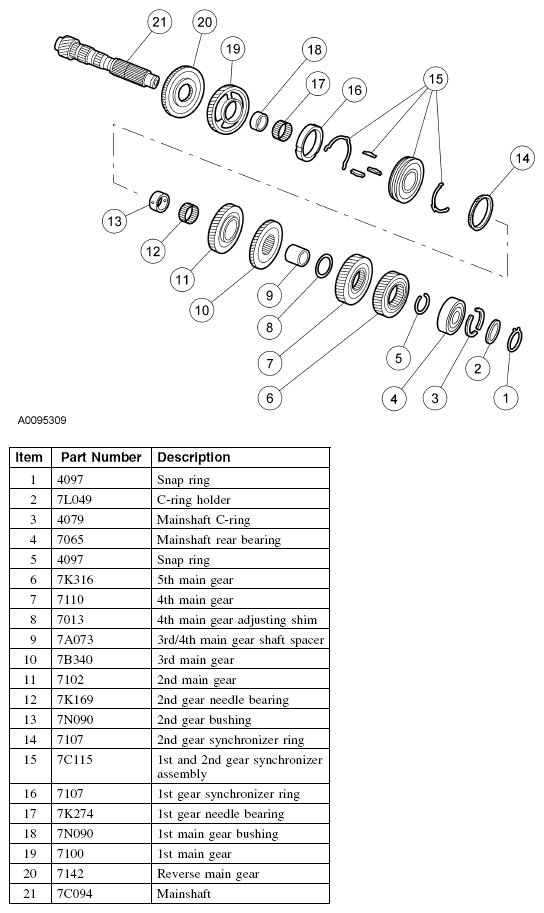

Fig 1: Identifying Mainshaft Components

Courtesy of FORD MOTOR CO.
