Pinpoint Test A: The Anti-Lock Brake Control (ABS) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

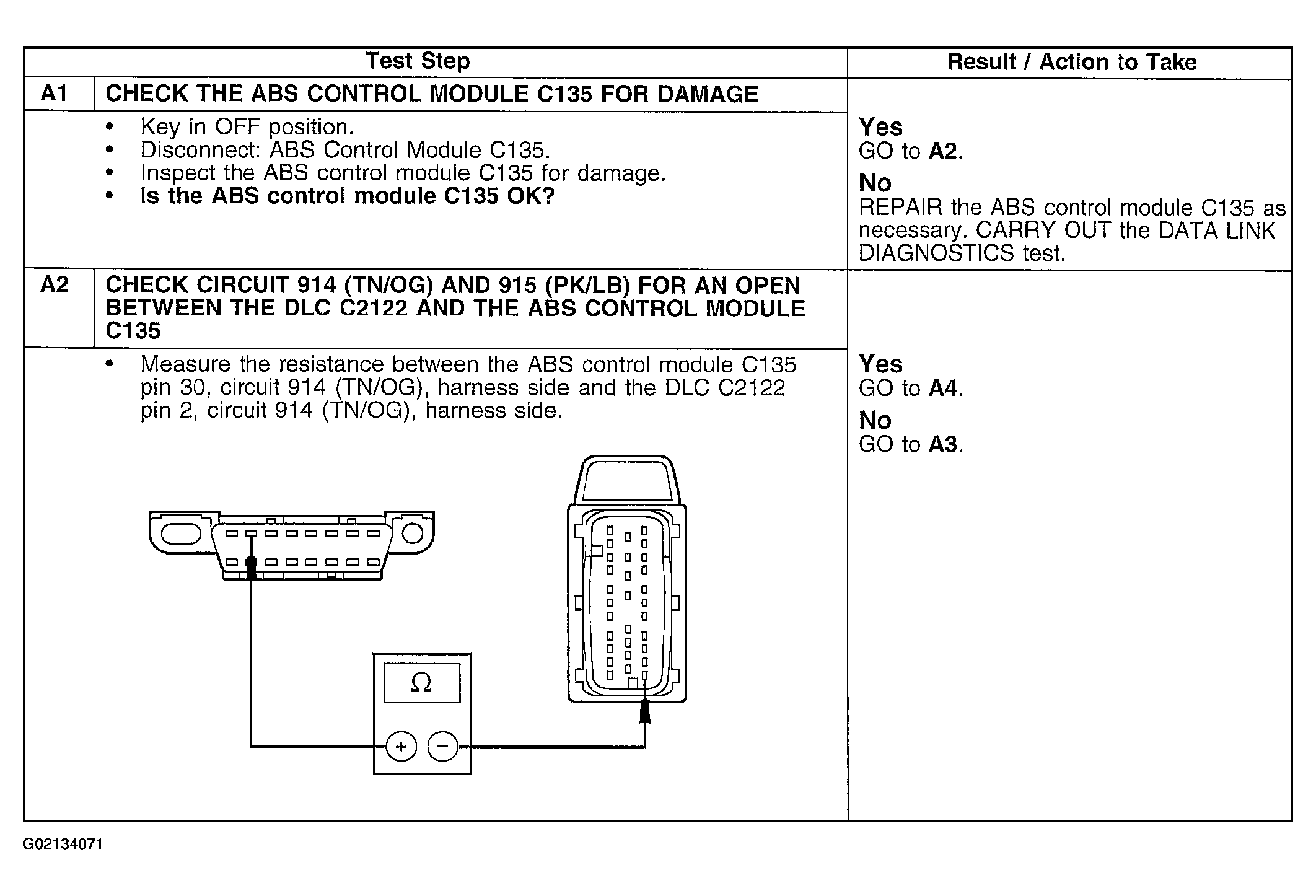

Fig 1: Pinpoint Test A (1 Of 3)

Courtesy of FORD MOTOR CO.

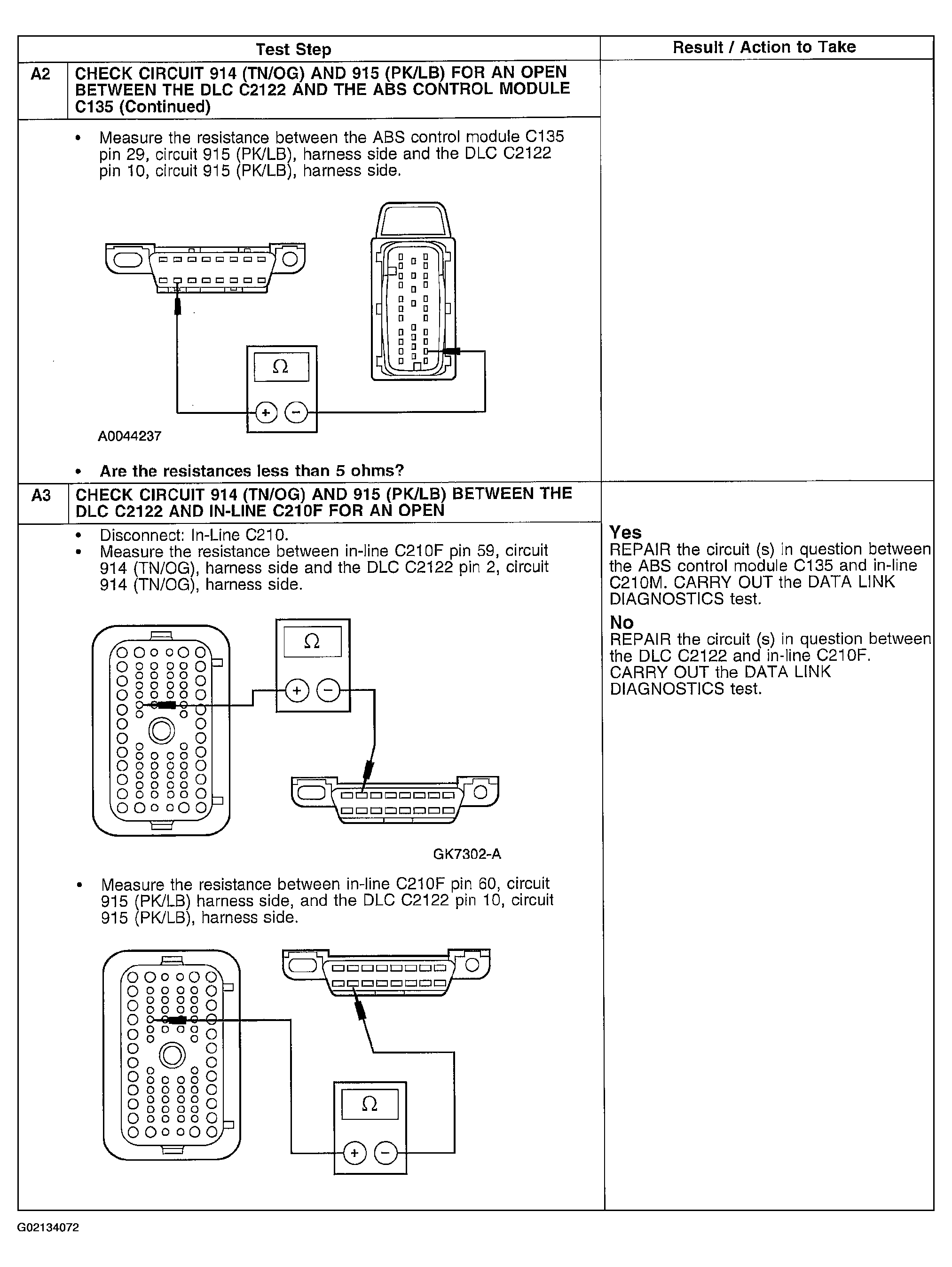

Fig 2: Pinpoint Test A (2 Of 3)

Courtesy of FORD MOTOR CO.

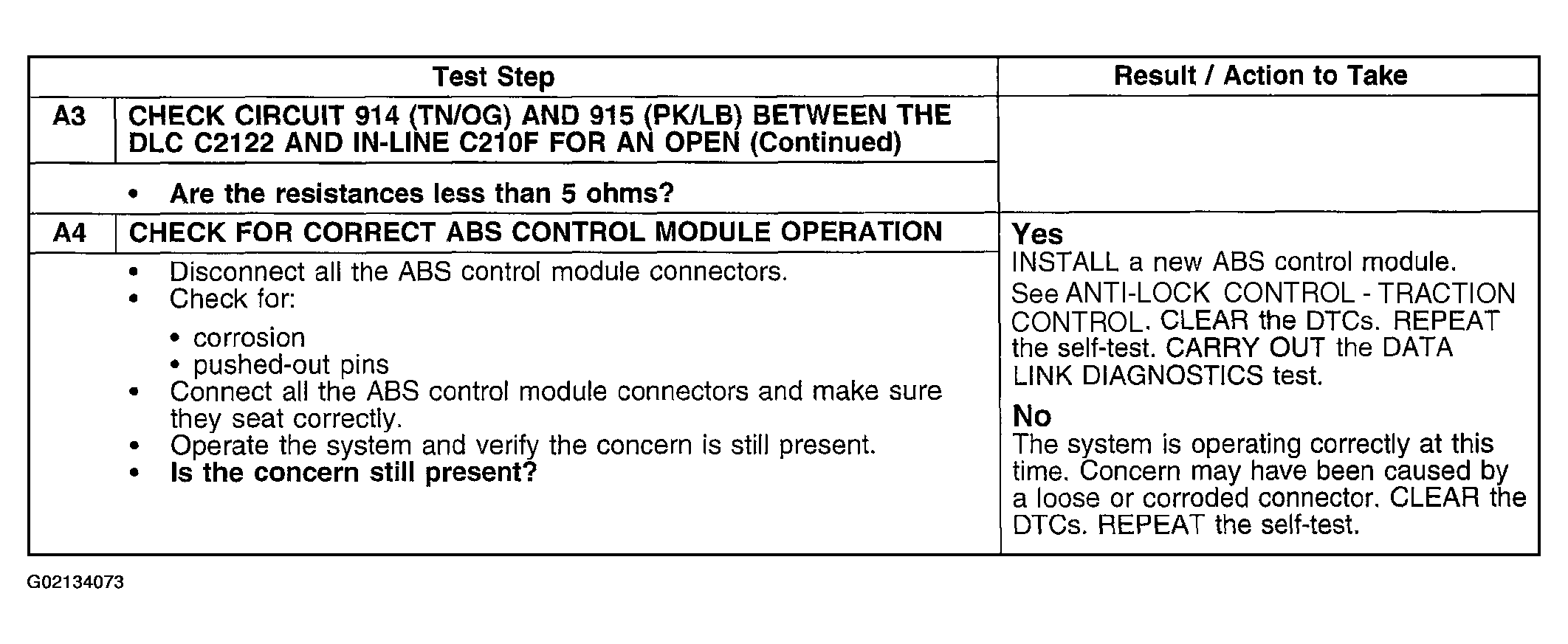

Fig 3: Pinpoint Test A (3 Of 3)

Courtesy of FORD MOTOR CO.
