Pinpoint Test G: The Lighting Control Module (LCM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

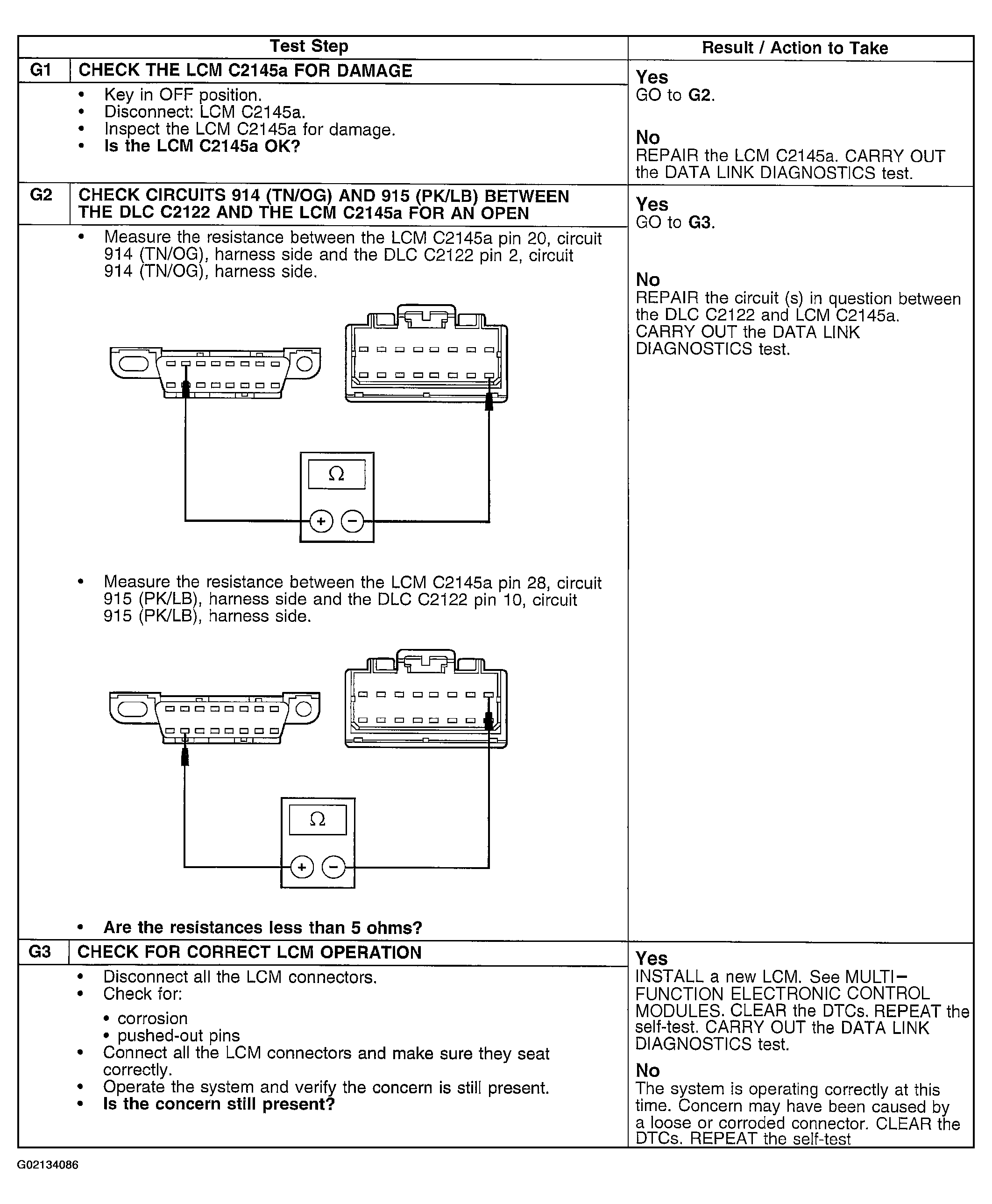

Fig 1: Pinpoint Test G
G02134086Courtesy of FORD MOTOR CO.
