Tests TB: Trans Control Switch/Trans Control Indicator Lamp




TB: Transmission Control Switch ( TCS ) / Transmission Control Indicator Lamp ( TCIL )

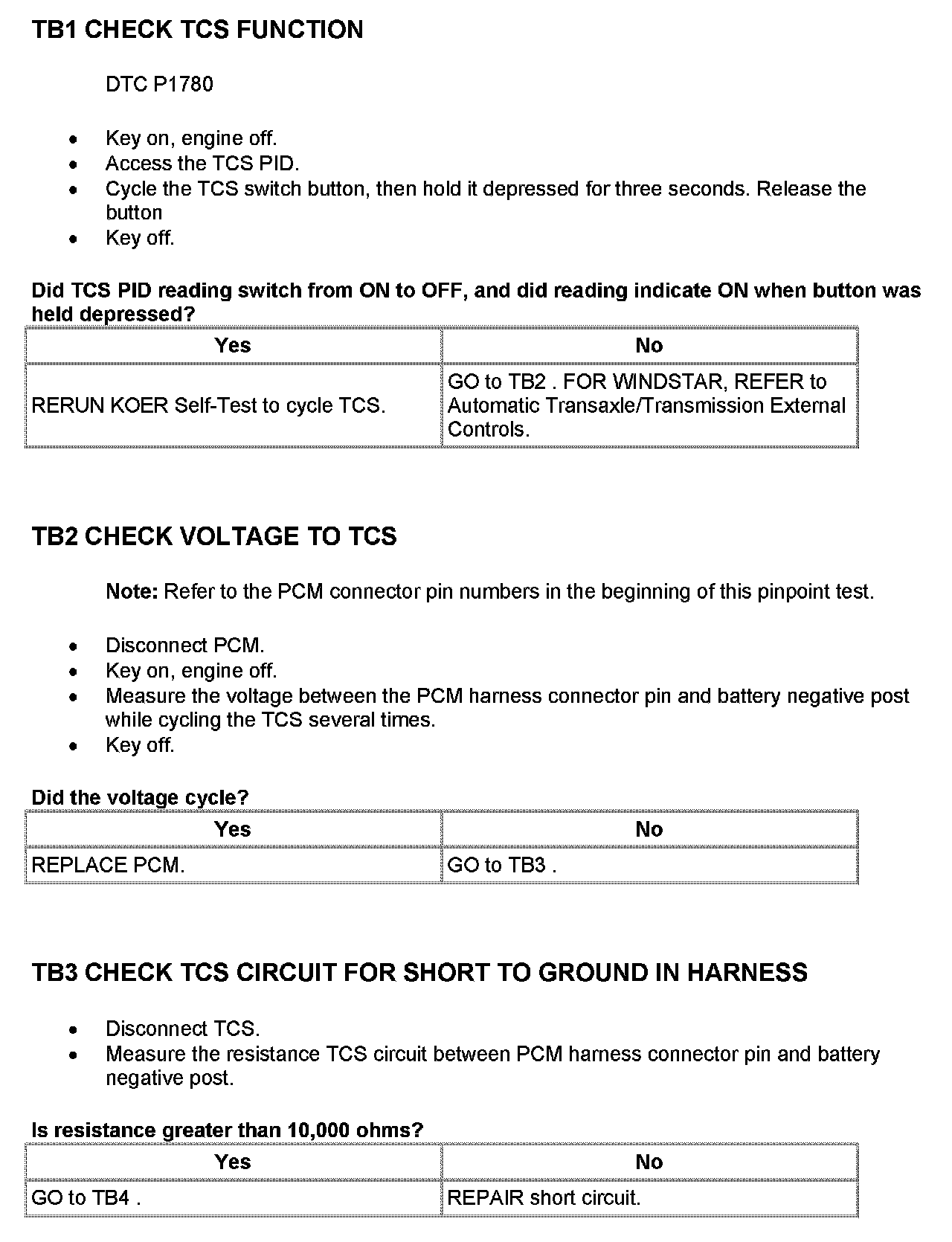

Pinpoint Test TB1 - TB3:

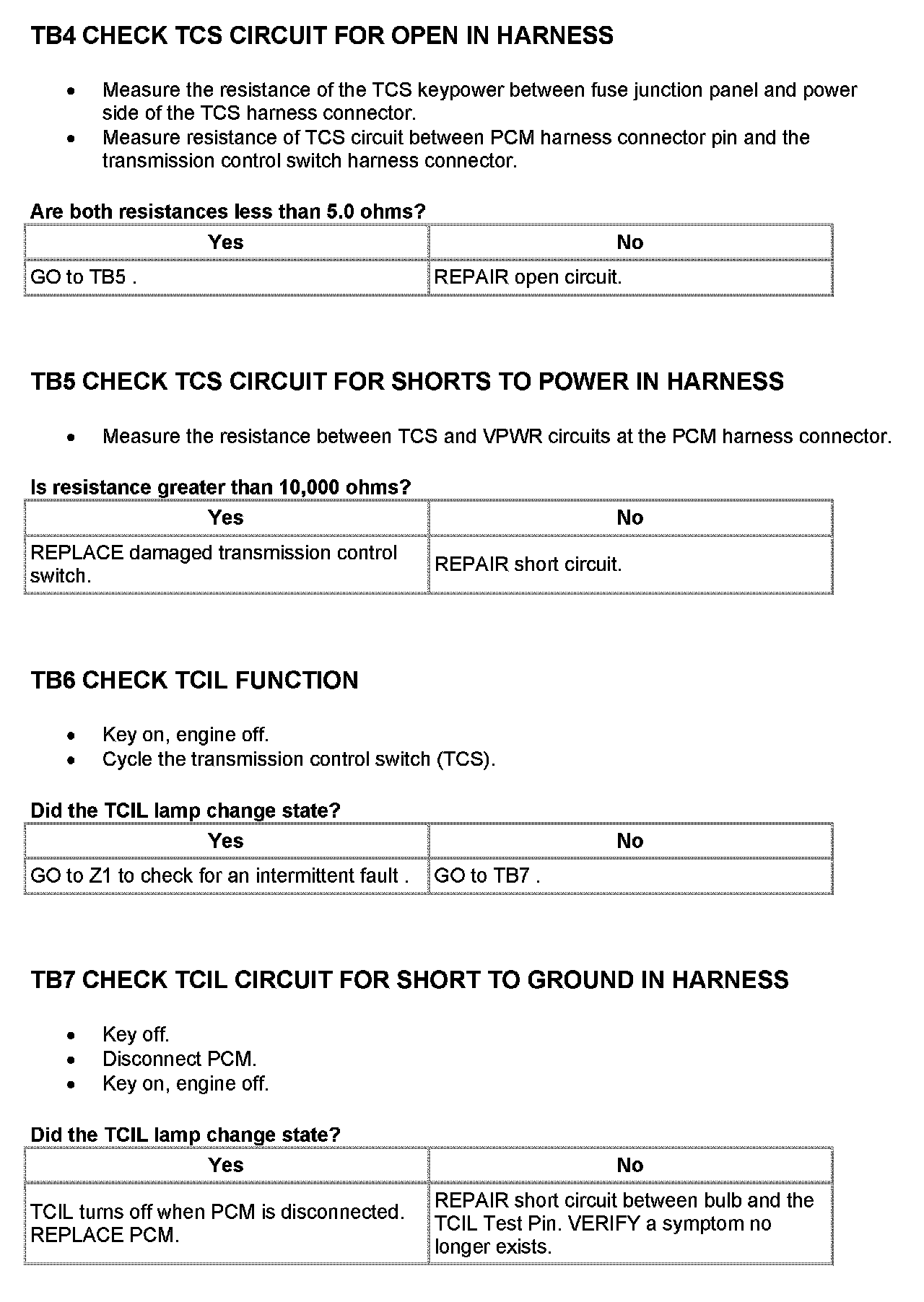

Pinpoint Test TB4 - TB7:

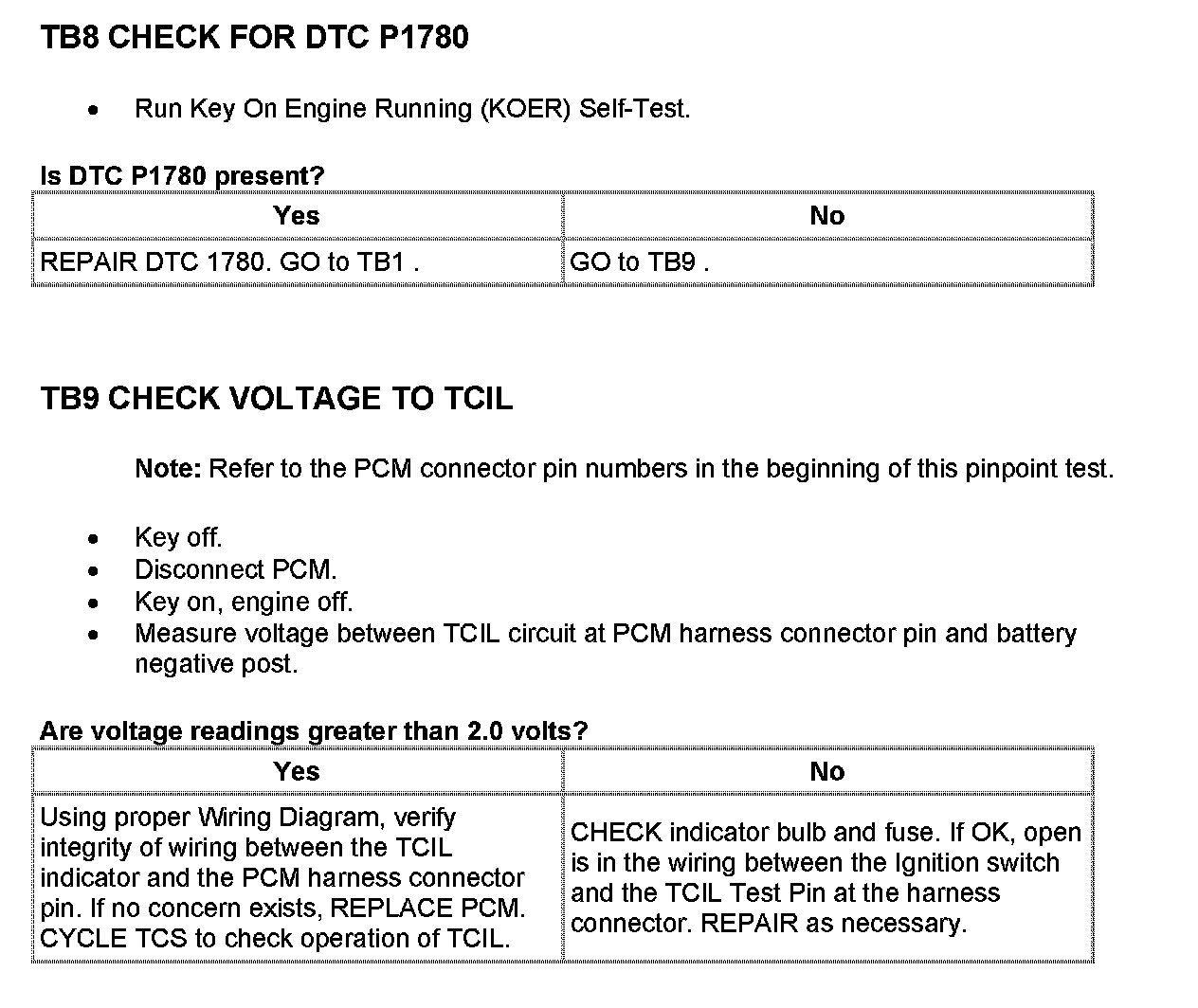

Pinpoint Test TB8 - TB9:
