Micro ISO Relay

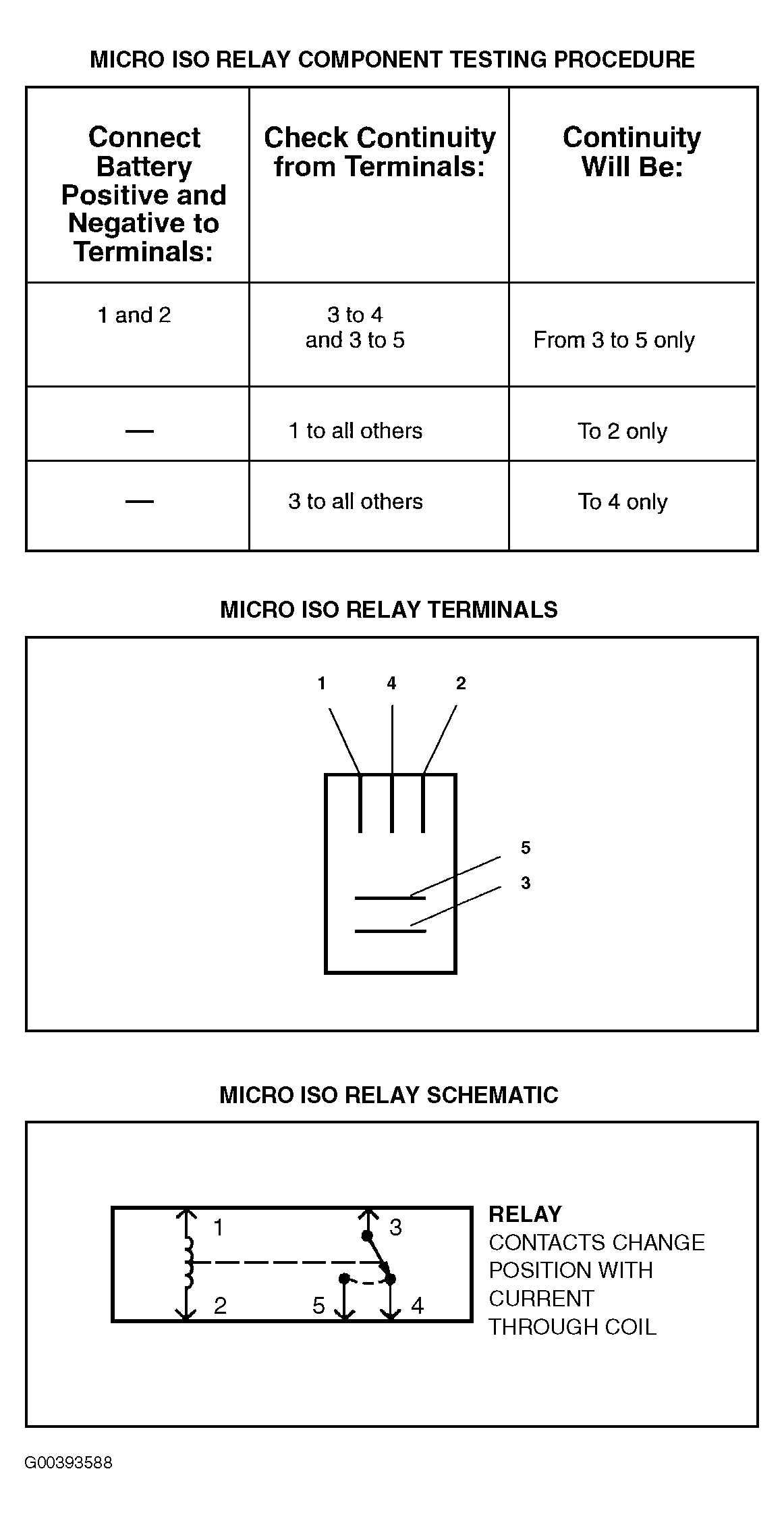

Fig 1: Testing Micro ISO Relay
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
