Removal & Installation (Focus)

  1. Detach the instrument panel lower trim panel. Remove the screws. See Fig 1. Release the fastener. Remove the instrument panel lower panel. Disconnect the hood release cable. See Fig 2.
  2. Disconnect the data link harness connector. Detach the Brake Pedal Position (BPP) switch harness connector. See Fig 3. Unlock the BPP switch. Detach the BPP switch.
  3. To install, set the brakelight switch by pulling the switch plunger out to its full extent. See Fig 4. Depress the brake pedal and SLOWLY release the brake pedal.
  4. Install BPP switch harness connector. See Fig 3. Lock the BPP switch in position. Attach the instrument panel lower panel. Connect the hood release cable. See Fig 2.
  5. Connect the data link harness connector. Install the instrument panel lower panel. Attach the fastener. See Fig 1. Install the screws.

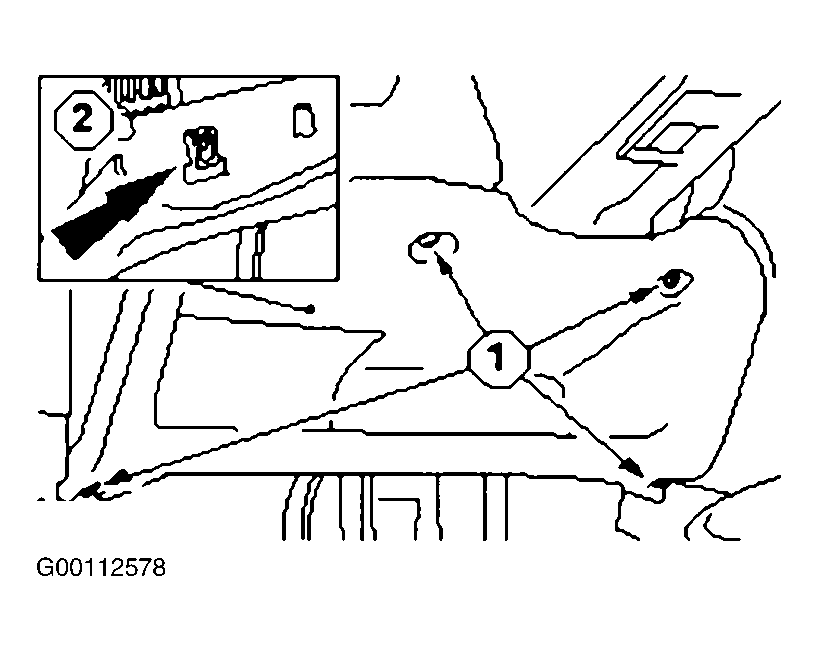

Fig 1: Removing & Installing Lower Trim Panel
G00112578Courtesy of FORD MOTOR CO.

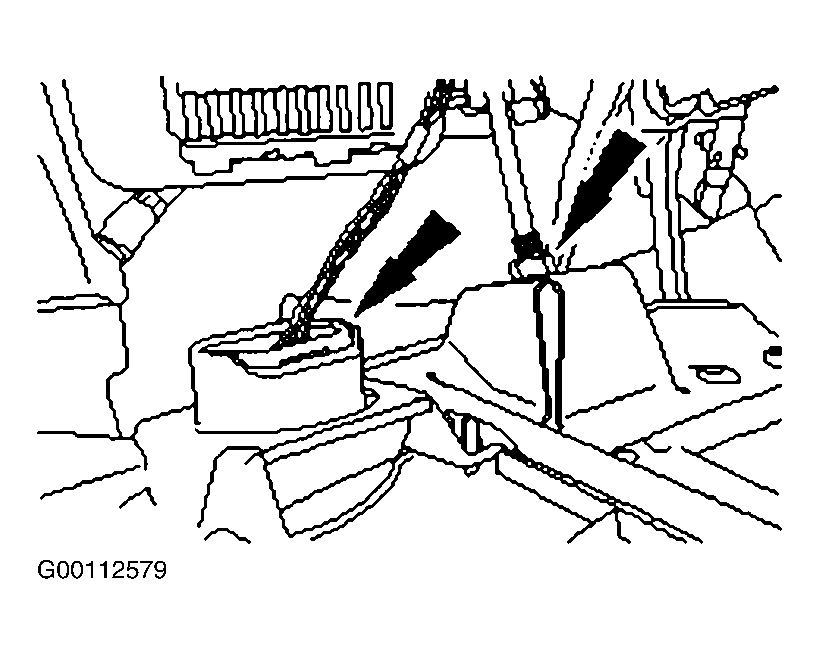

Fig 2: Removing & Installing Hood Release Cable & DLC
G00112579Courtesy of FORD MOTOR CO.

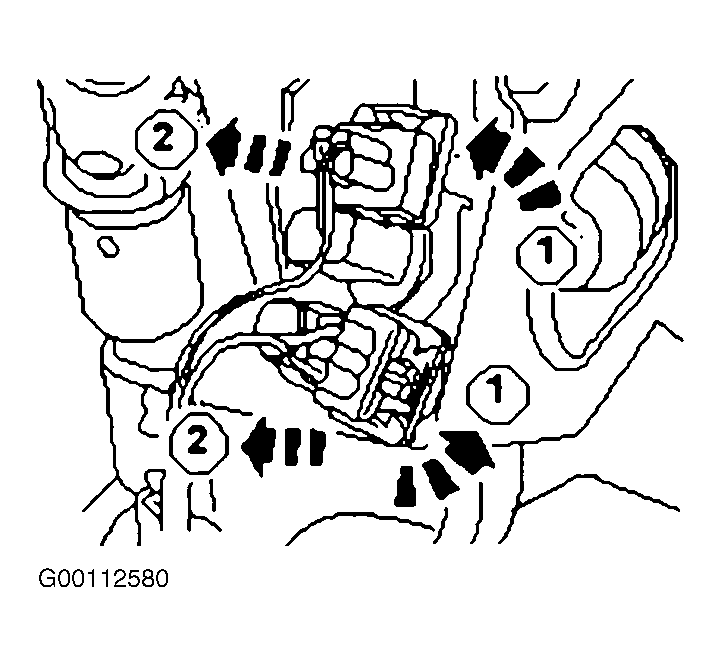

Fig 3: Removing & Installing Harness Connectors
G00112580Courtesy of FORD MOTOR CO.

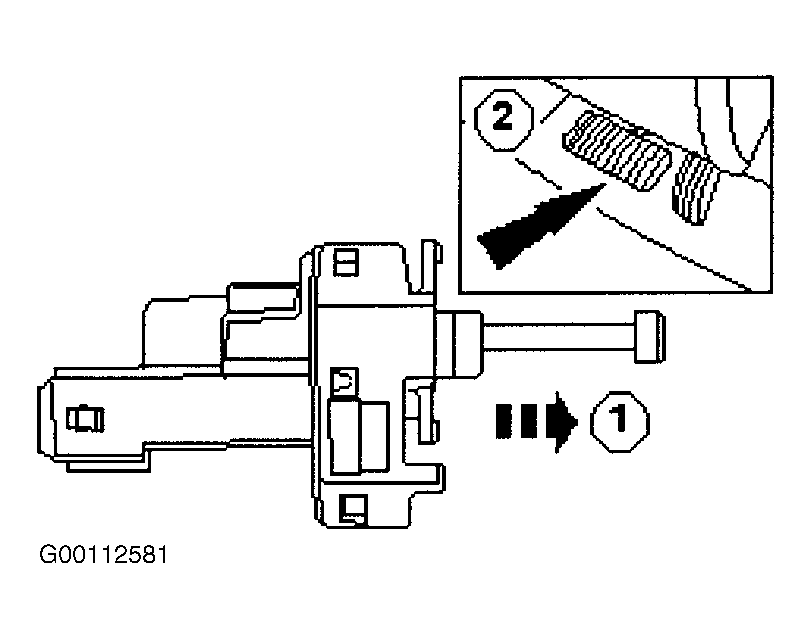

Fig 4: Setting Brake Pedal Position Switch
G00112581Courtesy of FORD MOTOR CO.
