Vehicles w/Electronic Stability Control

Vehicles Equipped With Electronic Stability Control

Electronic Stability Program Module

Connector Views

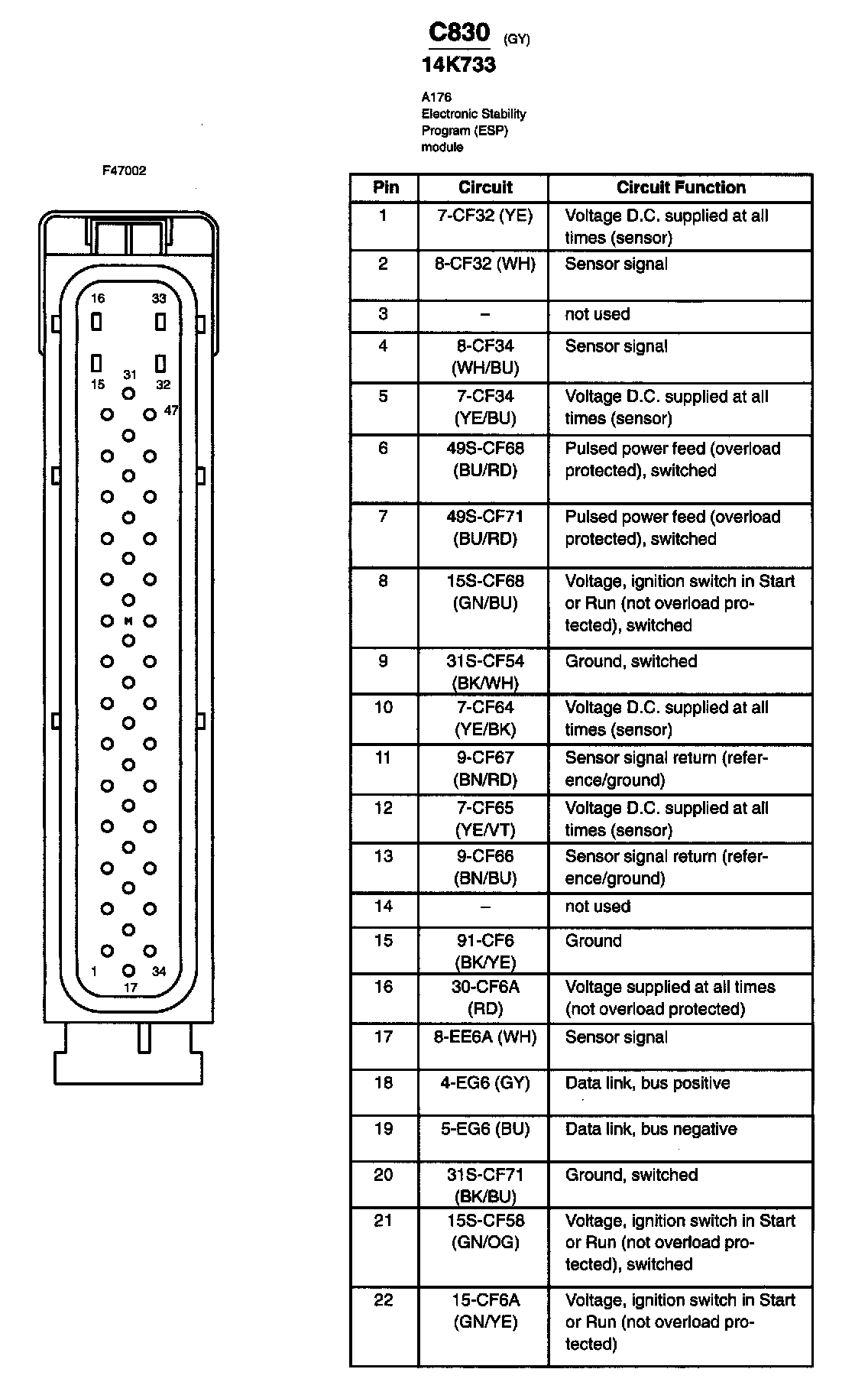

Part 1:

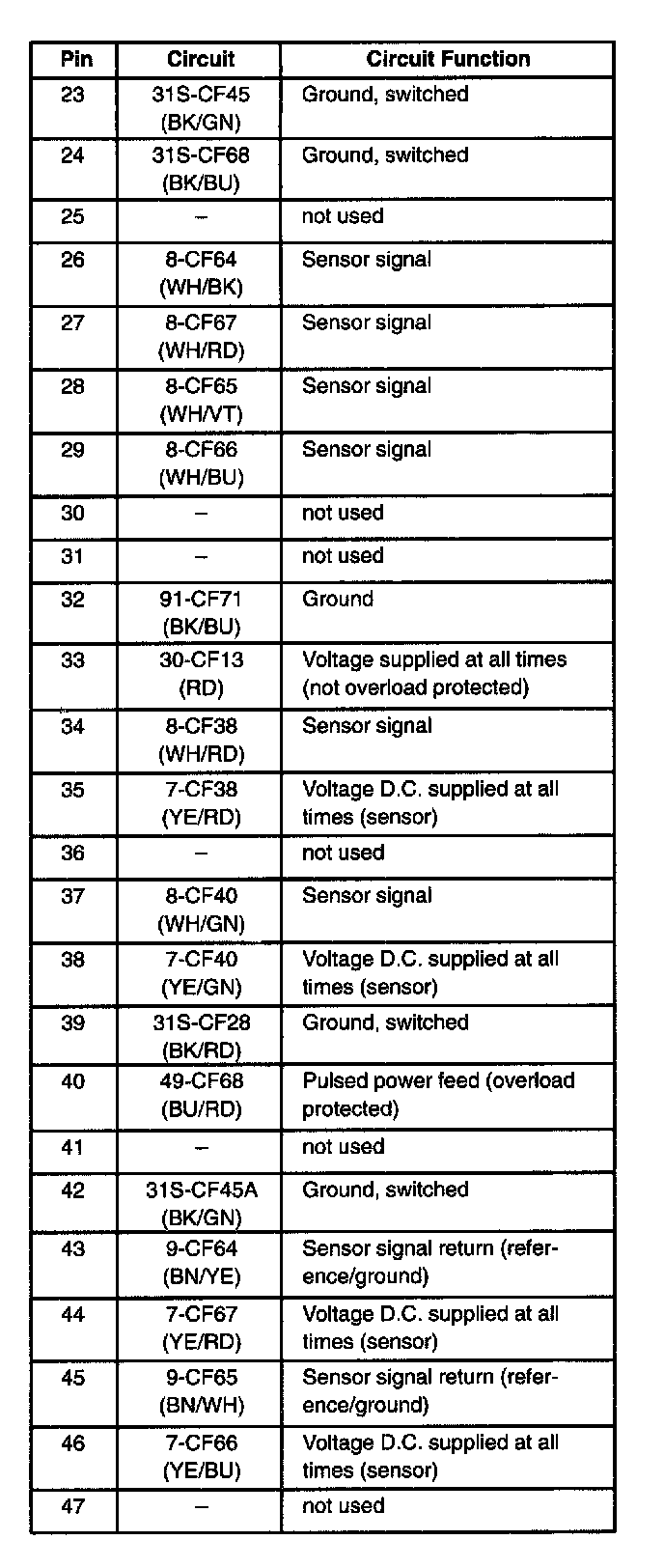

Part 2:
