General Module

DETAILED DIAGRAMS

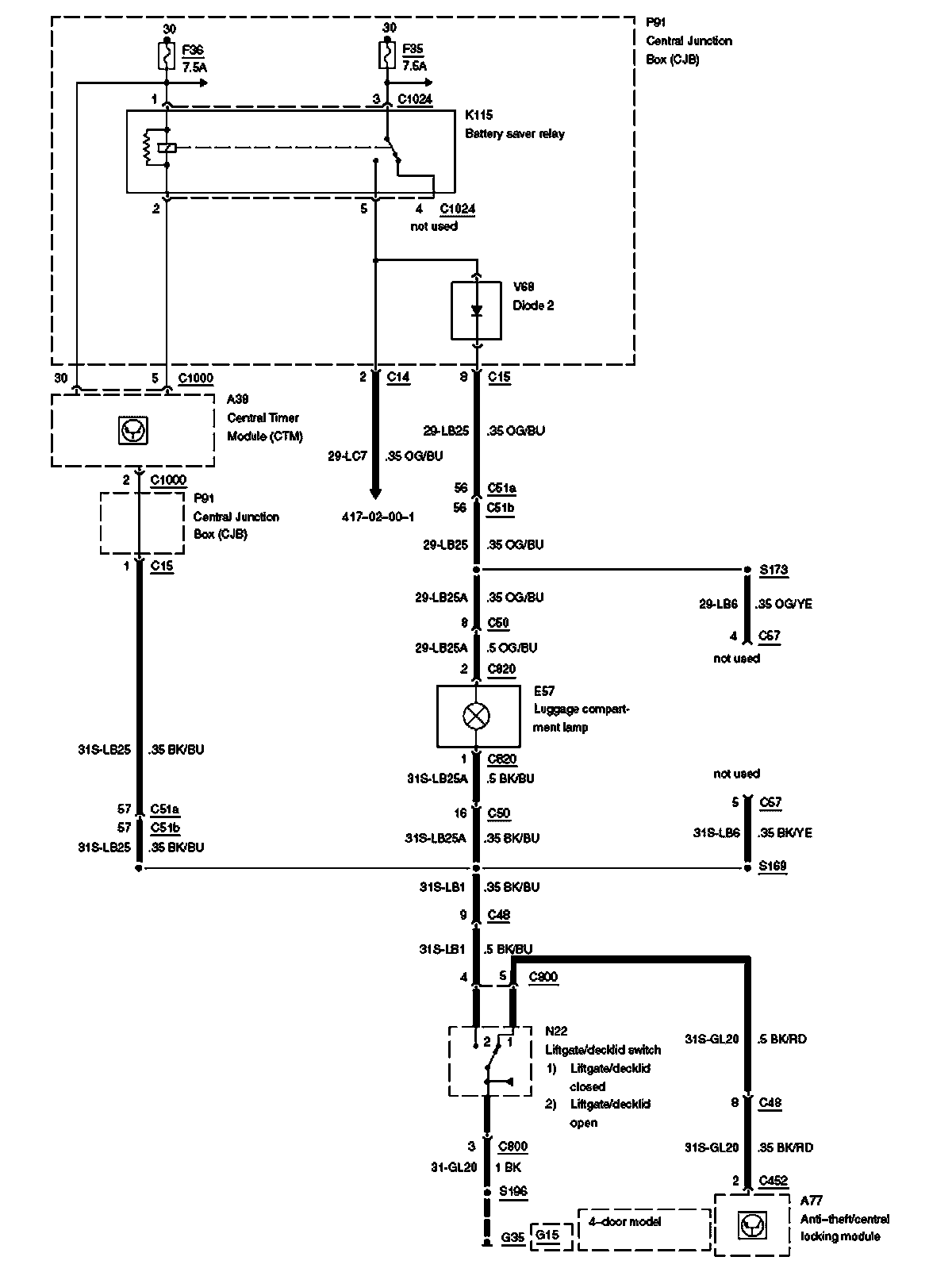

Diagram 419-10-00-1:

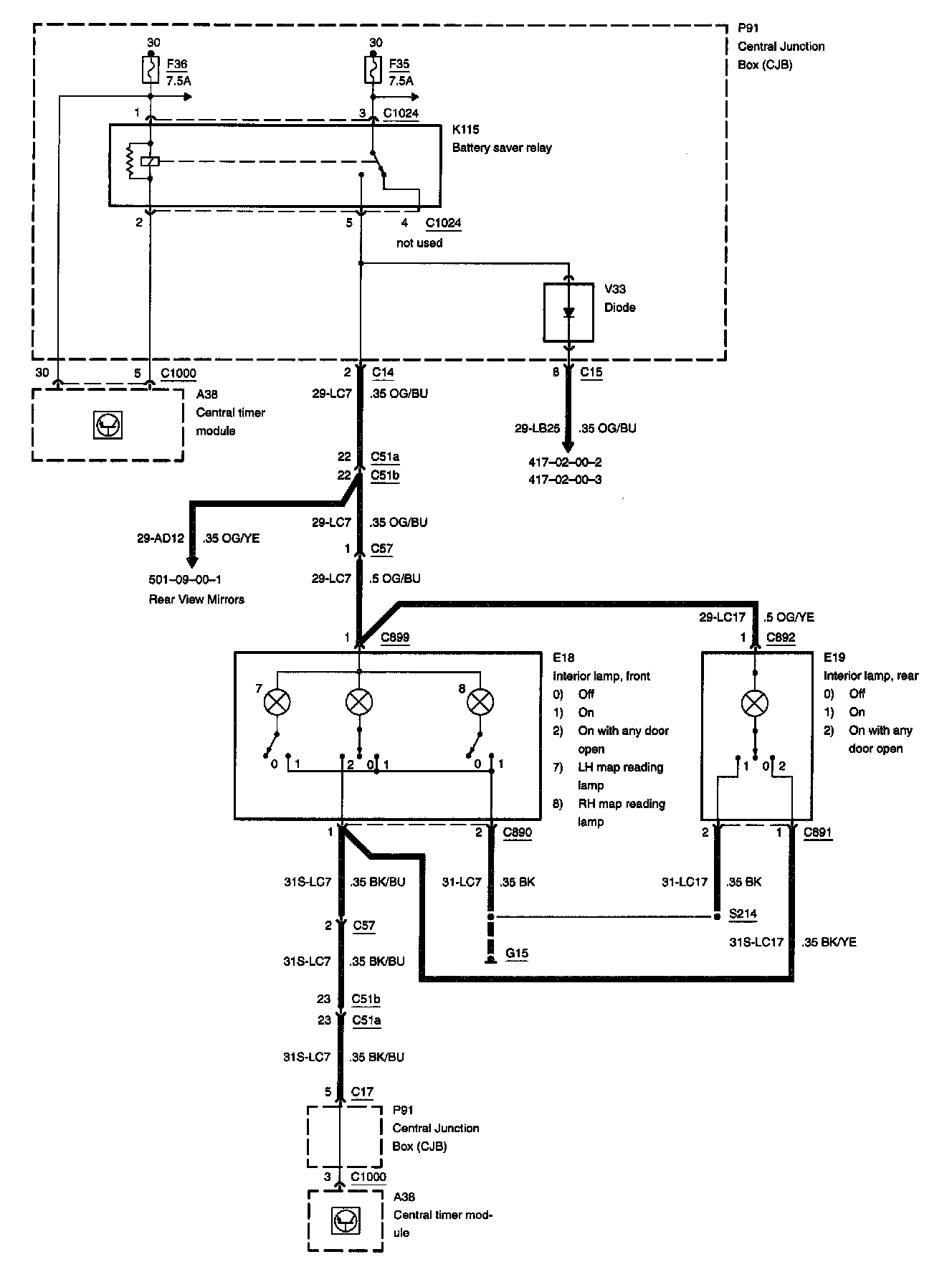

Diagram 419-10-00-2:

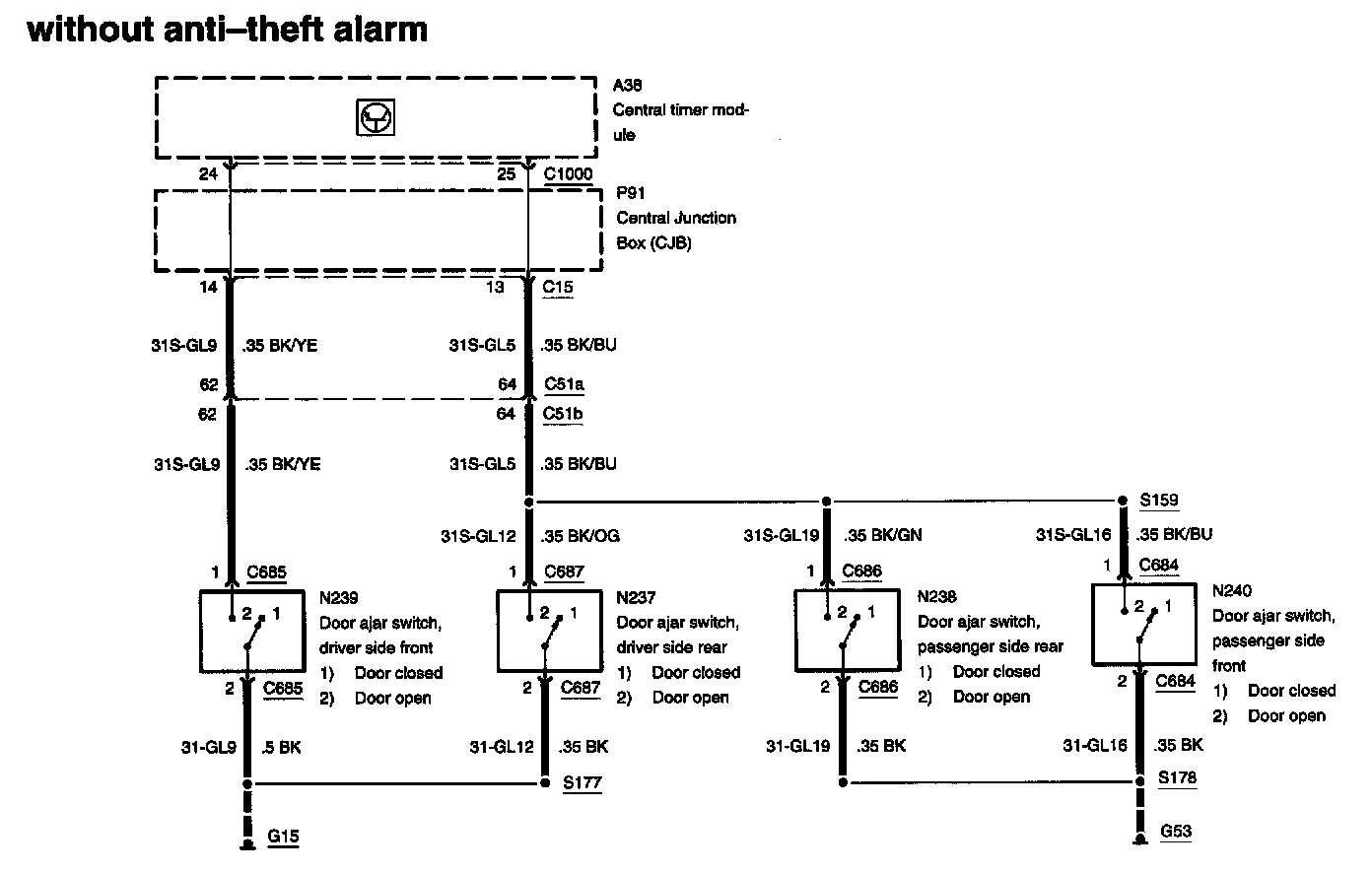

Diagram 419-10-00-3:

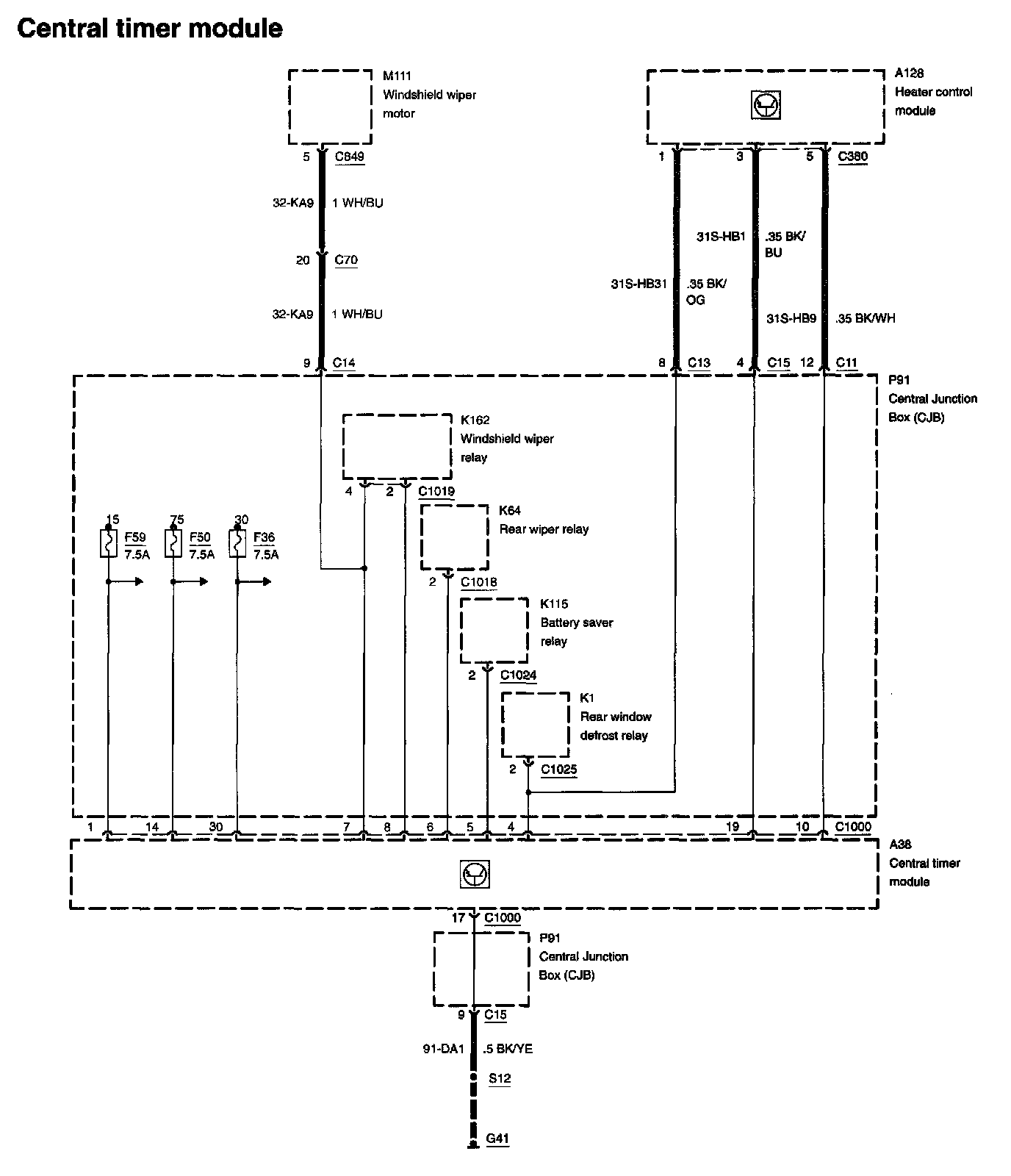

Diagram 419-10-00-4:

RELATED DIAGRAMS

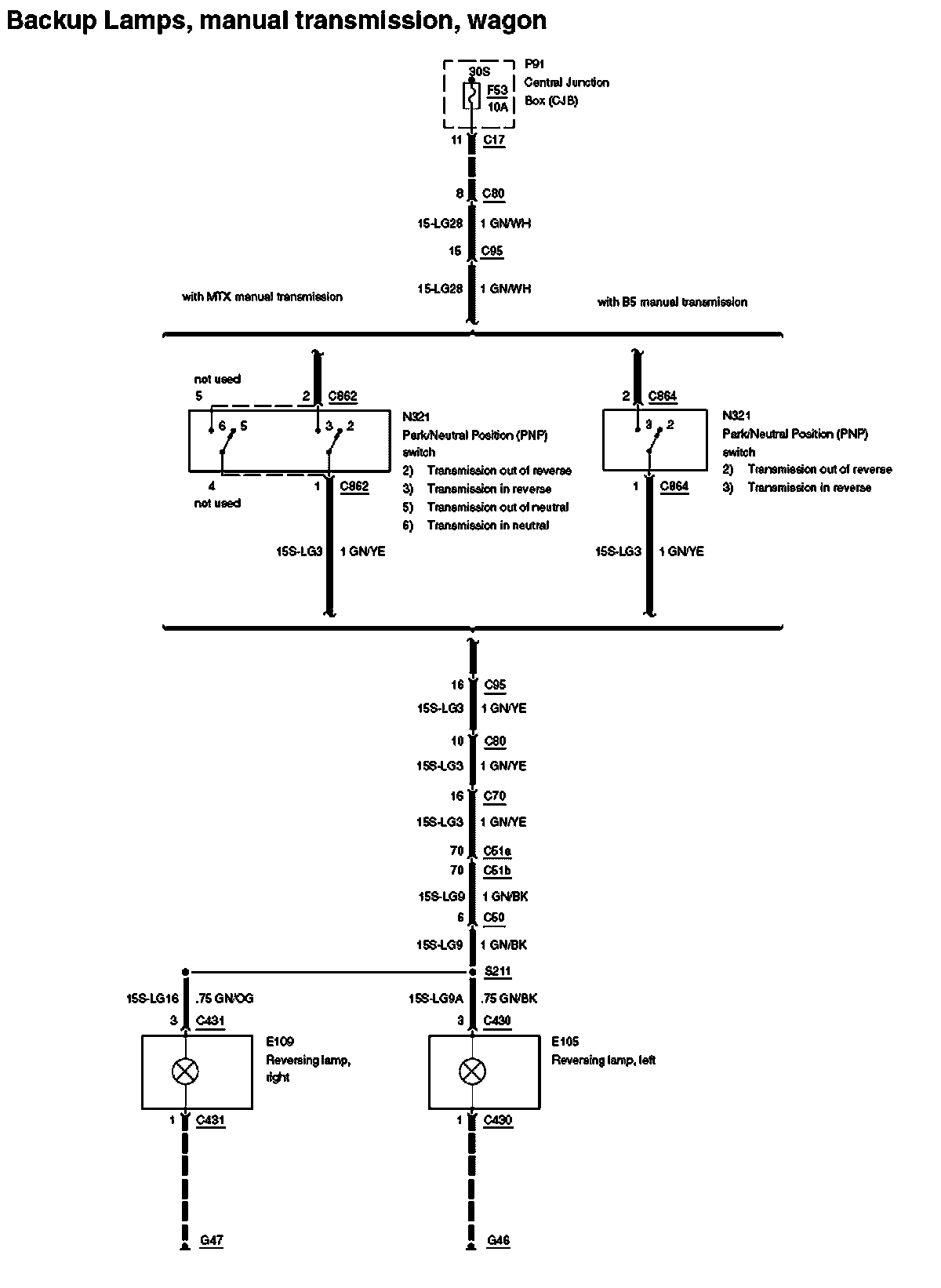

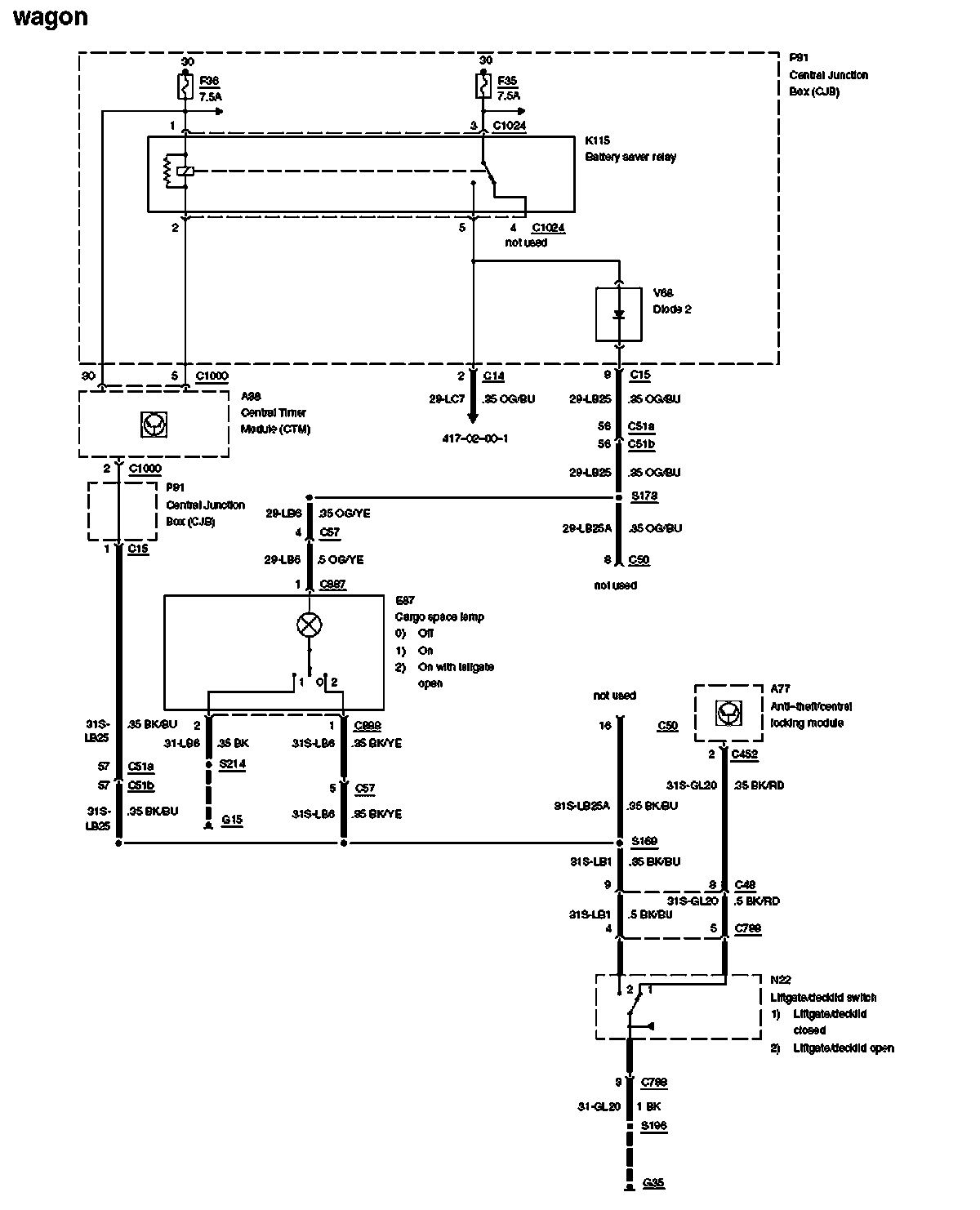

Diagram 417-01-00-19 (wagon):

Diagram 417-02-00-1:

Diagram 417-02-00-2:

Diagram 417-02-00-3:

Diagram 417-02-00-4:

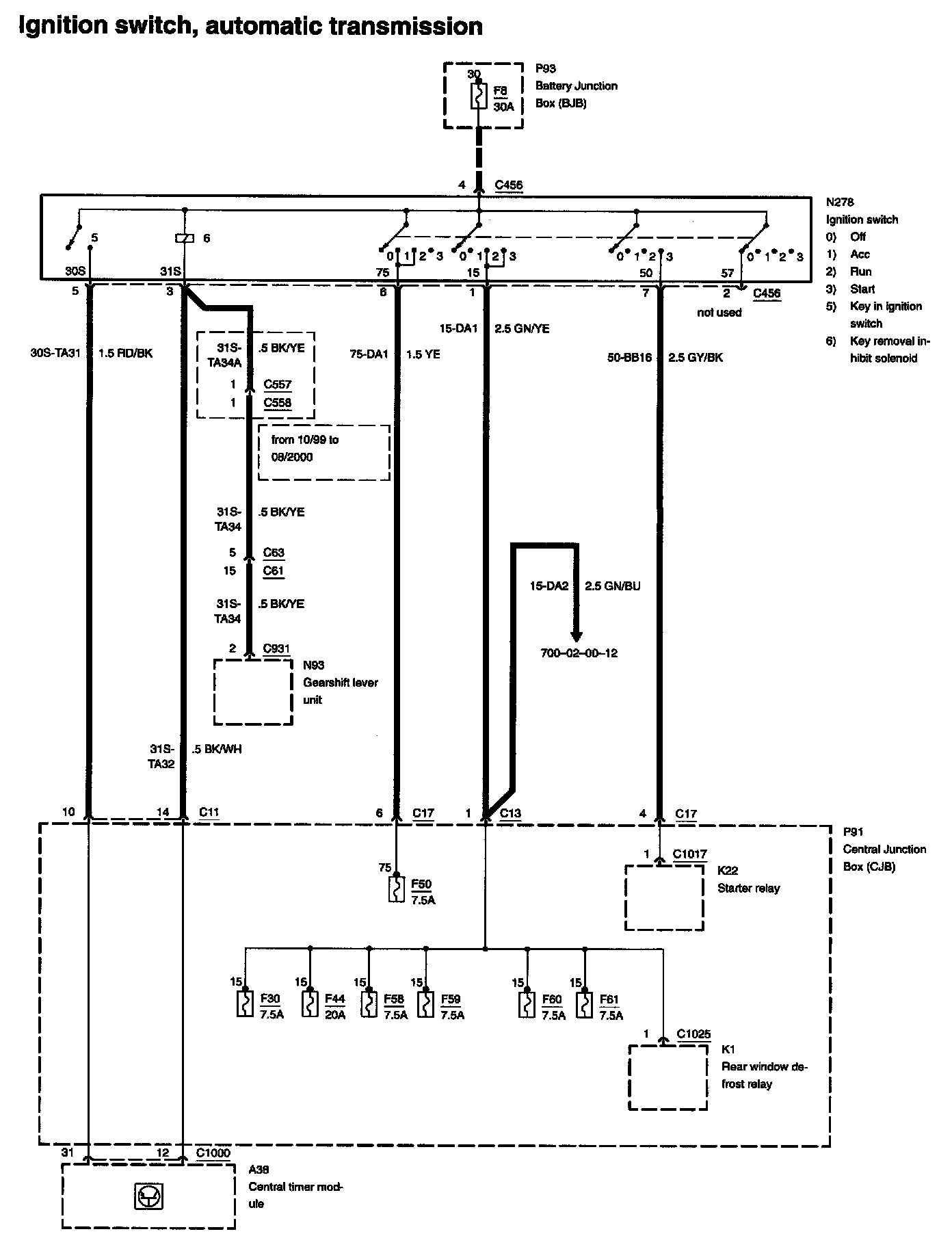

Diagram 418-00b-00-1:

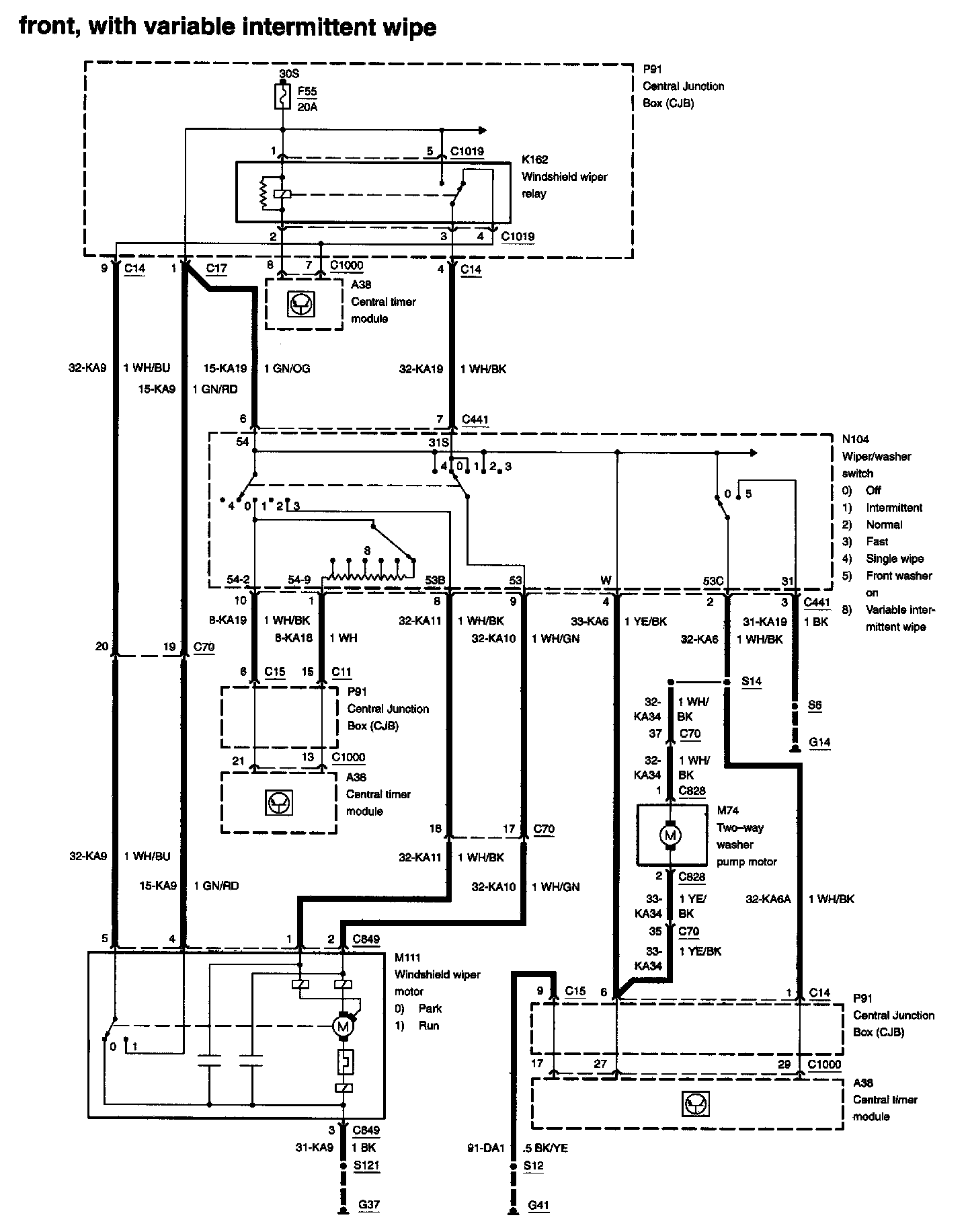

Diagram 501-16-00-2:

Diagram 501-16-00-3:

Diagram 700-02-00-11:
