Seat adjust switch, driver side front (14A701): Schematic

WARNING: This page is about a different car, the 2005 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

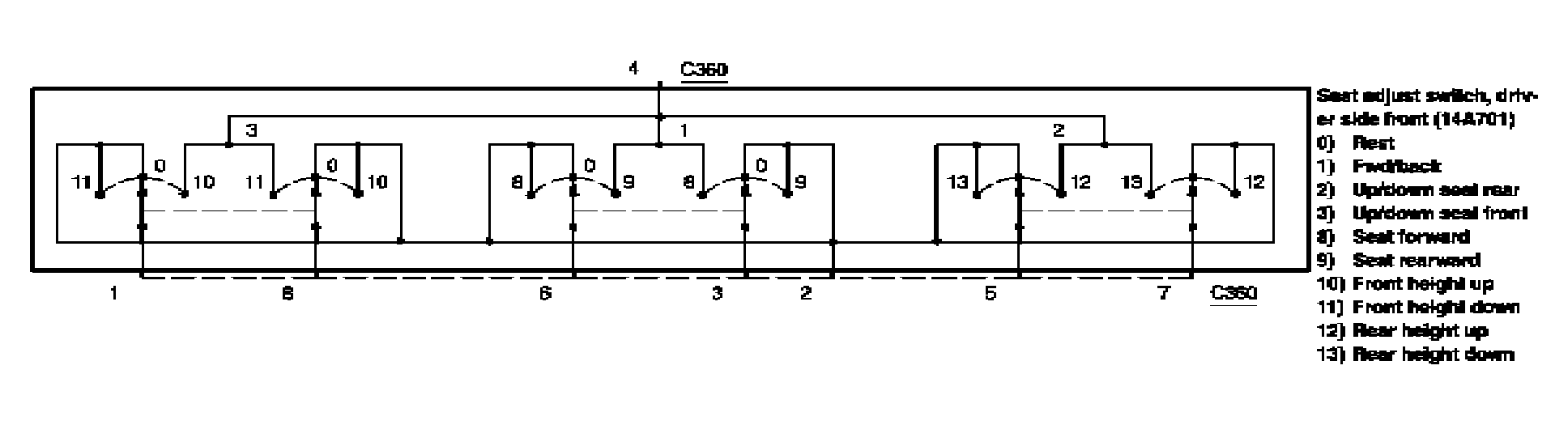

Fig 1: Seat Adjust Switch, Driver Side Front (14A701) - Schematic
G03987859Courtesy of FORD MOTOR CO.
