Connector Identification

NOTE: For connector identification, refer to illustrations. See Fig 1 - Fig 8 .
Fig 1: Identifying Front Electronic Module C192 Harness Connector Terminals
G99C02712Courtesy of FORD MOTOR CO.

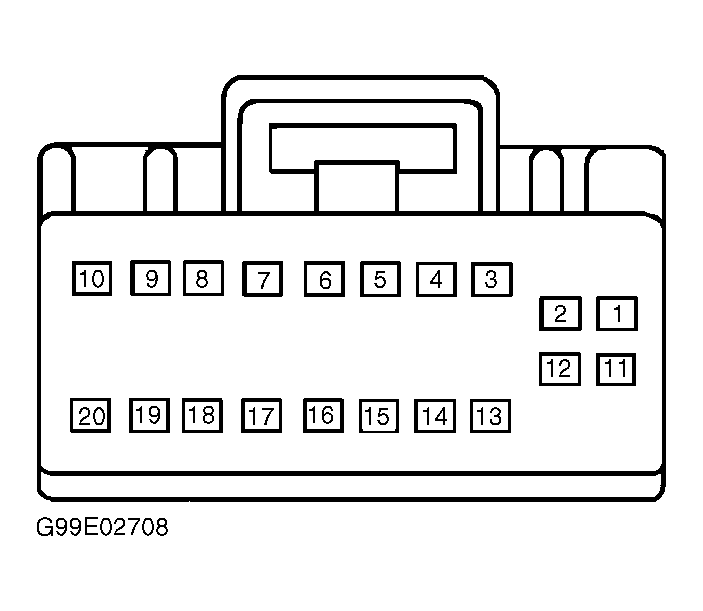

Fig 2: Identifying Front Electronic Module C346 Harness Connector Terminals
G99E02708Courtesy of FORD MOTOR CO.

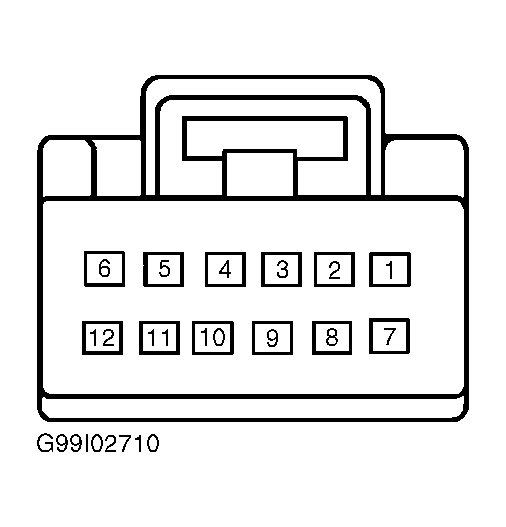

Fig 3: Identifying Front Electronic Module C190 Harness Connector Terminals
G99I02710Courtesy of FORD MOTOR CO.

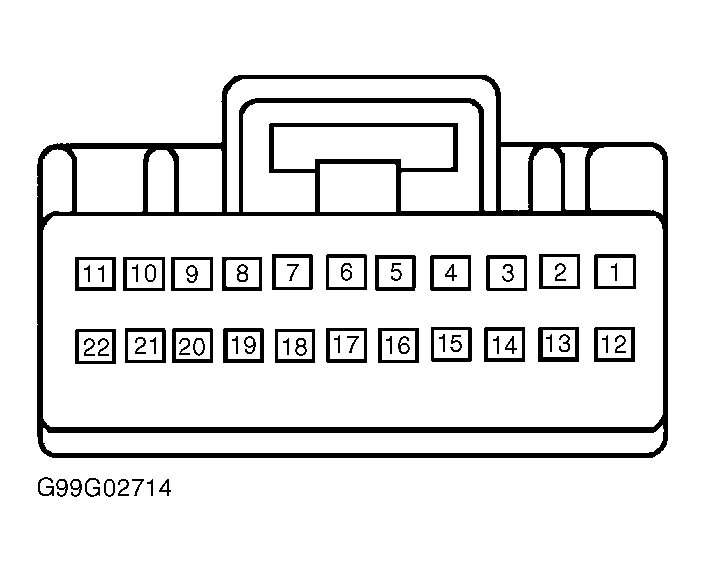

Fig 4: Identifying Front Electronic Module C191 Harness Connector Terminals
G99G02714Courtesy of FORD MOTOR CO.

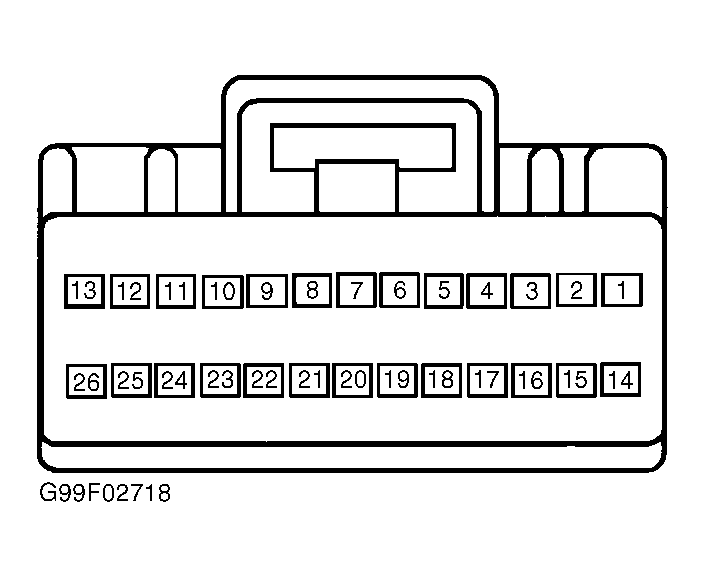

Fig 5: Identifying Front Electronic Module C347 Harness Connector Terminals
G99F02718Courtesy of FORD MOTOR CO.

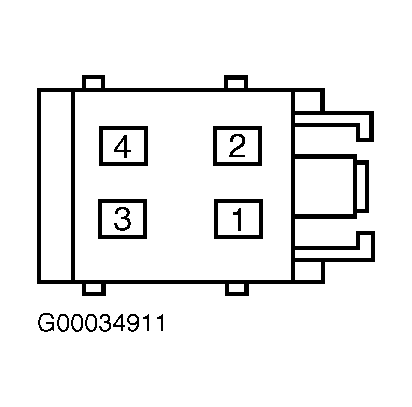

Fig 6: Identifying Front Electronic Module C348 Harness Connector Terminals
G00034911Courtesy of FORD MOTOR CO.

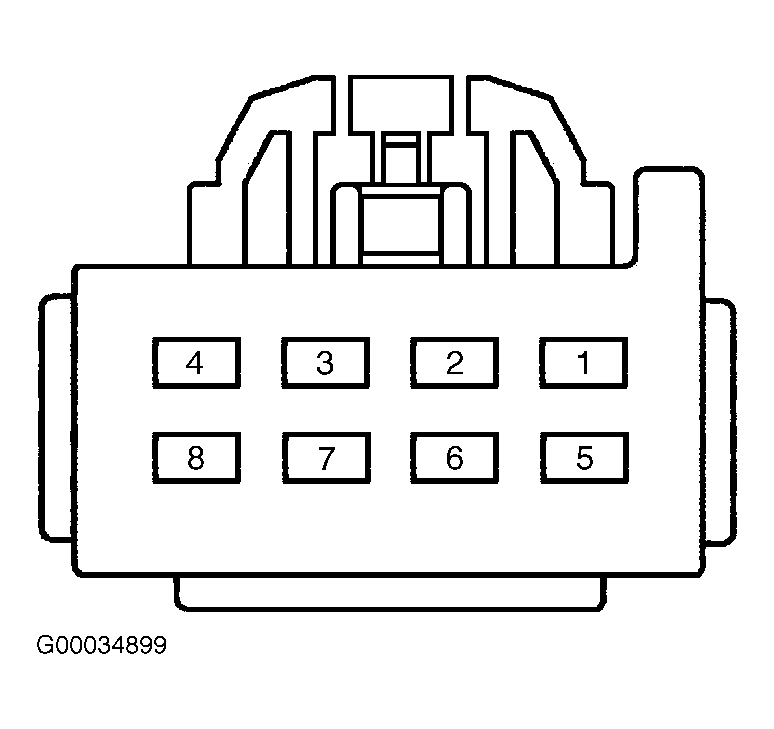

Fig 7: Identifying Master Window Regulator Control Switch C501 Harness Connector Terminals
G00034899Courtesy of FORD MOTOR CO.
Fig 8: Identifying Master Window Regulator Control Switch C502 & Passenger's Window Regulator Control Switch C600 Harness Connector Terminals
G00034900Courtesy of FORD MOTOR CO.
