Automatic Transmission
>>
Description & Operation
>>
Main Components & Functions
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Main Components & Functions

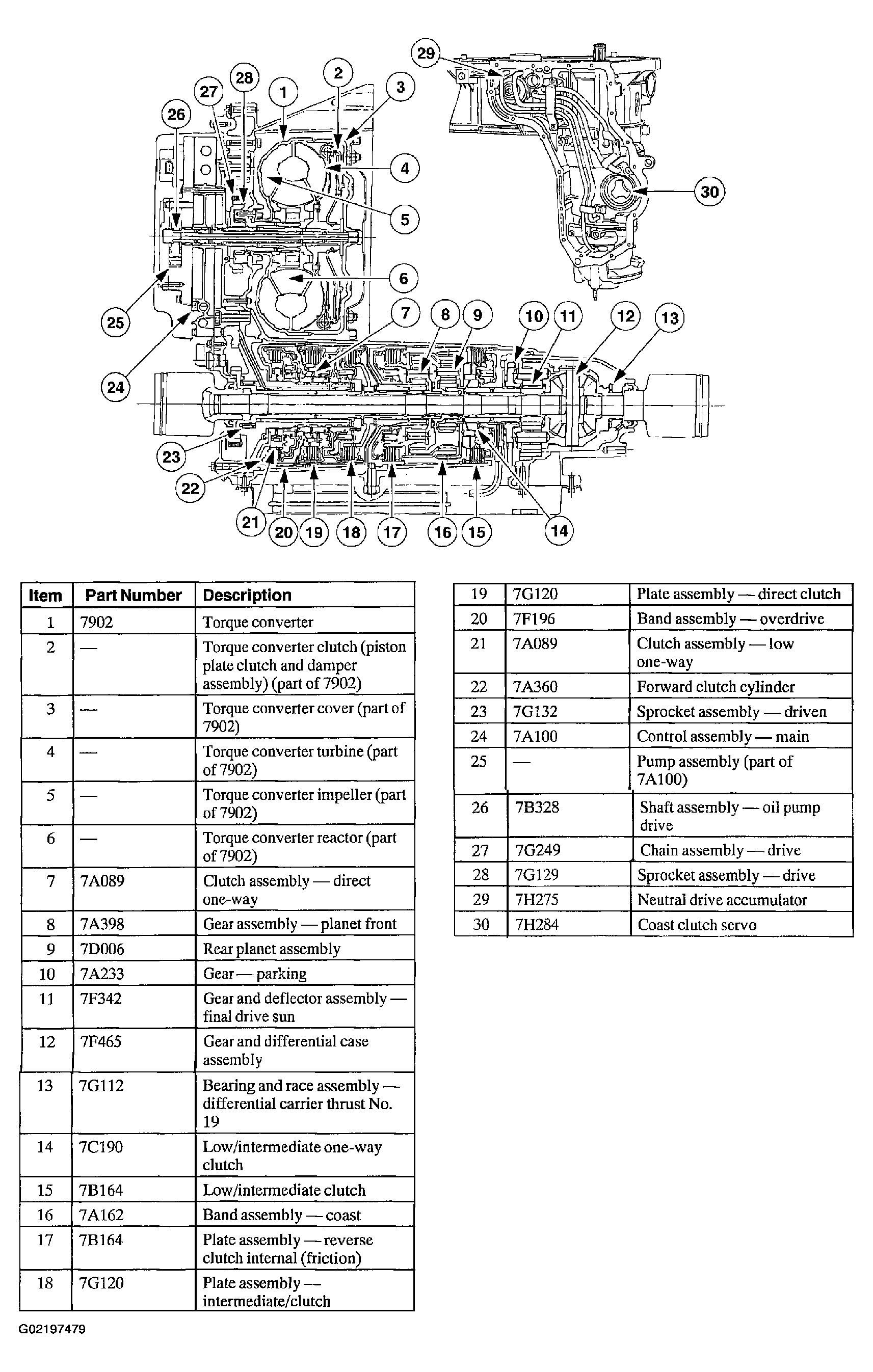

Fig 1: Main Components & Functions
