Camber Adjustment: Front

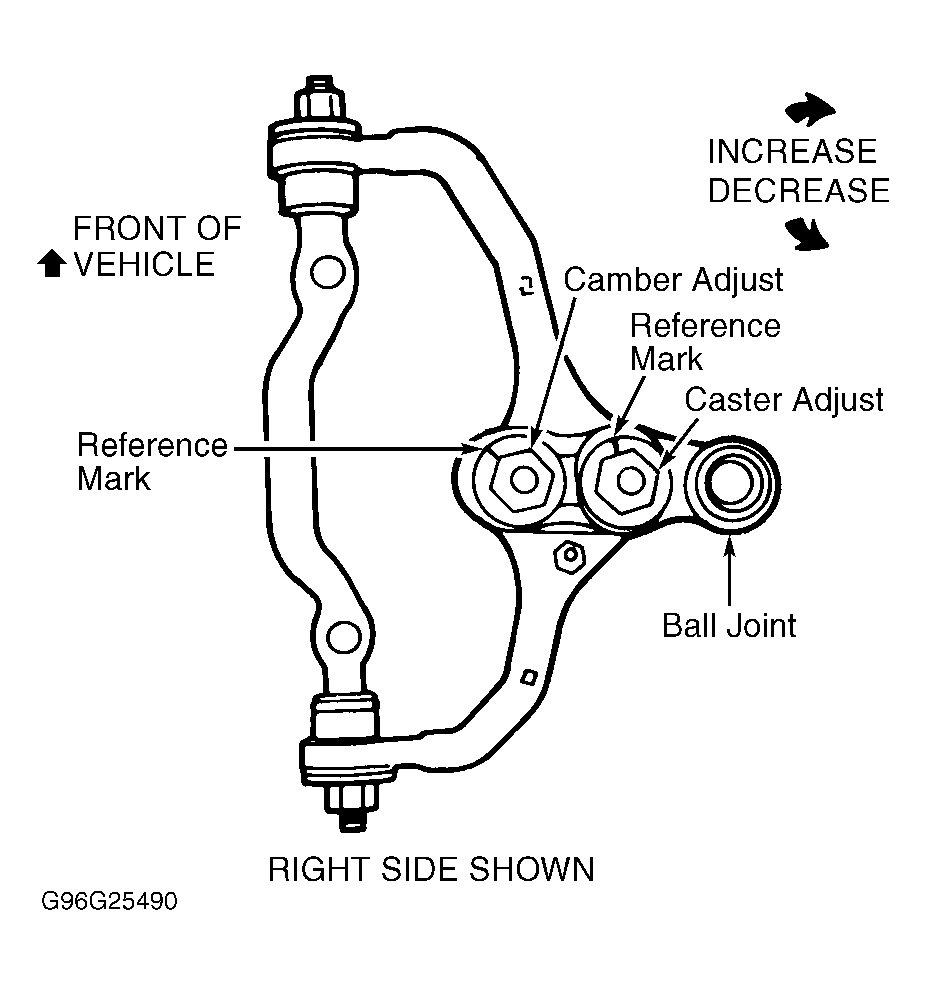

Adjusting cams are provided for camber/caster adjustment. See Fig 1 . Loosen 2 nuts on top of adjusting cams. Turn hex cams to adjust camber/caster angle. See WHEEL ALIGNMENT SPECIFICATIONS . Hold each cam and tighten nuts to specification. See TORQUE SPECIFICATIONS . Checking camber angle is not necessary after adjustment has been performed.
