Climate Control Assembly

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration.
To install, reverse the removal procedure.

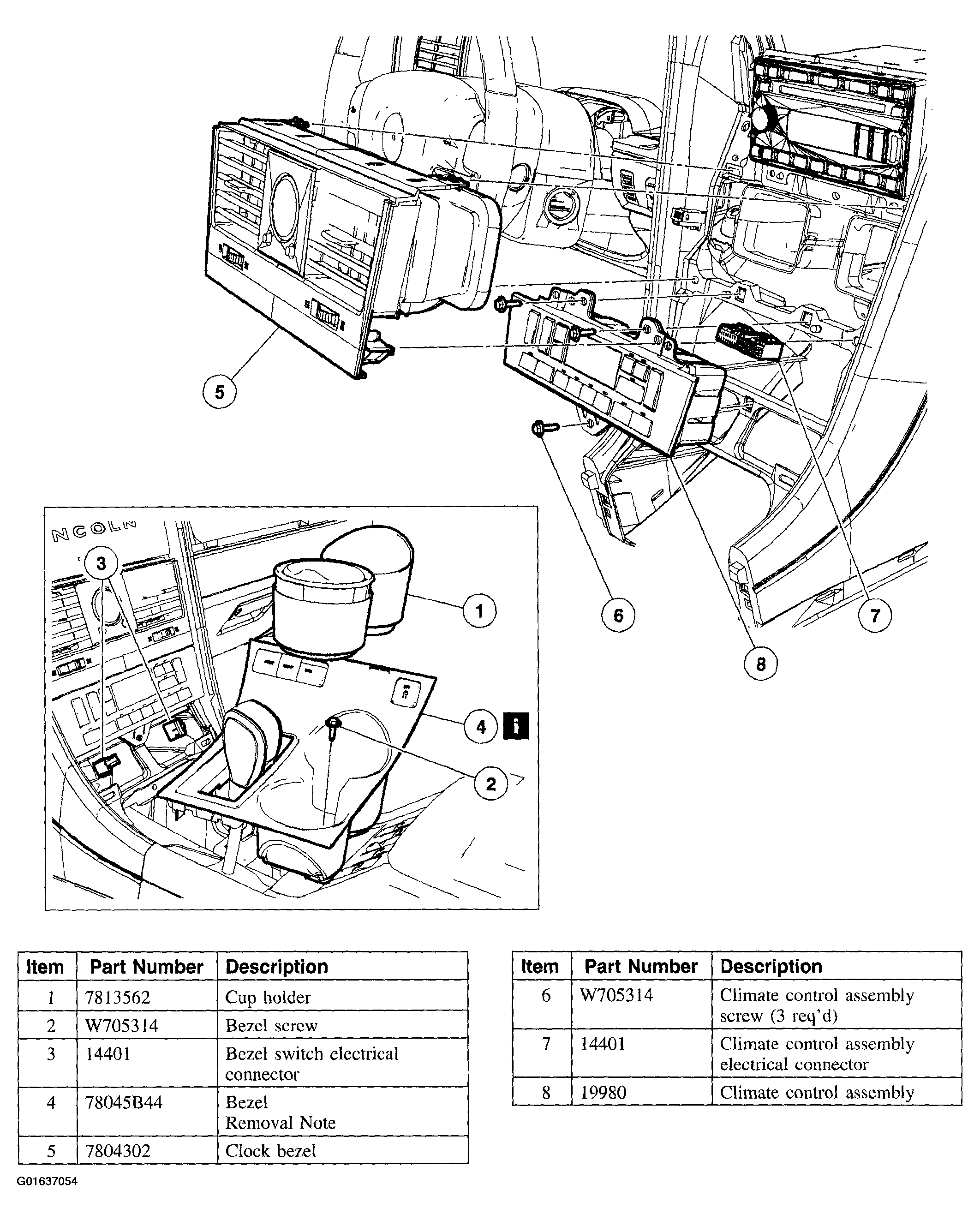

Fig 1: Removal Sequence Of Climate Control Assembly
Courtesy of FORD MOTOR CO.

Item 4: Bezel Removal Note

Rotate the bezel to gain access to the lower climate control assembly screw.
