Pinpoint Test D: The Central Security Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

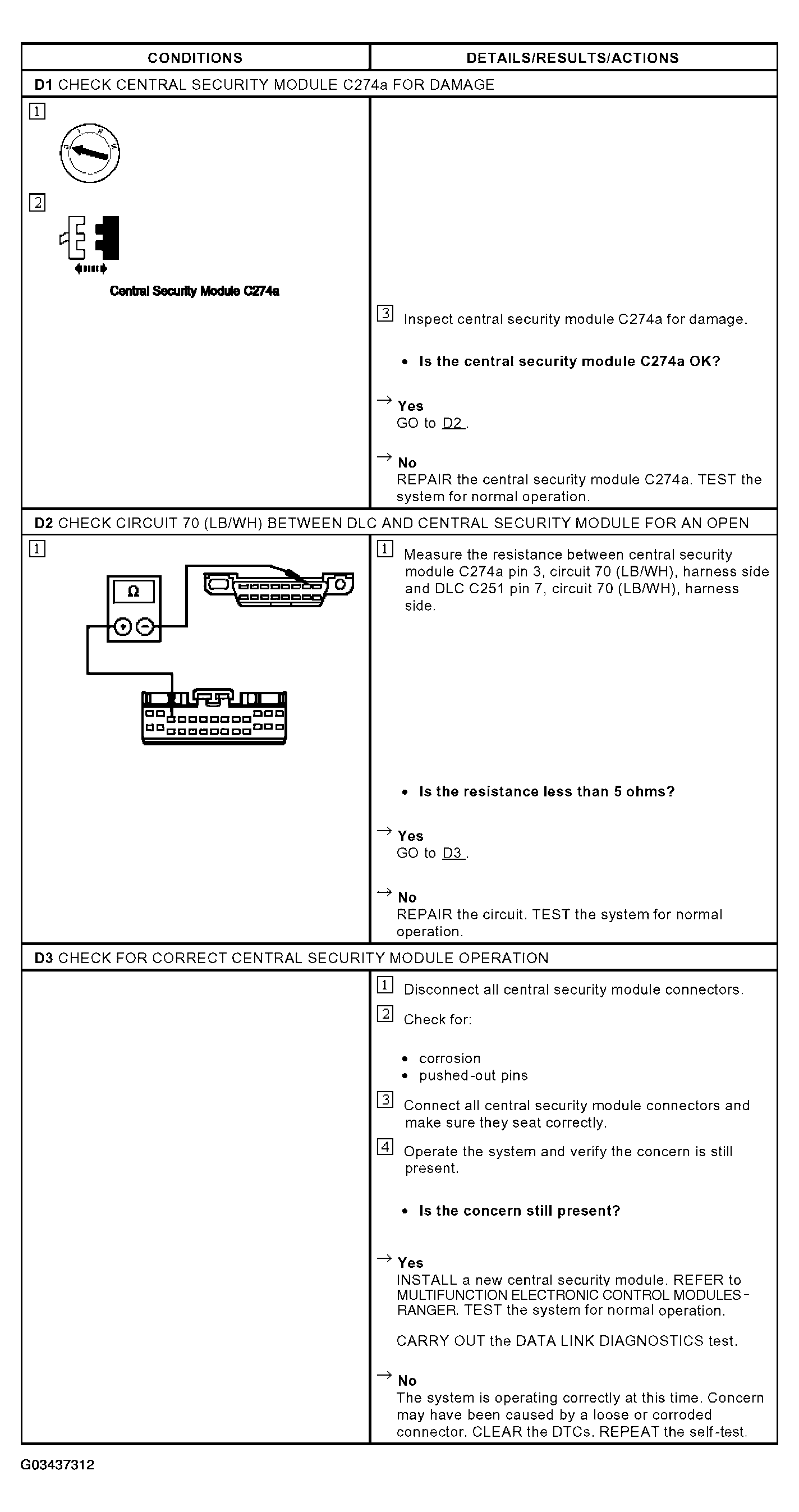

Fig 1: Pinpoint Test D: Central Security Module Does Not Respond To Diagnostic Tool
G03437312Courtesy of FORD MOTOR CO.
