Intermediate Shaft Speed Sensor

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the sensor O-ring with petroleum jelly prior to installing the sensor. Inspect the sensor O-ring for damage. If damaged, install a new O-ring.

On 4x4 vehicles, remove the front driveshaft. For additional information, refer to DRIVELINE SYSTEM .
For 4x2 vehicles, with the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

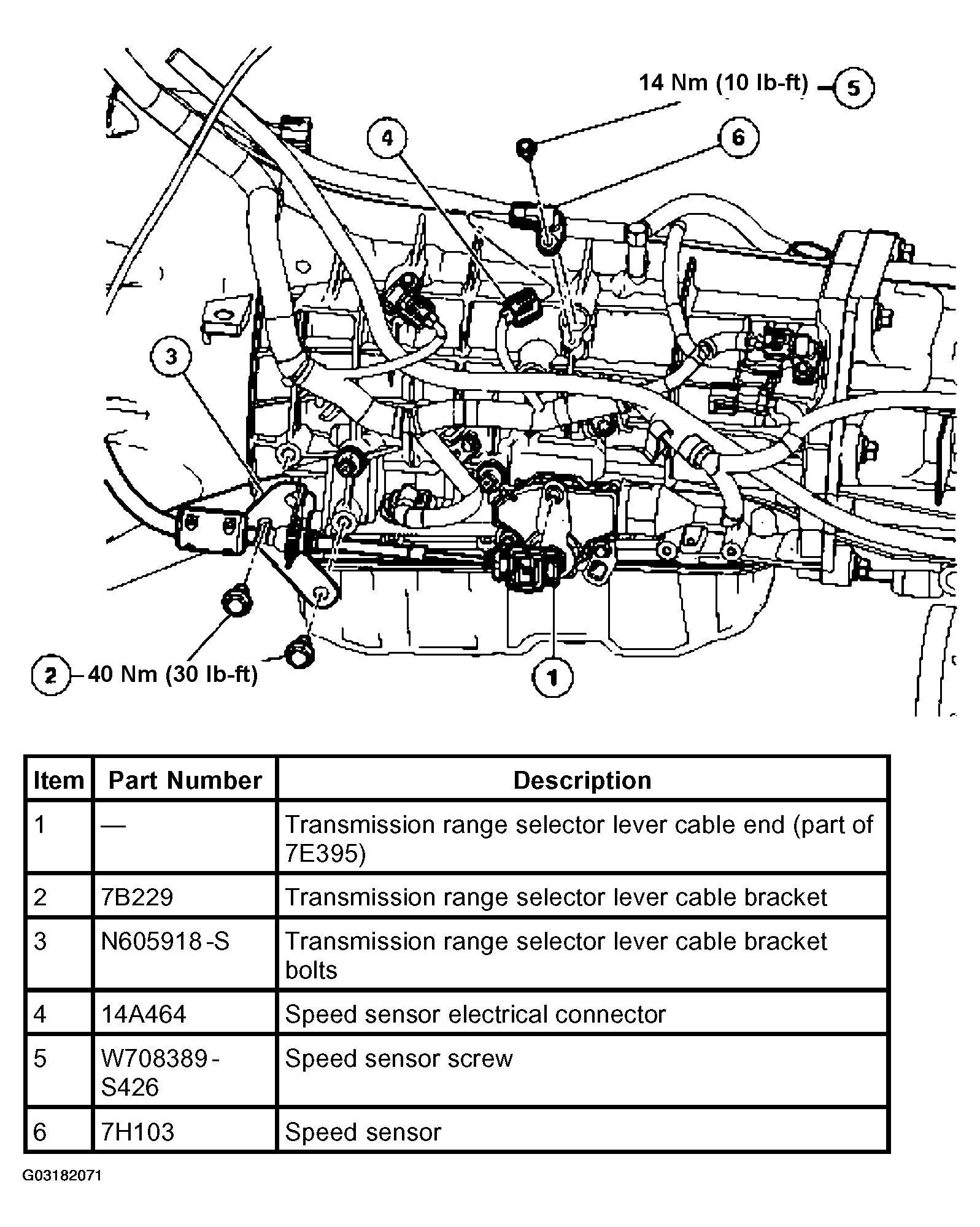

Fig 1: Identifying Removal Order Of Intermediate Shaft Speed Sensor
Courtesy of FORD MOTOR CO.
