Solenoid Body Assembly: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V
  1. With the vehicle in PARK, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the components in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

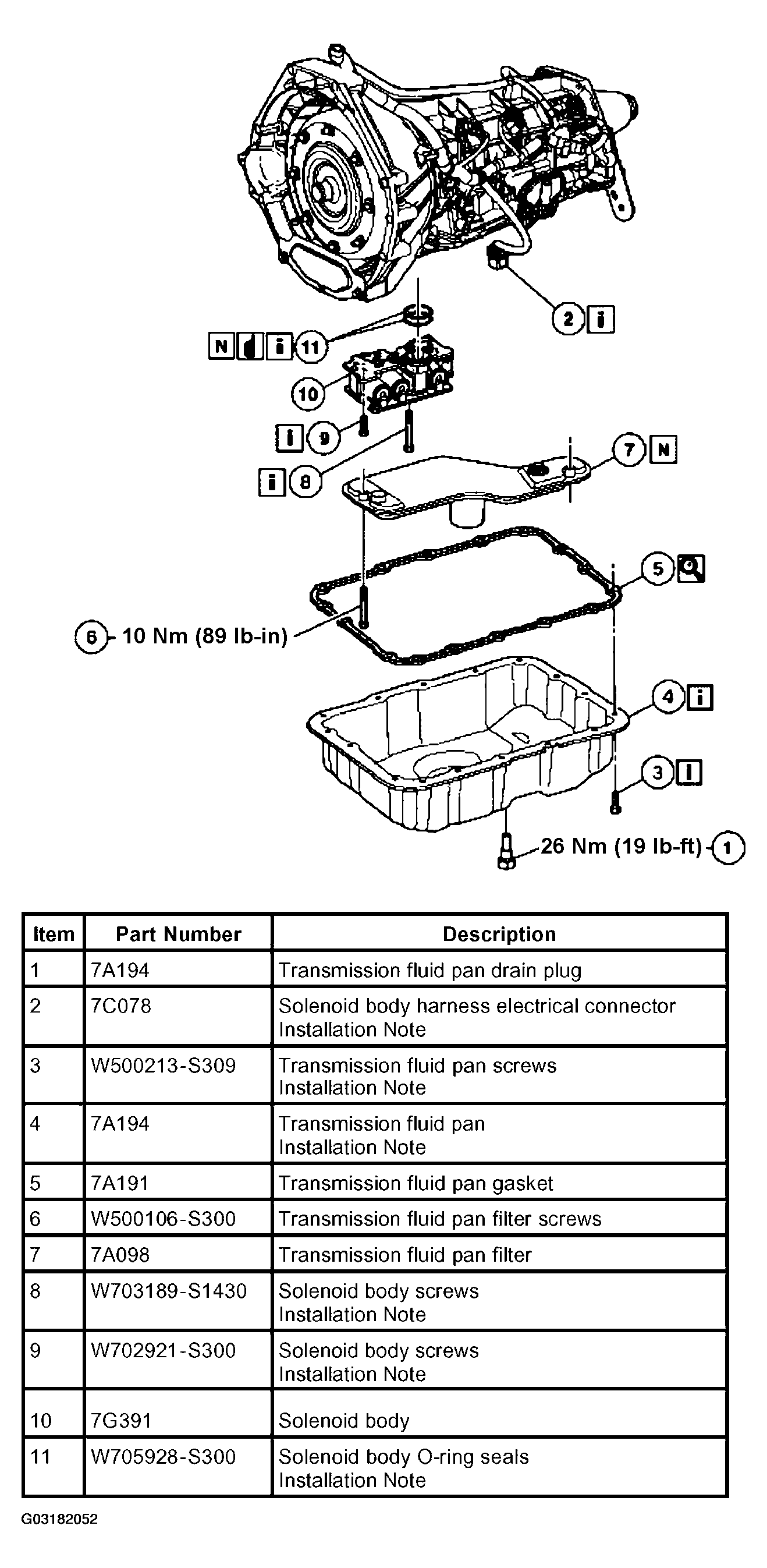

    Fig 1: Identifying Removal Order Of Solenoid Body Assembly
    G03182052Courtesy of FORD MOTOR CO.
  4. Carry out a fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
