Pinpoint Test A: No Communication With The Vehicle Security Module (VSM)

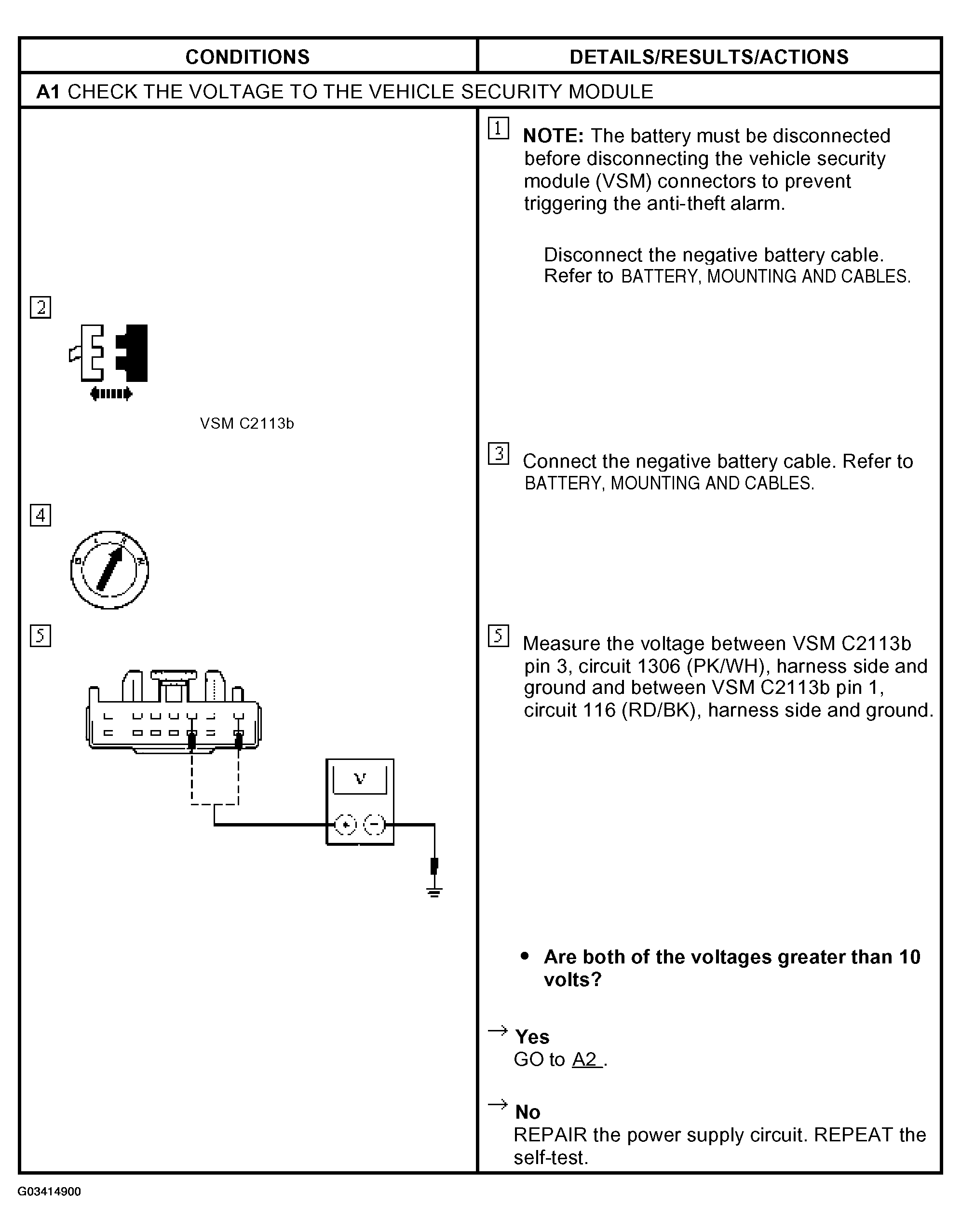

Fig 1: Pinpoint Test A: No Communication With Vehicle Security Module (A1)
G03414900Courtesy of FORD MOTOR CO.

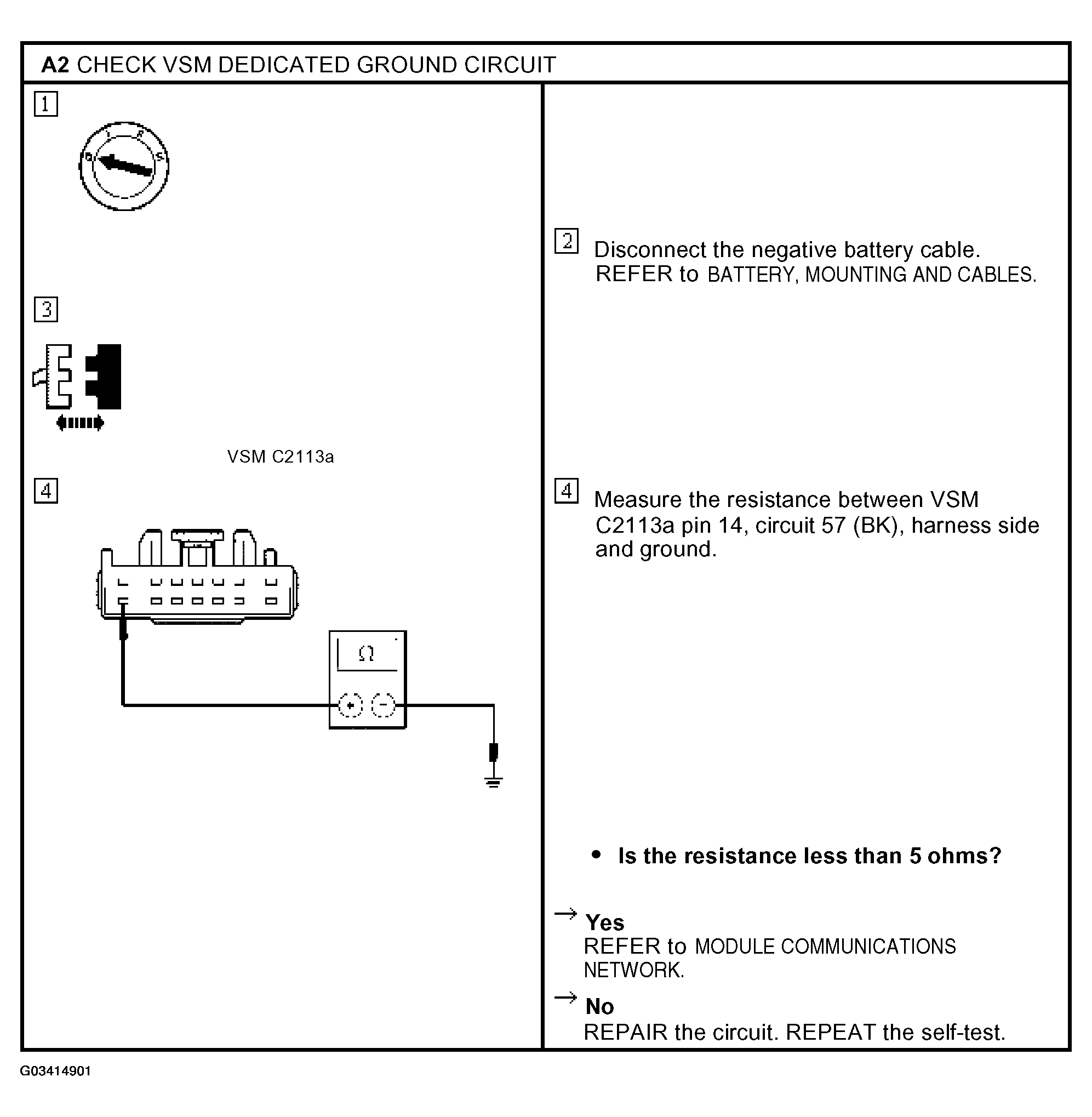

Fig 2: Pinpoint Test A: No Communication With Vehicle Security Module (A2)
G03414901Courtesy of FORD MOTOR CO.
