Pinpoint Test K: Remote Keyless Entry Transmitter Out Of Synchronization

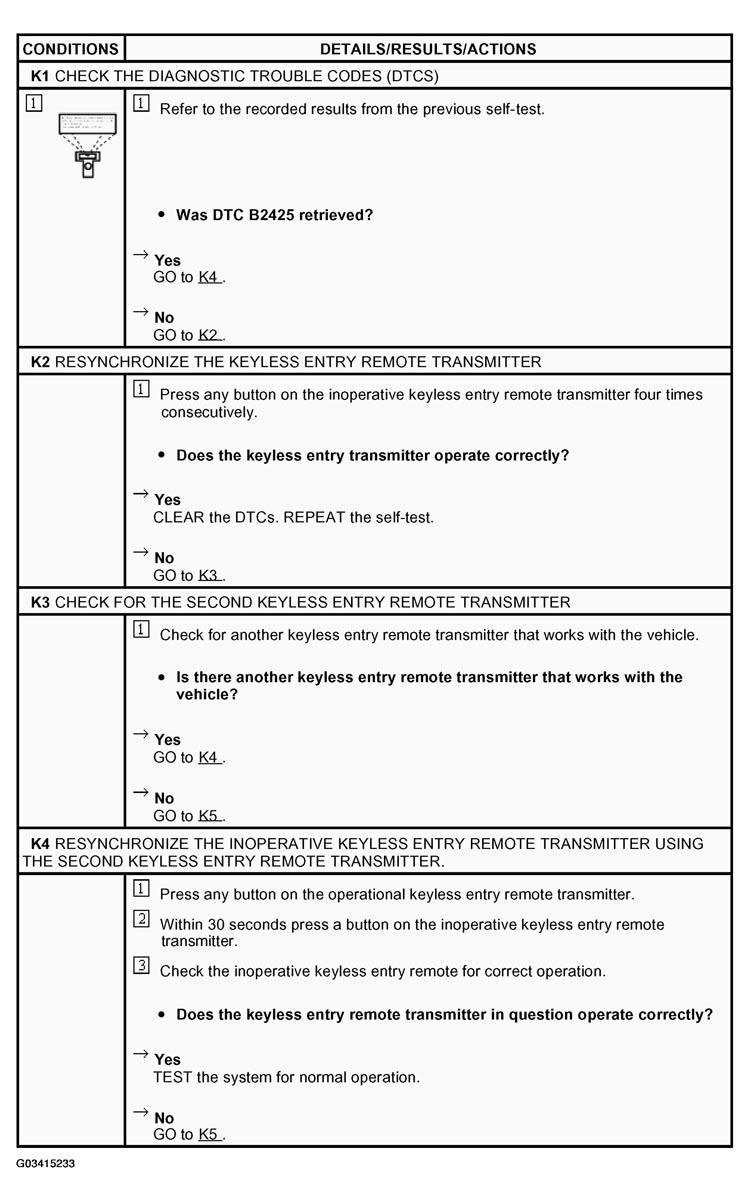

Fig 1: Pinpoint Test K: Remote Keyless Entry Transmitter Out Of Synchronization (K1-K4)
G03415233Courtesy of FORD MOTOR CO.

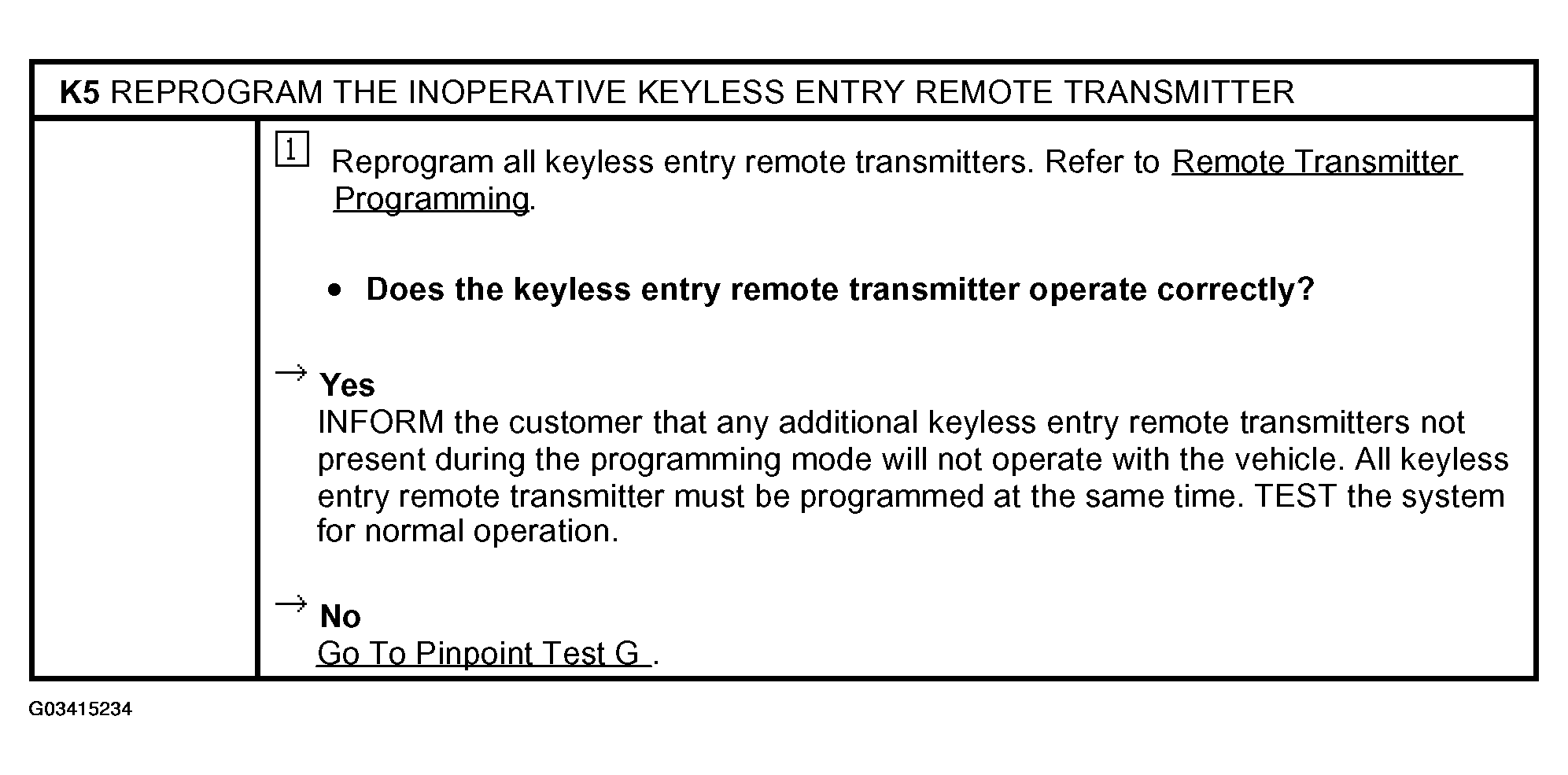

Fig 2: Pinpoint Test K: Remote Keyless Entry Transmitter Out Of Synchronization (K5)
G03415234Courtesy of FORD MOTOR CO.
