Pinpoint Test O: The Temperature Set Point Does Not Repeat After Turning The Ignition Switch Off

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

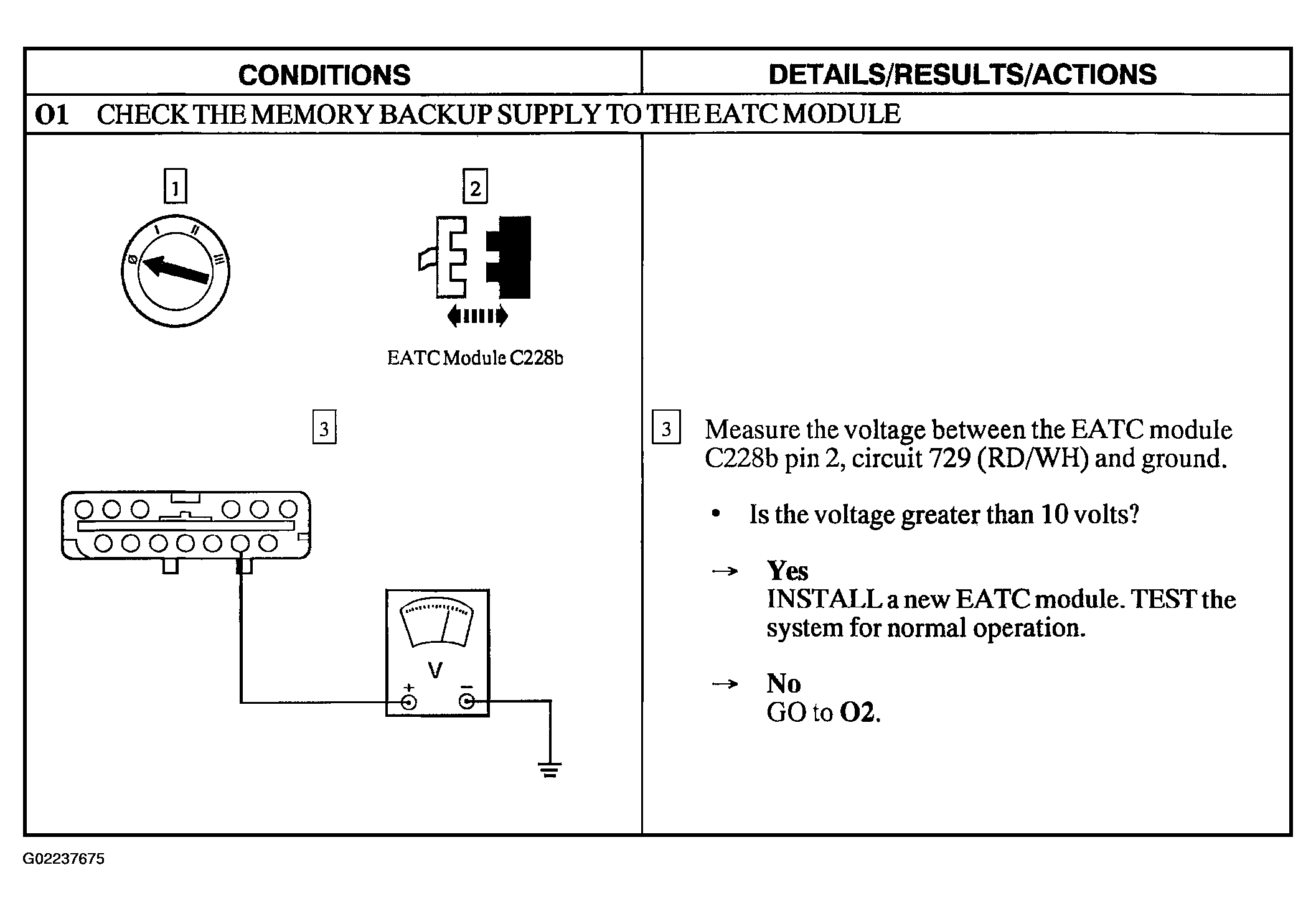

Fig 1: Pinpoint Test O: Temperature Set Point Does Not Repeat After Turning Ignition Switch Off (O1)

Courtesy of FORD MOTOR CO.

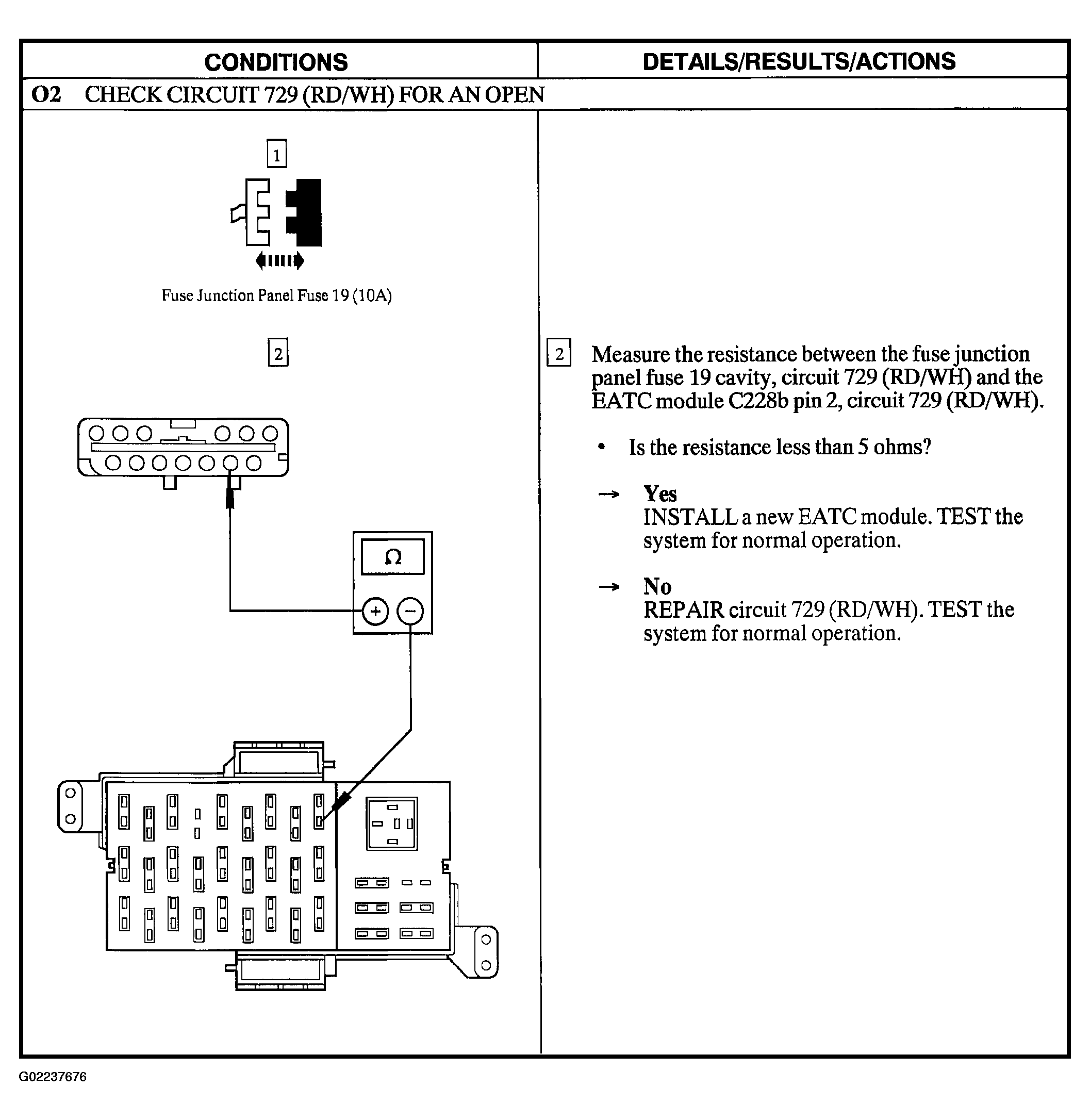

Fig 2: Pinpoint Test O: Temperature Set Point Does Not Repeat After Turning Ignition Switch Off (O2)

Courtesy of FORD MOTOR CO.
