4WD Control Module Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different variant/trim than selected.
NOTE: For DTCs not listed below, refer to MULTIFUNCTION ELECTRONIC MODULE article.

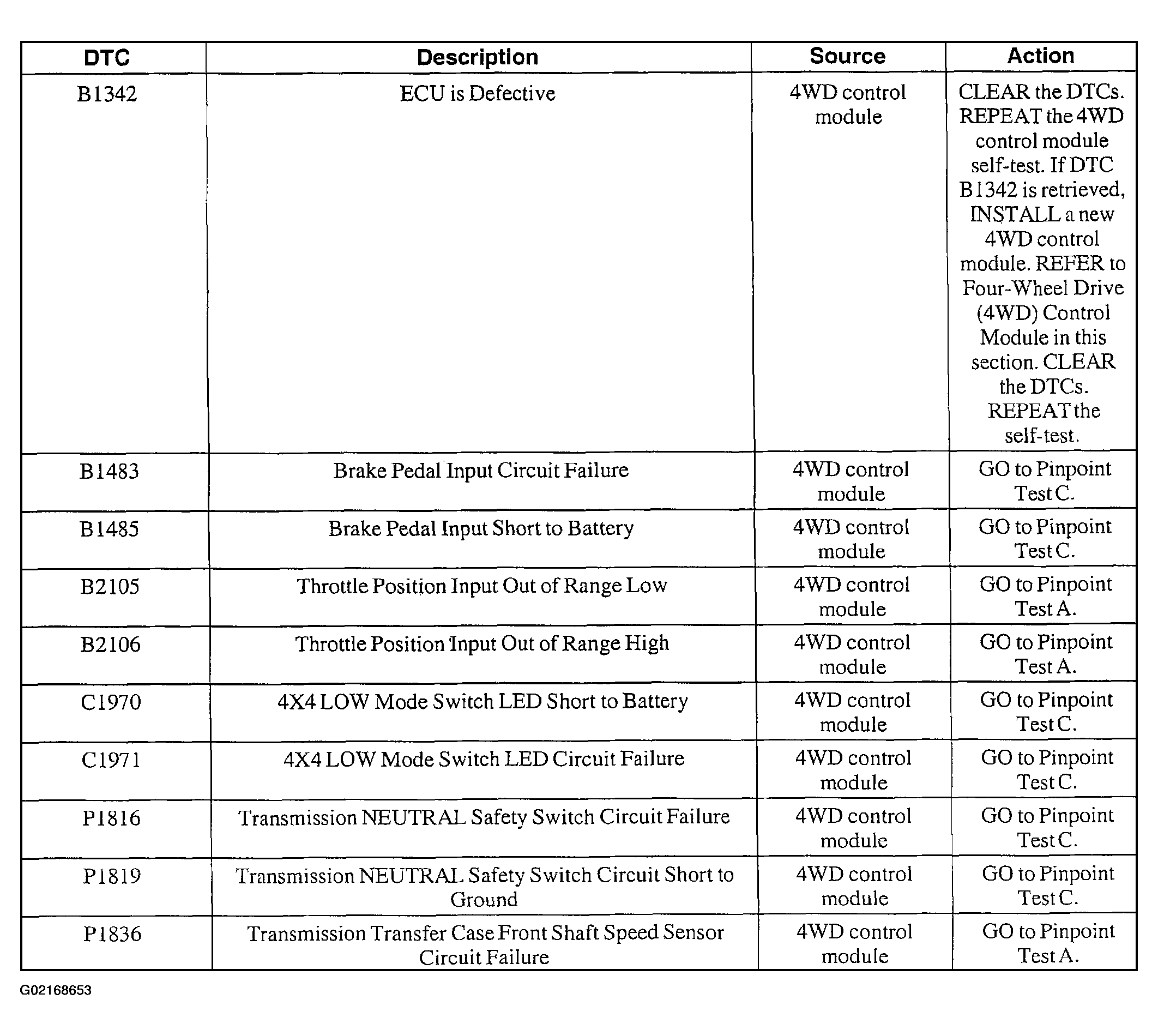

Fig 1: 4WD Control Module Diagnostic Trouble Code (DTC) Index (1 Of 2)
G02168653Courtesy of FORD MOTOR CO.

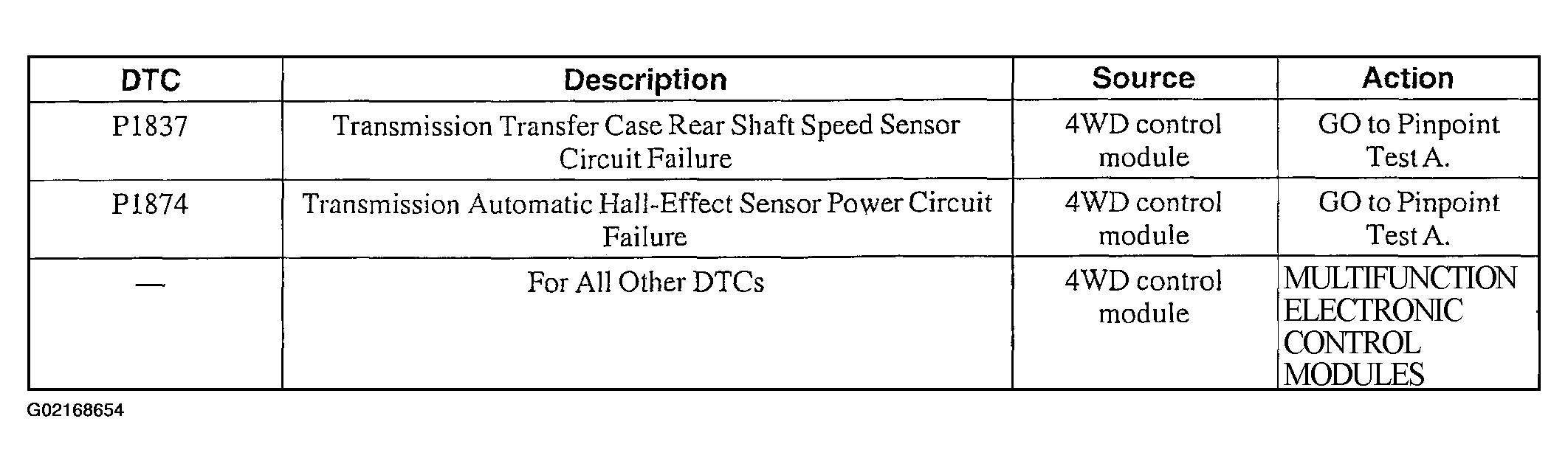

Fig 2: 4WD Control Module Diagnostic Trouble Code (DTC) Index (2 Of 2)
G02168654Courtesy of FORD MOTOR CO.
