Driver

Introduction To Component Testing:






Power Window Switch, Driver Except, Supercrew:

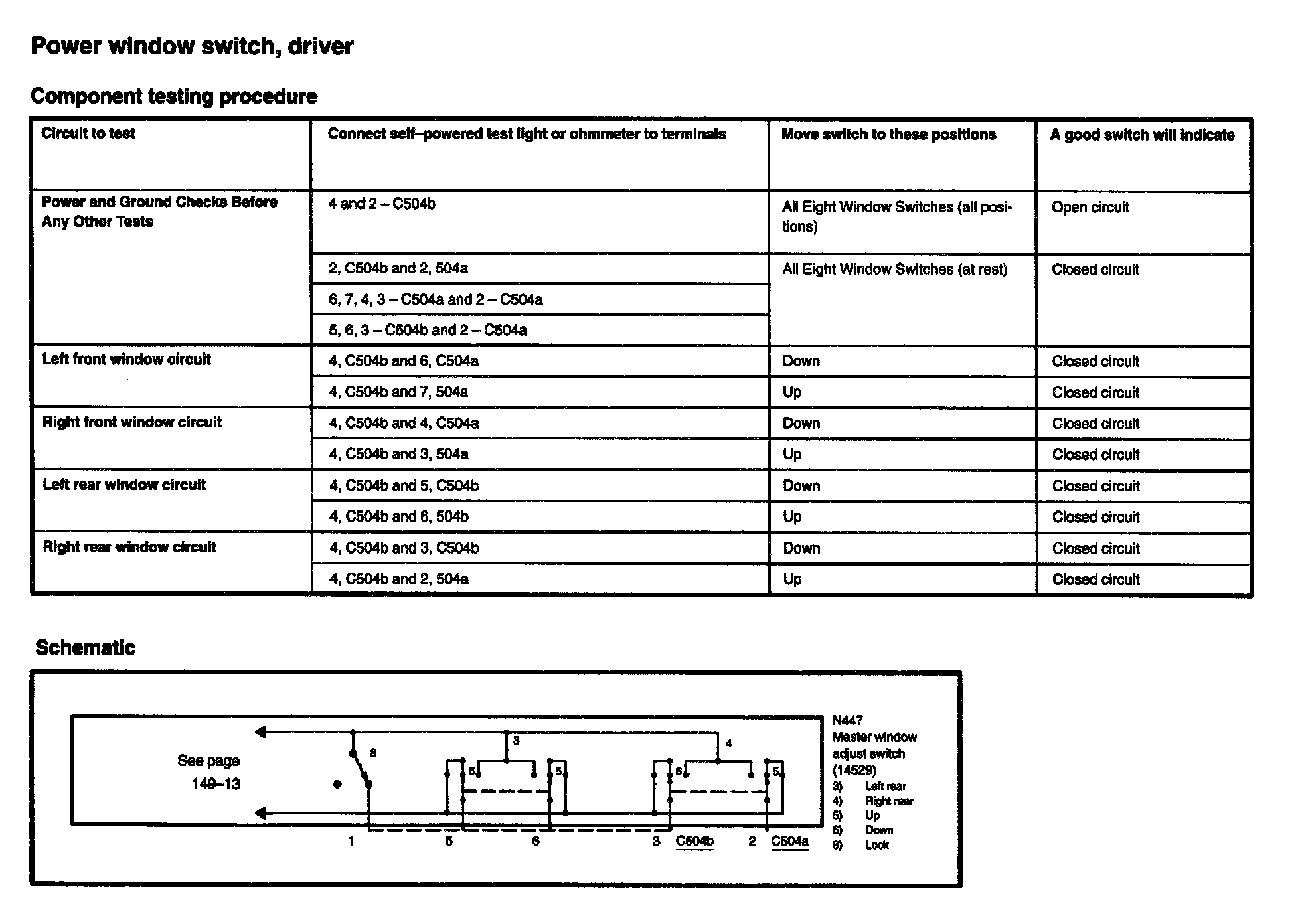

Power Window Switch, Driver:






Power Window Switch, Driver (Supercrew):






Power Window Switch, Driver:
