Pinpoint Test A: Gearshift Linkage Does Not Operate Freely

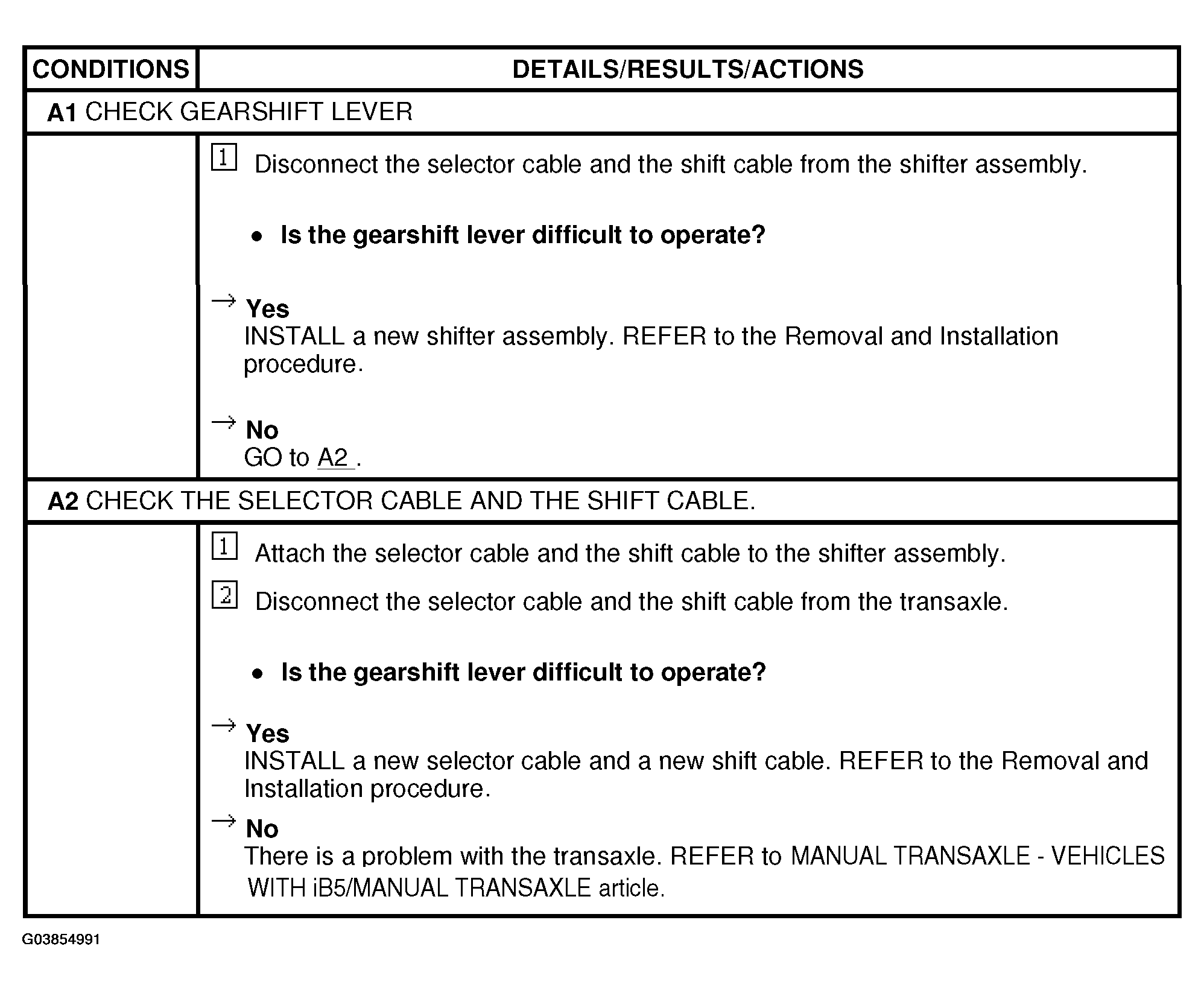

Fig 1: Pinpoint Test A: Gearshift Linkage Does Not Operate Freely (A1-A2)
G03854991Courtesy of FORD MOTOR CO.
