Inline Connector End View (C45)

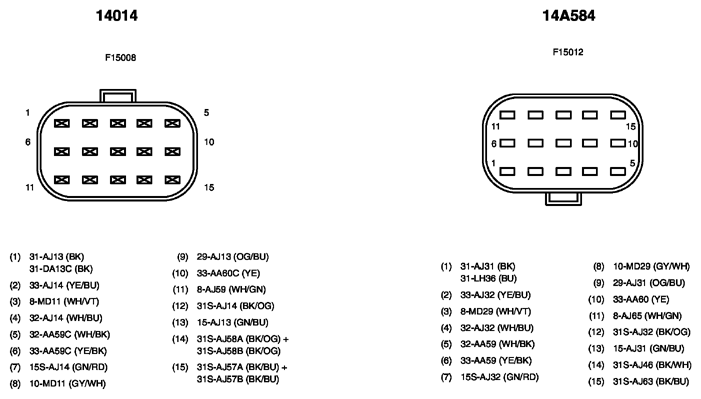

Fig 1: Identifying Inline Connector (C45)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
