Inline Connector End View (C95)

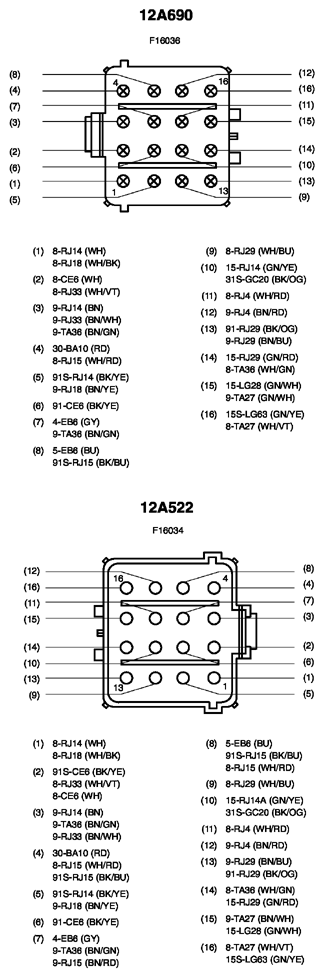

Fig 1: Identifying Inline Connector (C95)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
