Valve Cover RH: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the gasket mating surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
  1. Clean and inspect the mating surface of the cylinder head.
  2. NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

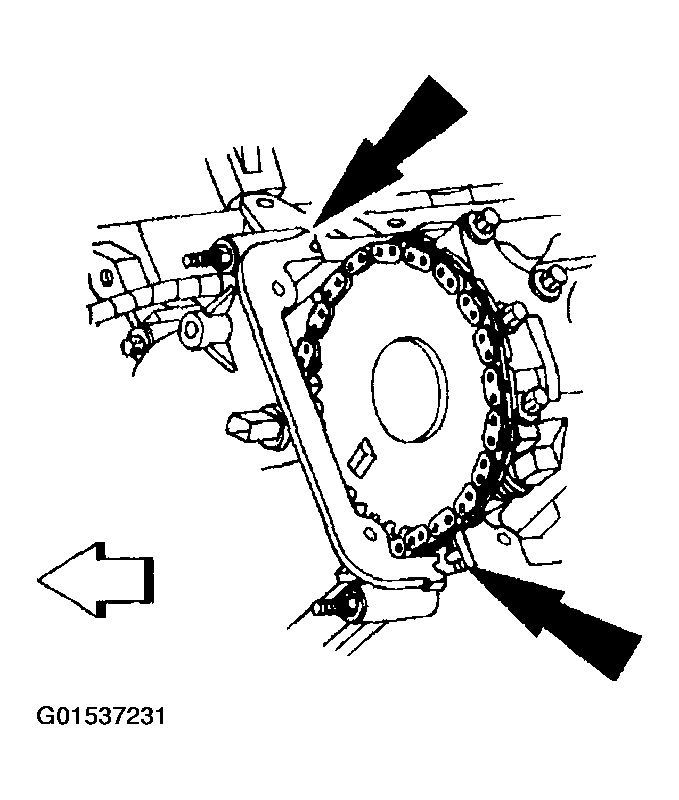

    Fig 1: Applying Silicone Gasket And Sealant Where Engine Front Cover Meets Cylinder Head
    G01537231Courtesy of FORD MOTOR CO.
  3. Apply silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
  4. Position the valve cover on the cylinder head and loosely install the 14 bolts.

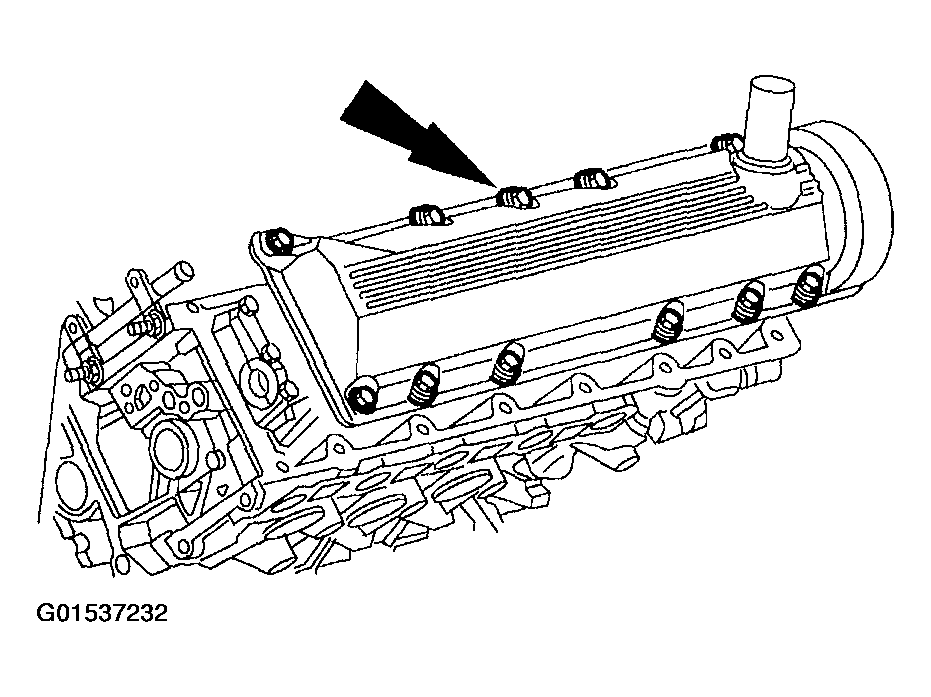

    Fig 2: Positioning Valve Cover On Cylinder Head
    G01537232Courtesy of FORD MOTOR CO.
  5. Tighten the bolts in the sequence shown.

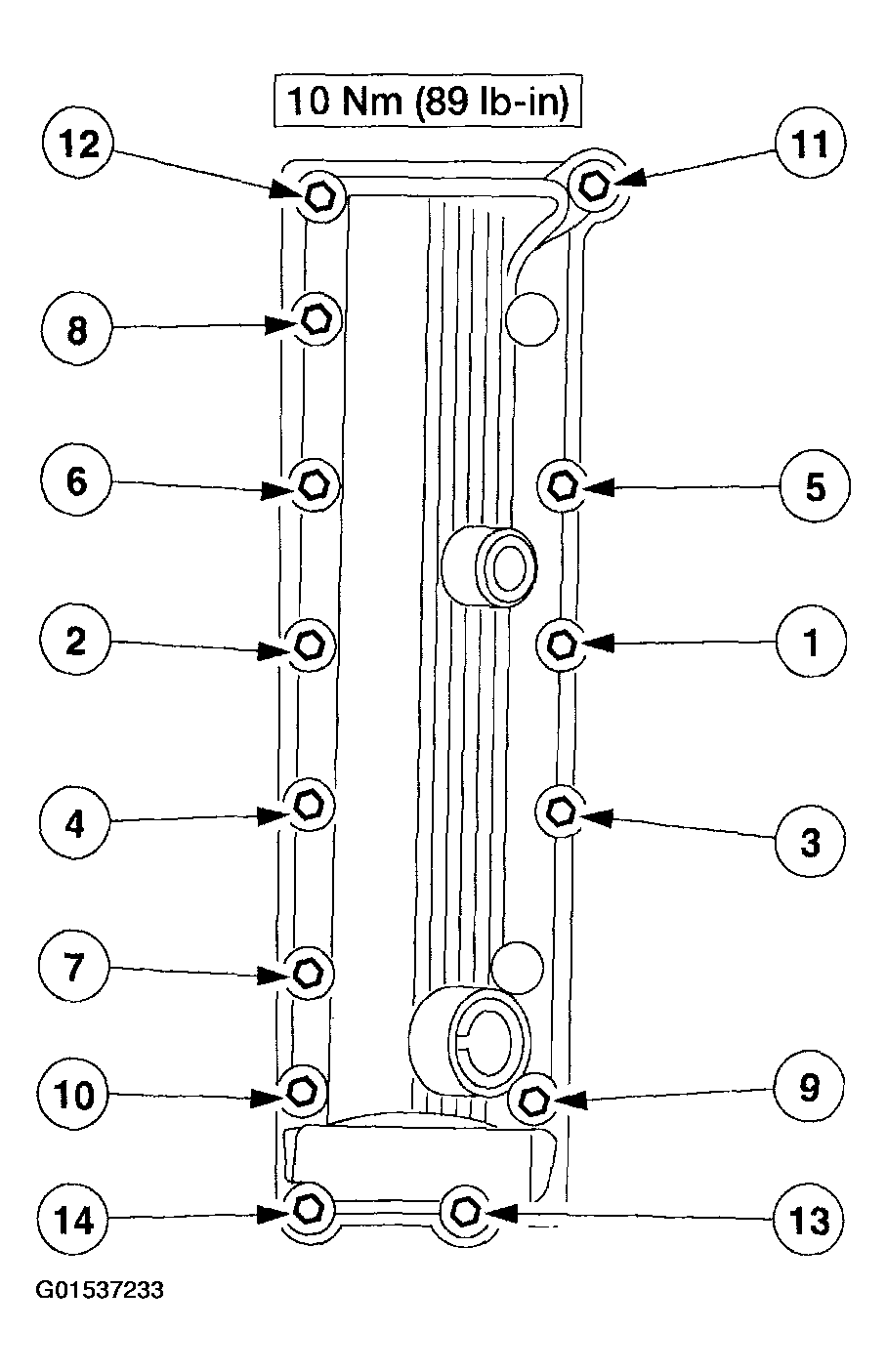

    Fig 3: Tightening Sequence Of Valve Cover Bolts
    G01537233Courtesy of FORD MOTOR CO.
  6. Clip the wiring harness to the valve cover studs.

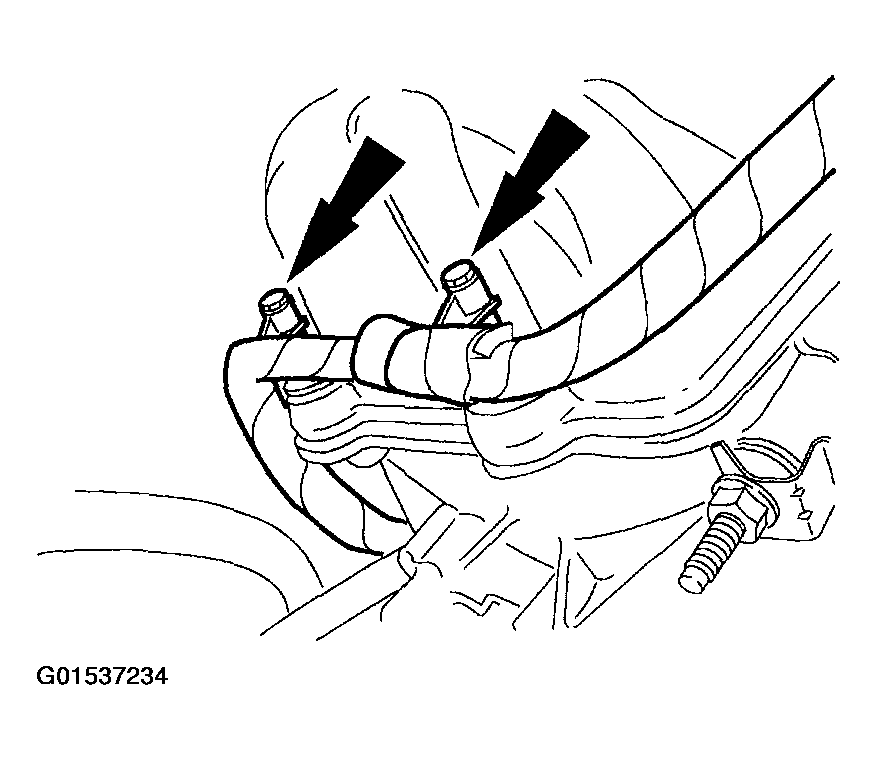

    Fig 4: Clipping Wiring Harness To Valve Cover Studs
    G01537234Courtesy of FORD MOTOR CO.
  7. Position the mounting bracket and install the ground strap and nut. Connect the 42-pin and the two 16-pin electrical connectors.

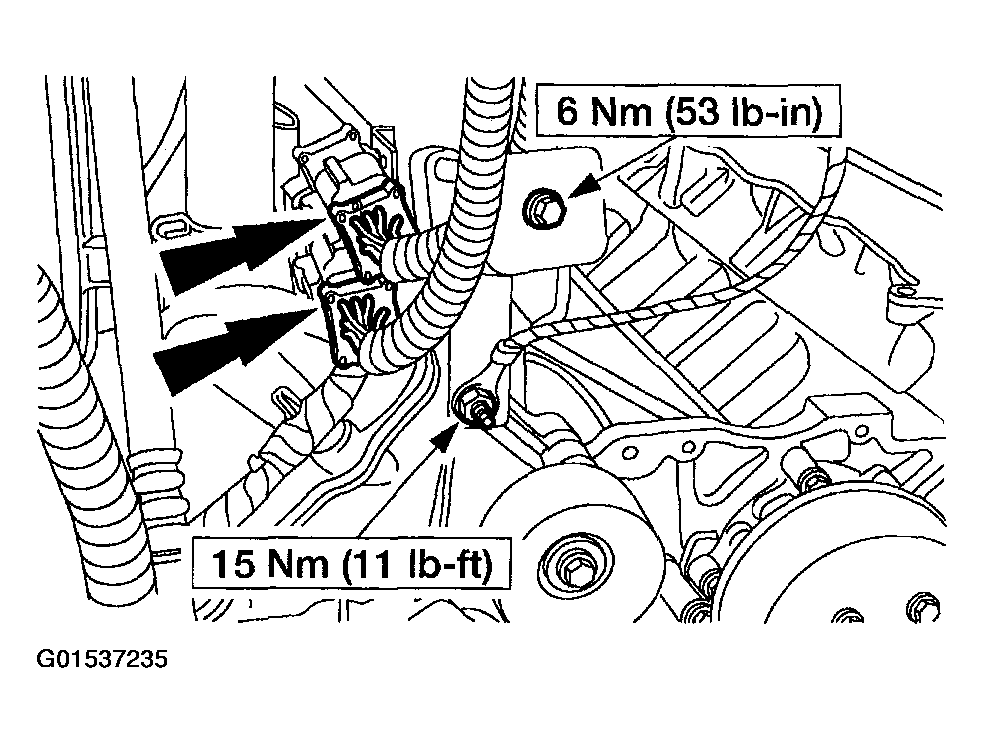

    Fig 5: Connecting 42-Pin And 16-Pin Electrical Connectors
    G01537235Courtesy of FORD MOTOR CO.
  8. Install the oil filler assembly, the clamp and the bolt.

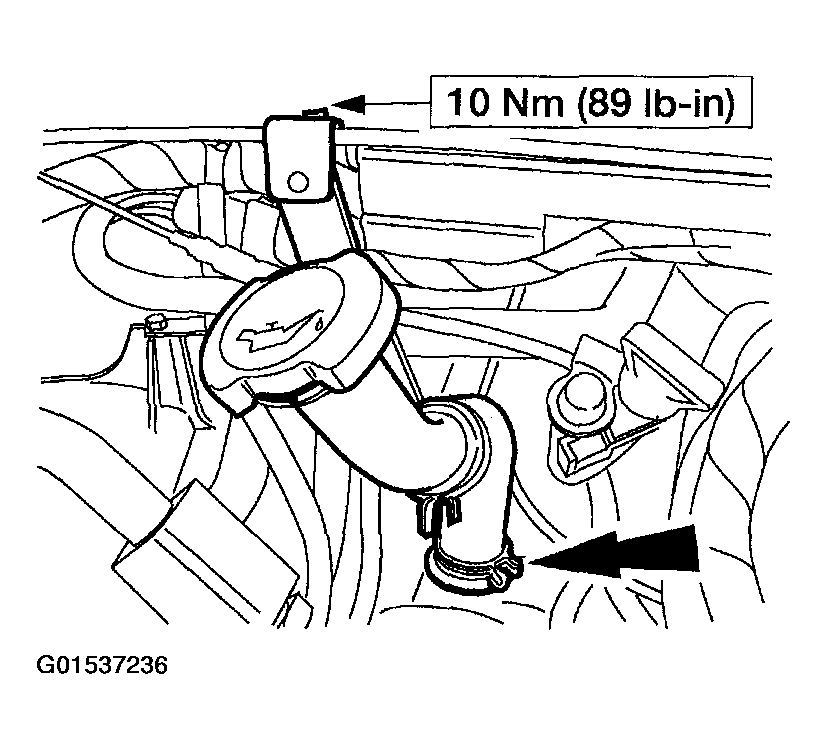

    Fig 6: Installing Oil Filler Assembly And Clamp
    G01537236Courtesy of FORD MOTOR CO.
  9. Install the intake manifold. For additional information, refer to INTAKE MANIFOLD .
