Pinpoint Test E: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

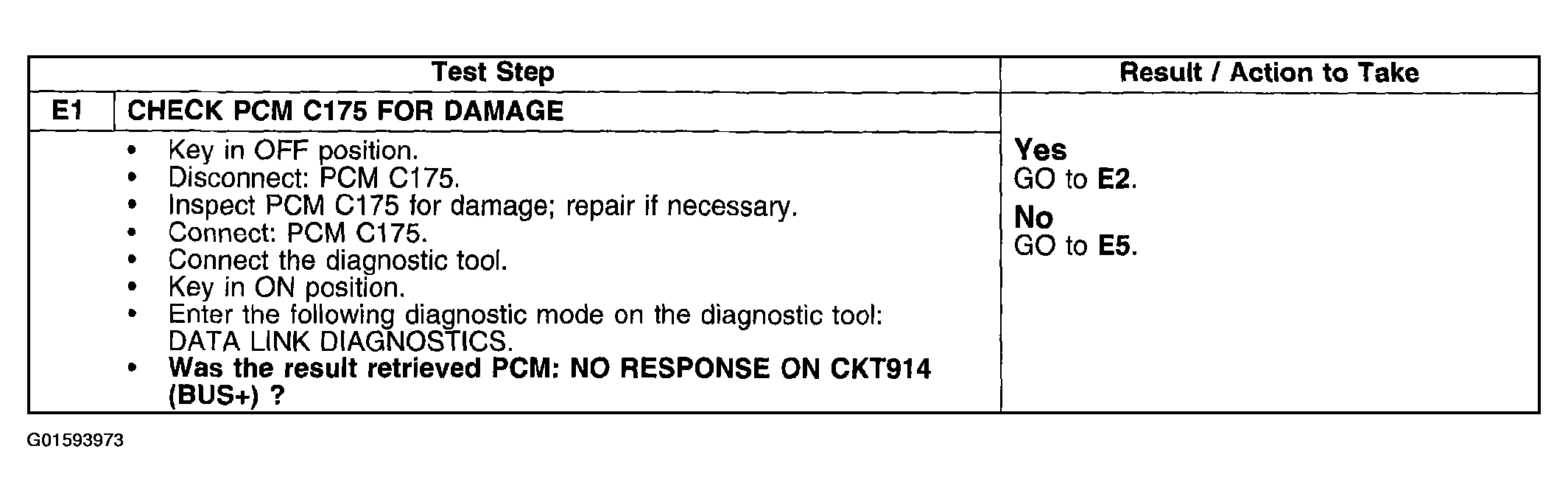

Fig 1: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E1)

Courtesy of FORD MOTOR CO.

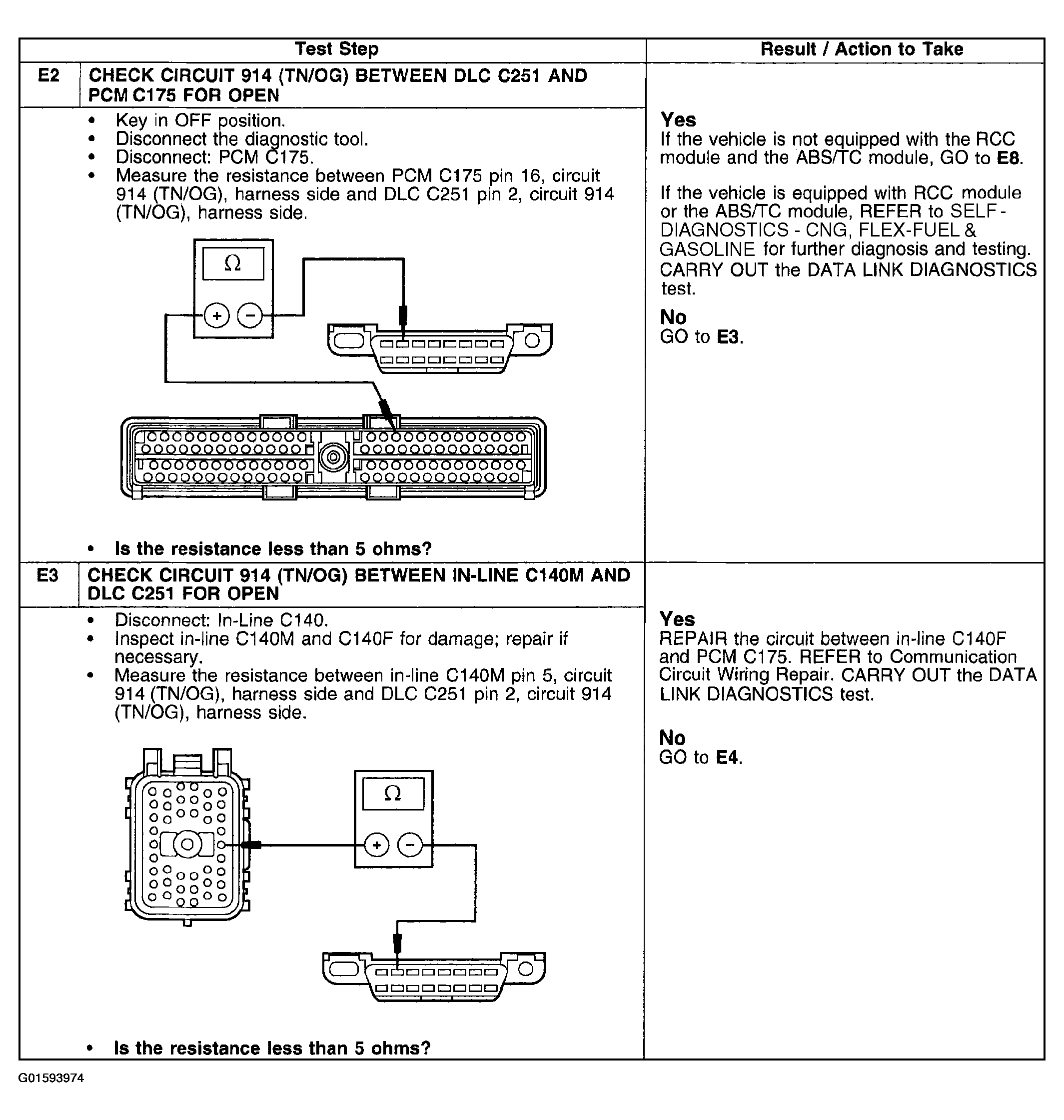

Fig 2: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E2-E3)

Courtesy of FORD MOTOR CO.

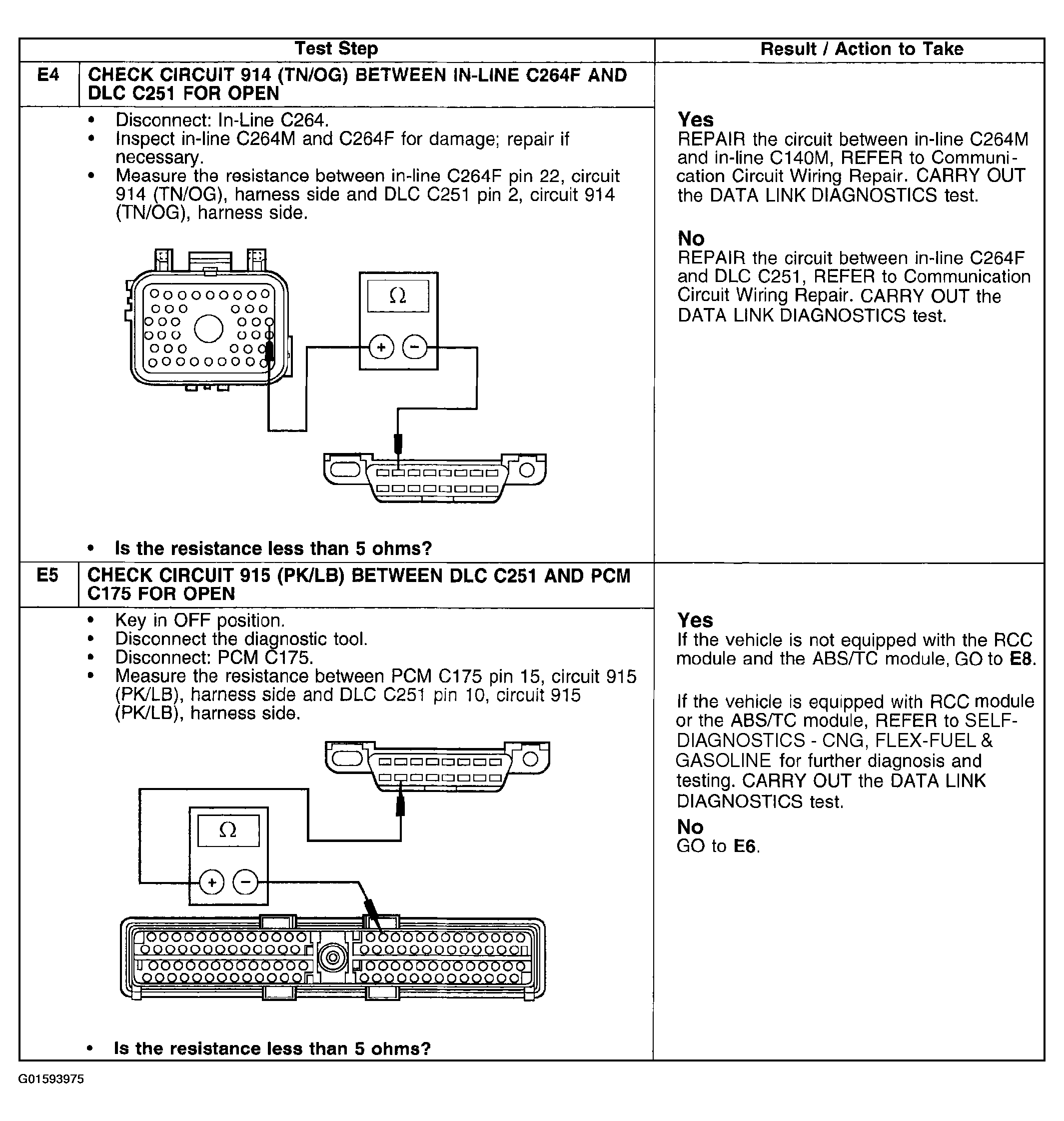

Fig 3: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E4-E5)

Courtesy of FORD MOTOR CO.

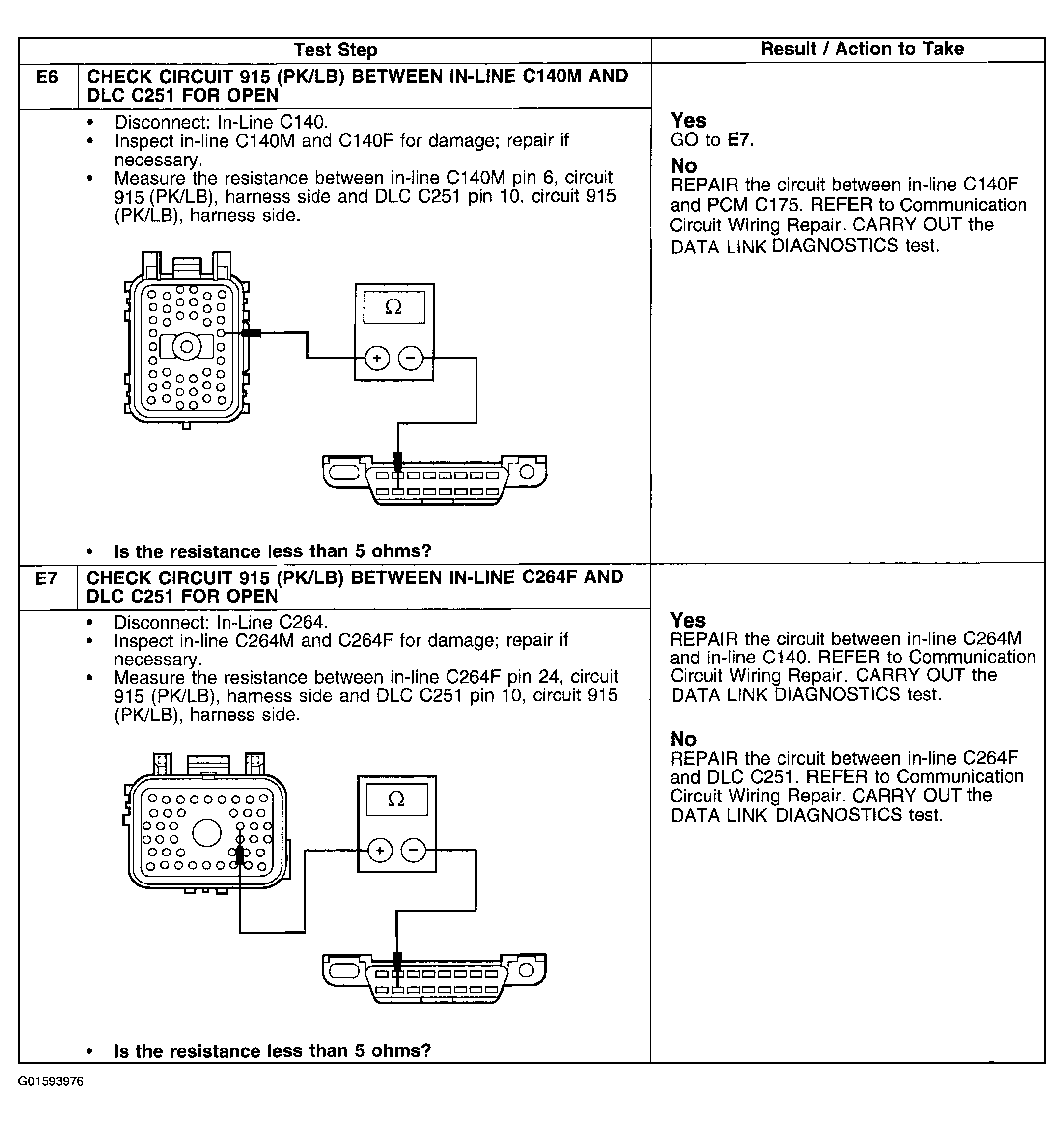

Fig 4: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E6-E7)

Courtesy of FORD MOTOR CO.

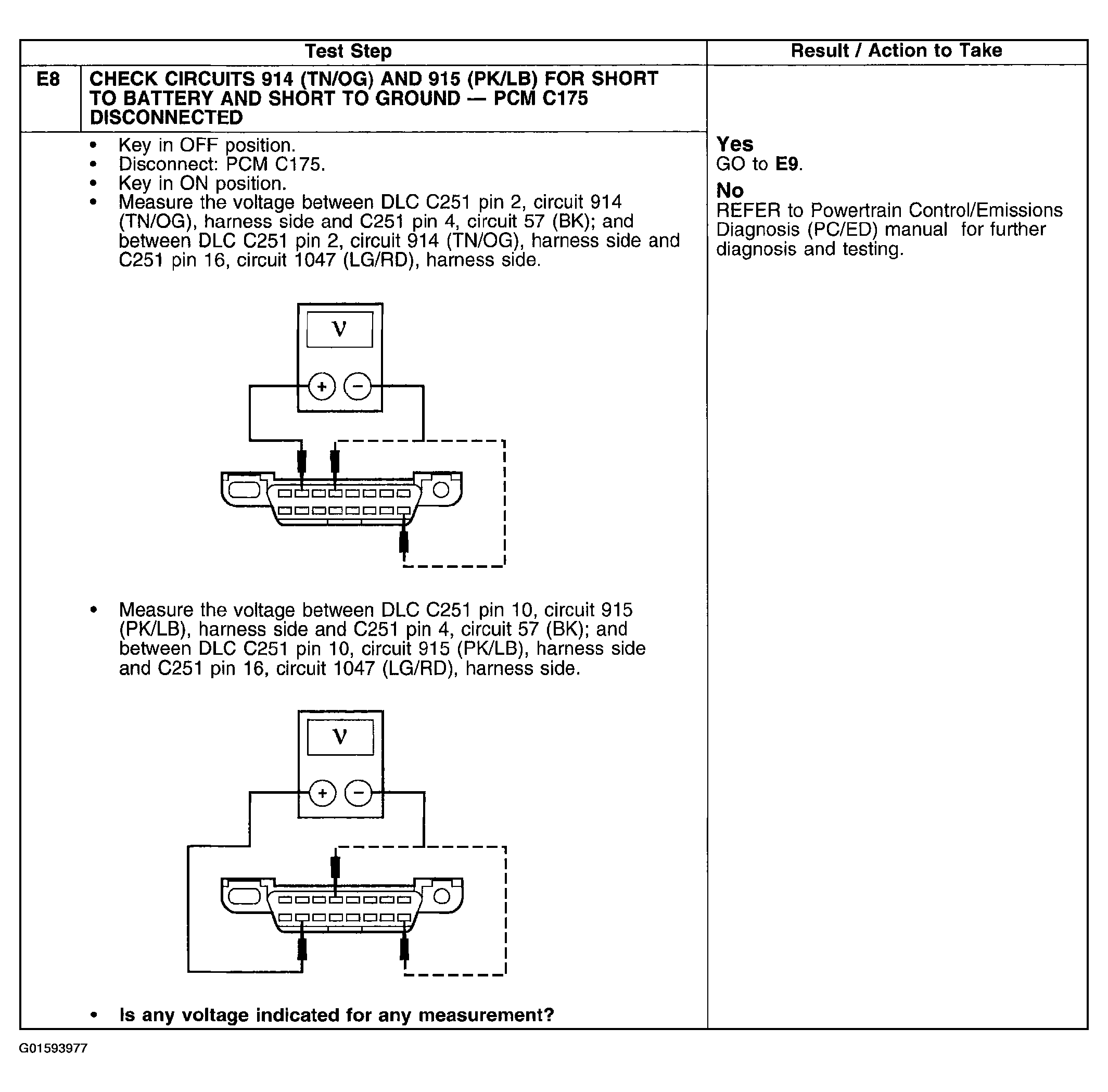

Fig 5: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E8)

Courtesy of FORD MOTOR CO.

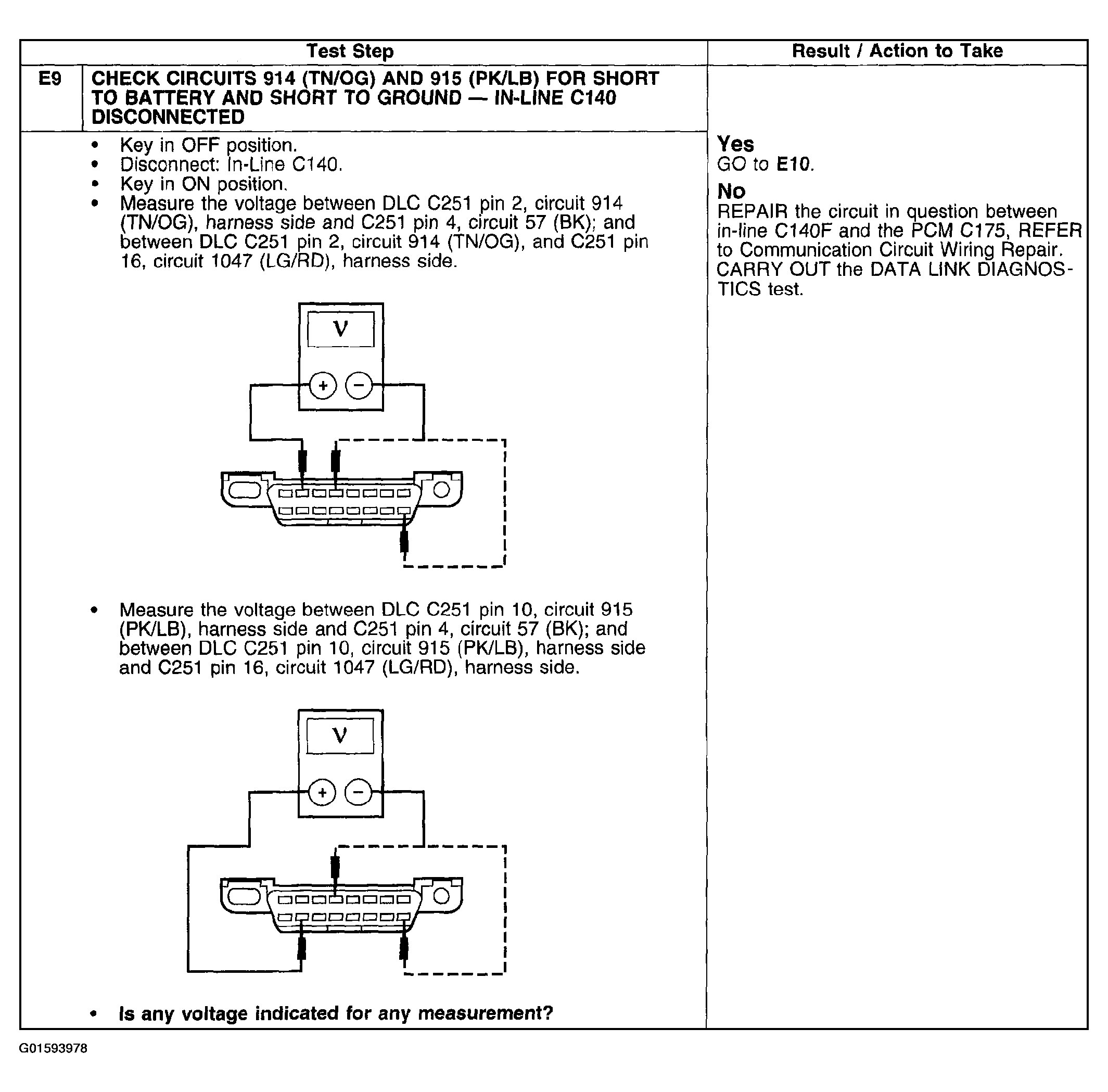

Fig 6: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E9)

Courtesy of FORD MOTOR CO.

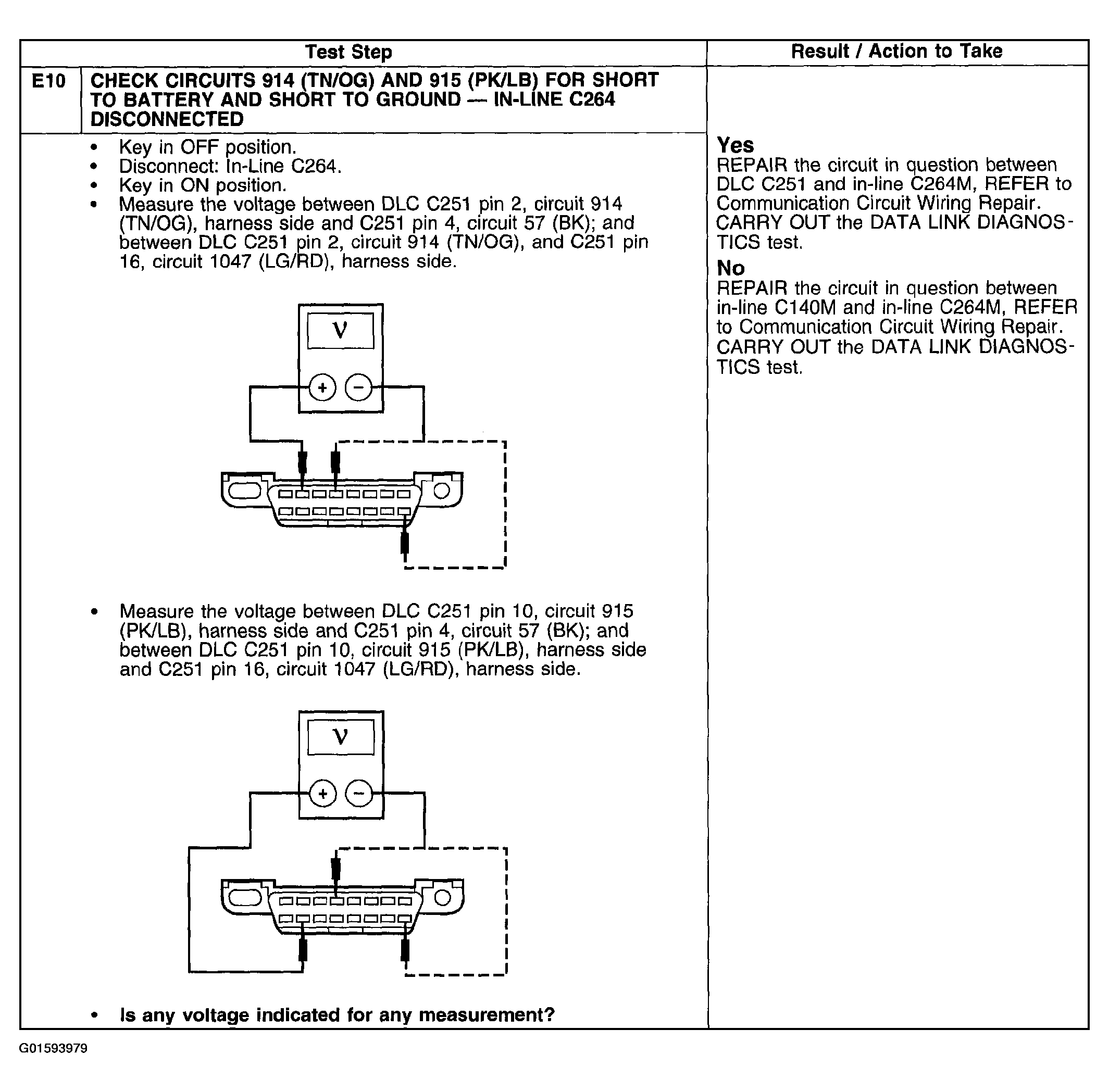

Fig 7: Pinpoint Test E: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (Steps E10)

Courtesy of FORD MOTOR CO.
