Passenger Side Front Seat Control Switch Connector - C627
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

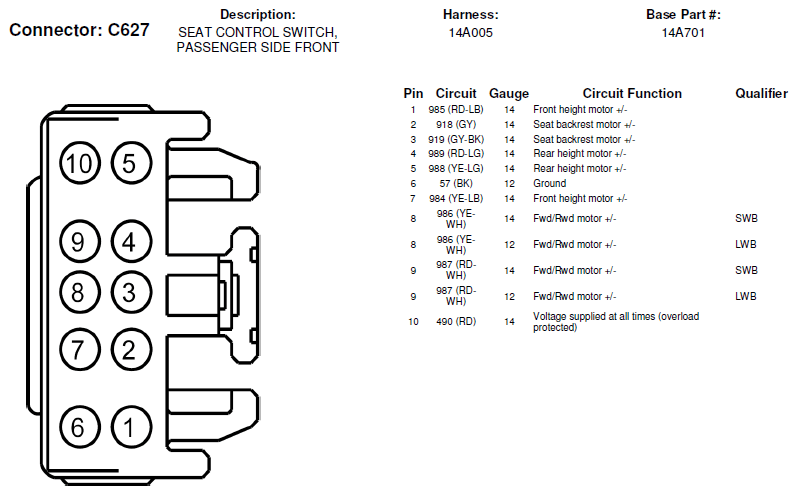

Fig 1: Passenger Side Front Seat Control Switch Connector End View (C627)
