Pinpoint Test D: Steering Is Very Difficult/Very Easy

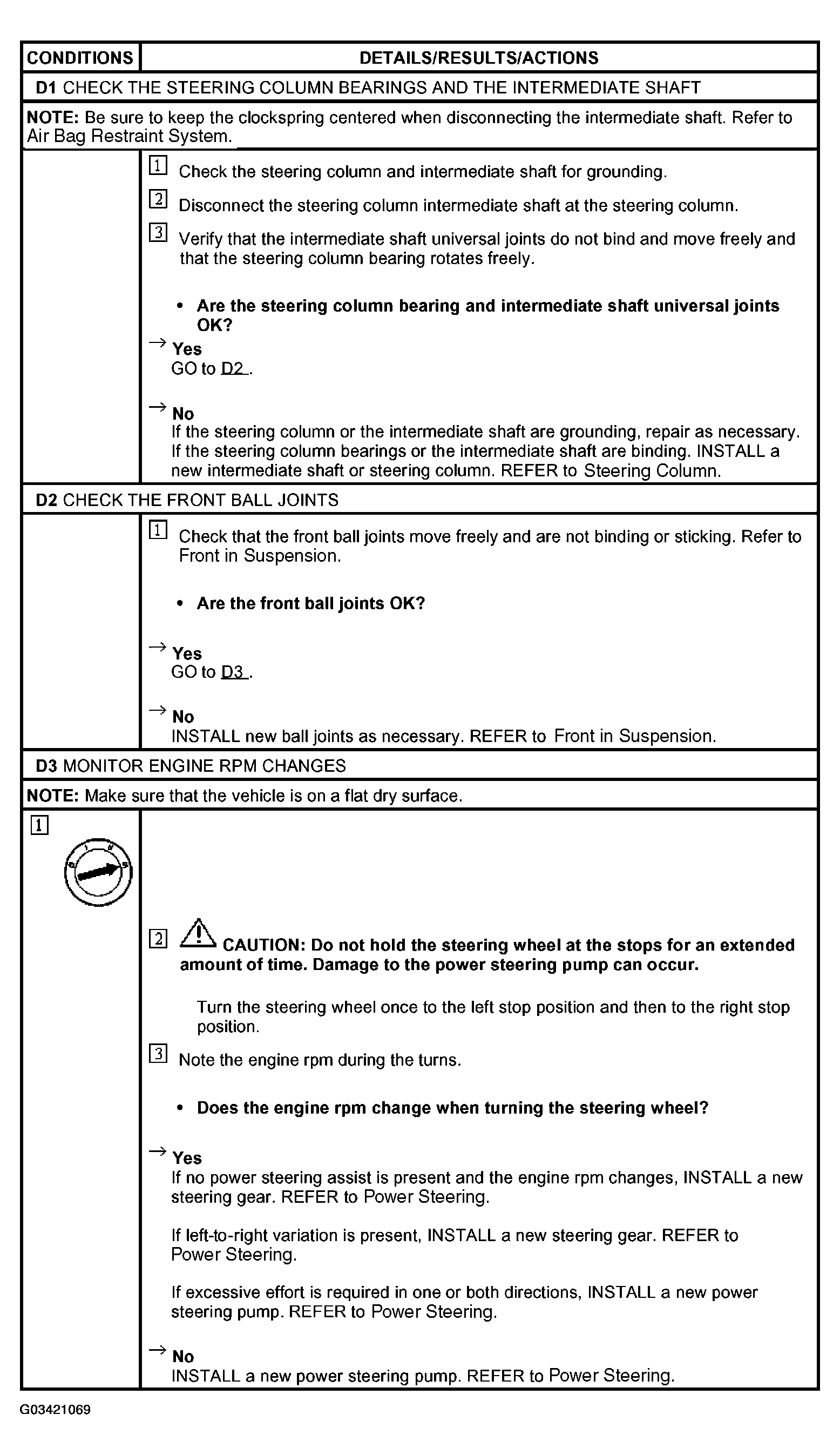

Fig 1: Pinpoint Test D: Steering Is Very Difficult/Very Easy
G03421069Courtesy of FORD MOTOR CO.
