Pinpoint Test O: The Panel/Floor Controls Do Not Operate Using The Front/Rear Auxiliary Climate Controls

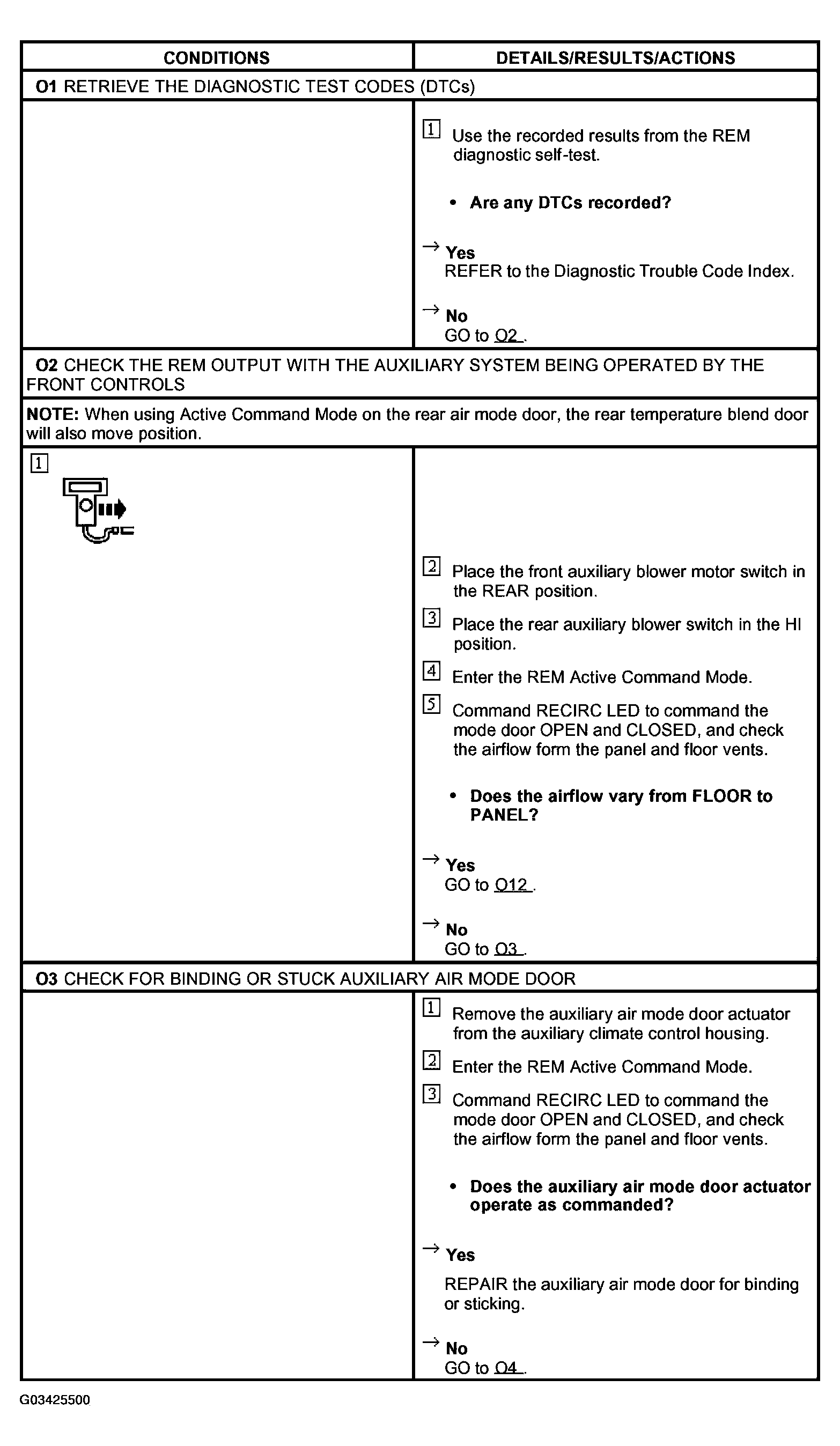

Fig 1: Pinpoint Test O: Panel/Floor Controls Not Operating Using Front/Rear Auxiliary Climate Controls (O1-O3)

Courtesy of FORD MOTOR CO.

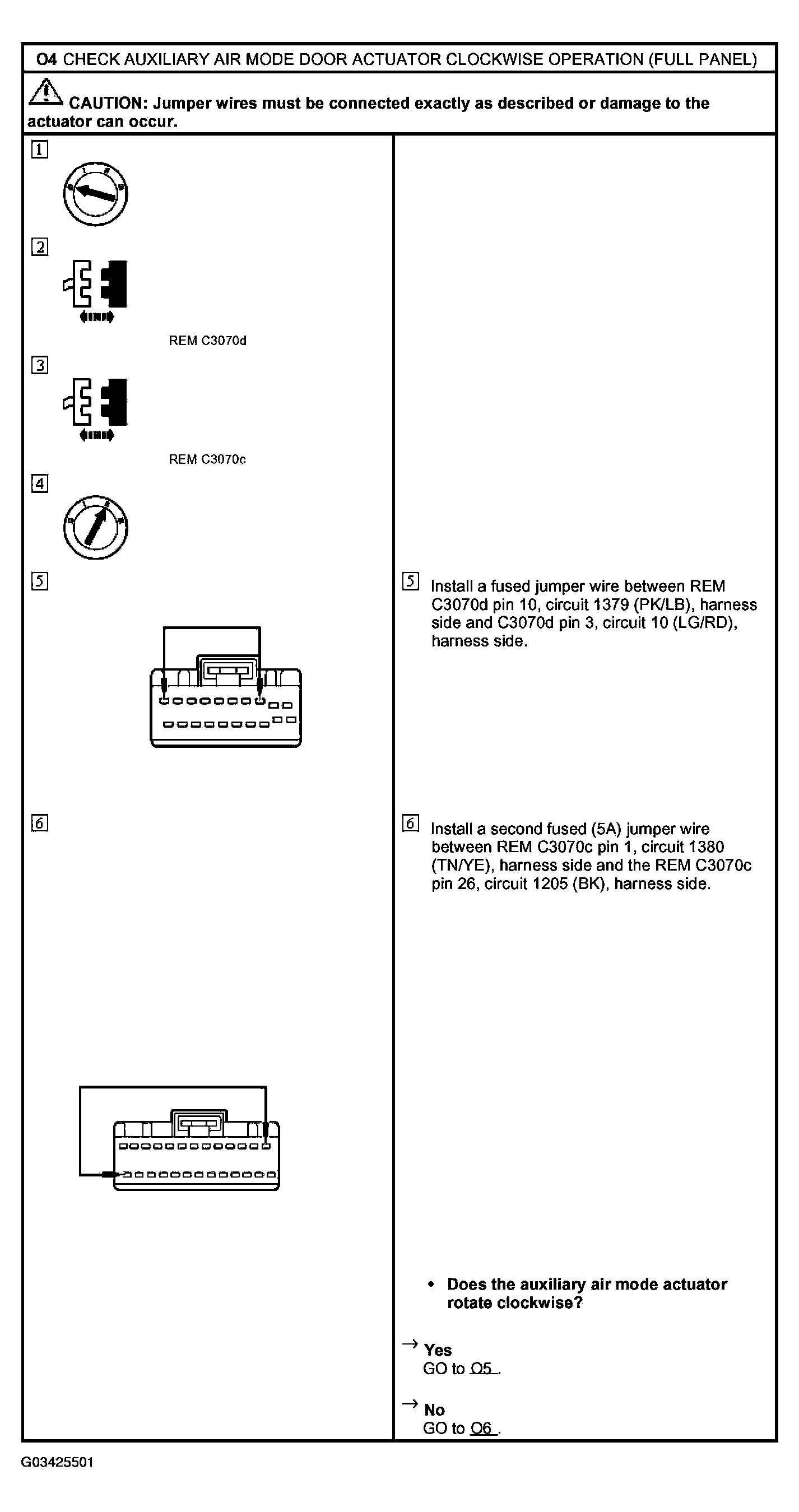

Fig 2: Pinpoint Test O: Panel/Floor Controls Not Operating Using Front/Rear Auxiliary Climate Controls (O4)

Courtesy of FORD MOTOR CO.

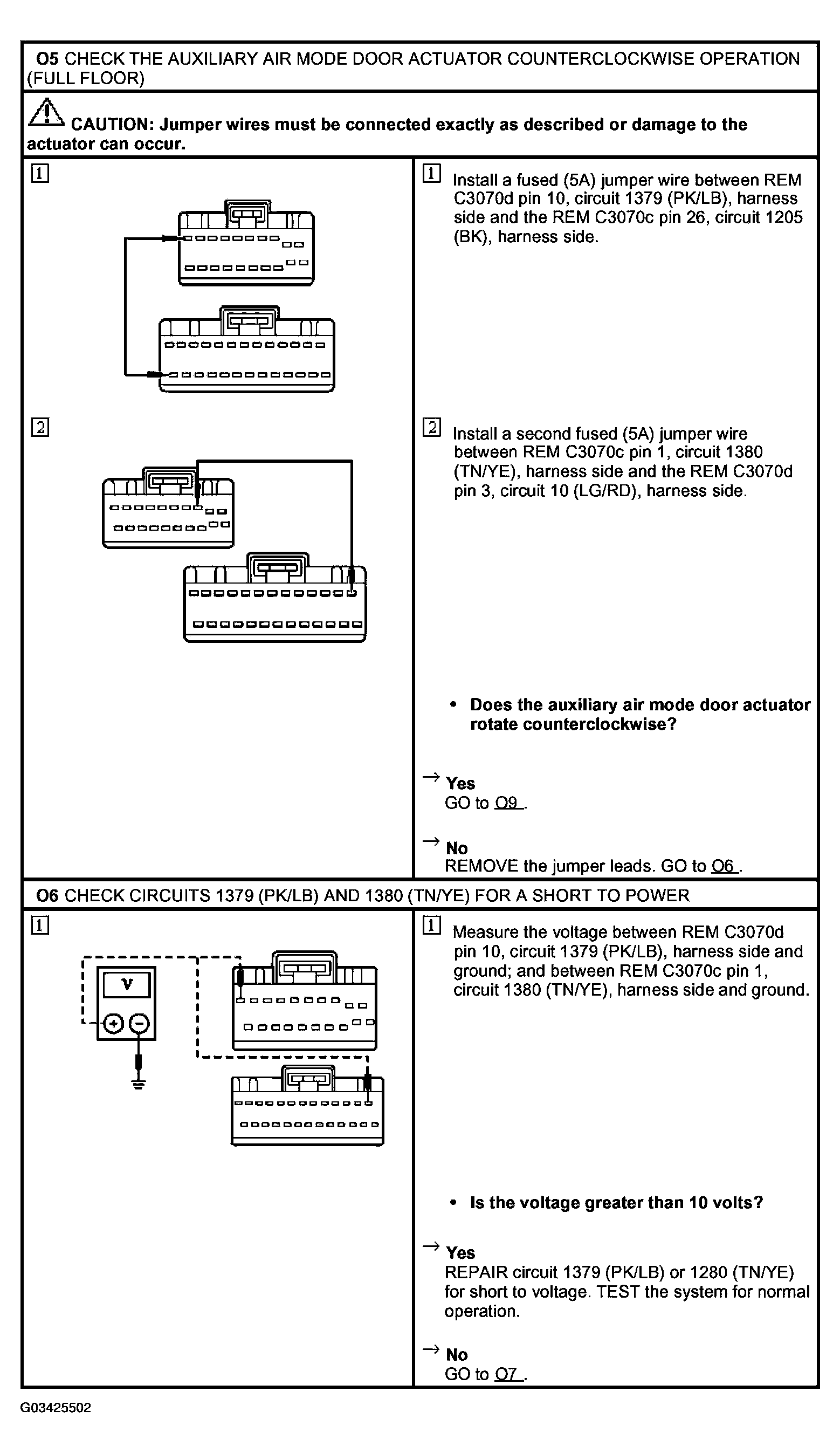

Fig 3: Pinpoint Test O: Panel/Floor Controls Not Operating Using Front/Rear Auxiliary Climate Controls (O5 & O6)

Courtesy of FORD MOTOR CO.

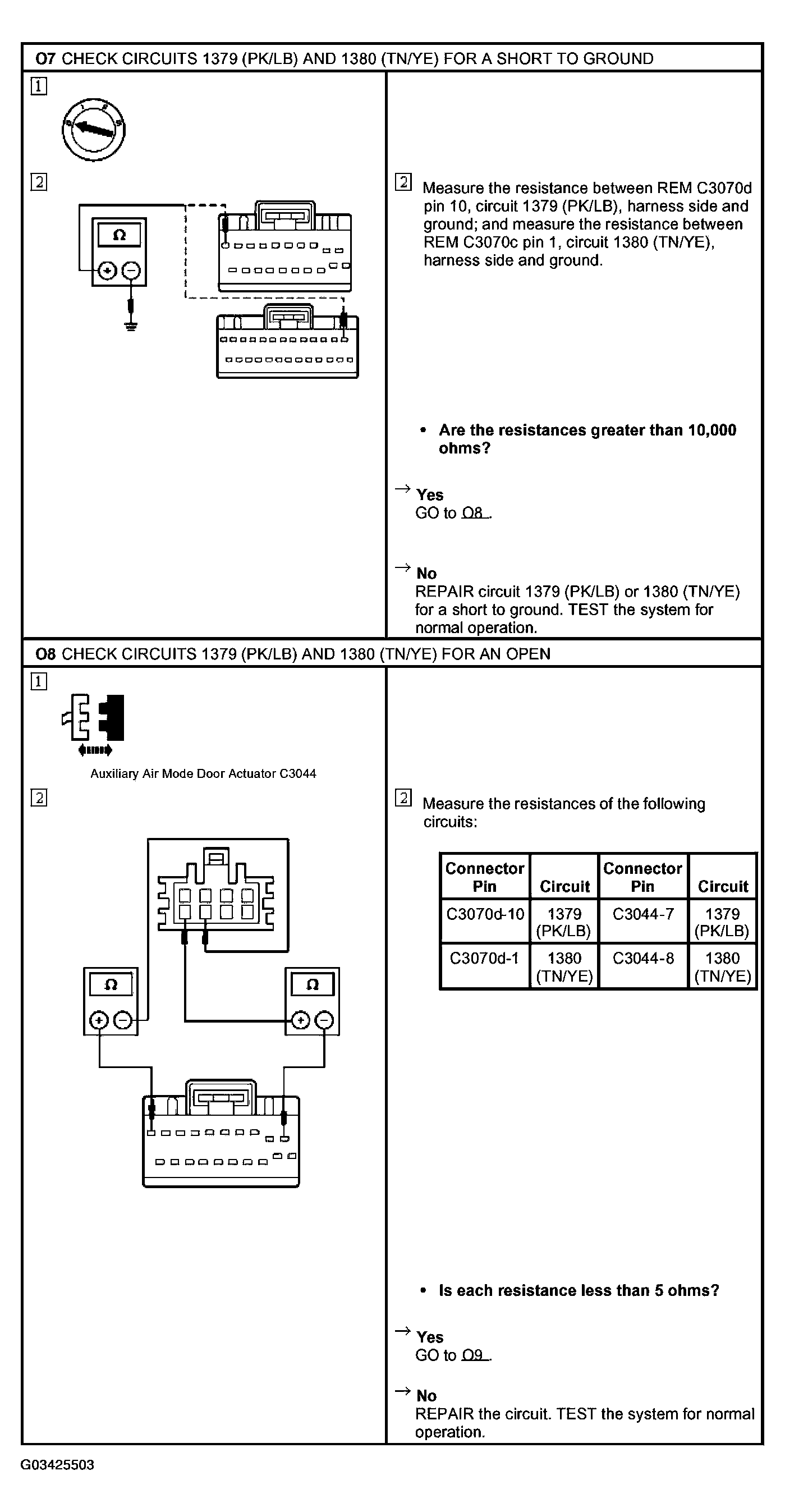

Fig 4: Pinpoint Test O: Panel/Floor Controls Not Operating Using Front/Rear Auxiliary Climate Controls (O7 & O8)

Courtesy of FORD MOTOR CO.

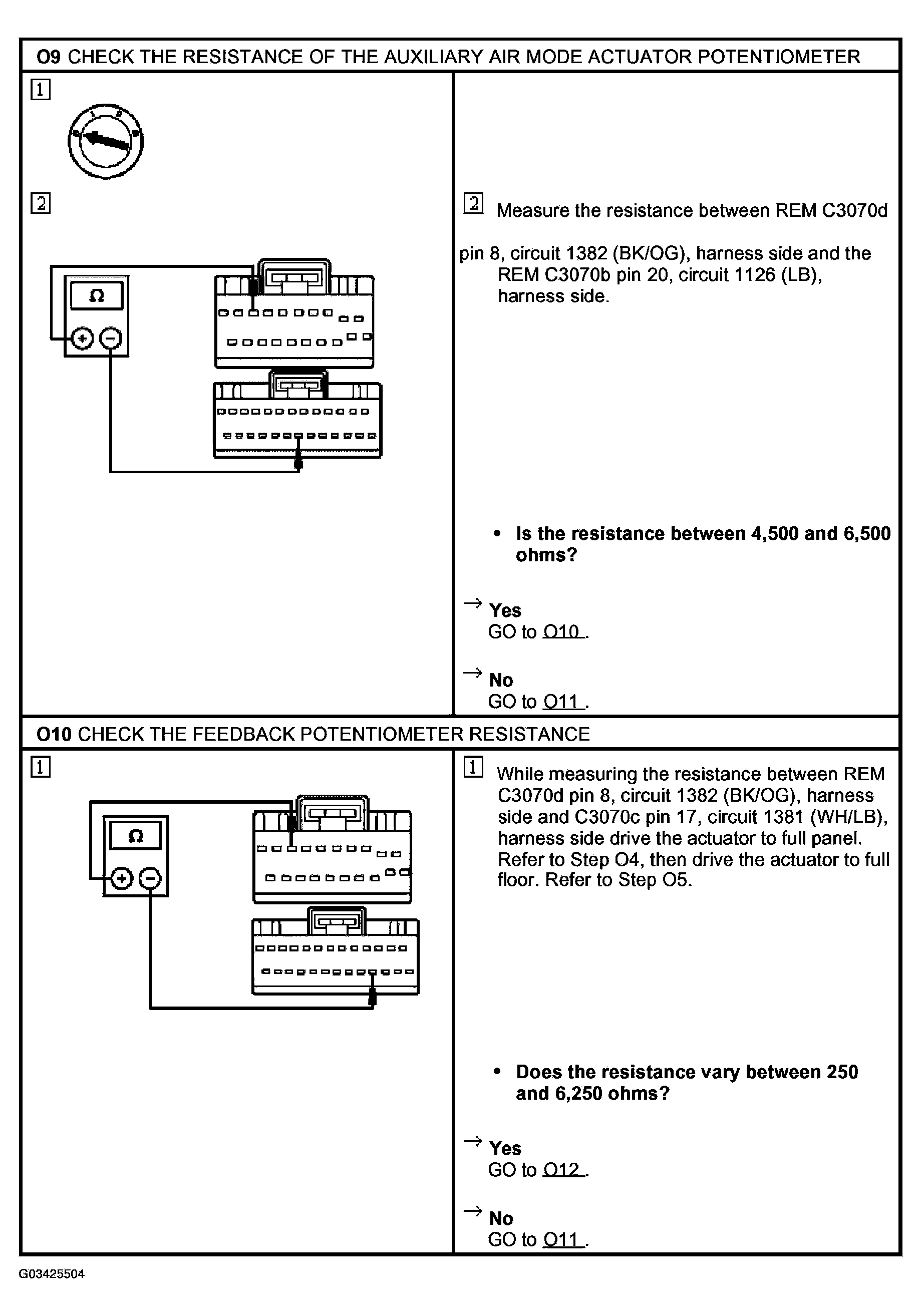

Fig 5: Pinpoint Test O: Panel/Floor Controls Not Operating Using Front/Rear Auxiliary Climate Controls (O9 & O10)

Courtesy of FORD MOTOR CO.

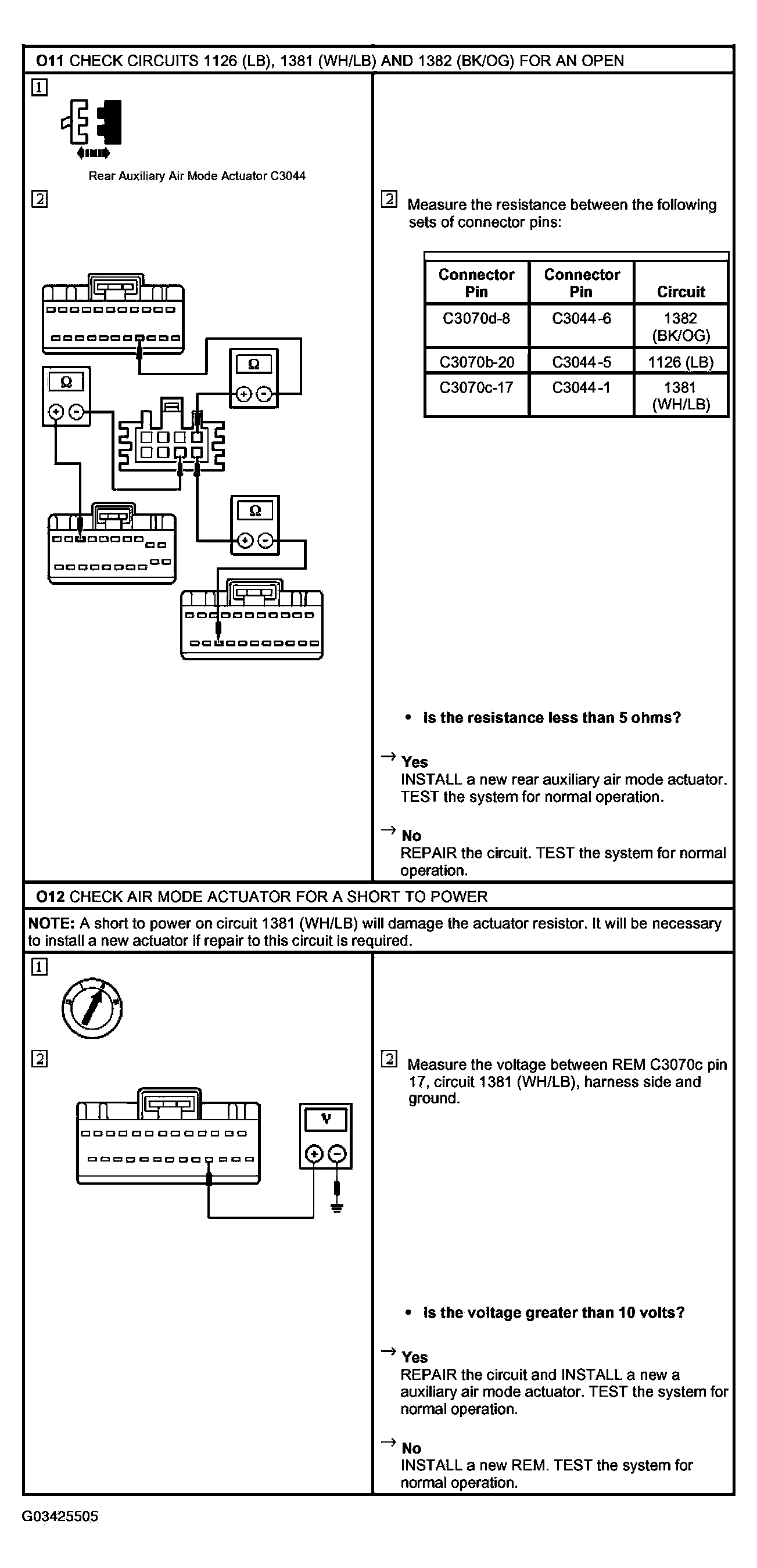

Fig 6: Pinpoint Test O: Panel/Floor Controls Not Operating Using Front/Rear Auxiliary Climate Controls (O11 & O12)

Courtesy of FORD MOTOR CO.
