Inline Connector End View (C219)

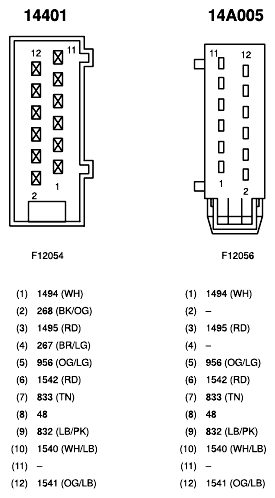

Fig 1: Identifying Inline Connector (C219)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
