Locks, Latches and Entry Systems - Module Controlled: Notes

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the appropriate SYSTEM WIRING DIAGRAMS article, Remote Keyless Entry (RKE) for schematic and connector information.

SPECIAL TOOL(S)

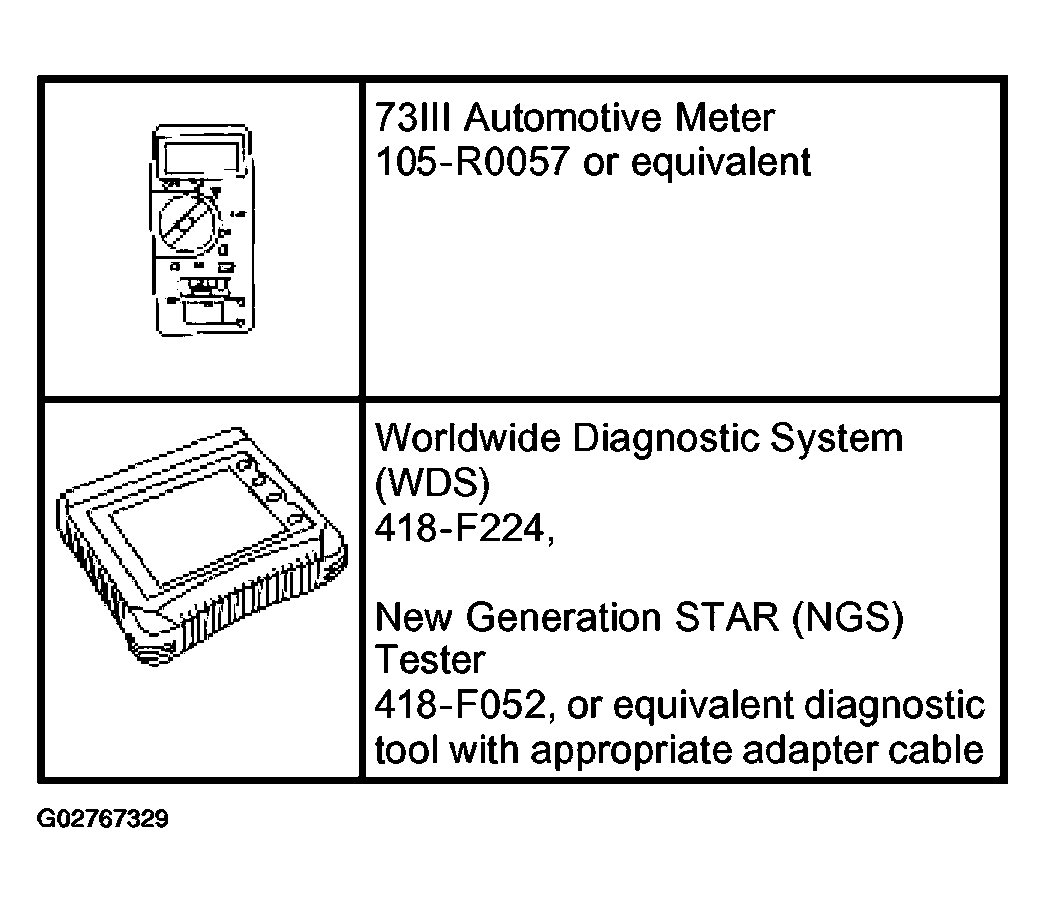

Fig 1: Identifying Special Tool
G02767329Courtesy of FORD MOTOR CO.
