Pinpoint Test K: The Remote Keyless Entry Transmitter Is Out Of Synchronization

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

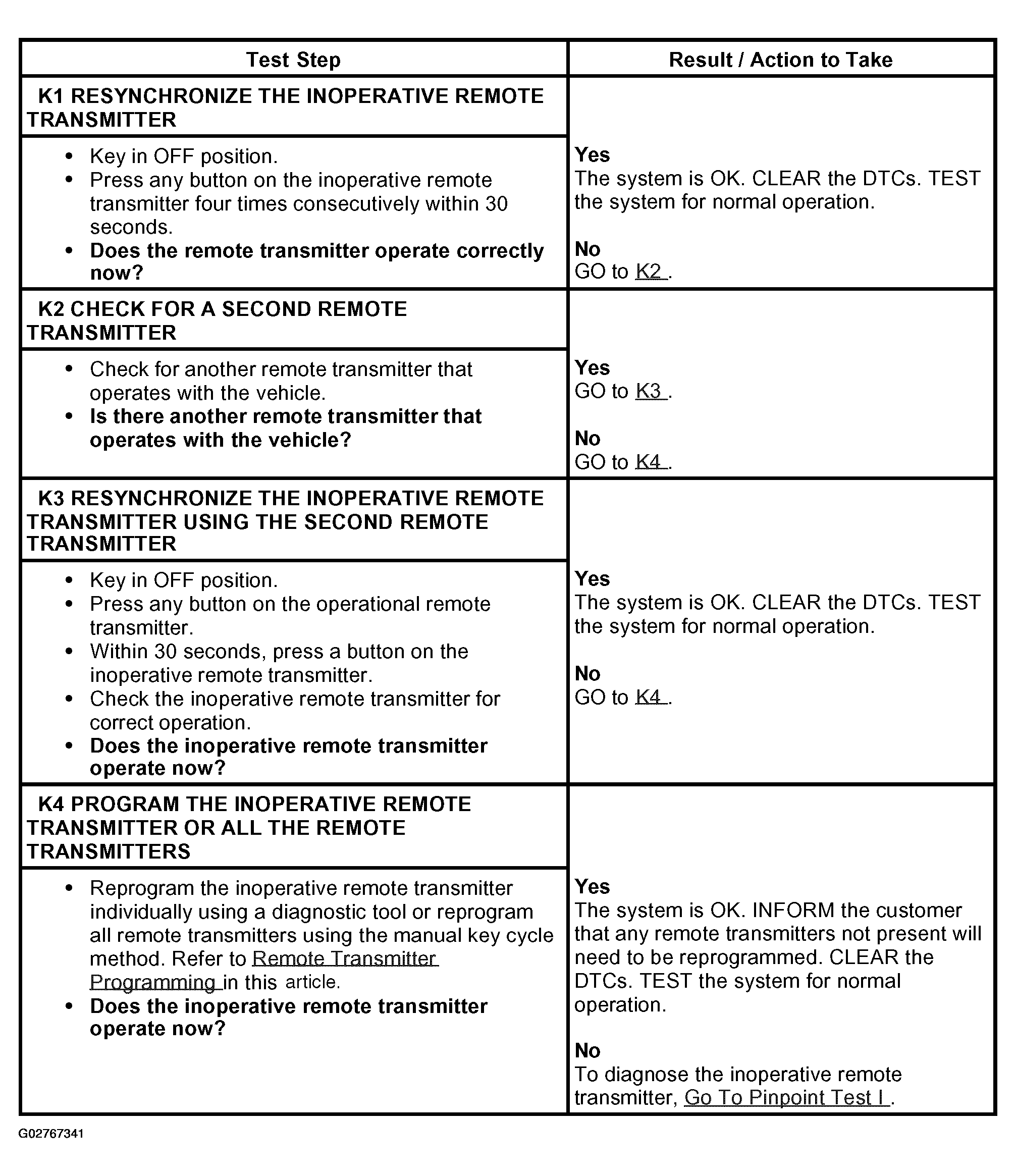

Fig 1: Pinpoint Test K: Remote Keyless Entry Transmitter Is Out Of Synchronization (Steps K1-K4)
G02767341Courtesy of FORD MOTOR CO.
