Test I

PINPOINT TEST I: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE USING THE REMOTE TRANSMITTER


Test I1:

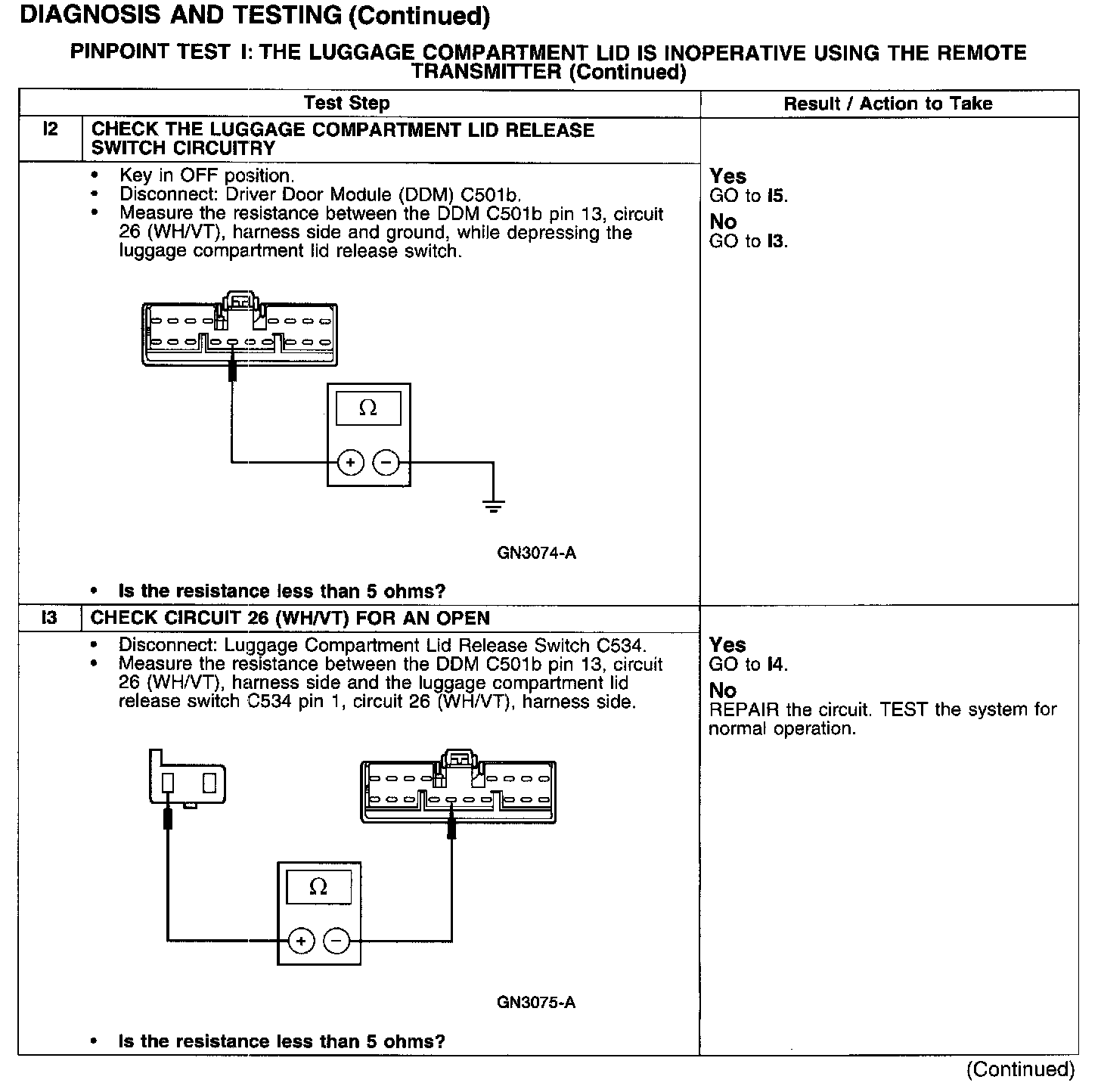

Test I2-I3:

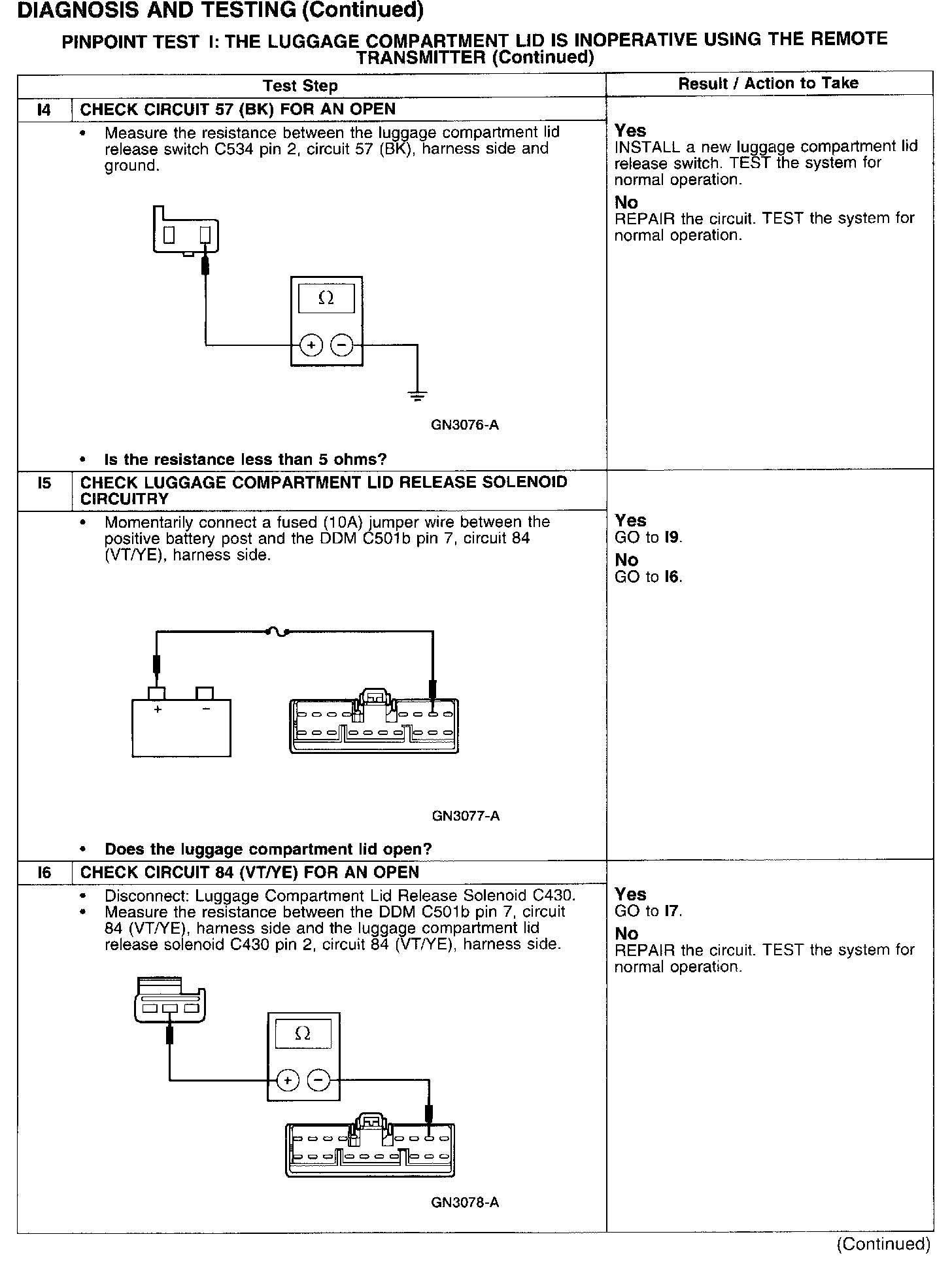

Test I4-I6:

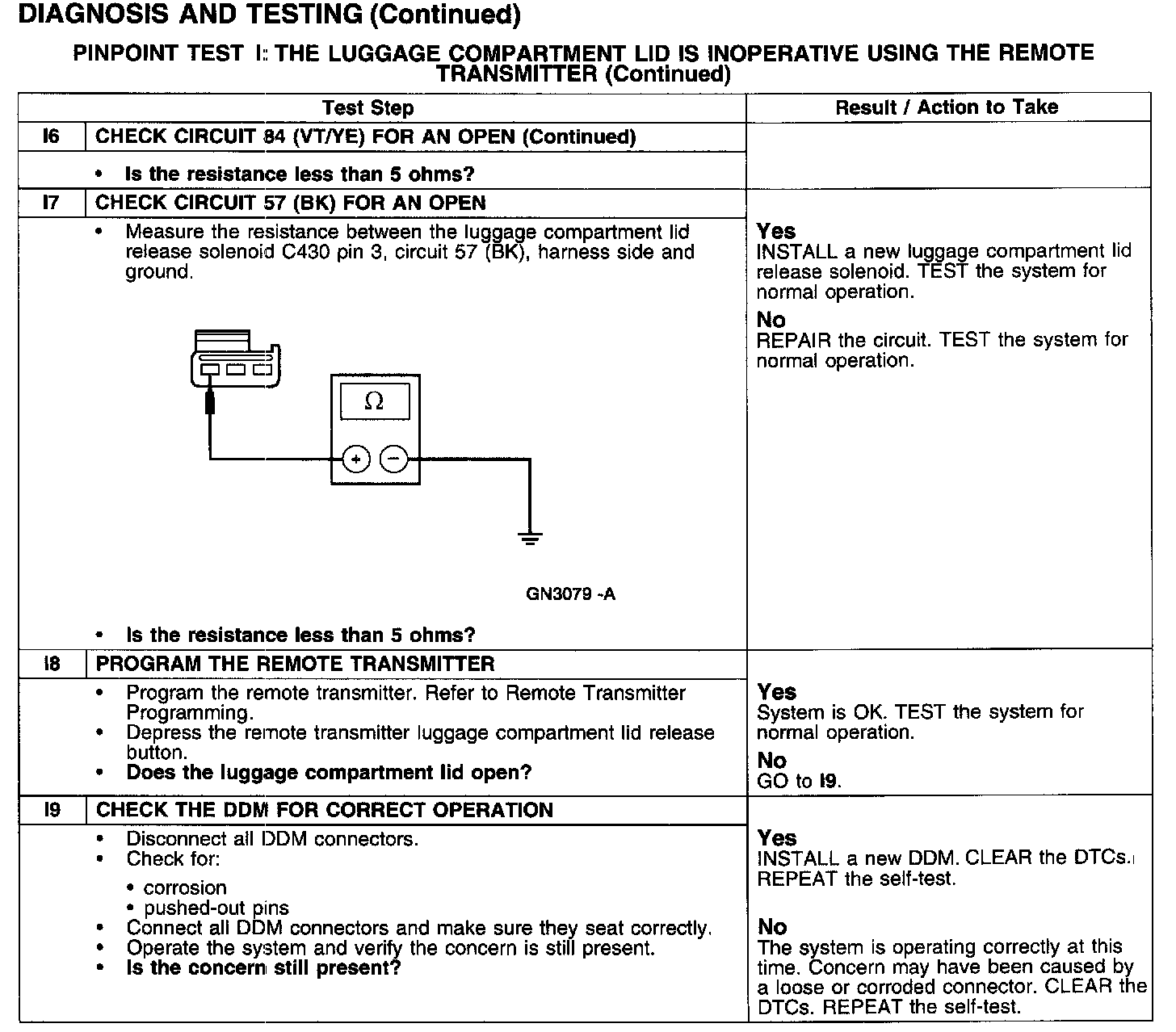

Test I6-I9:
