Steering Column

DESCRIPTION AND OPERATION

Part 1 Of 3:

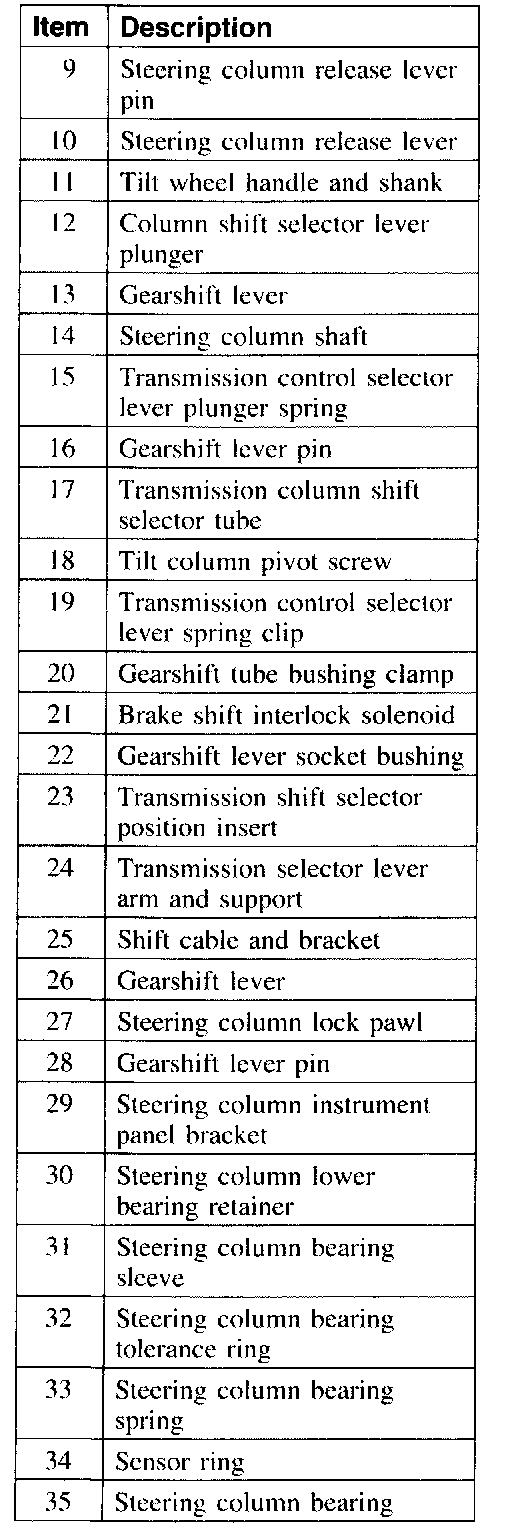

Part 2 Of 3:

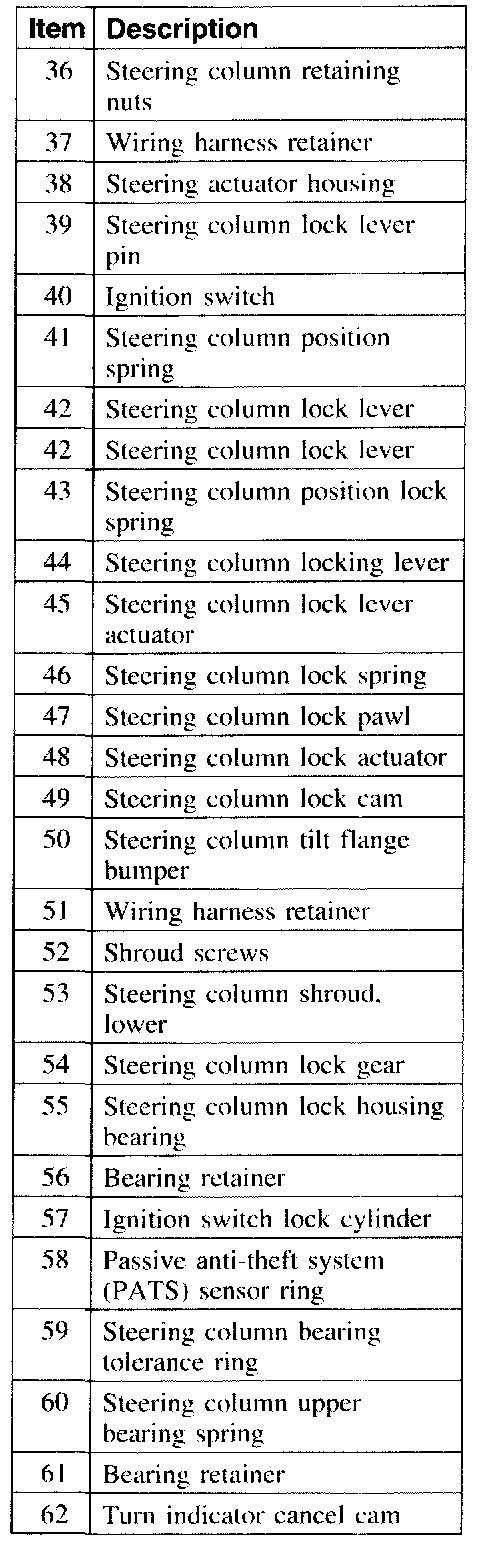

Part 3 Of 3:

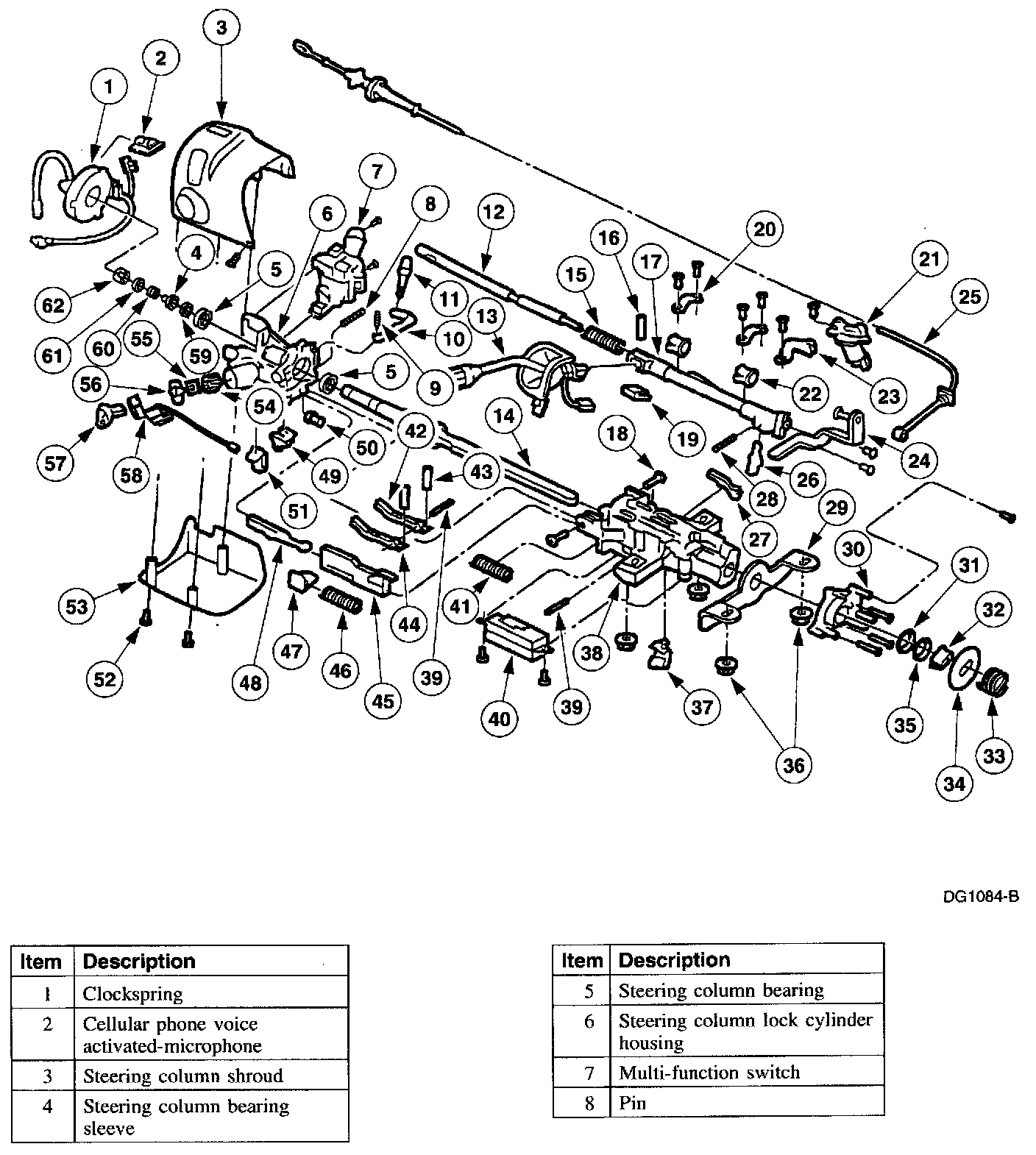

Steering Column

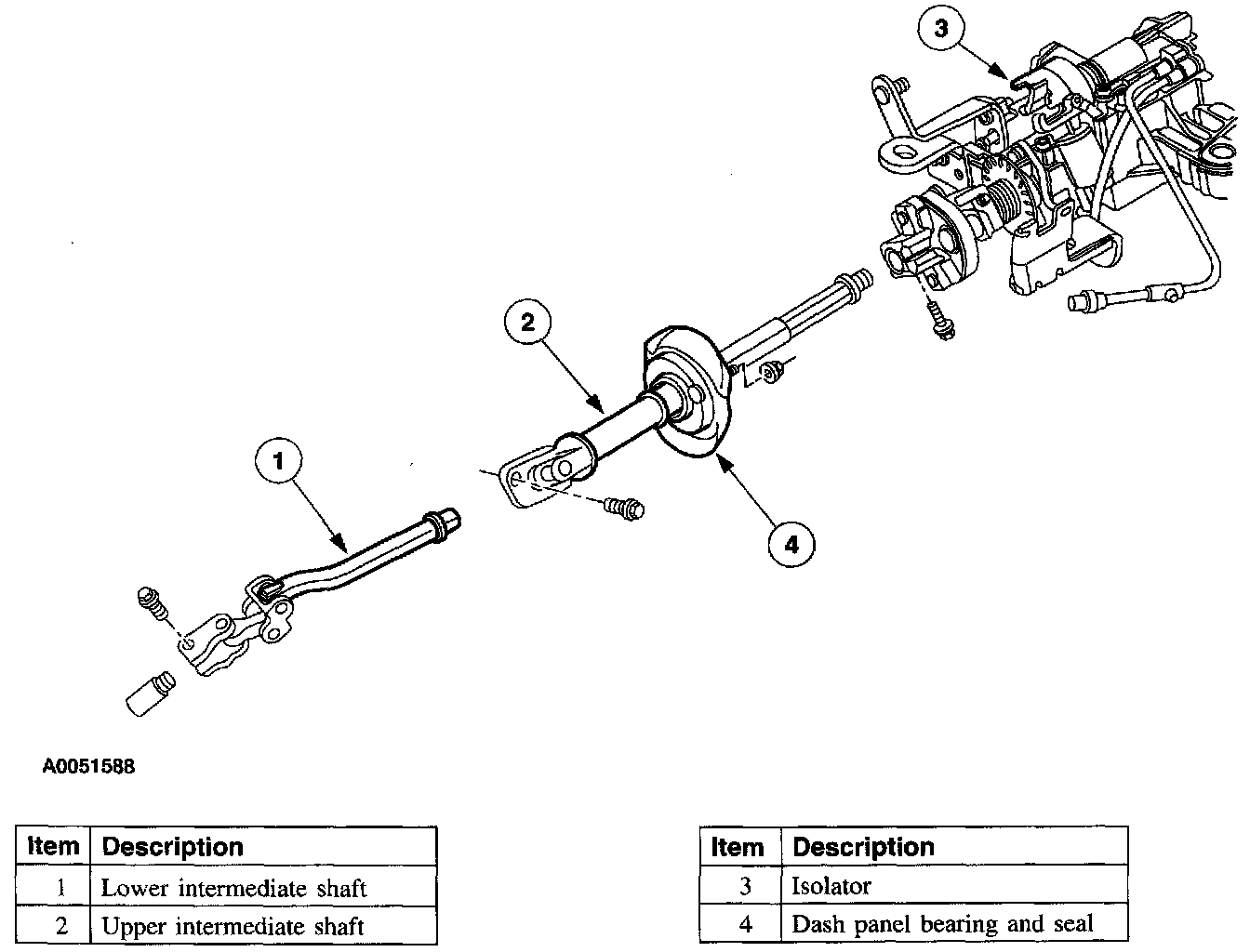

Intermediate Shaft Components
