Test H

PINPOINT TEST H: THE REAR AIR SUSPENSION MODULE (RASM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL


Test H1:

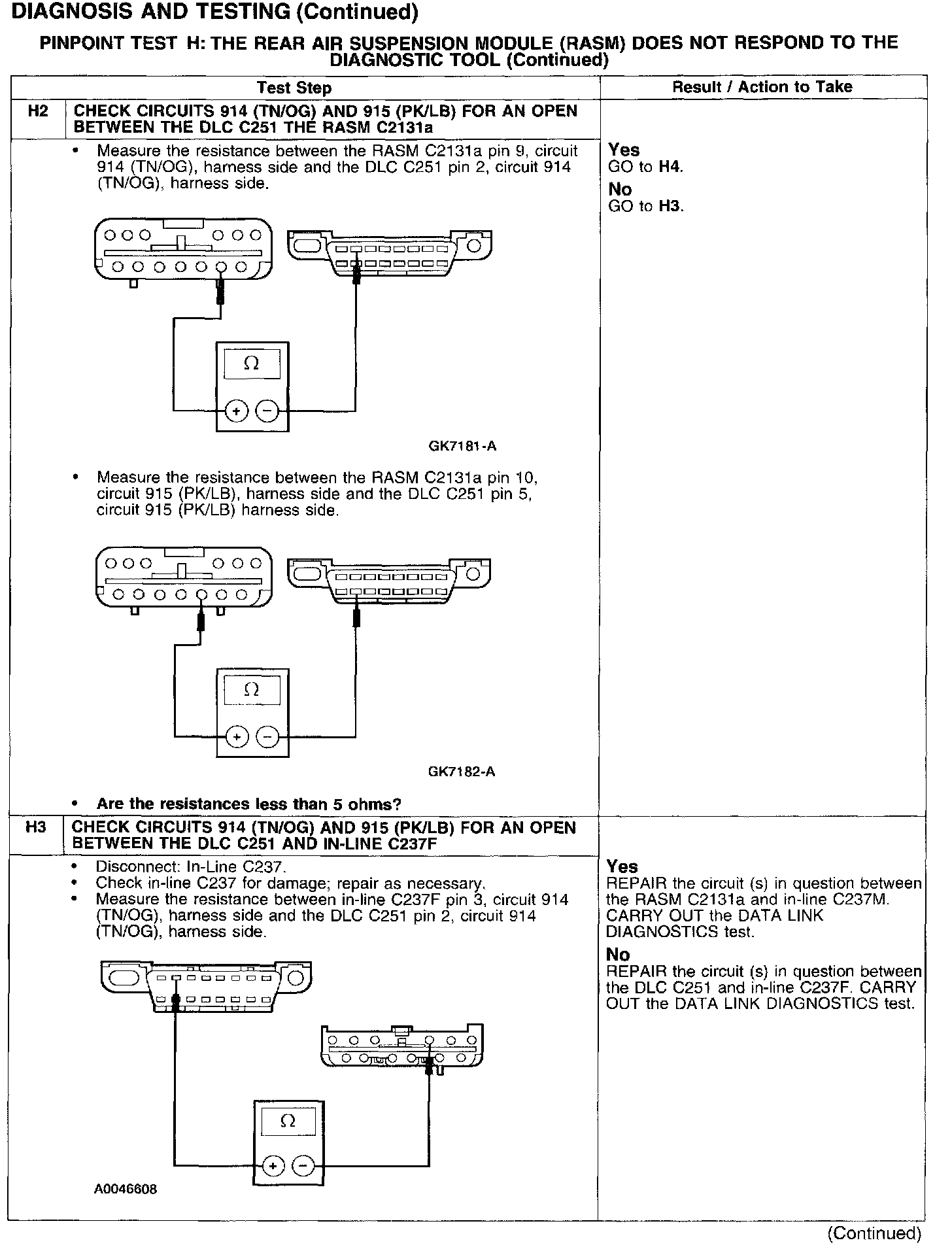

Test H2-H3:

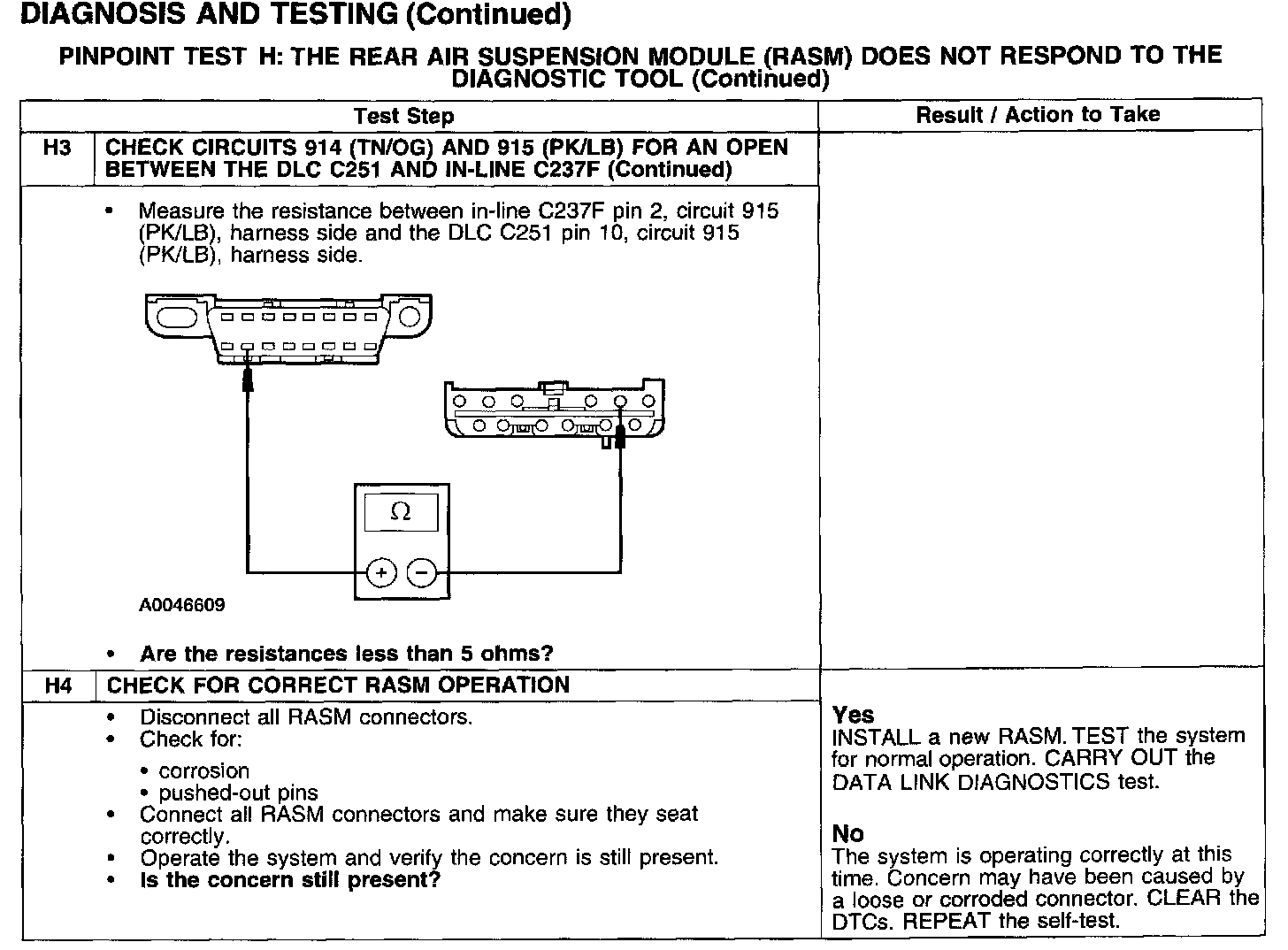

Test H3-H4:
