Test I

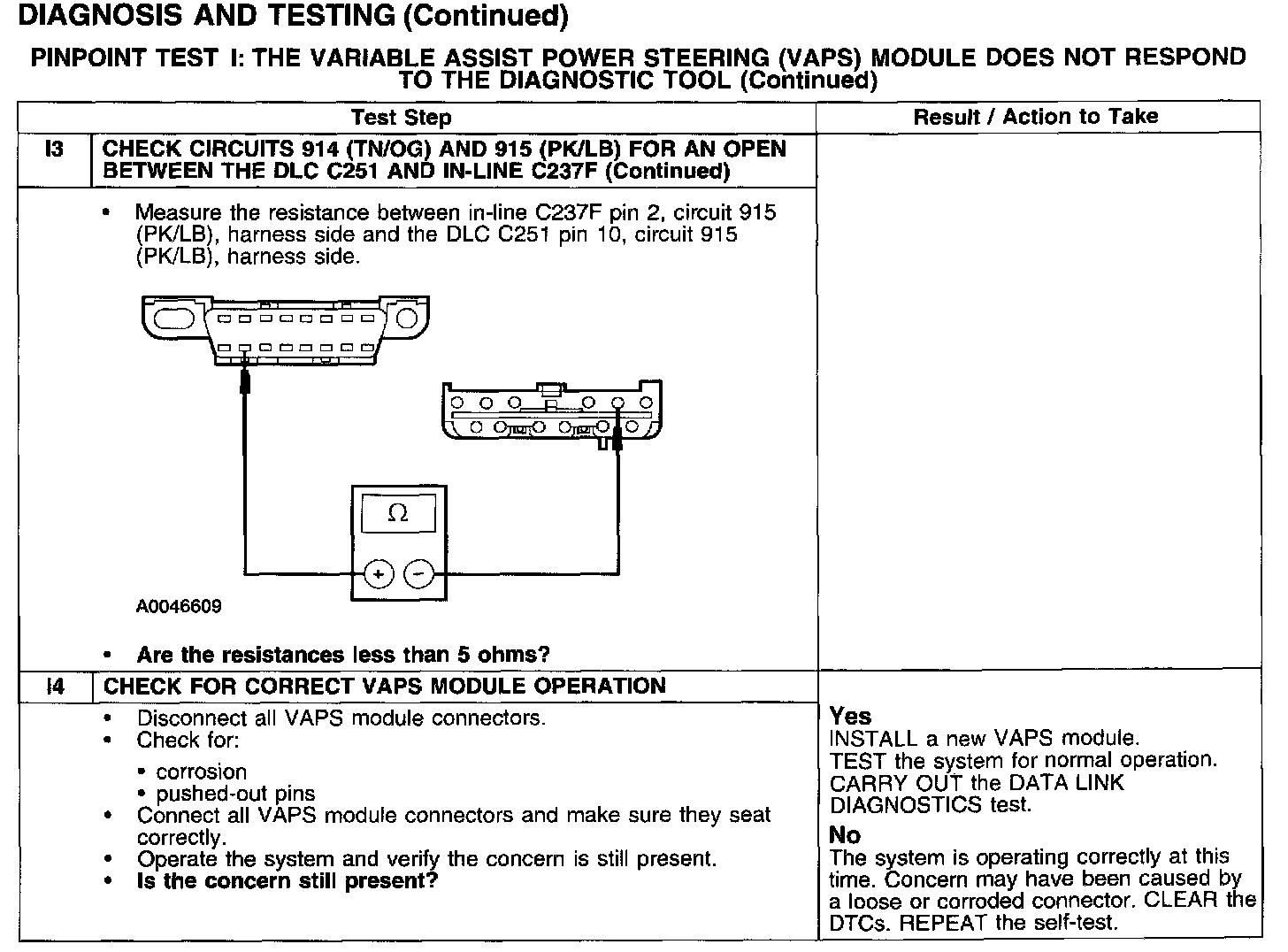

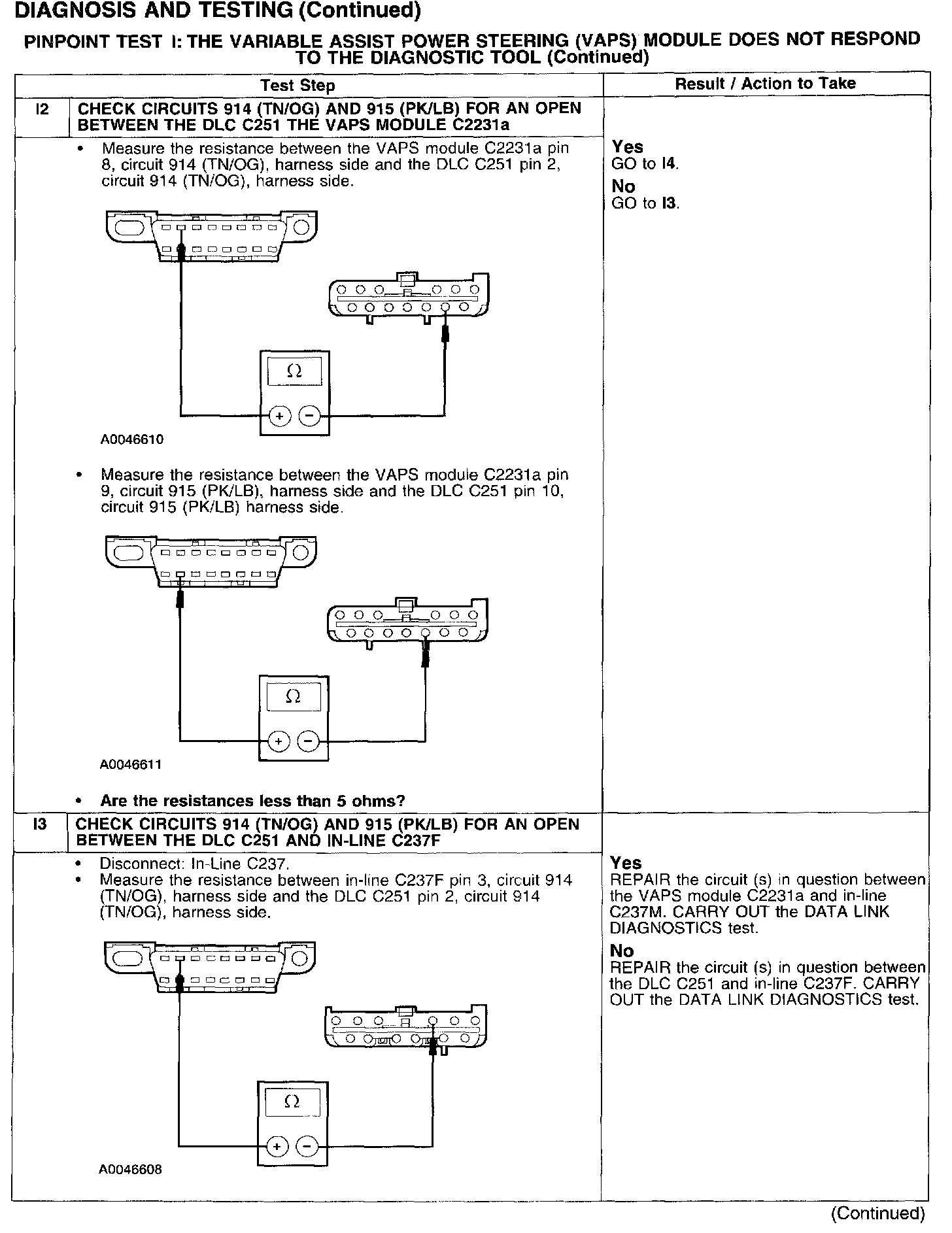

PINPOINT TEST I: THE VARIABLE ASSIST POWER STEERING (VAPS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
Test I1:
Test I2-I3:
Test I3-I4:
