Pinpoint Test M: The Driver Temperature Controlled Seat Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

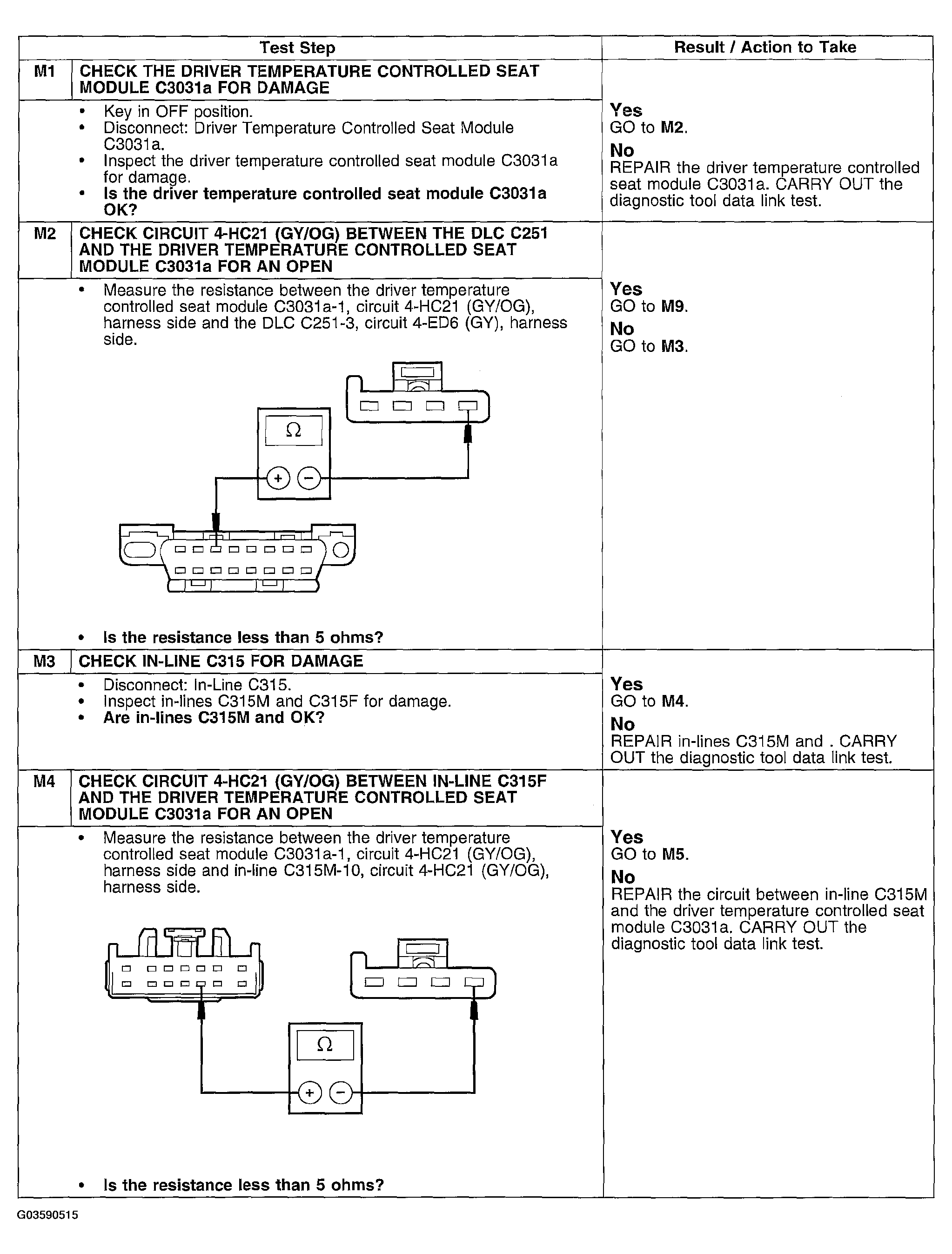

Fig 1: Pinpoint Test M: Driver Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (Step M1 - M4)

Courtesy of FORD MOTOR CO.

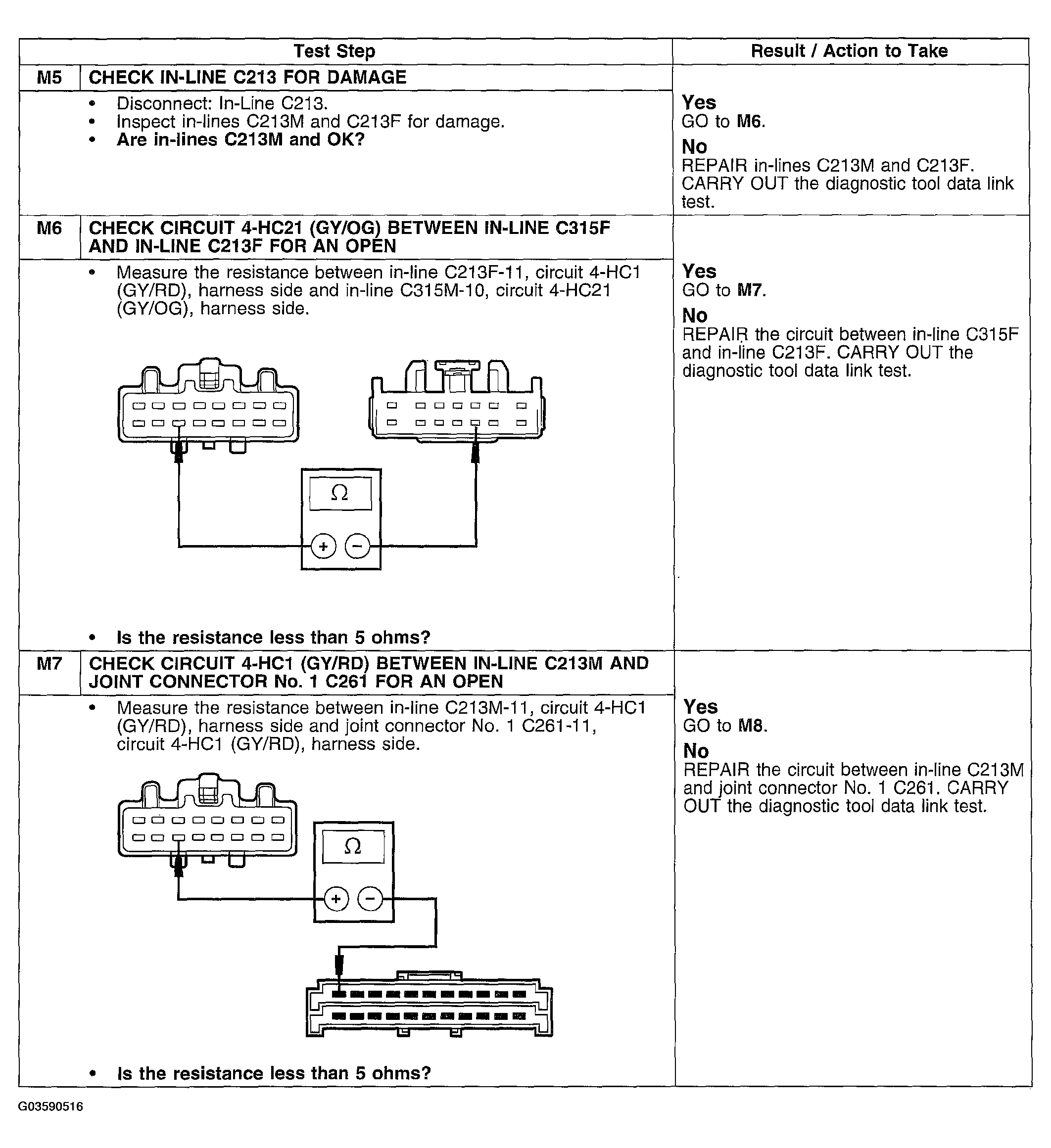

Fig 2: Pinpoint Test M: Driver Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (Step M5 - M7)

Courtesy of FORD MOTOR CO.

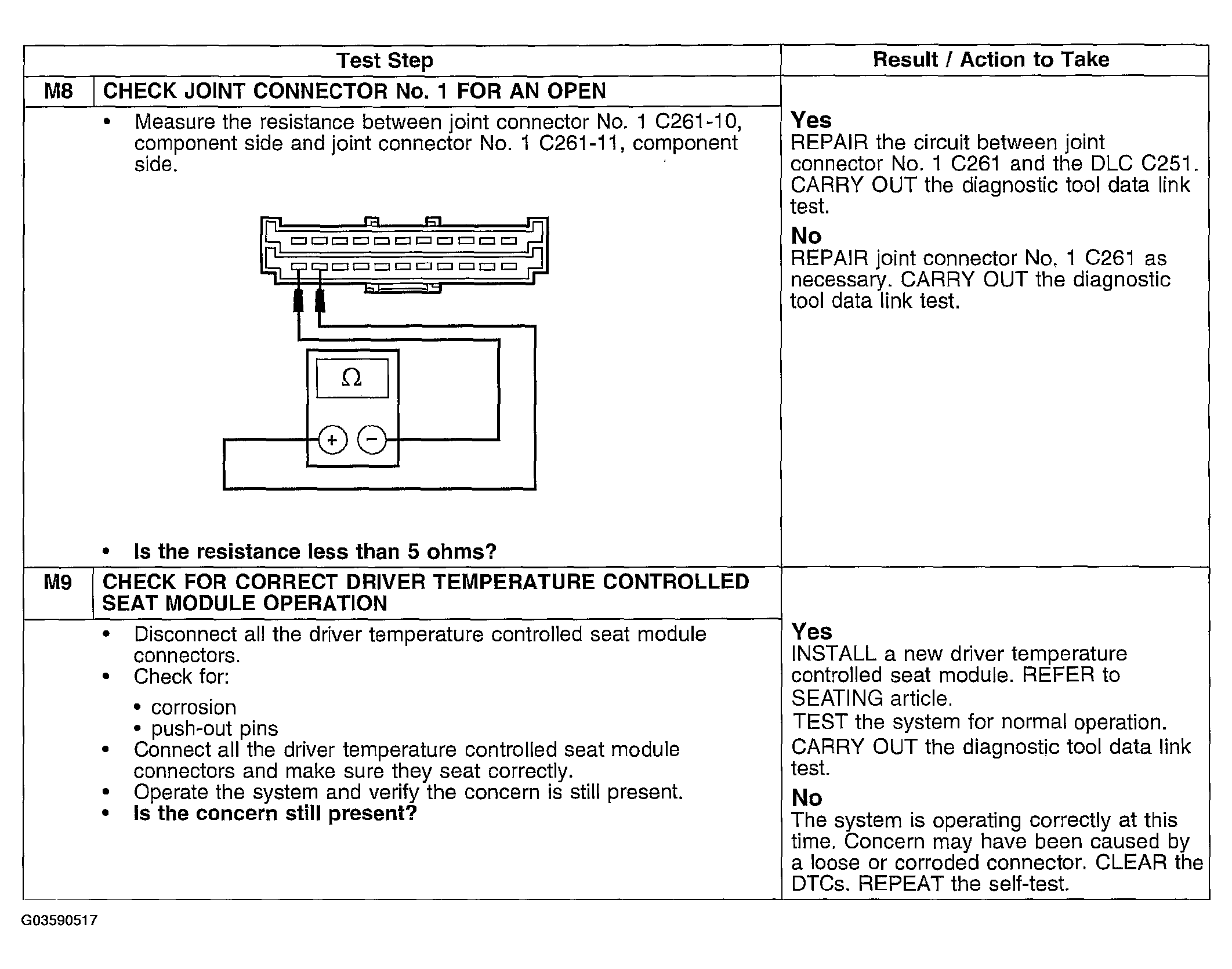

Fig 3: Pinpoint Test M: Driver Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (Step M8 - M9)

Courtesy of FORD MOTOR CO.
